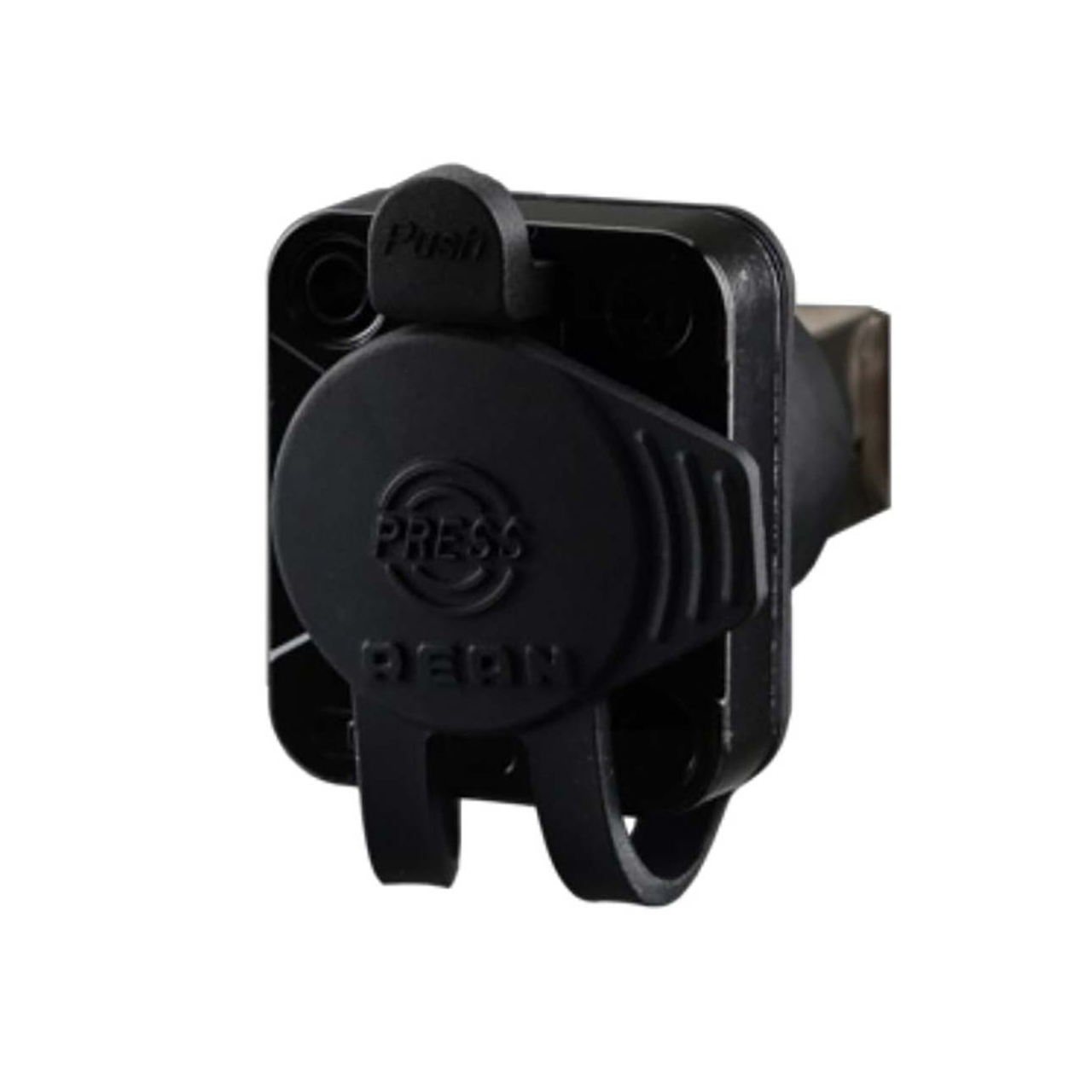

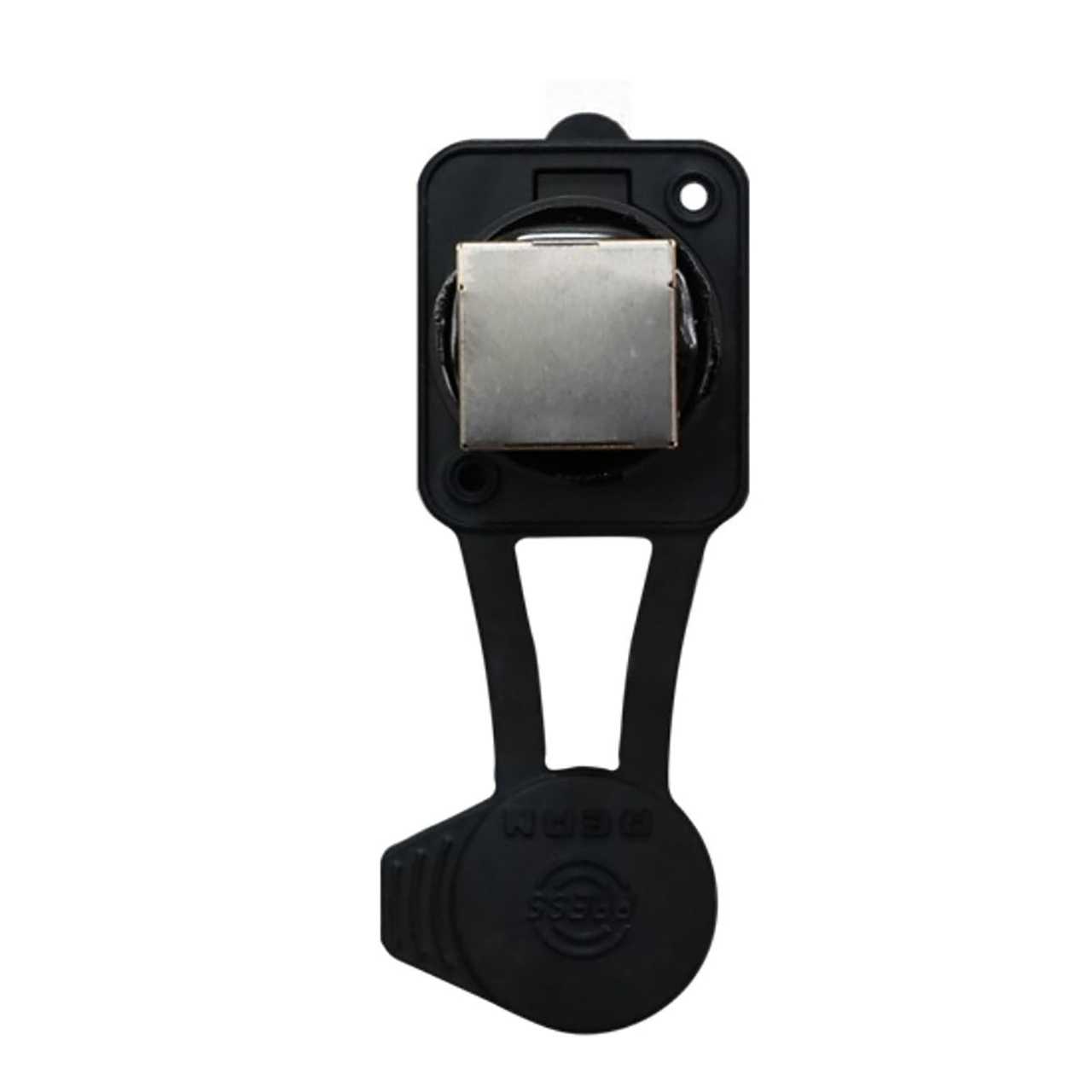

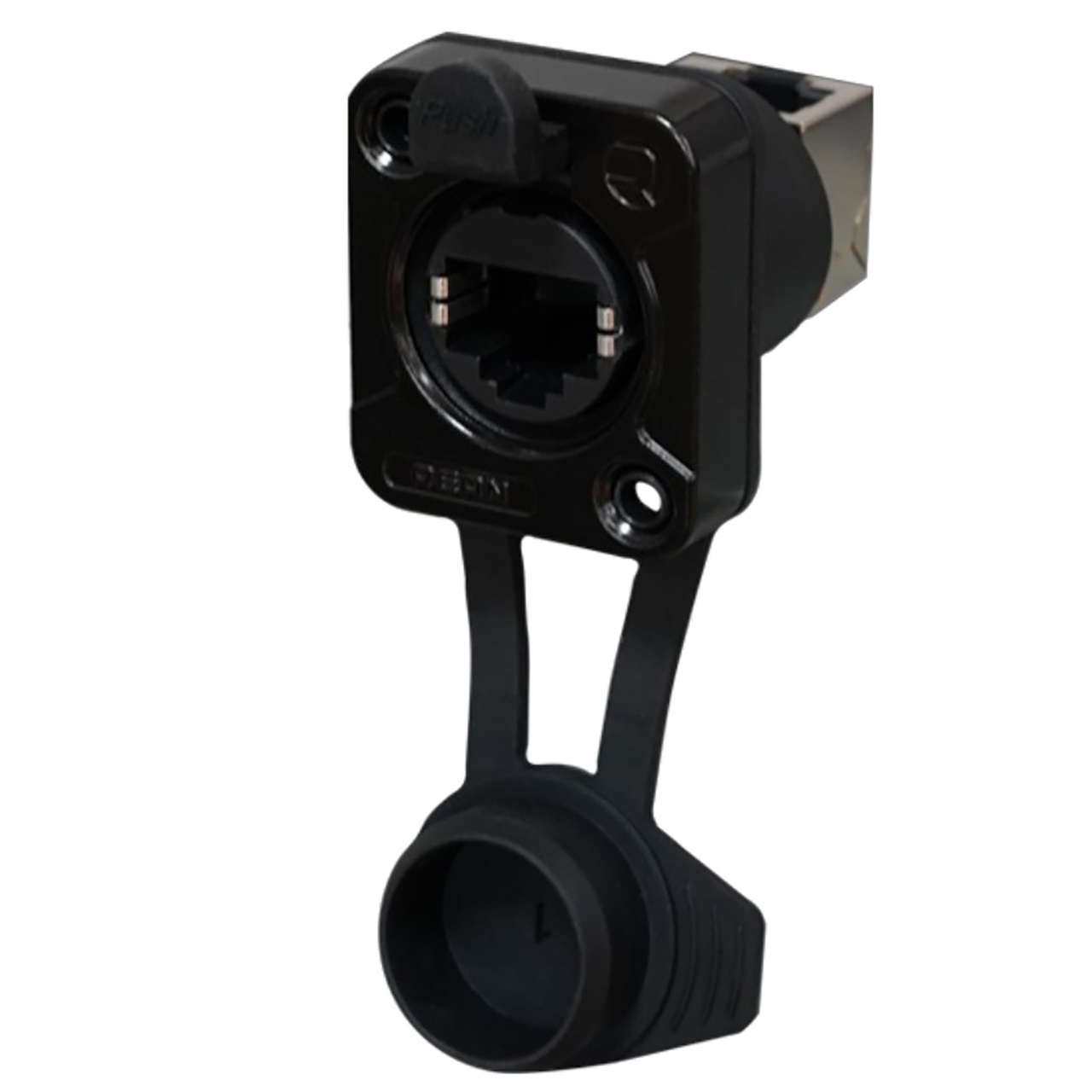

REAN RRE8F-Z-011-1 D Series Ethernet CAT5e Receptacle - Airtight - 90 degree upwards RJ45 Feedthrough - 100 Pack

RRE8F-Z-011-1 - Overview

• Features:

  • The RJ45 system for harsh and demanding environment
  • Airtight protection suitable for stage lighting application
  • IP65 protection when mating with REAN Z series connector or rubber cap closed
  • Network performance of Cat5e
  • UL94 V-0 rated materials
  • Rugged diecast shell with fashionable black plating
  • IP67 protection to prevent water intrusion into the device interior


• Specifications:

  • Contact Resistance: < 100mΩ
  • Dielectric Strength: 1kV DC
  • Frequency Range: 1MHz - 100MHz
  • Insulation Resistance: > 0.5GΩ
  • Rated Current per Contact: 1.5A
  • Rated Voltage: < 57V
  • Transmission Performance: CAT5e
  • Power over Ethernet: PoE++ acc. IEEE 802.3bt
  • Insertion Force: = 60 N
  • Withdrawal Force: = 60 N
  • Lifetime: > 1000 mating cycles

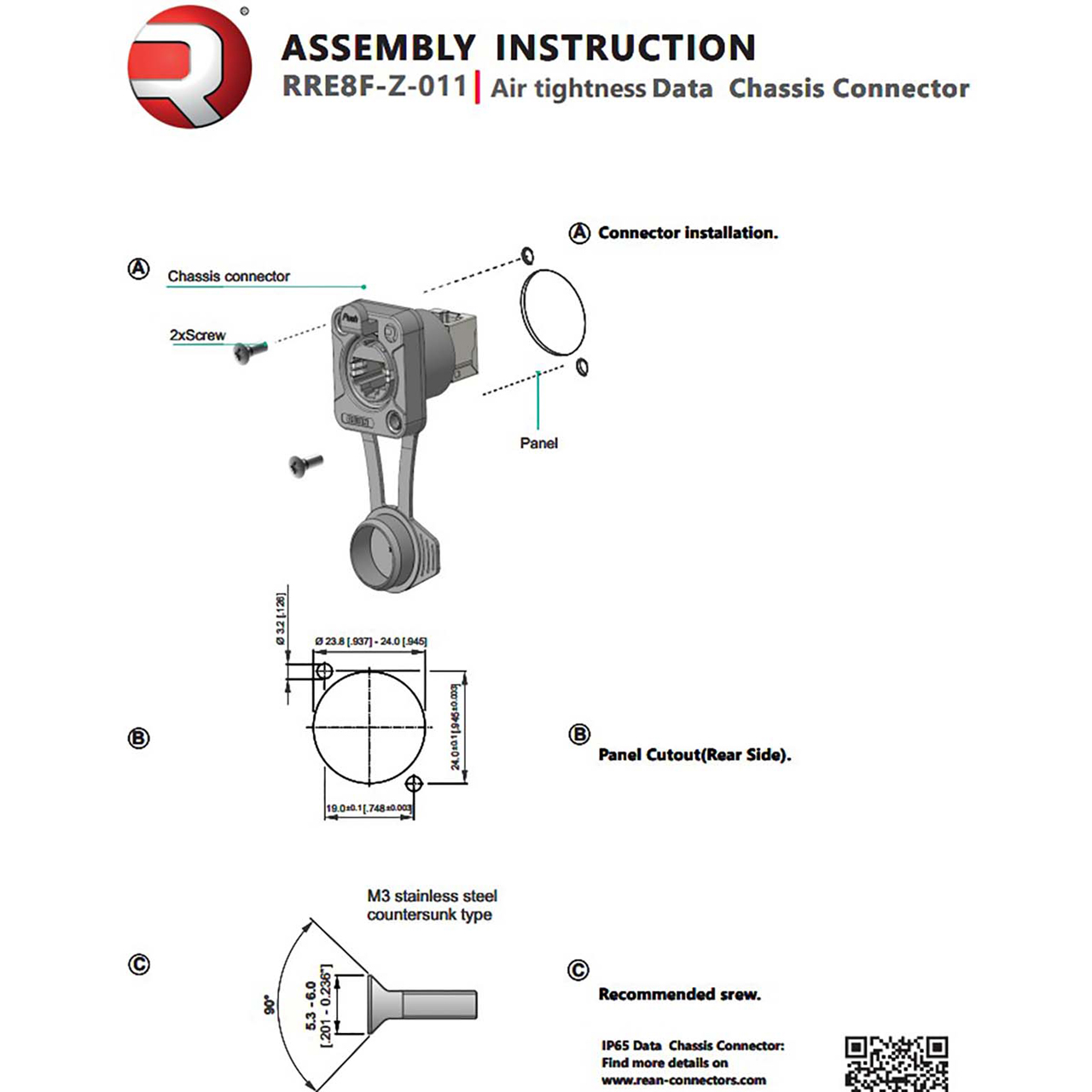

  • Panel Thickness: 9.5mm
  • Locking Device: Latch lock
  • Wiring: Feedthrough 90°UP
  • Contact Plating: Gold plating
  • Contacts: Bronze
  • Shell: Zinc
  • Insert: PA66
  • Shell Plating: Black plating
  • Flammability: UL94 V-0
  • Standard Compliance: TIA/EIA 586B, IEC11801
  • Protection Class: IP65 and Airtight
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)
