Rane ME 15S 2 Channel 2/3 Octive microGraphic EQ -1RU

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Rane ME 15S 2 Channel 2/3 Octive microGraphic EQ -1RU

    Manufacturer: Rane Corporation

    Item #: RNE-ME15S   •   MFG #: ME 15S




    Our Price:$199.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

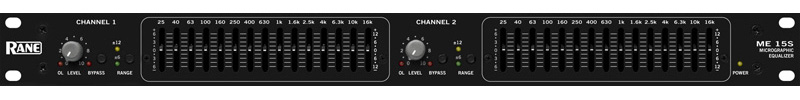

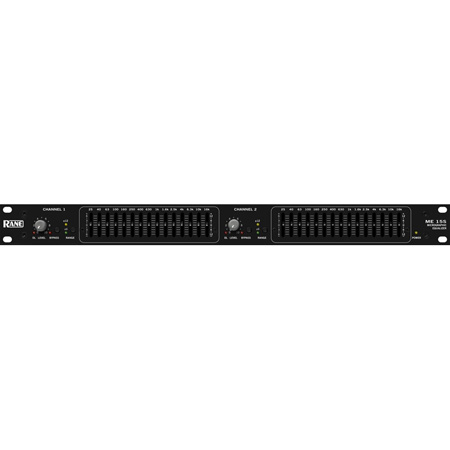

      The Rane ME 15S microGraphic Equalizer is a two-channel, 2/3-octave design with 20 mm sliders in a single rack space unit. It features a Range switch for high slider resolution in the +/-6 dB mode, equivalent resolution to 45 mm sliders found on double rack-space models. The +/-12 dB mode provides a wide range of control over system audio.

      The active filter sections feature Rane's innovative constant-Q (constant bandwidth) design. Constant-Q means the bandwidth of each individual filter is guaranteed to be narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the type of correction curve demanded by even the most unusual acoustic surroundings. This differs dramatically from conventional designs of the past, encumbered with the unfortunate characteristic of changing bandwidth when changing boost/cut amounts.

      Front panel controls and indicators, aside from the sliders and the filter range switches, include an overall Level control for each channel as well as overload indicators. The rear of the unit provides both 1/4" Tip-Ring-Sleeve and XLR connectors for each of the Inputs and Outputs. The Inputs and Outputs are fully actively balanced. Unbalanced sources may be connected through the use of either "mono" 1/4" connectors or by tying the ring to the sleeve on TRS type plugs.

      The ME 15S replaces the ME 15B with a new internal universal switching power supply (85-240 VAC). All other features are the same


      • Features

        • Constant-Q Bandwidth Design
        • Overall Level Control
        • 20 mm Filter Slide Controls
        • +/-6 dB or +/-2 dB Slider Range
        • Passive Bypass Switch
        • Infrasonic, Ultrasonic, & RFI Filters
        • Grounded Center Detents at 0 dB
        • Fully Balanced XLR Inputs and Outputs
        • 1/4" TRS Balanced/Unbalanced Inputs and Outputs
        • NEW! Universal internal switching power supply (85-240 VAC)
