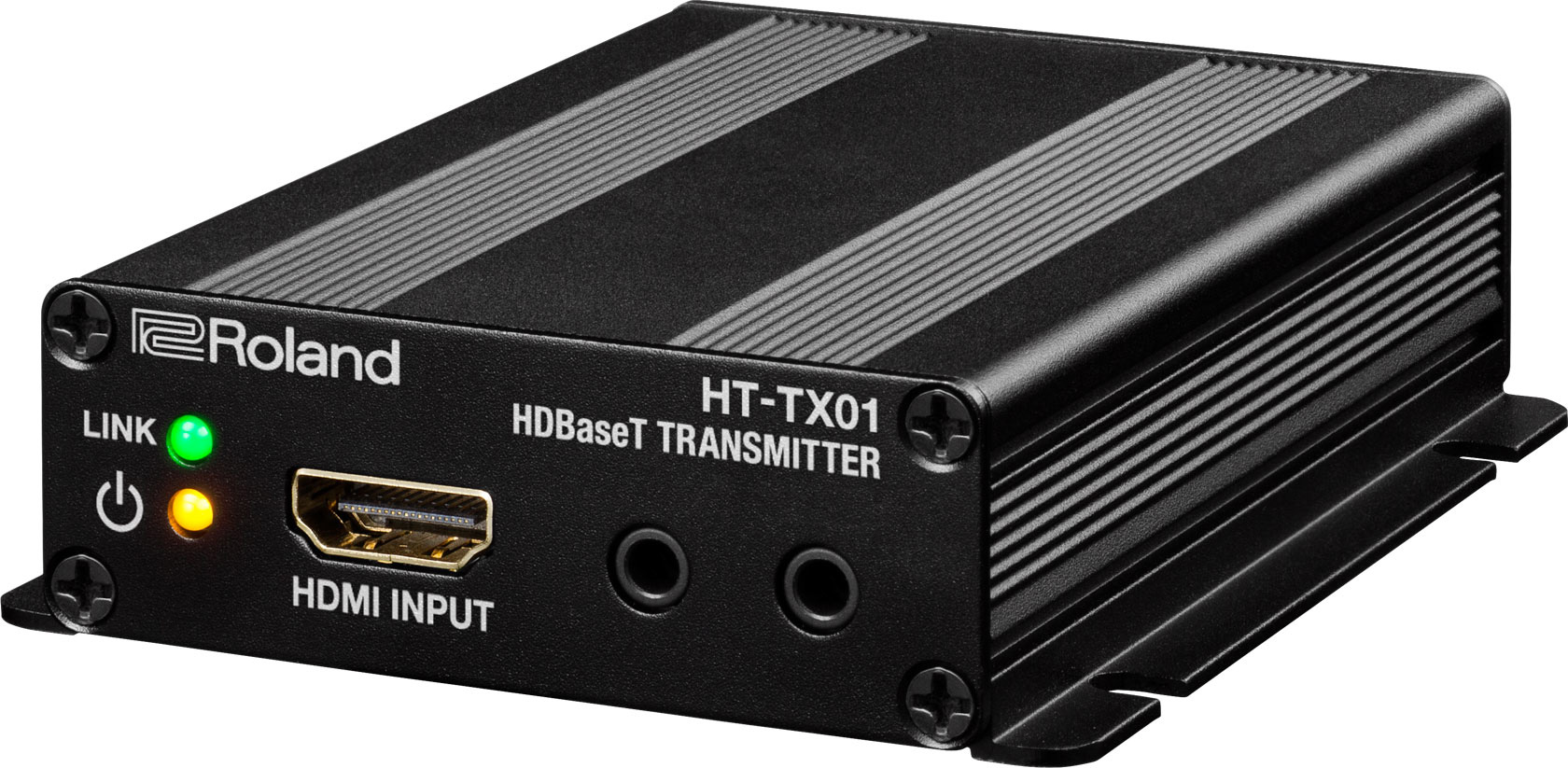

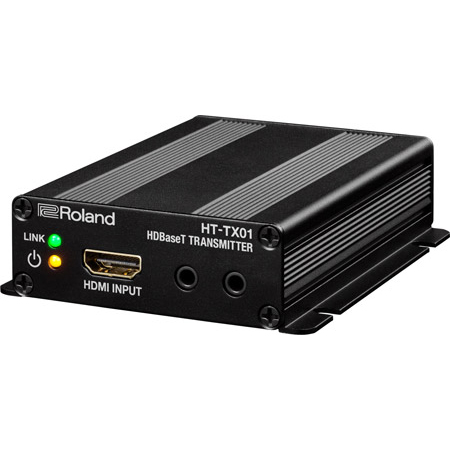

Roland HT-TX01 HDBaseT Transmitter

ITEM #: ROL-HT-TX01 MFG #: HT-TX01

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ROL-HT-TX01

HT-TX01 - Overview

HDBaseT-compatible receiver capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.

Long-distance HDMI transmission

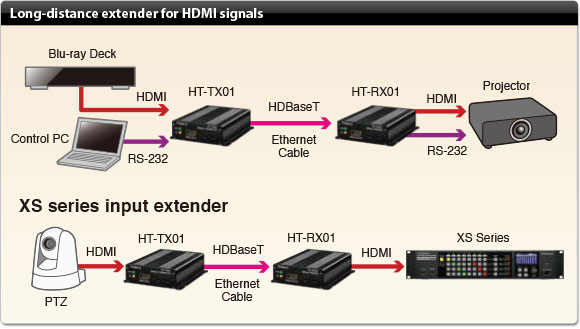

Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.

  • Features:

    • Converts HDBaseT signals to HDMI output
    • Maximum 1080/60p and WUXGA support for HDMI
    • HDCP compliant
    • Capable of RS-232C transmission

  • Specifications:

    • Input Formats
    • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
    • *RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
    • *The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
    • *1920 x 1200/60Hz : Reduced blanking

    • Audio Formats
    • The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio

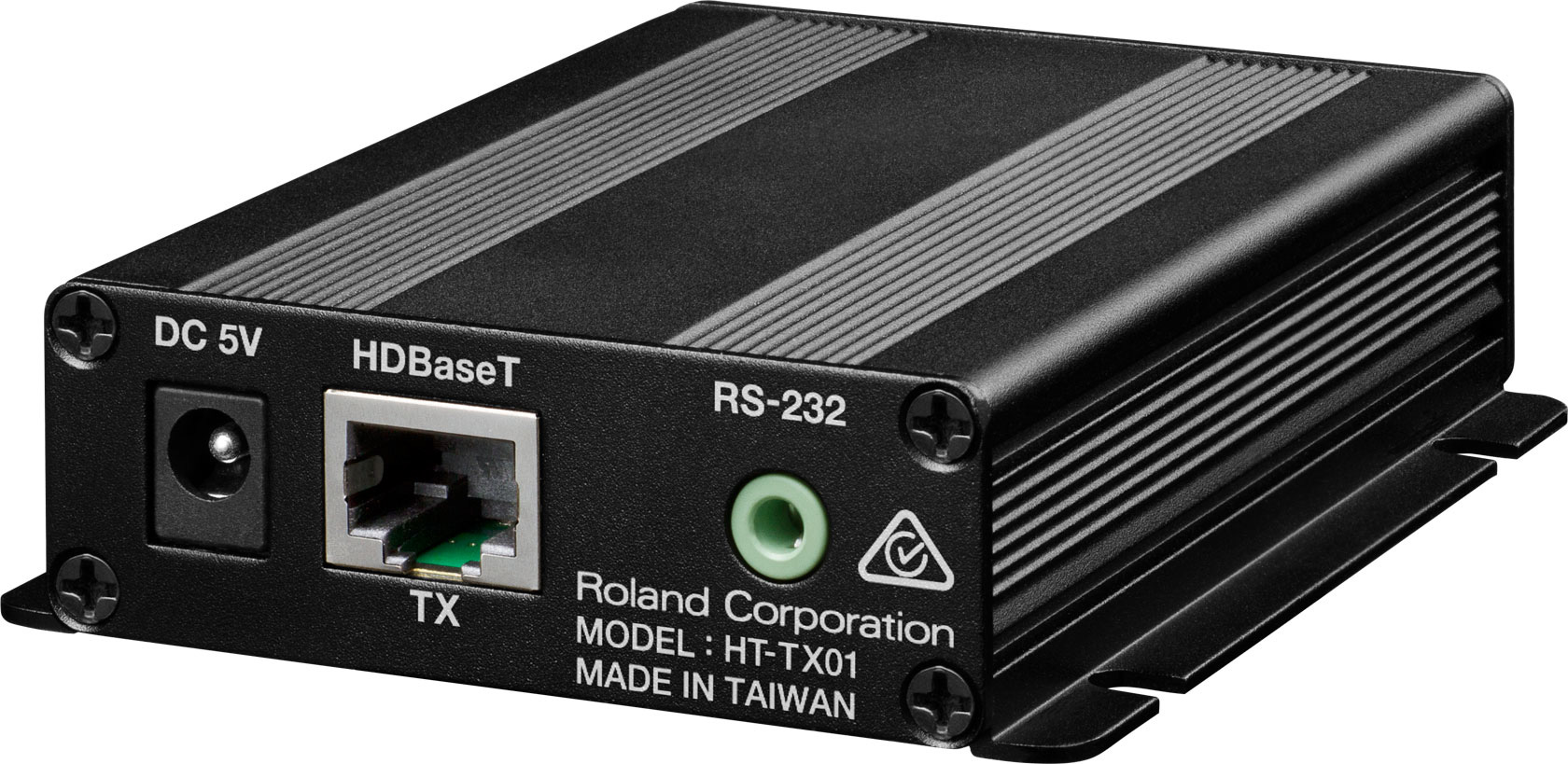

    • Input Connectors
    • HT-TX01: HDMI x 1 : Type A 19 pins
    • HT-RX01: RJ45 x 1

    • Output Connectors
    • HT-TX01: RJ45 x 1
    • HT-RX01: HDMI x 1 : Type A 19 pins

    • Other Connectors
    • RS-232 x 1 : 9 pins D-sub type
    • *when using additional RS-232 cable

    • Transmission distance
    • The maximum is 100m (328 ft)
    • *To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
    • *The available distance depends on the quality of the LAN cable.

  • GTIN:

    0761294507148
