Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables
  • Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables
  • Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables
  • Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables
  • Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables
  • Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables

Questions? Ask a Markertek Expert:
800-522-2025 Email

Roland V-02HD PAC1 2 Input HDMI Switcher - with FS-5 Foot Pedal/Phono Cable & Two 16 Foot HDMI Cables

Manufacturer: Roland Professional AV

Item #: ROL-V-02HD-PAC1   •   MFG #: V-02HD PAC1



List Price:$830.00
Our Price:$650.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

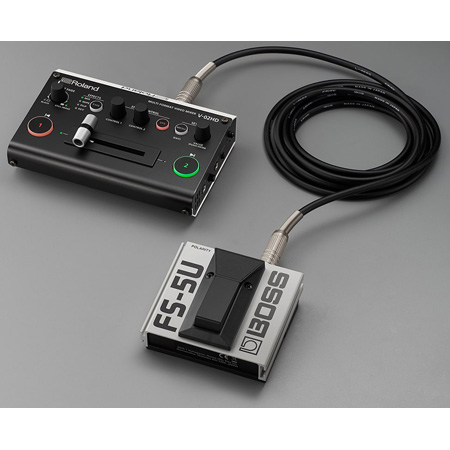

    The Roland V-02HD PAC1 Video Mixer Bundle is assembled to provide you with a portable micro switcher, a BOSS momentary unlatching footswitch pedal, one phono cable, and two HDMI cables. The V-02HD micro switcher handles HD footage and is small enough to fit in your gear bag. It can be mounted onto a standard tripod, so it doesn't require a rack arrangement to use it on location. Its small size and lightweight design make it well suited for use on mobile video productions.

    Roland's versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects / composition. Save on space and headaches by packing a V-02HD; the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.

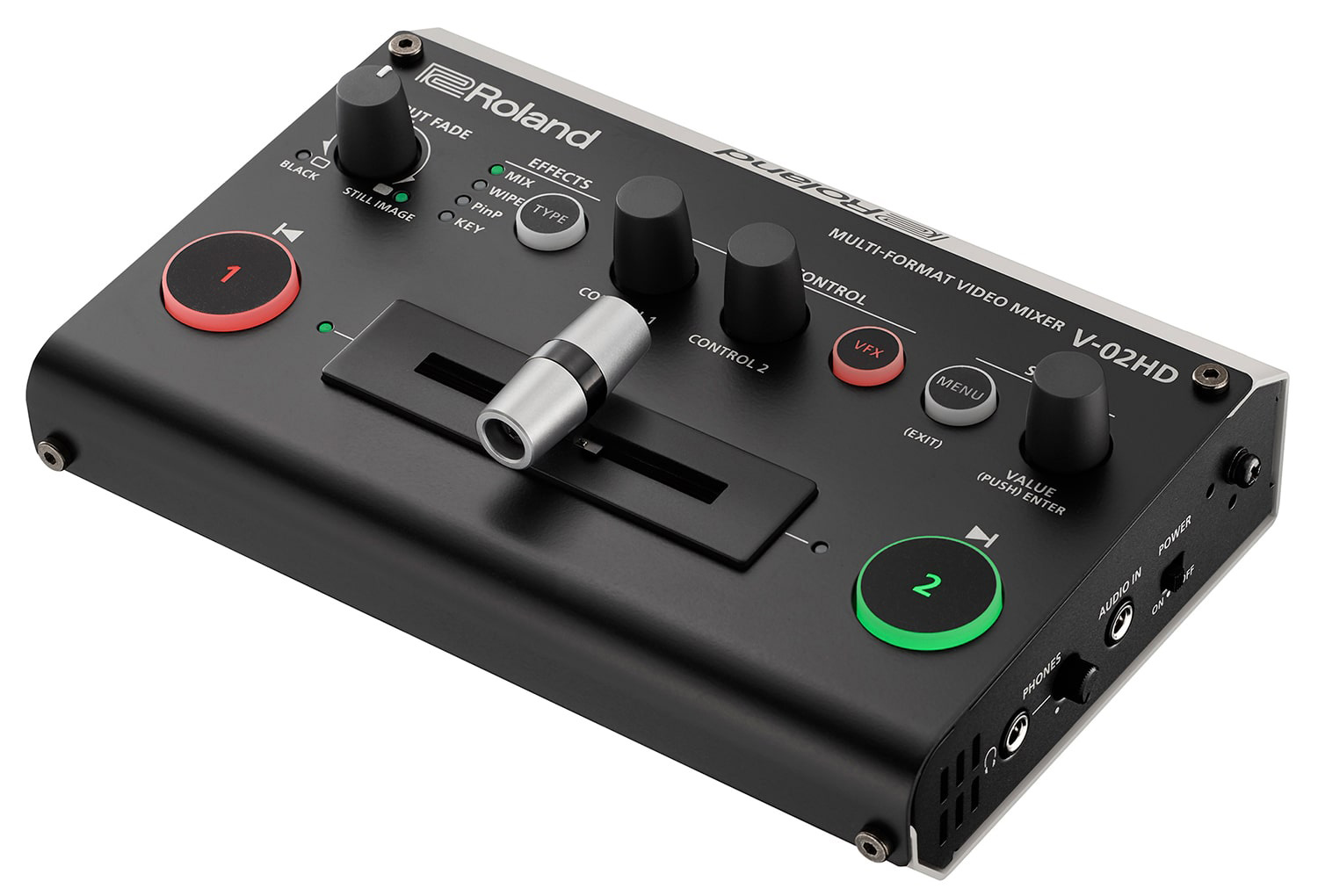

    The V-02HD is a micro switcher that's small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the V-02HD has a screw tap for standard video mounts and conveniently attaches onto a tripod to stay out of the way. Its lightweight design makes it ideal for mobile video applications too, especially when hooked up to third-party battery packs for longer location-based shoots.

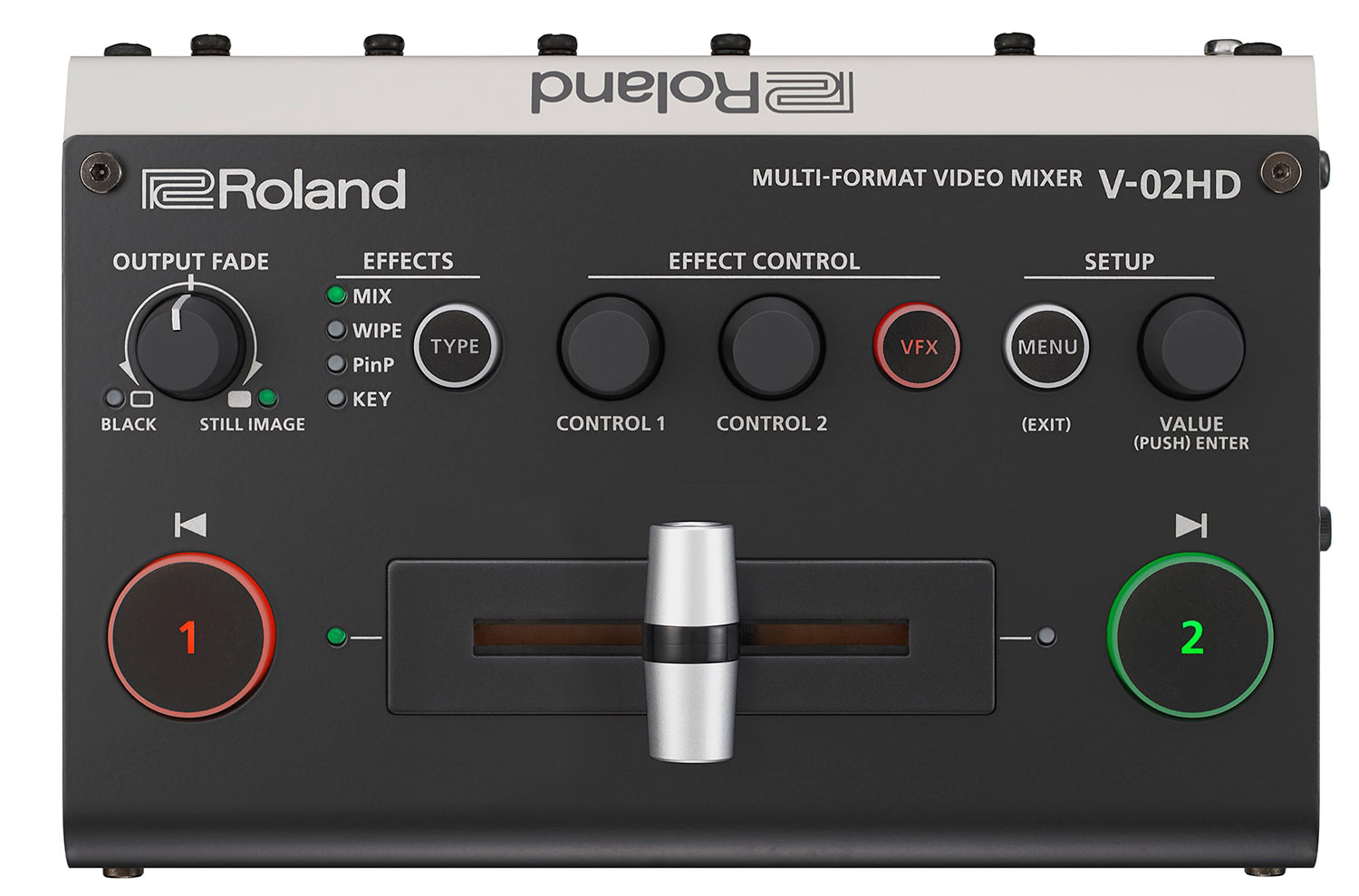

    The V-02HD takes the HDMI output from two cameras and seamlessly switches to a connected recorder or livestreaming encoder. The operator can then switch between cameras using the dedicated controls or even by using their feet, via a connected footswitch that lets them continue operating their camera. Audio from both cameras and external sources can be mixed together within the V-02HD and monitored through dedicated headphone output. Finally, the resulting mix is embedded with the video switch and output over HDMI. The V-02HD transforms a two-camera shoot into a small one-person production studio, for reliable recording or live-streaming even with minimal resources.


    • Features

      • V-02HD Switcher
      • FS-5U Foot Pedal
      • 2 x 16' HDMI Cables
      • Phono Cable

    • Specifications

      • Video Processing4:4:4 (Y/Pb/Pr), 10-bit

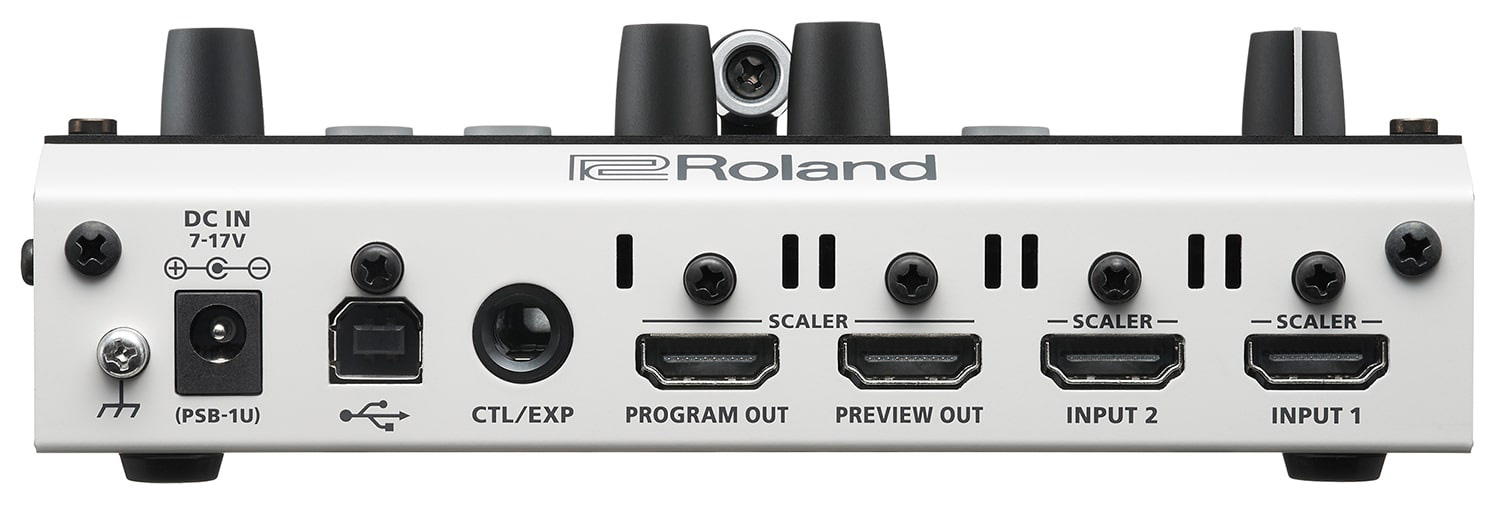

      • Input Connectors: Input 1--2:HDMI type A x 2
      • Output Connectors: Program Out: HDMI type A Preview Out: HDMI type A
      • Audio Processing: Sampling rate: 24 bits/48 kHz
      • Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
      • Input Connectors: Input 1--2: HDMI Type A x 2

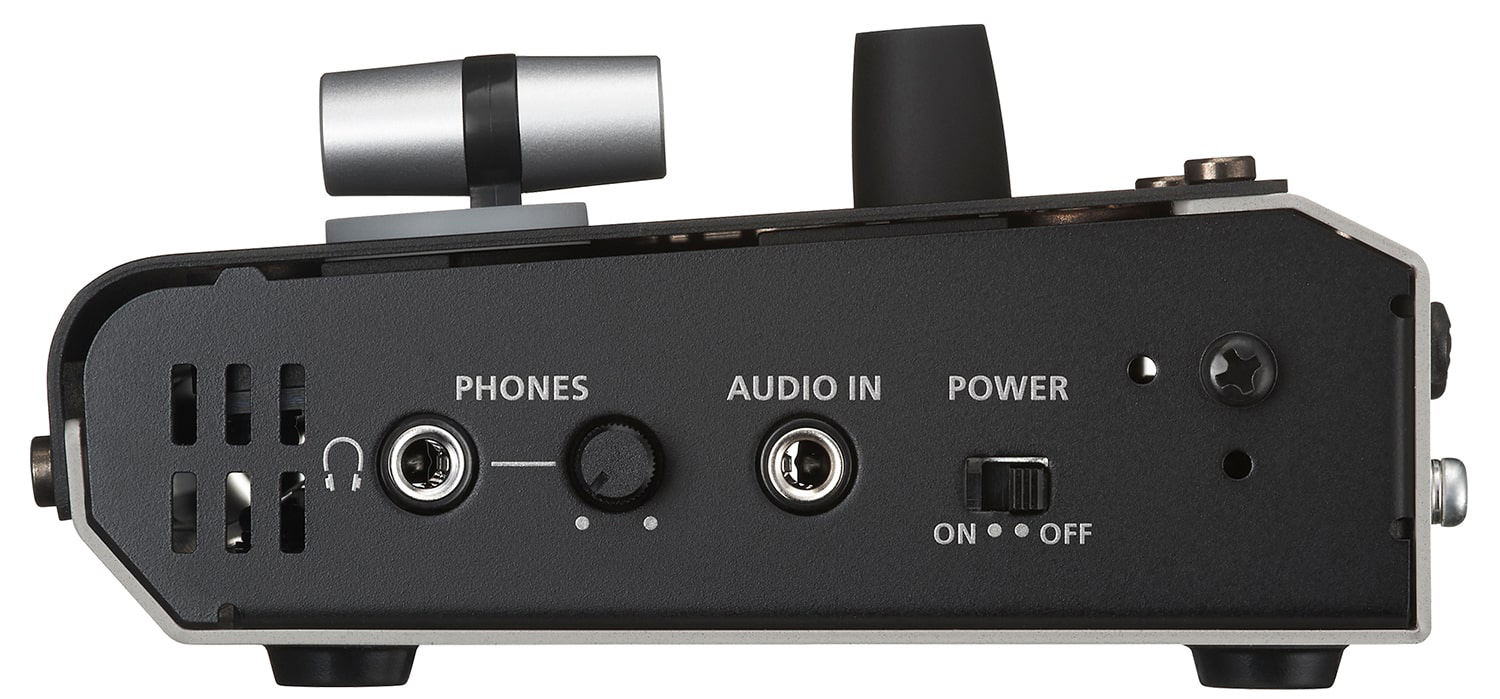

      • Audio In: Stereo miniature type
      • Output Connectors: Program Out: HDMI type A
      • Preview Out: HDMI type A
      • Phones: Stereo miniature type
      • Input Level: Audio In: -10 dBu (Maximum: +8 dBu)
      • Input Impedance: Audio In: 45 k ohms
      • Output Level: Phones: 92 mW + 92 mW (32 ohms)
      • Output Impedance: Phones: 10 ohms
      • Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
      • Power Supply: AC Adaptor
      • Current Draw: 1.1 A
      • Power Consumption: 10.0 W
      • Operation Temperature: +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit

    • Item Includes

      • Roland V-02HD PAC1 Video Mixer Bundle
      • FS-5U - Footswitch - Unlatch
      • 2 x HDMI Cable (16')
      • Phono Cable
