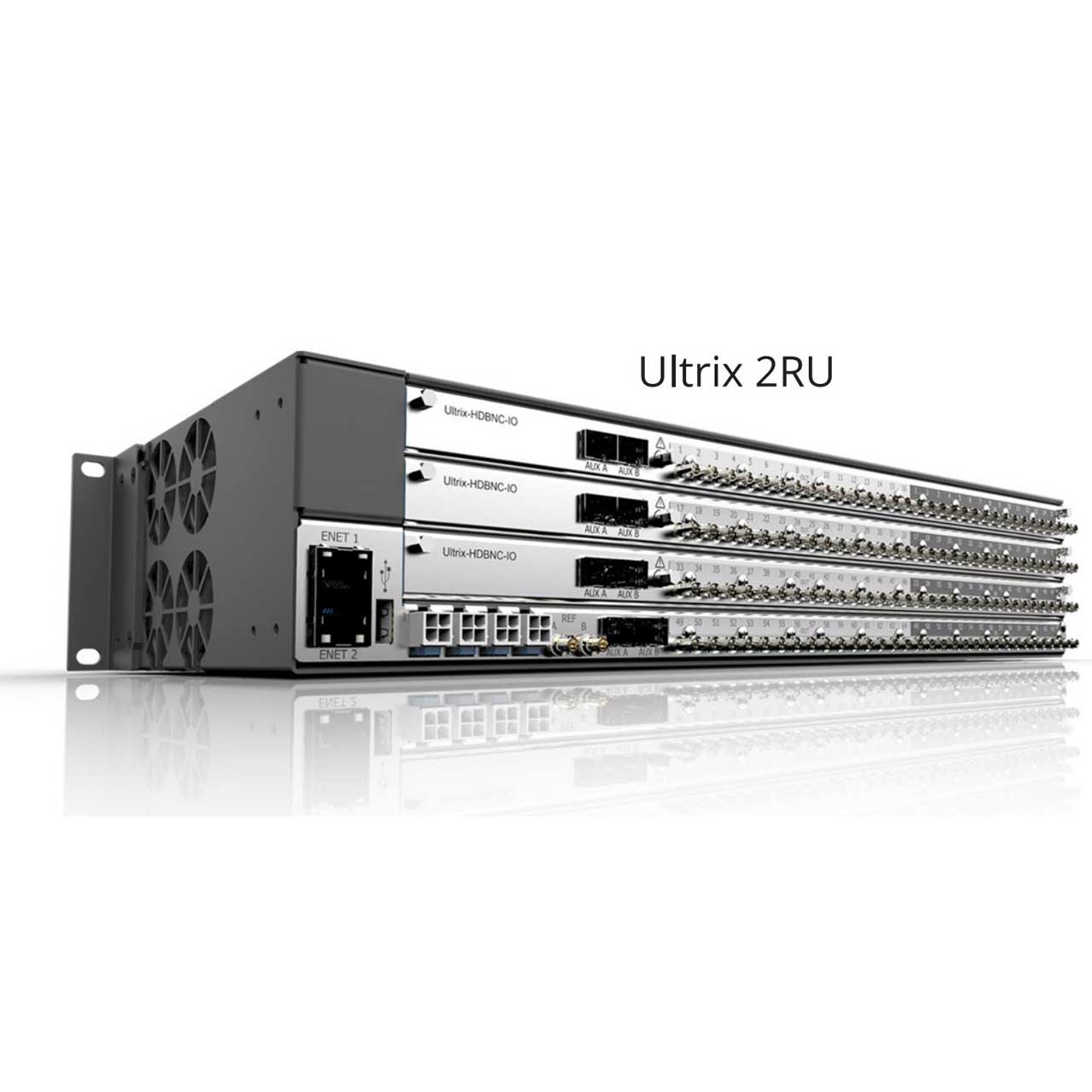

Ross ULTRIX-NS-FR2 Ultrix New Style 2RU Frame with 16x16 plus 2 AUX - Ultrimix and Ultriclean included

ULTRIX-NS-FR2 - Overview

• Features:

  • Software Defined Easily add new features through additional software licenses. No additional hardware required.
  • 12G Ready Ultrix natively supports 12G throughout the entire chassis. This means it's ready for UHD production when you are, without replacing any hardware or losing capacity.
  • Transport Agnostic Ultrix supports SDI, Fiber, and IP signal I/O. Use all of one or mix and match as you need. Focus on workflow, not on transport.
  • Hyperconverged Design The Ultrix platform is production in a box. Video/audio routing, multiviewers, audio processing, frame synchronizers, clean/quiet switching, UHD gearboxing, production switchers, audio mixers, and more all unified in one single chassis.
  • Save Money Because of its size, base feature set, and software capabilities, owners save significant money on upfront capital costs. Additionally, the advanced architecture provides significant ROI in terms of power, cooling, shipping, and space costs.
  • Pay As You Go The software defined architecture means you simply buy what you need, when you need it. No need to make critical design decisions upfront, simply add appropriate functions when they are required.

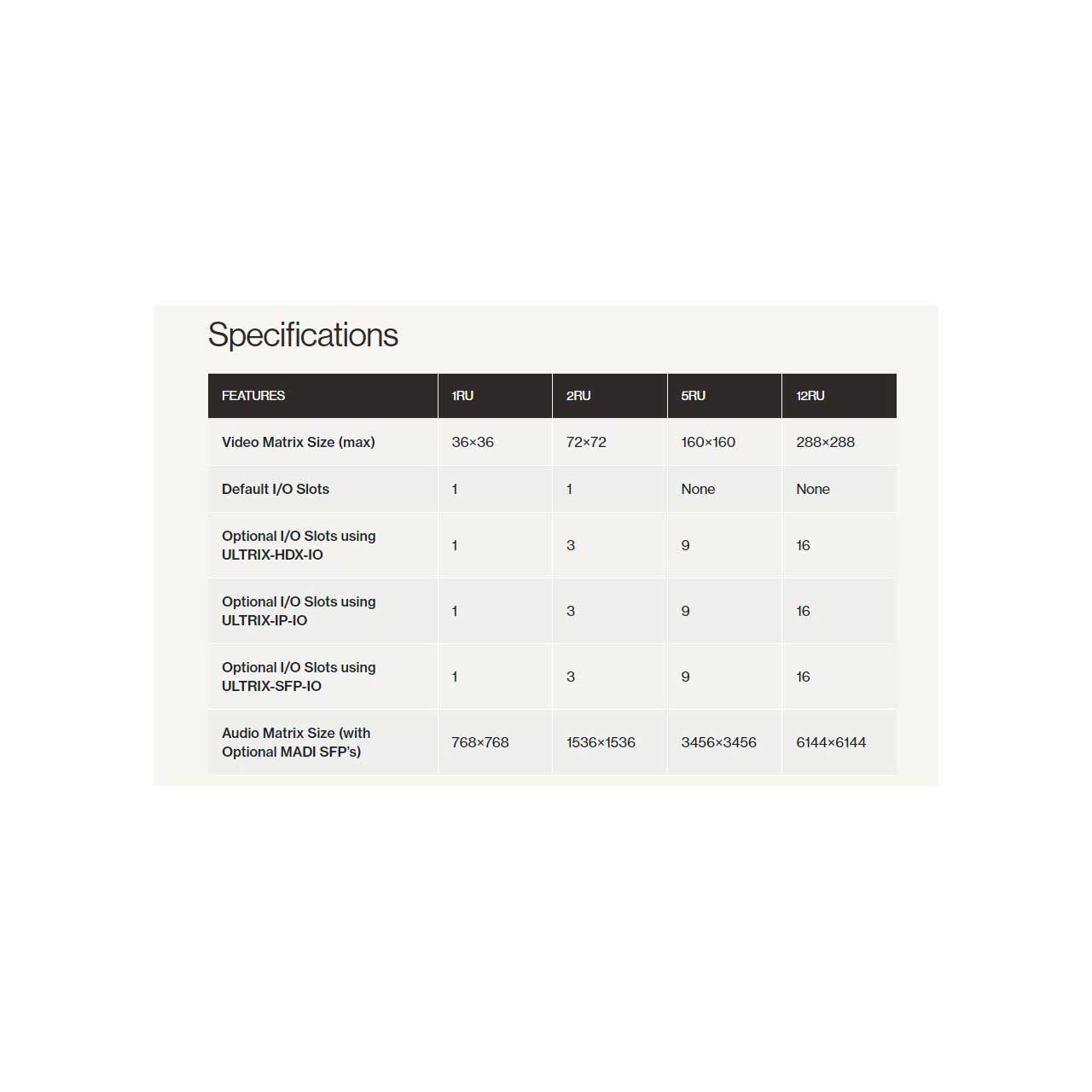

• Specifications:

  • Physical
  • Width: 17.5"
  • Depth: 7.9"
  • Height: 3.48"
  • Frame Weight (approx): 12Lbs (5.44kg)
  • I/O Card Weight (approx per board): 3Lbs (1.36kg)
  • Video Matrix Size (max): 72x72
  • Default I/O Slots: 1 (16x16 HD BNC + 2AUX I/O Ports)
  • Optional I/O Slots using ULTRIX-HDX-IO: 3 (16x16 HD BNC + 2AUX I/O Ports)
  • Optional I/O Slots using ULTRIX-IP-IO: 3 (x4 25G SFP28 + 2 SFP I/O Ports)
  • Optional I/O Slots using ULTRIX-SFP-IO: 3 (16 SFP ports + 2AUX I/O Ports)
  • Audio Matrix Size (with Optional MADI SFP's): 1536x1536
  • Ultriscape MV Head License per Slot: 3 SDI or 2 IP
  • Maximum Ultriscape MV Heads per System: 12 SDI or 6 IP
  • UHD Licenses per Frame: 1
  • Maximum UHD Gearboxes per System: 12 in/12 out
  • Maximum Number of 3Gb/s Input Frame Syncs per System: 72
  • Maximum Number of 12 Gb/s Input frame Syncs per System (Using ULTRIX-HDX-IO): 27
  • Maximum Number of 12Gb/s Clean/Quiet Outputs per System: 72
  • Maximum Size of Ultrimix-MXR Audio Mixer: 128x64

    Power
  • PSU: 2 external brick
  • Optional Redundant PSU (Additional): 2 external brick
  • Ultripower Support: Optional
  • Fan Module: 2


• Item Includes:

  • 1 year comprehensive warranty
