RAPCO AVP1-STS Audio Visual Passive Interface Wallplate

ITEM #: RPC-AVP1-STS MFG #: AVP1-STS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$338.01

Our Price:

$236.42

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    AVP1-STS - Overview

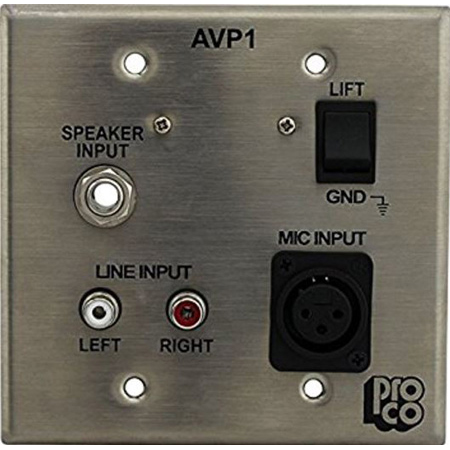

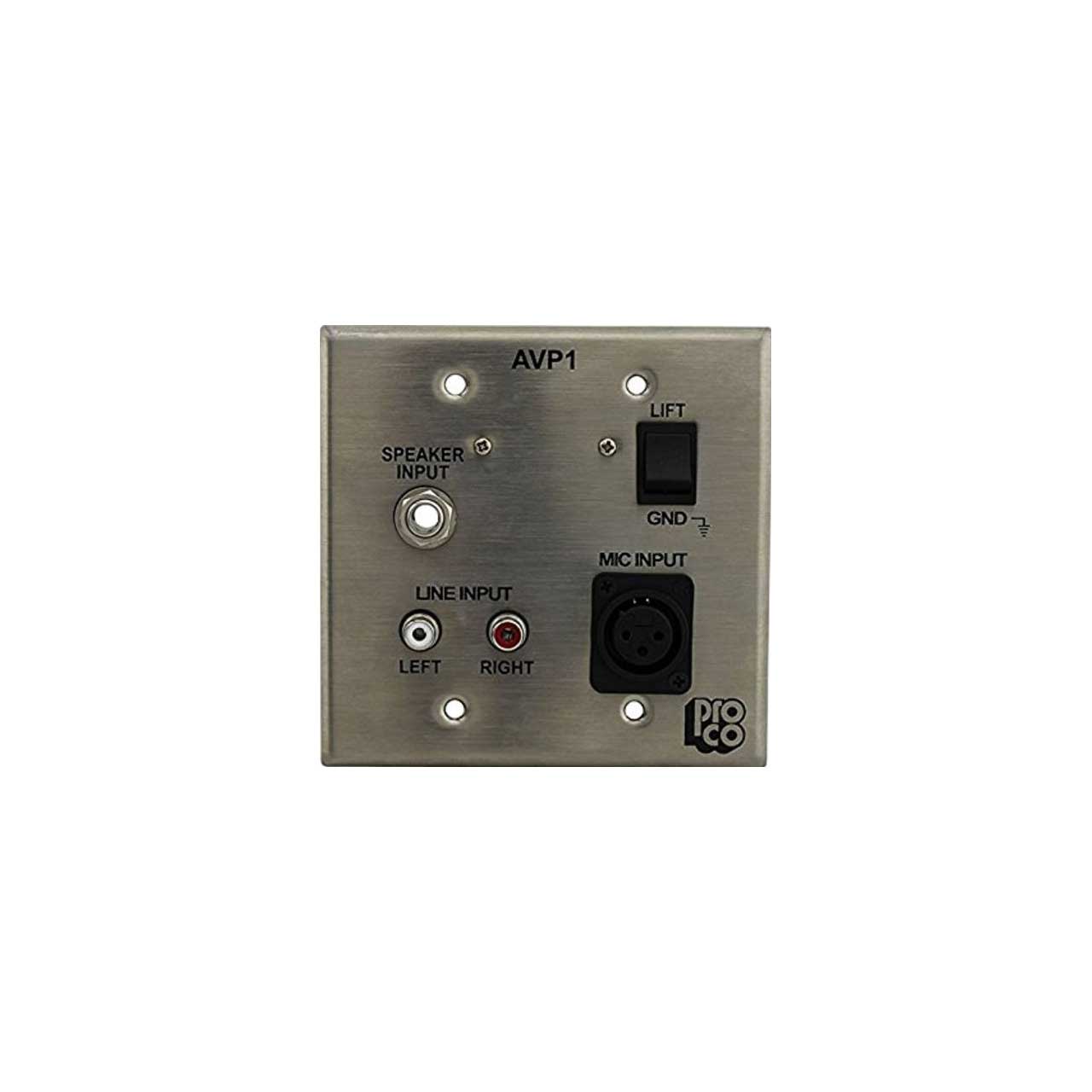

    AVP1 Audio- Visual Interface is a standard dual-gang wall plate that allows the line- or speaker-level outputs of movie projectors, audio and video tape/cassette recorders, phonographs, etc., to be connected to microphone inputs of house P.A. systems. The AVP1 provides audio interfacing and isolation with wide frequency response and low distortion.

    The AVP1 provides a 1/4” phone jack input for movie projectors and similar monaural A/V equipment. This input allows the AVP1 to be safely connected to the speaker outputs of older tube-type equipment: a 16-ohm, 5-watt load resistor simulates the speaker impedance to prevent damage to the amplifier output stage, while a high-frequency filter reduces hiss from noisy electronics.

    Left and right RCA phono jack line inputs are resistively mixed to monaural, a handy feature for use with CD players and cassette recorders. (They can also be used as recording outputs for whatever is connected to the PROJ IN jack.)

    The DBT-1 transformer provides a floating 150-ohm output to an easy-to- use screw-type barrier strip (requiring no crimpon terminals) for fast wiring installation. The HUM CANCEL switch eliminates hum and buzz from AC ground loops between equipment. For further versatility of operation, there is also an independent low-impedance microphone input via a female XLR-type connector wired to the output barrier strip.

    The AVP1 is built on a standard stainless steel or black anodized aluminum wall plate designed for mounting in any standard two-gang masonry box. With its lustrous brushed finish and laser engraved legends, the AVP1 is both functional and attractive, complementing a wide variety of decors.

    • Features:

      • Better Sound from Projectors, Phonographs and Recorders
      • Ideal for Churches, Meeting Rooms, and Schools
      • Output Transformer for Ground Isolation
      • Projector Input has 16ohm Dummy Load
      • Input Level Control
      • Stereo Line Inputs are Mixed to Mono Output
      • Independent XLR Microphone Input
      • Barrier Strip Output Connections

    • Specifications:

      • Frequency Response
      • 20 Hz-20 kHz, +/- .5 dB @ -15 dBv output.
      • -3 dB @ approximately 85 kHz.
      • SPKR INPUT introduces 6 dB/octave attenuation above 8.0 kHz.

        Total Harmonic Distortion
      • < .03% 20 Hz-20 kHz @ -30 dBv output.
      • < .1% 30 Hz-20 kHz @ -15 dBv output.
      • < .25% 20 Hz-20 kHz @ -15 dBv output.

        Voltage Stepdown
      • < 22 dB @ 1.0 kHz
      • SPKR INPUT attenuates signal by 20 dB.

        Input Impedance
      • > 130 kohm @ 1.0 kHz (LINE IN L/R jacks, monaural source).
      • Approximately 4.0 kohm (LINE IN L/R jacks, stereo source, resistively mixed).
      • Approximately 16 ohm (SPKR INPUT jack).
      • Nominal source impedance is 0 ohm. SPKR INPUT jack
      • loads source with 16 ohm 5.0 watt dummy load.

        Output Impedance
      • < 200 ohm @ 1.0 kHz.
      • Nominal load impedance is >1.0 kohm.

        Maximum Input Level @ 50 HZ FOR 1% THD
      • +26 dBv (LINE IN jack)
      • +46 dBv (SPKR IN jack)
