SoundTools CAT Tails CTMX etherCON Breakout to Four Male XLR cables

ITEM #: RSS-CTMX MFG #: CTMX

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$130.00

Availability: In Stock
iAvailability Description Popup


    CTMX - Overview

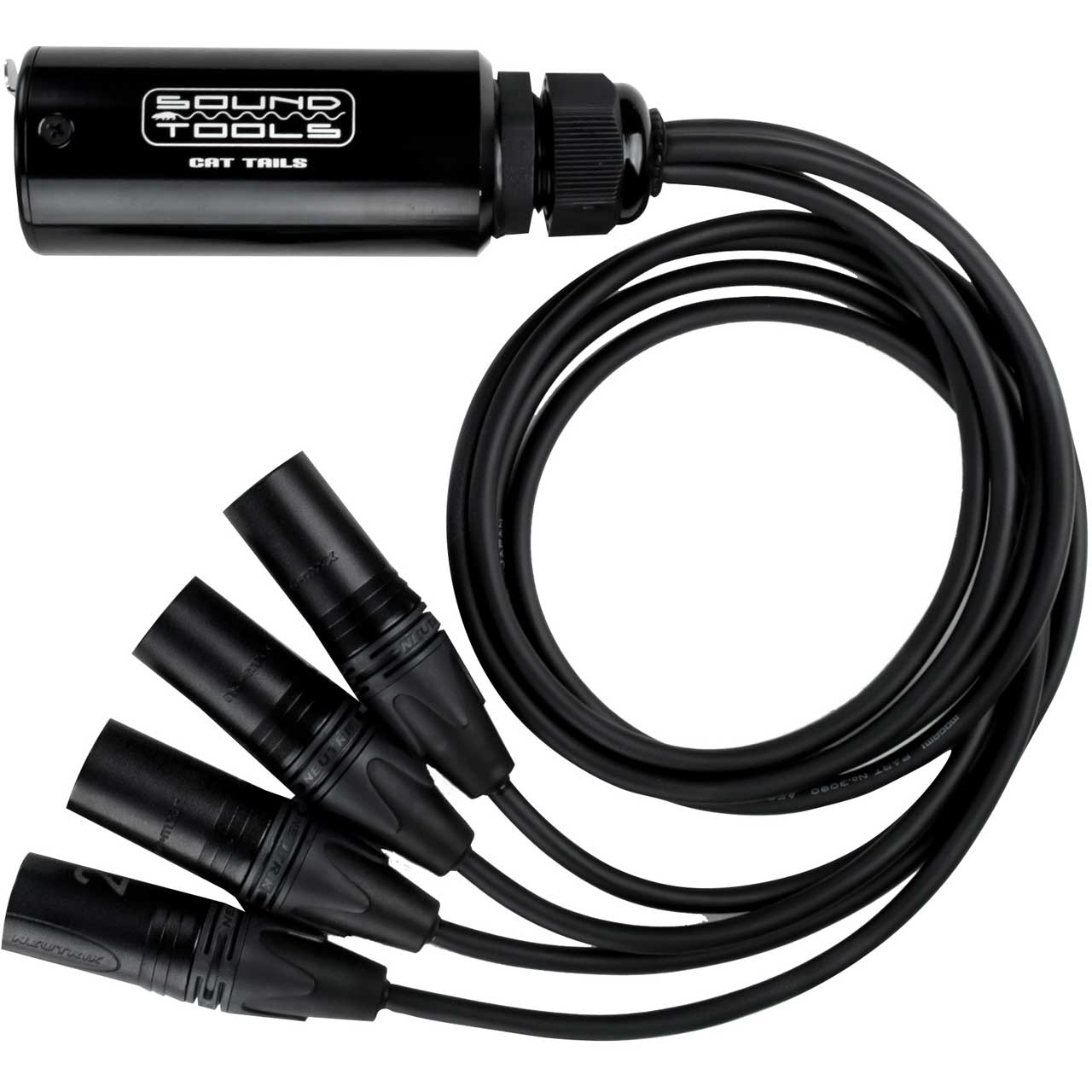

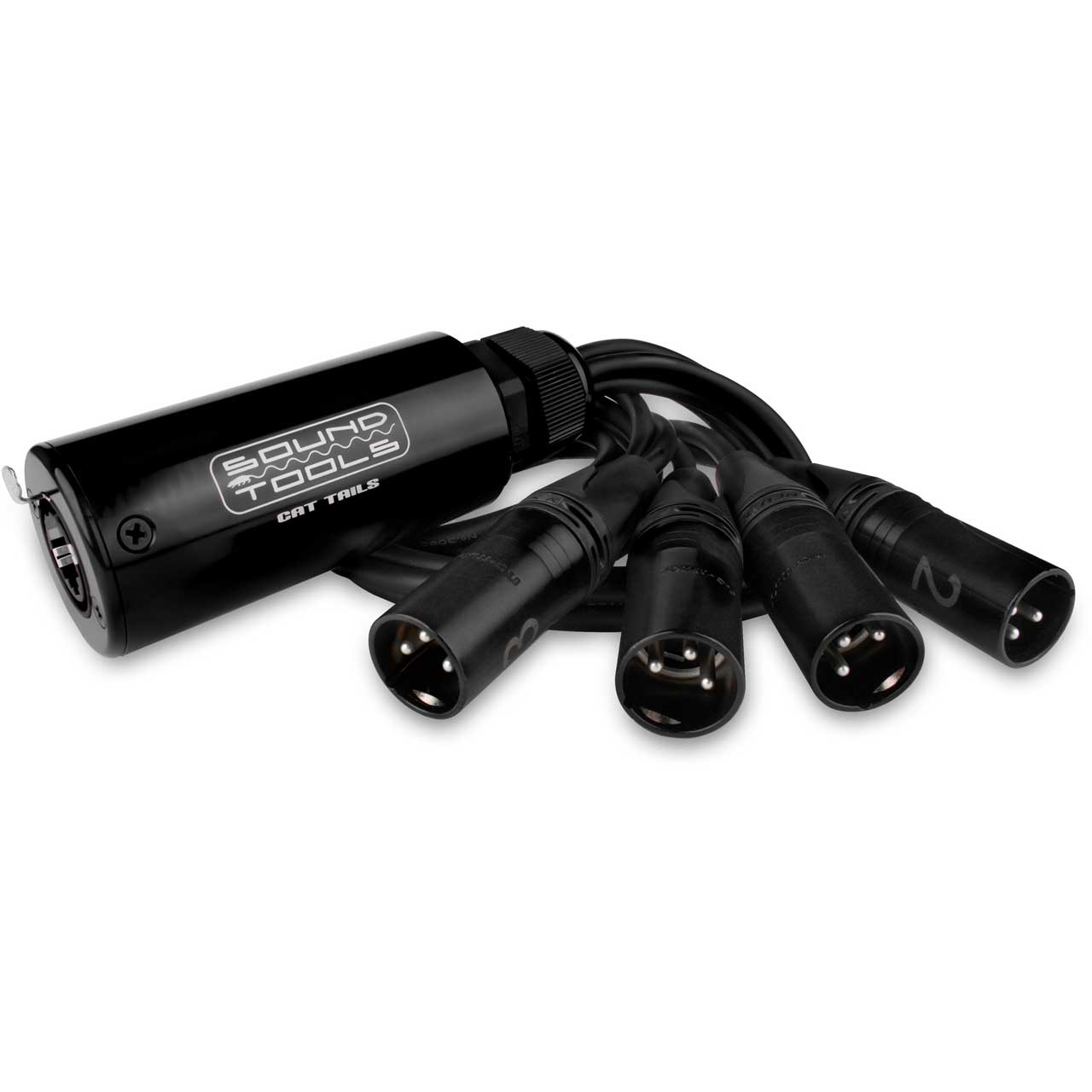

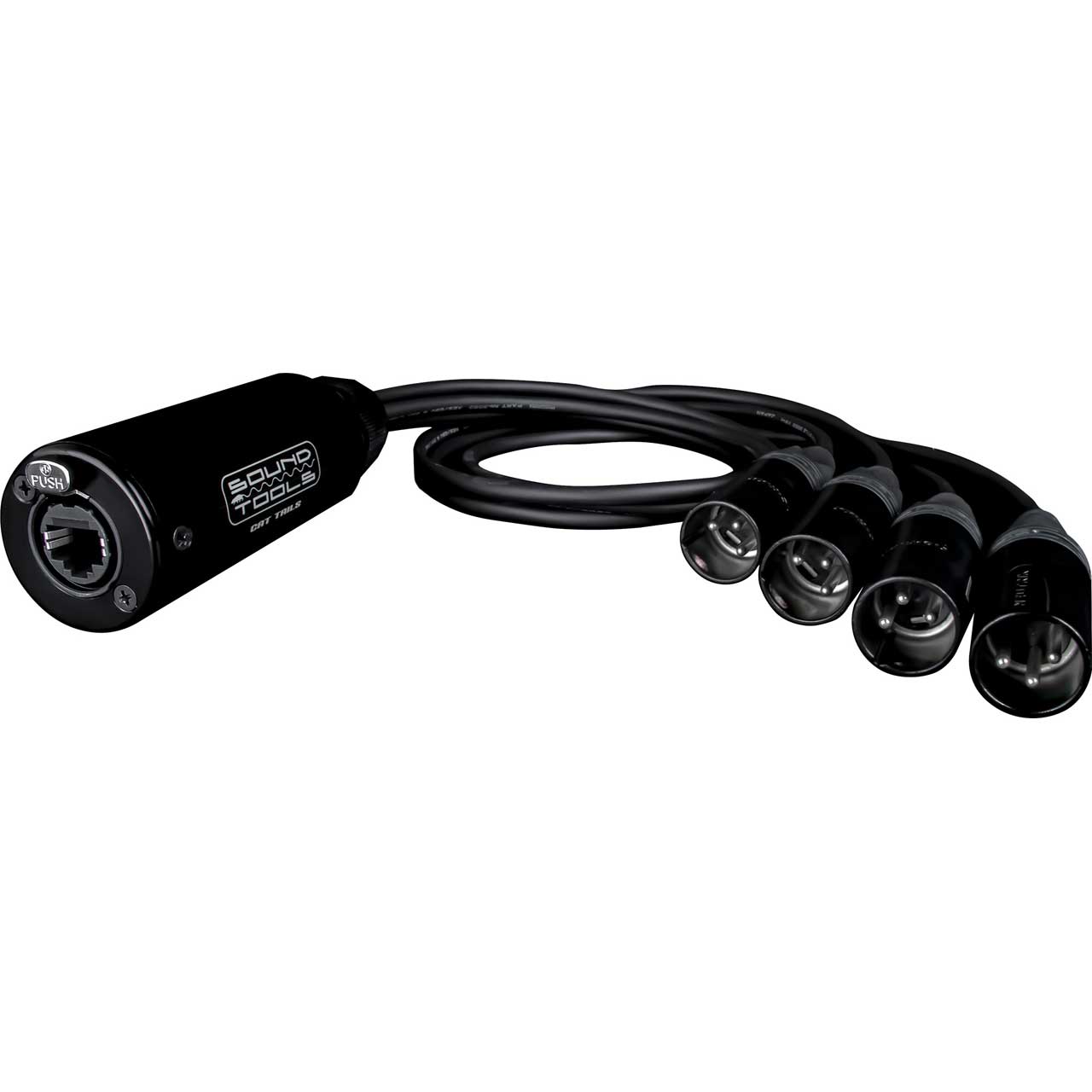

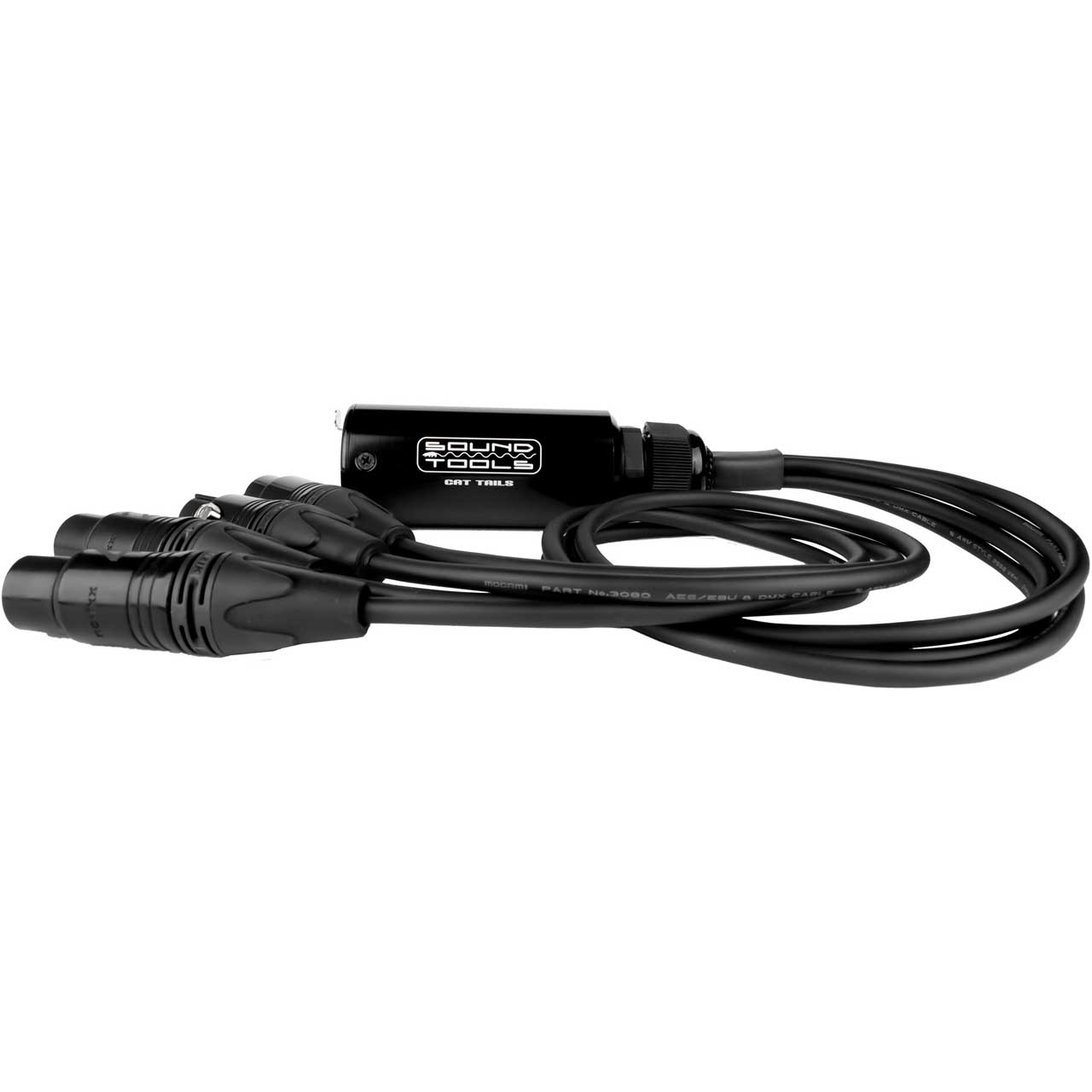

    The SoundTools CTMX CAT Tails utilizes a CAT5/etherCON breakout to four XLR cables. Plug directly into your audio channels and run up to four balanced analog lines down a shielded CAT5, CAT5e, CAT6 or CAT7 cable. Simplify your stage set up with SoundTools CAT Tails and run one slim Cat5e cable instead of 4 bulky XLR or DMX cables. When used with shielded cat cable, CAT Tails are compatible with 48-volt phantom power and can run four channels of lossless audio and com with no interference and no distortion.

    CAT Tails are all-black, all-analog units with clear, laser-etched numbers 1-4 on each tail. CAT Tails are compatible with all RATCAT series of products, including the SoundTools CAT Box, CAT Rack, and WallCAT. Mix and match for the ultimate in modular snakes.

    Please Note: SoundTools CAT branded products REQUIRE shielded CAT5 CAT5e CAT6 or CAT7 cable. Also note that ALL Rat Sound Category 5/6/7 extender products ( i.e. CAT Rack, CAT BOX. WallCAT, etc.) will travel 100 meters (330 feet) and all are compatible with balanced analog, digital, AES/EBU (110 ohm), DMX and Clear-Com signals.

    • Features:

      • The CAT Tails uses four, 24" cables with all black XLR connectors
      • CAT5 cables have a wide bandwidth capable of carrying AES/EBU over large distances
      • Run up to four AES/EBU or four analog lines down a single shielded CAT5 cable
      • Compatible with ClearCom and other 3 pin XLR based com systems
      • The CAT Tails is a fully analog, non-digital unit
      • Compatible with 48 volt phantom power
      • Constructed of durable anodized aluminium with stainless steel screws to prevent rust

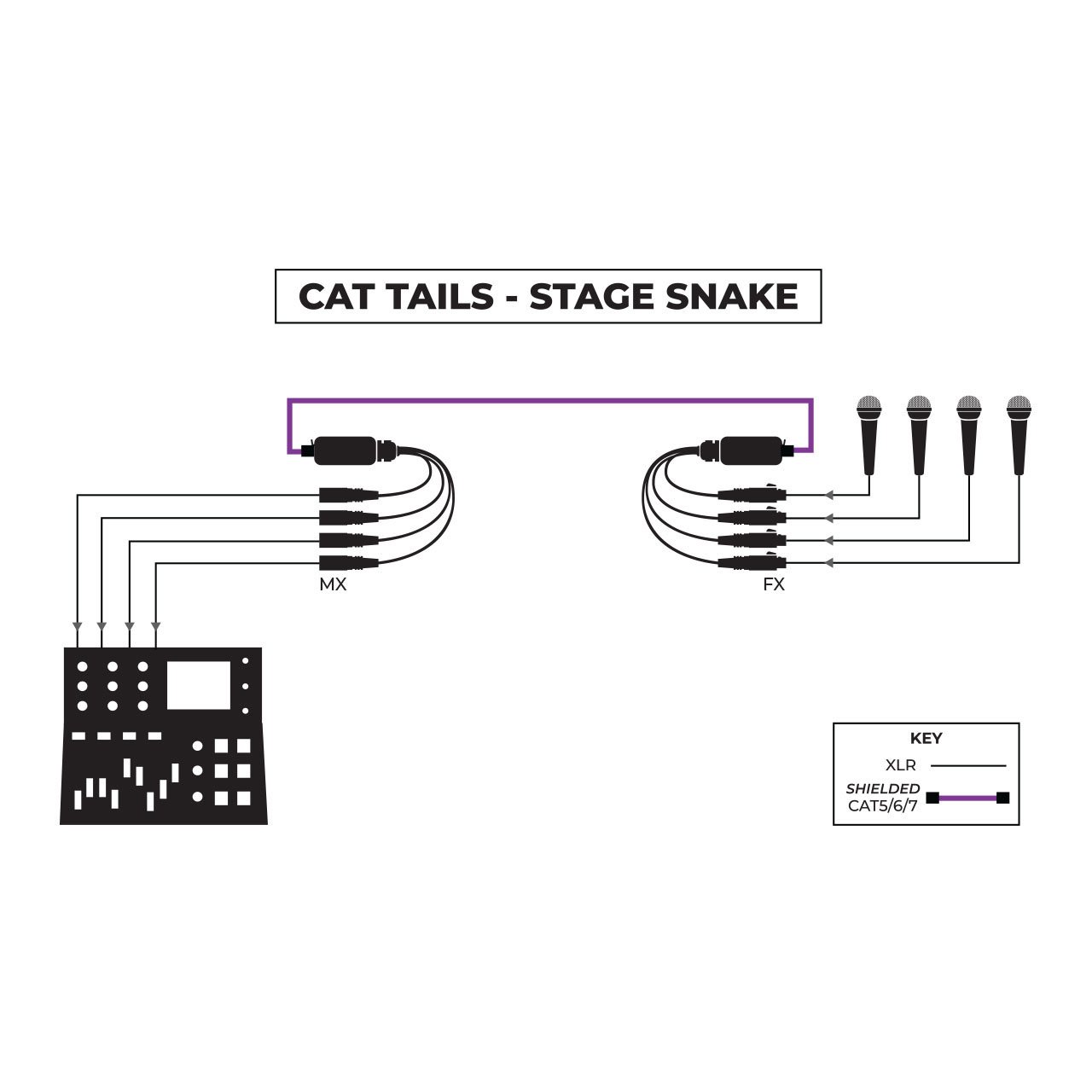

      • Pair with an additional CAT Tails, CAT Box or CAT Rack to send and receive four lines of balanced audio
