    KP-5032 A4F - Overview

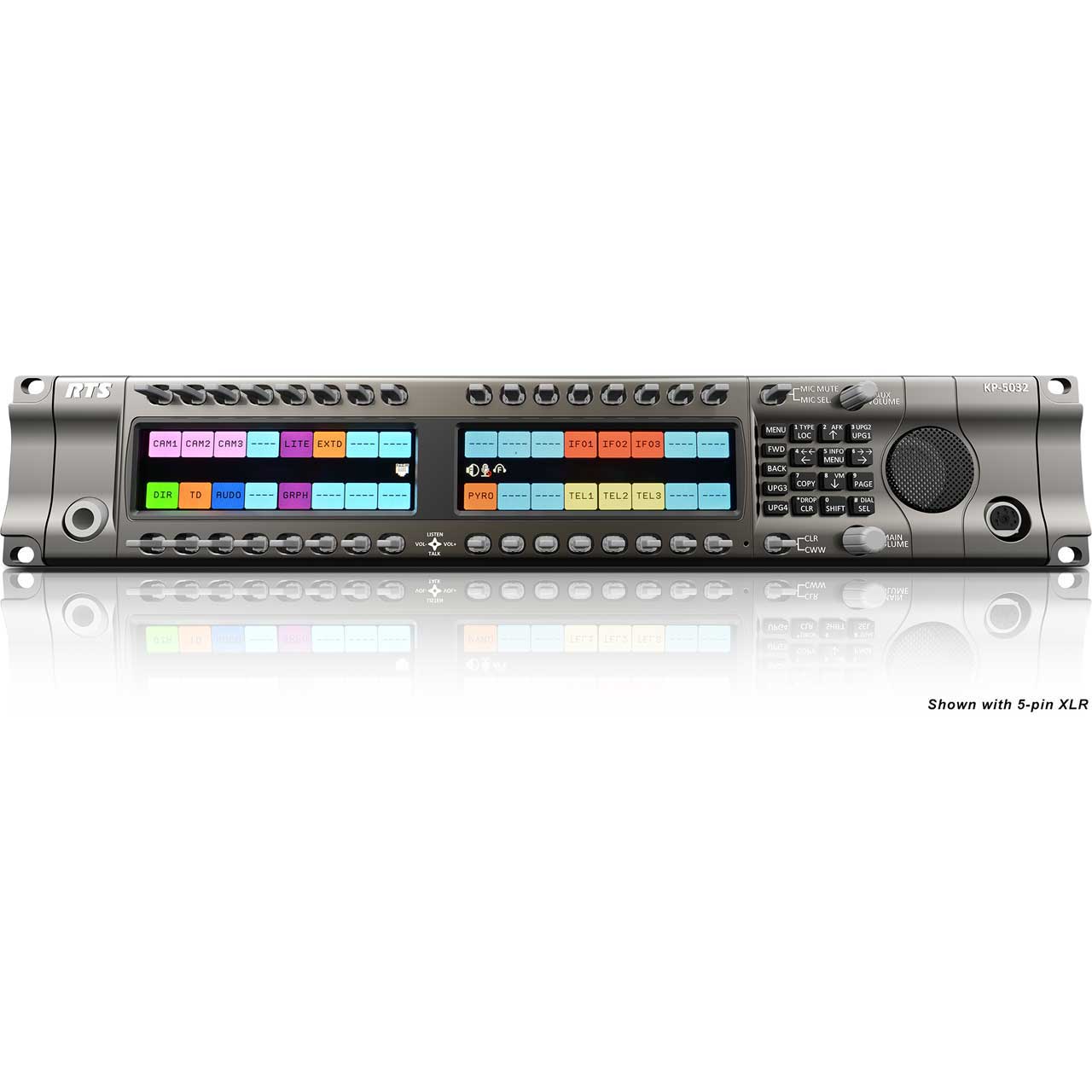

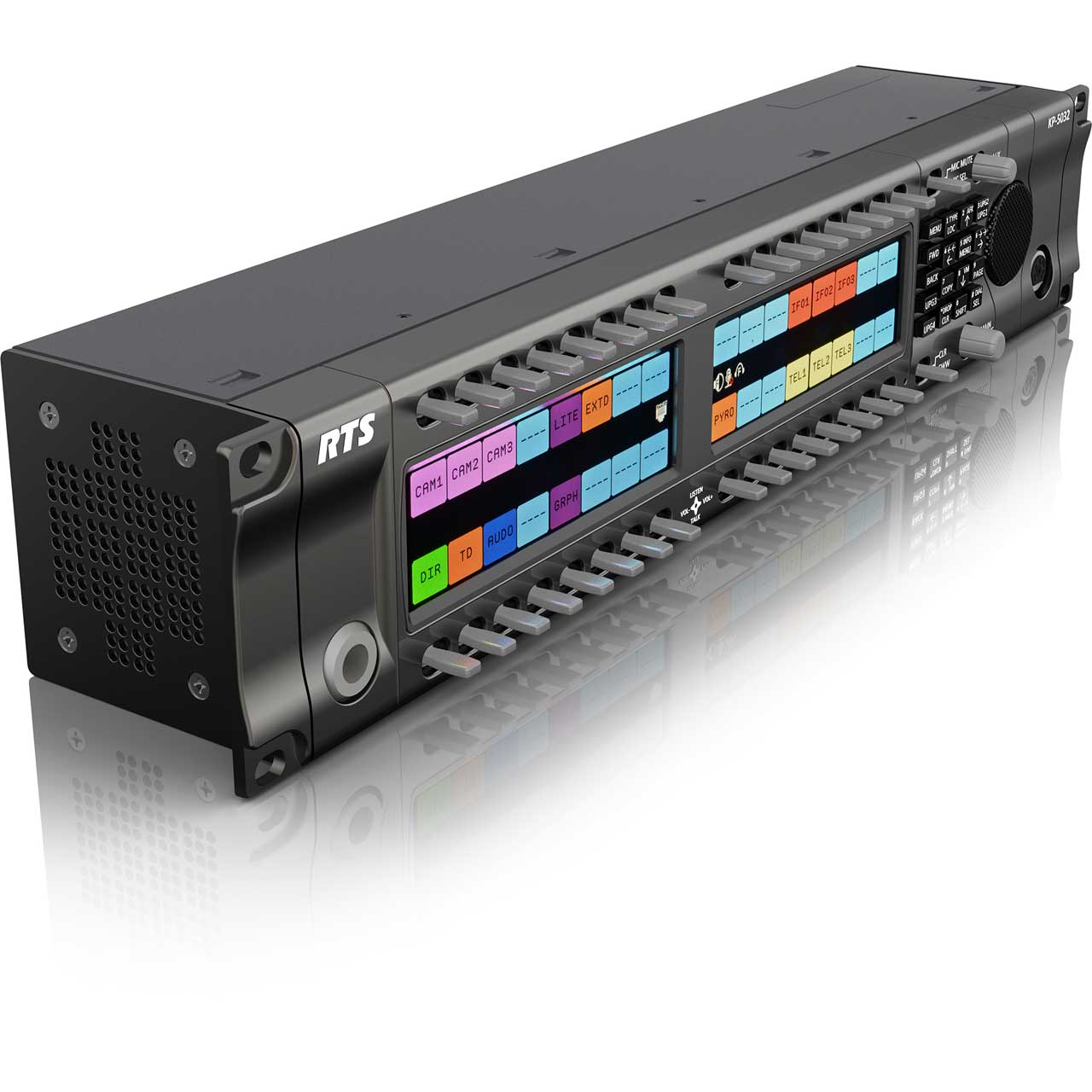

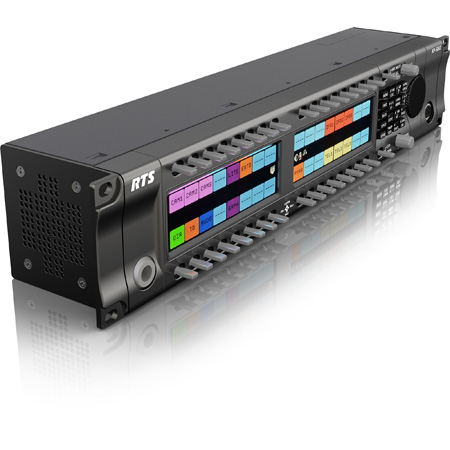

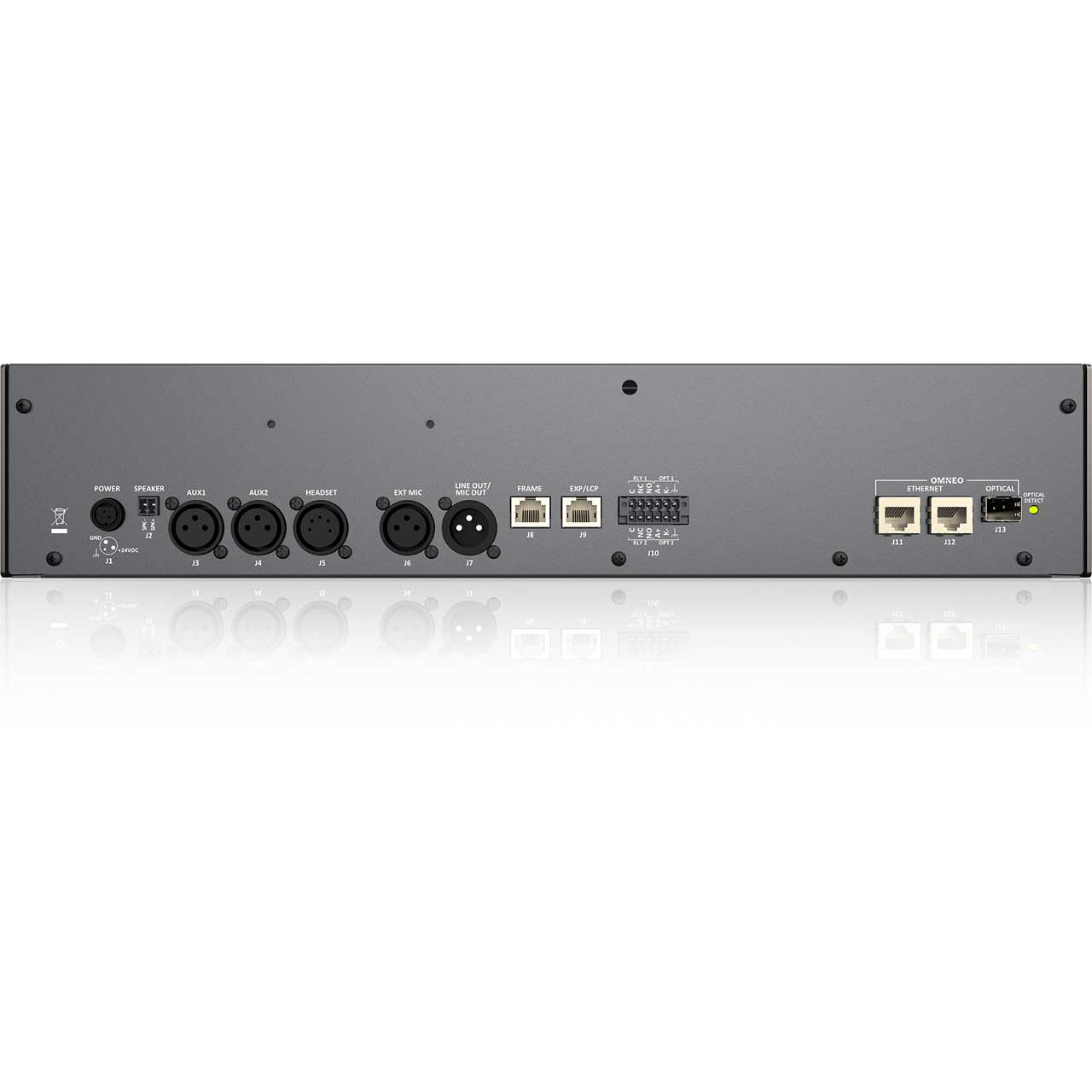

    The RTS KP-5032 A4F is a 2RU OMNEO 32-Key IP Intercom Keypanel with HD Color Display and Headset Connector A4F. These keypanels deliver superior high-quality digital audio using the Bosch-branded OMNEO technology with Dante™ by Audinate audio over IP via either copper or fiber. The KP-5032 models deliver top-notch audio, free of noise, delay, and other artifacts present in older technology. This family of keypanels includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices including analog technology.

    The KP-5032 keypanels utilize the latest generation of wide angle TFT displays providing superior clarity, resolution, and longer display life, delivering high-quality readability under a variety of lighting conditions.

    • Features:

      • OMNEO Open Media Networking Standard
      • Full IP Connectivity and TCP-IP Layer 2 & 3 Compatibility
      • Advanced Signal Processing and AD/DA
      • User-Friendly, High-Res Color Display
      • Backward compatibility
      • Standardized connectors
      • Enhanced navigation menus
      • Choice of front panel headset connector

    • Specifications:

      • LCD Display
      • Active Area: 120.10mm (wide) x 35.86mm (high)
      • Dot Resolution: 576 x 172 pixels
      • Color Resolution: 16-bit (64K)RGB color
      • View Angle: 80 degrees (typical; all directions)

        Power Supply
      • Type: External DC
      • AC Input: 100-240VAC 50/60Hz

        General Purpose Inputs and Outputs
      • Outputs
      • Type (relays): SPDT
      • Contact Rating: 1AMP @ 30VDC
      • Inputs
      • Type: Optically Coupled
      • Input Voltage: 5-18 VDC on A+ (A+ is internally pulled to 5VDC. Connect K- to to activate.)

        Inputs
      • Matrix
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10kΩ
      • Maximum Input Level: +20dBu
      • Supported Bandwidth: 100Hz to 20KHz
      • Aux 1 and Aux 2
      • Type: Balanced
      • Typical Input Level: +8dBu
      • Typical Input Impedance: >10 kΩ
      • Front Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Rear Panel Mic
      • Type: Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Front and Rear Headset Mic - Electret
      • Typical Input Level: -42dBu
      • Typical Input Impedance: 1kΩ
      • Maximum Input Level: -25dBu
      • Front and Rear Headset Mic - Dynamic
      • Typical Input Level: -50dBu
      • Typical Input Impedance: 600Ω
      • Maximum Input Level: -25dBu

        Outputs
      • Matrix
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
      • MIC/LINE Out
      • Type: Balanced
      • Typical Output Level: +8dBu
      • THD+N%: <0.20%
      • Typical Output Impedance: 600Ω
      • Maximum Output Level: +20dBu
      • Frequency Response: 100Hz to 20KHz
      • Headset: Front, Rear, Left, Right
      • Maximum
      • Output Power: 125mW for 32Ω load
      • Earphone Impedance: 16Ω and above
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
      • Speaker - Rear
      • Maximum Output Power: 5W for 8W load
      • Speaker Impedance: 4Ω and 8Ω
      • THD+N%: <0.20%
      • Frequency Response: 100Hz to 20KHz
      • Speaker - Front
      • SPL: 84dBSPL for 1kHz sine wave @ 1 meter

        Digital
      • OMNEO Channels
      • Typical OMNEO Latency: 1ms
      • Frequency Response: 20Hz - 20KHz

        Environmental
      • Dimensions (without rack ears)(WxDxH): 17.39 x 3.46 x 3.88" (441.82 x 87.96 x 98.5mm)
      • Weight: 4.89Lbs (2.22kg)
      • Power Supply
      • Weight: 0.53Lbs (.24kg)
      • Mounting Bracket: 0.30lbs (.14kg)
      • Operating Temperature: 32° to 131°F (0° to 55°C)
      • Storage Temperature: -4° to 158°F (-20° to 70°C)

        Power Consumption
      • Nominal: 13 Watts
      • Maximum: 18 Watts
      • Maximum Volt Amp: 48 VA

        Certification
      • CE Compliant
      • UL Certified
      • PSE Compliant
