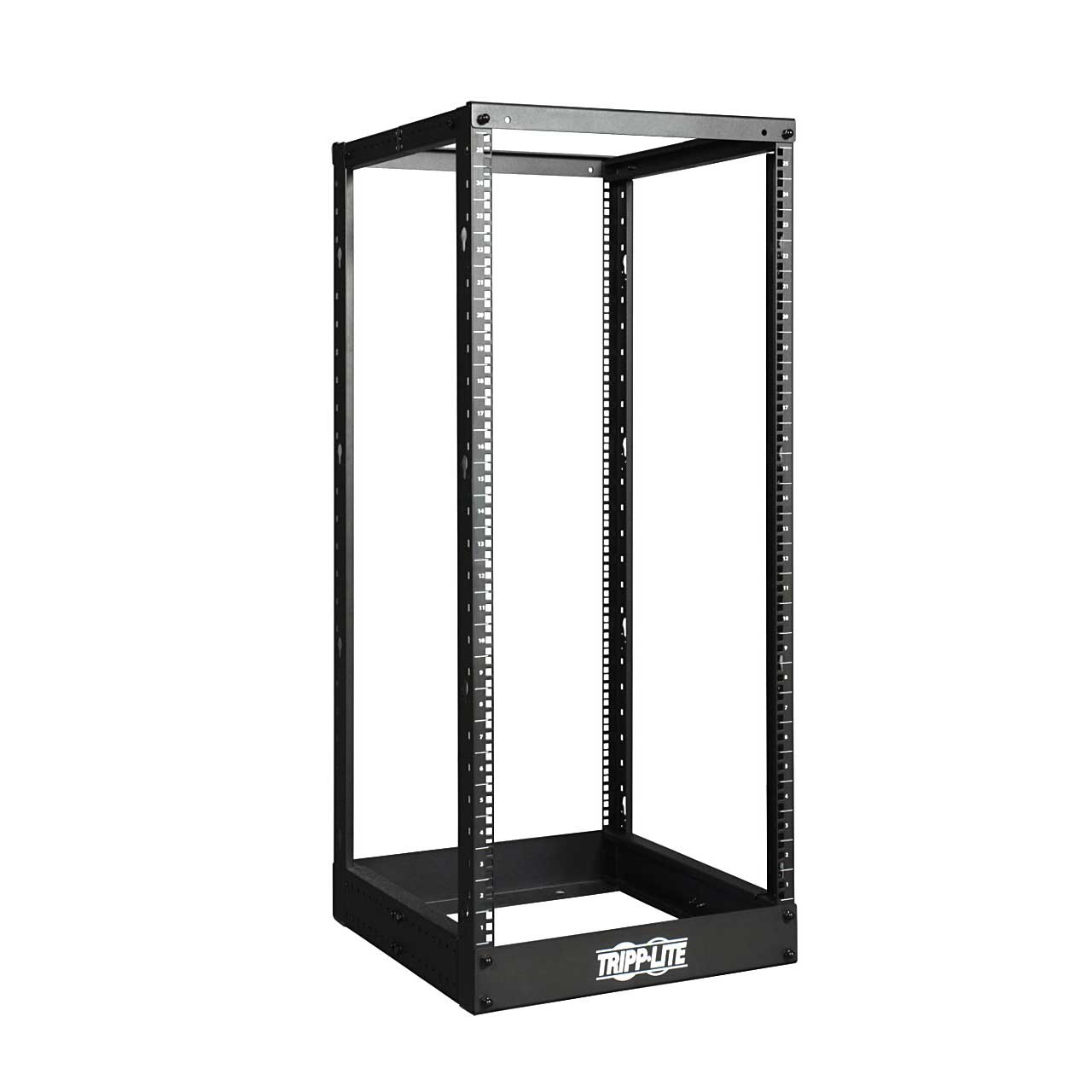

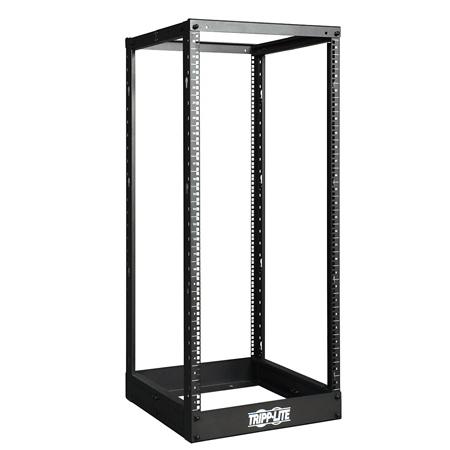

Tripp Lite SR4POST25 25U 4-Post Open Frame Rack Cabinet Square Holes 1000lb Capacity

SR4POST25 - Overview

• Features:

  • Supports 1000lbs of rackmount equipment
  • Adjustable mounting depth (22 to 39 inches)
  • Textured powder coat finish
  • Heavy-duty cold-rolled steel construction


• Specifications:

  • Style 4-Post
  • Installed Whole System Maximum Rack Depth (in.) 39.3
  • Installed Whole System Maximum Rack Depth (cm) 99.82
  • Installed Whole System Minimum Rack Depth (in.) 22
  • Installed Whole System Minimum Rack Depth (cm) 55.88
  • Rack Height (U Spaces) 25
  • Shipping Dimensions (hwd / in.) 4.13 x 5.71 x 56.5
  • Shipping Dimensions (hwd / cm) 10.5 x 14.5 x 143.51
  • Shipping Weight (lbs.) 46
  • Shipping Weight (kg) 20.7
  • Unit Dimensions (hwd / in.) 49.3 x 20.2 x 22-39.3
  • Unit Dimensions (hwd / cm) 125.2 x 51.3 x 55.9~99.8 (depth adjustable)
  • Unit Weight (lbs.) 45
  • Unit Weight (kg) 20.25
  • Unit Dimensions (cm) 125.2 x 51.31 x 55.88~99.1 (depth adjustable)
  • Color Black
  • Weight Capacity - Stationary (lbs.) 1000
  • Weight Capacity - Stationary (kg) 453.6
  • Hinged (Swings Away from Wall Bracket) No
  • Grounding Lug Included screws, nuts, and washers secure user-supplied grounding wire to Front or Back frames
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
  • Product Warranty Period (Worldwide) 5-year limited warranty


• GTIN:

  0037332157942
