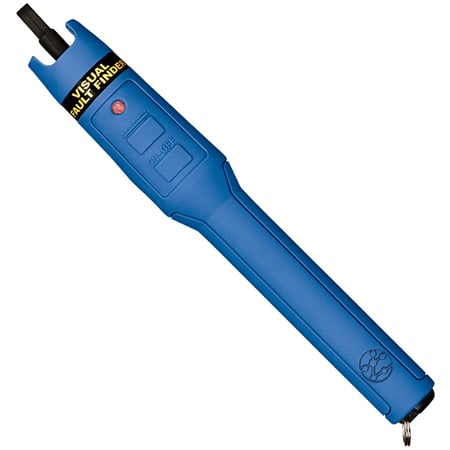

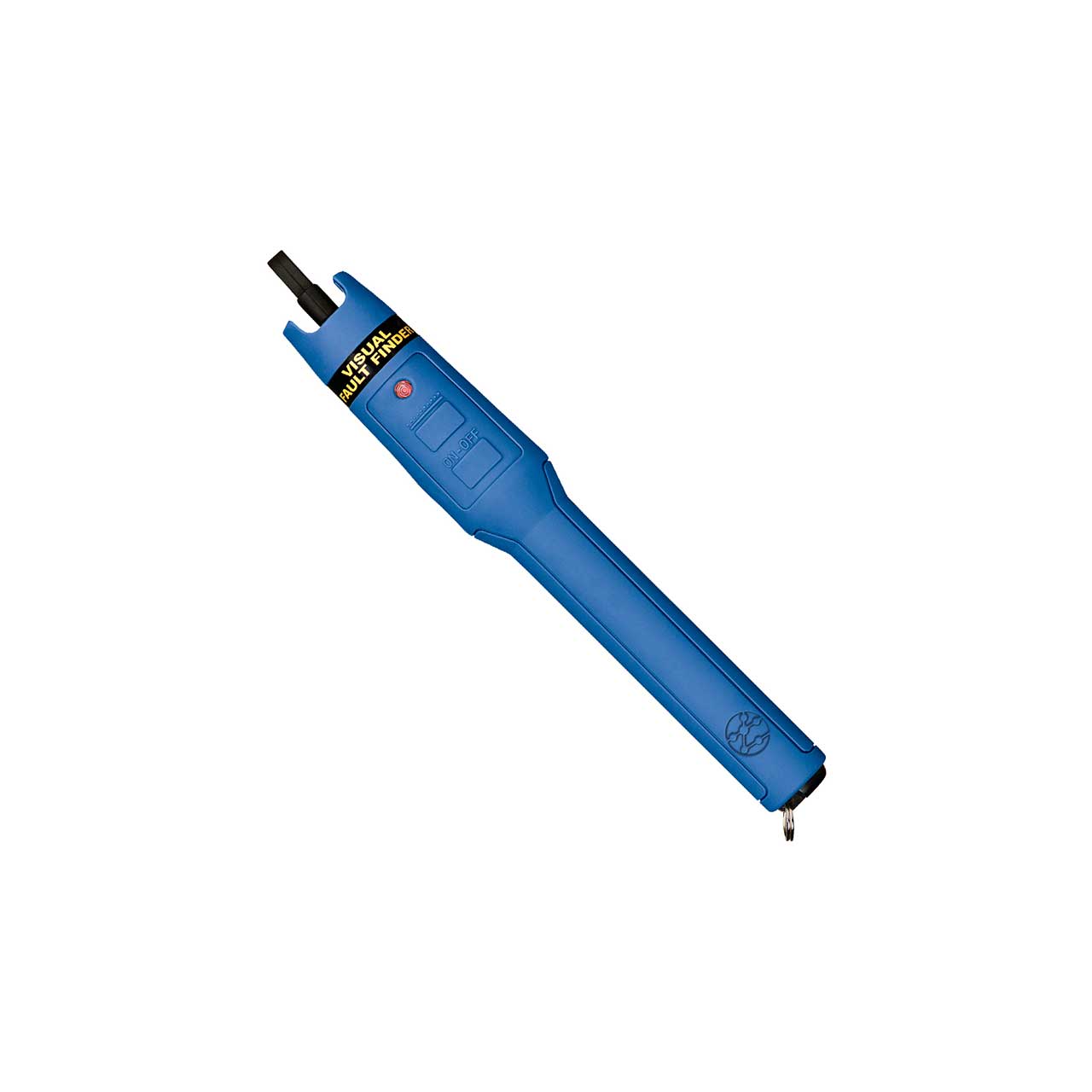

Simply45 ST-VFF5 Fiber Optic Cable Visual Fault Finder with 2.5mm Universal Adapter

ITEM #: S45-ST-VFF5 MFG #: ST-VFF5

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$357.00

Our Price:

$339.15

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ST-VFF5 - Overview

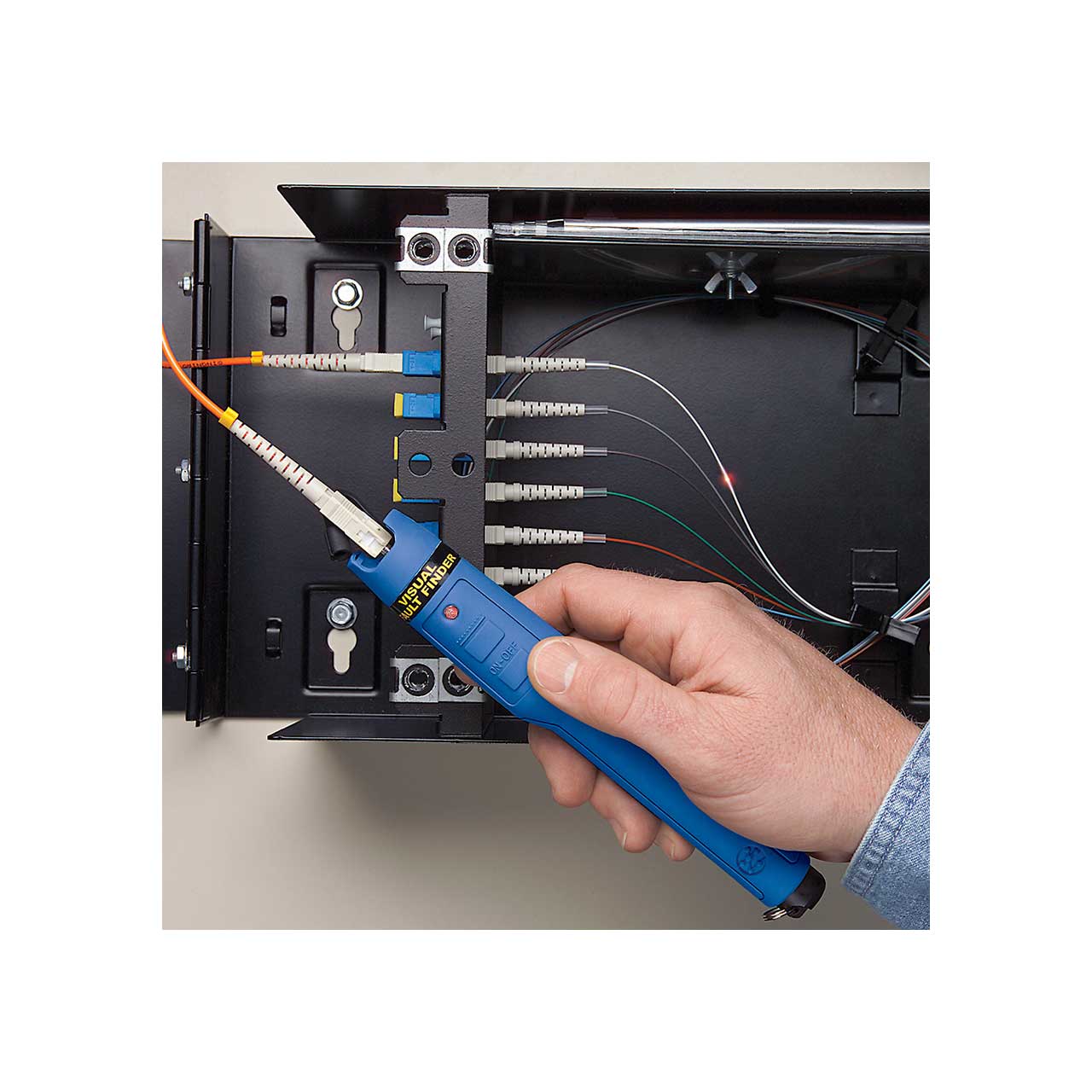

    Simply45 ST-VFF5 Visual Fault Finder s a visible laser light source used to check continuity, locate breaks, poor mechanical splices and damaged connectors in fiber optic cabling.

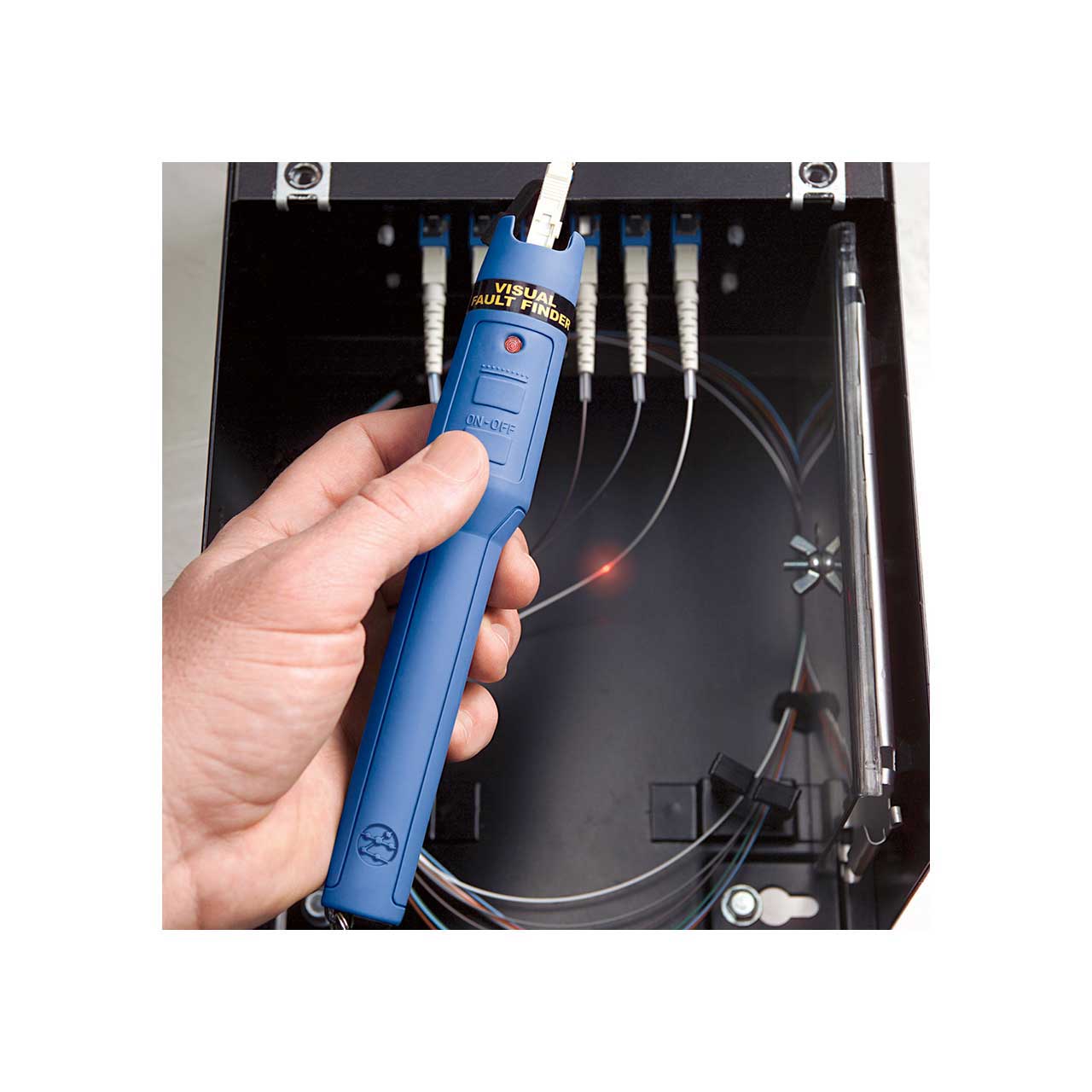

    This Visual Fault finder is used to verify continuity, test and find breaks in fiber links, locate pinched fiber strands in termination cabinets, or anywhere fiber optic cables are terminated and subject to mechanical damage.

    • Features:

      • Assists in: The termination of "no polish" connectors by indicating proper cleave alignment in connectors such as the MTRJ
      • Universal 2.5mm Interface: Connects directly to ST®. SC, and FC connectors
      • Non-Roll Design: Essential for bench top use when terminating mechanical splices or internal-splice connectors
      • Rugged, Metal Body: With protective Santoprene® over-sleeve

    • Specifications:

      • Light Source: Class II laser diode
      • Central Wavelength: 650nm ± 10nm
      • Spectral Width: <5nm
      • Laser Light Pulse Duration: Continuous in CW mode 600ms in 1 Hz modulation mode
      • Environment: Operation: -148°F to 41° /±10°C to ±5°C
      • Storage: -4°F to +1473°F / -20°C to ±801°C
      • Power Supply: Two 1.5V AA Alkaline Batteries
      • Dimension and Weight (w/batteries): Length: 7.99"/ 203mm with ST dust cap, Diameter: 0.87"/ 22mm
      • Approximate Weight: 8.11oz
      • Connector: 2.5mm universal
      • Battery Life: >80 hours
      • Weight w/o Batteries: 0.30lbs
      • Length: 8.7in/220mm
      • Diameter: 1.25in

    • Item Includes:

      • 1x Holster
      • 1x Integrated Rubber Port Cover
      • 1x Lanyard
      • 1x Cell-Phone Style Belt Clip
      • 1x Instruction Sheet
      • 2x AA Batteries

    • GTIN:

      0810093721214
