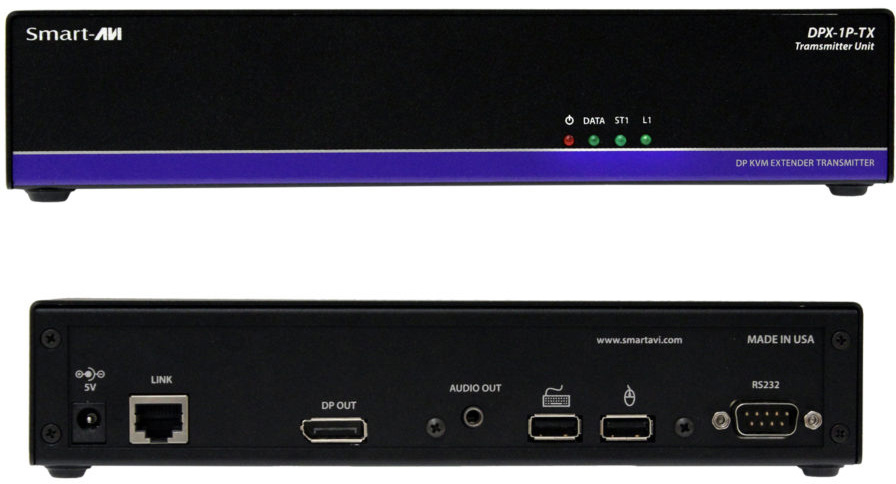

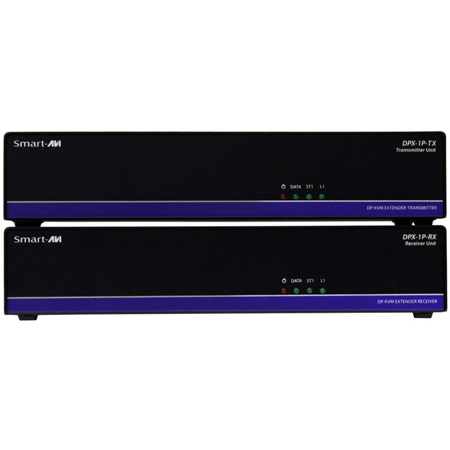

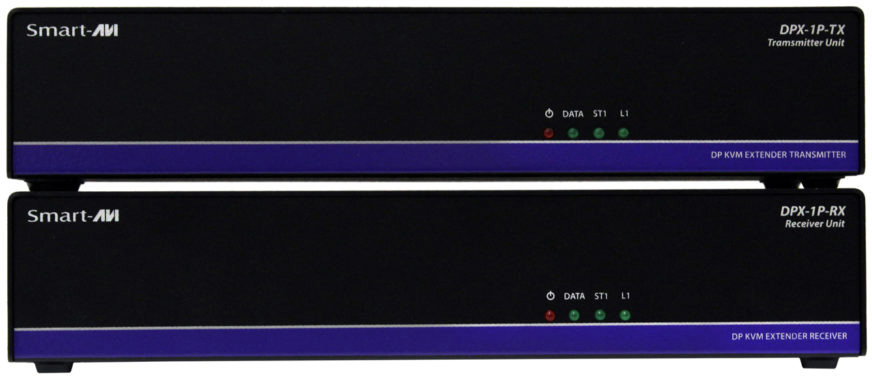

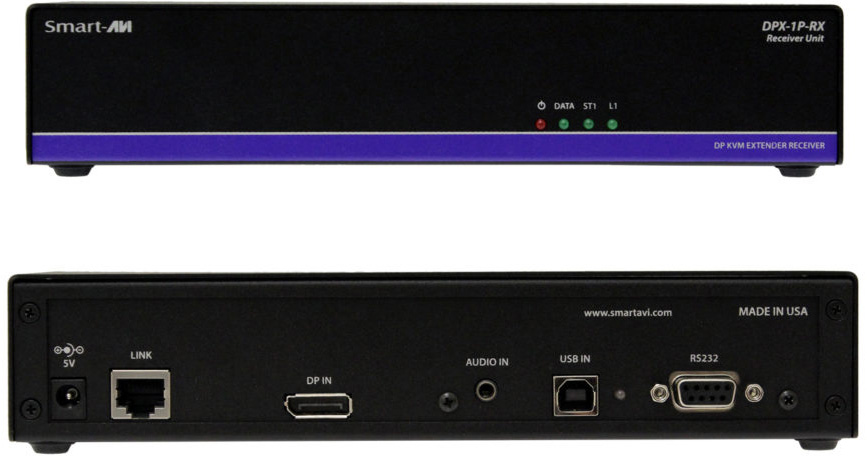

Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6
  • Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6
  • Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6
  • Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6
  • Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6

Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart AVI DPX-1P-Plus DisplayPort KVM and Audio Extender Over Cat5e/6

Manufacturer: Smart-AVI

Item #: SAVI-DPX-1P-PLUS   •   MFG #: DPX-1P-PLUS



List Price:$899.00
Our Price:$745.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The DPX-1P-Plus DisplayPort extender is capable of sending a DP signal up to 328 feet (100m) over a conventional and inexpensive CAT5/5e/6 cable. The technology is superior to standard extenders that require a special CAT6 shielded cable to go a short distance. The DPX-1P-Plus also has USB keyboard and mouse, and RS-232 extension, giving users the ability to control displays or devices remotely.


    • Features

      • Extend DisplayPort signals up to 328 feet (100m)
      • Data recovery for digital video
      • Supports 1080p (1920x1200 @ 60Hz)
      • Supports up to 4K (3840x2160 @ 30Hz) video resolution
      • Automatic EDID Learning
      • USB Keyboard and Mouse
      • Supports RS-232 extension
      • External power adapter for transmitter and receiver unit
      • Supports SST only (no MST support)
      • Plug-and-play ready

    • Specifications

      • Format: DisplayPort 1.2
      • Maximum Pixel Clock: 275 MHz
      • Input Interface (TX): (1) DP female
      • Output Interface (RX): (1) DP female
      • Resolution: Up to 4K (3840x2160 @ 30Hz)
      • DDC: via AUX
      • Input Equalization: Automatic
      • Input Cable Length: Up to 15 ft.
      • Output Cable Length: Up to 15 ft
      • Signal Type: USB 1.1 and USB 2.0 Compatible
      • Input Interface (TX): (1) USB Type B (Female)
      • Output Interface (RX): (2) USB Type A (Female)
      • Input Interface (TX): DB9 (Female)
      • Output Interface (RX): DB9 (Female)
      • Flow Control: Software up to 115,000 kbps
      • Frequency Response: 30KHz to 80KHz
      • Audio Input Interface (TX): (1) 3.5 mm (Female)
      • Audio Output Interface (RX): (1) 3.5 mm (Female)
      • Power: External 100-240 VAC/5VDC3A @20W
      • Dimensions: 9 in W x 2 in H x 3 in D
      • Weight: 1.45 lb per TX/RX unit
      • Operating Temp: 0-55 °C (32-131°F)
      • Storage Temp: -20-85 °C (-4-185 °F)
      • Humidity: Up to 95%
