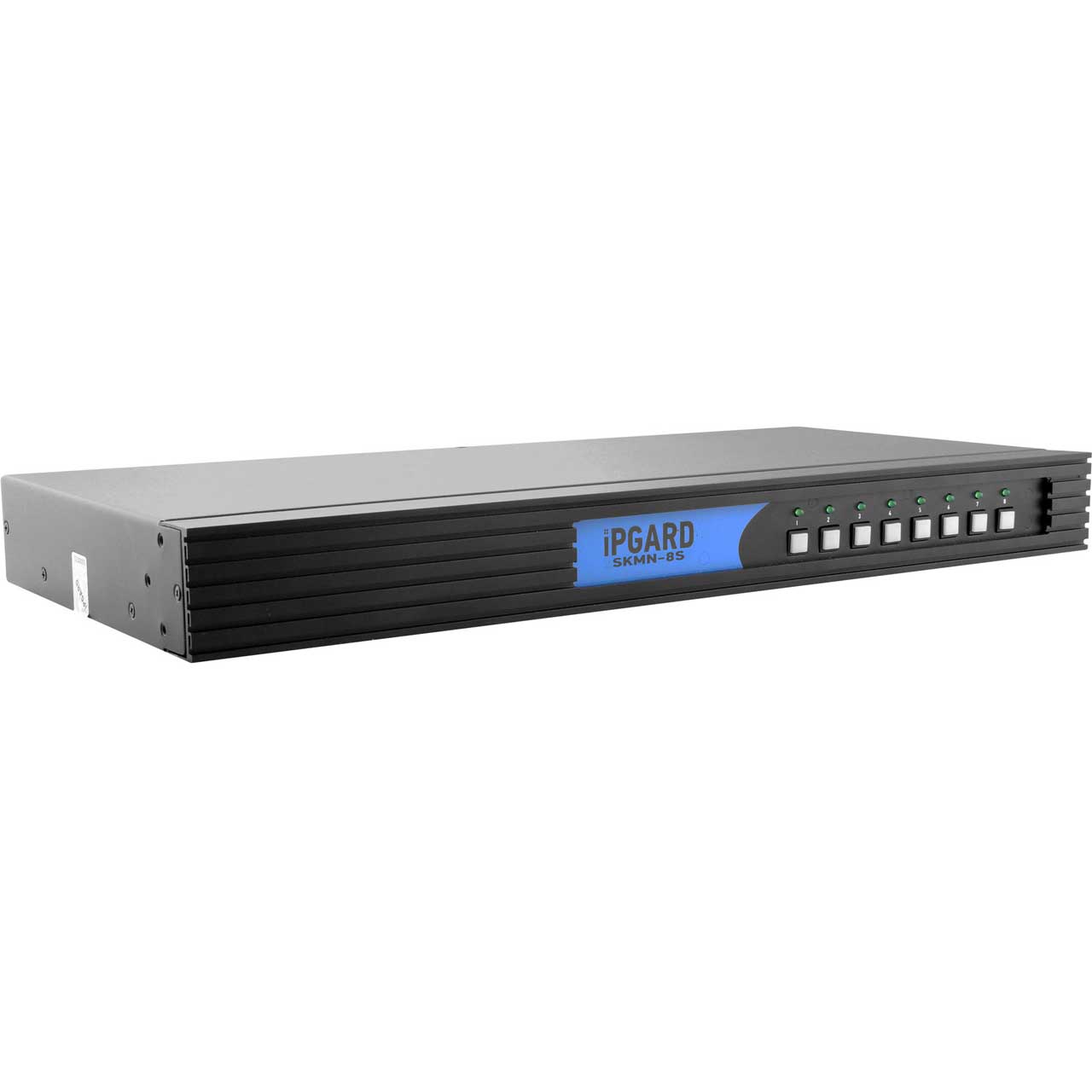

Smart-AVI SKMN-8S Secure 8-Port USB KM Switch with Audio Support
  • Smart-AVI SKMN-8S Secure 8-Port USB KM Switch with Audio Support
  • Smart-AVI SKMN-8S Secure 8-Port USB KM Switch with Audio Support
  • Smart-AVI SKMN-8S Secure 8-Port USB KM Switch with Audio Support
Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI SKMN-8S Secure 8-Port USB KM Switch with Audio Support

Manufacturer: Smart-AVI

Item #: SAVI-SKMN-8S   •   MFG #: SKMN-8S


List Price:$1,089.00
Our Price:$980.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    California Residents:
    Cancer and Reproductive Harm -


    The Smart-AVI SKMN-8S allows users to control KM (keyboard and mouse) operation on up to four computers. It features mechanical, electrical and optical signal isolation to prevent hacking and data leakage in environments where security is paramount.

    With the SKMN-8S, all data relays are controlled by inverted signals, shielding connections from outside intrusion by forcing them each to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to better protect the switch’s functions. Better yet, the SKMN-8S offers the highest security when accessing classified and public networks over the internet through these isolated connections. By isolating connections between networks, the SKMN-8S ensures no data is leaked between secure ports and the outside world.

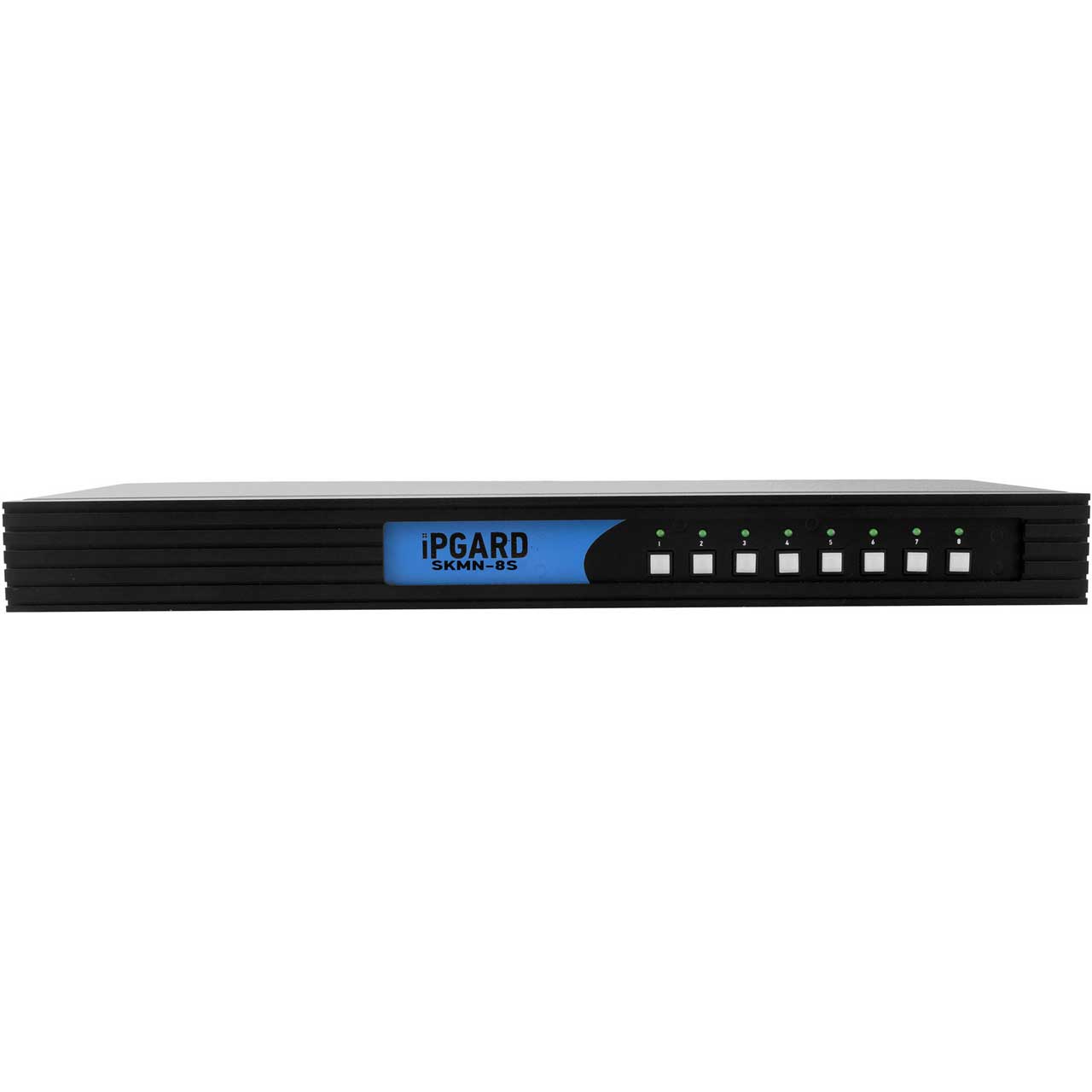

    The SKMN-8S has clearly marked front-panel buttons for controlling the device, so securely switching between sources is always simple. For high-grade secure switching made easy, look no further than the SKMN-8S.

    • Features

      • Key Features
      • Supports Windows, Mac and Linux OS
      • Supports Balanced speakers output and switching
      • Advanced configurable CAC port
      • Front panel tactile buttons with LED indicator
      • External power supply - Level VI efficiency
        Security Features
      • Non-reprogrammable ROM
      • Active Anti-tamper switches
      • Long-life internal Anti-tampering battery
      • External tamper-evident seals
      • Keyboard, Mouse and Video emulation
      • Absolute isolation - No data leakage between ports
      • Certified by NIAP, the latest Common
      • Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)
    • Specifications

      • USB

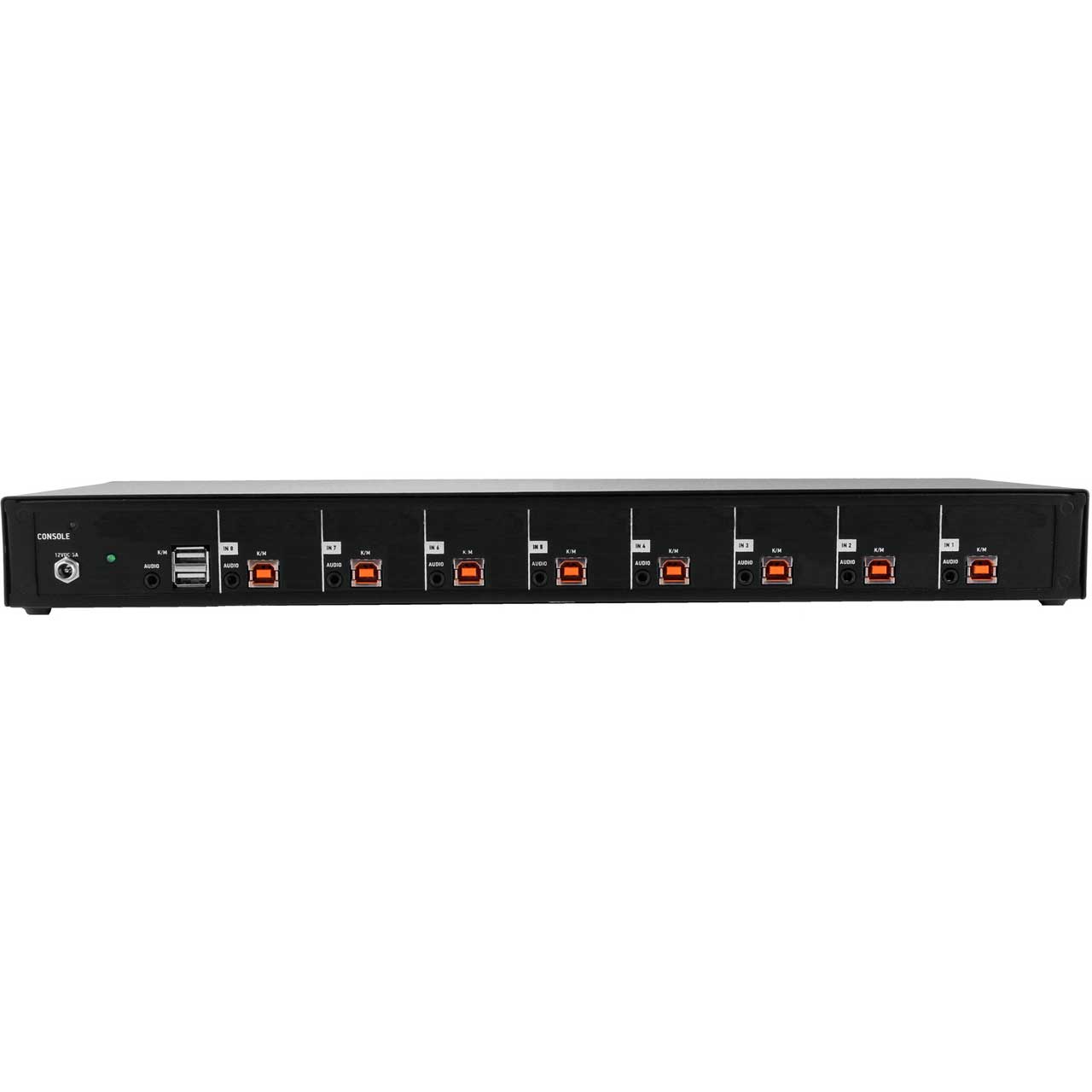

      • Input Interface: (8) USB Type B
      • Output Interface: (2) USB 1.1 Type A for KM devices
      • Emulation: Keyboard and Mouse
      • Audio Input: (8) 3.5mm stereo audio
      • Audio Output: (1) 3.5mm stereo audio
      • Front Panel: Front panel SELECT buttons
      • Power: External 100-240 VAC/ 12VDC3A @ 36W
      • Dimensions: 17" W x 1.76" H x 8.69" D
      • Weight: 6.3 lbs
      • Approvals: NIAP PP 3.0, UL, CE, ROHS Compliant
      • Operating Temp.: +32 to +104°F (0 to +40°C)
      • Storage Temp.: -4 to 140°F (-20 to +60°C)
      • Humidity: Up to 80%
    • GTIN:
