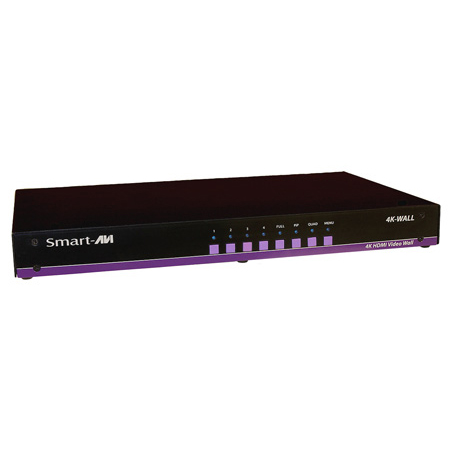

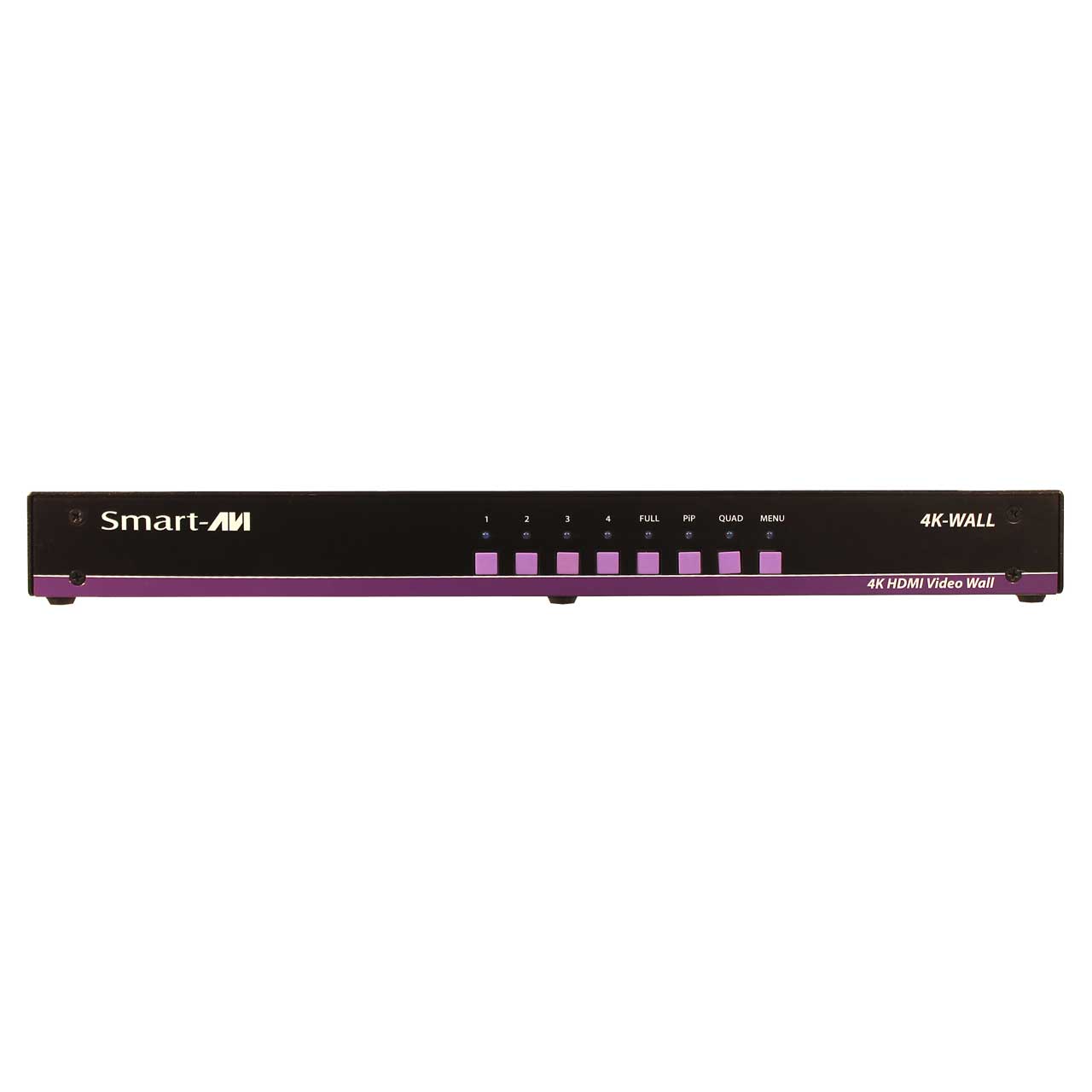

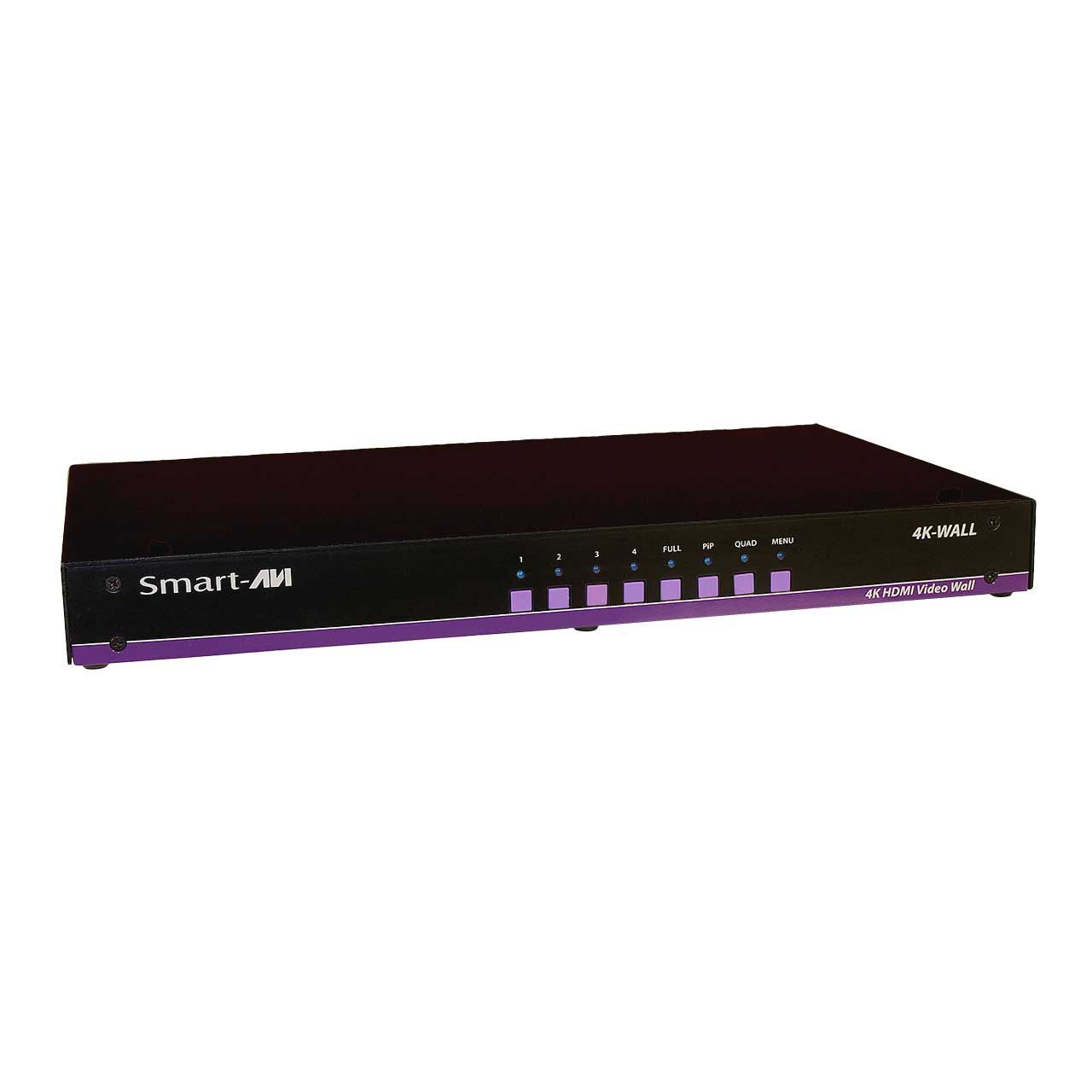

Smart-AVI SM-4KWL-S 4X4 Port HDMI Real-Time Video Matrix / Integrated Video Wall
  • Smart-AVI SM-4KWL-S 4X4 Port HDMI Real-Time Video Matrix / Integrated Video Wall
  • Smart-AVI SM-4KWL-S 4X4 Port HDMI Real-Time Video Matrix / Integrated Video Wall
  • Smart-AVI SM-4KWL-S 4X4 Port HDMI Real-Time Video Matrix / Integrated Video Wall
Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI SM-4KWL-S 4X4 Port HDMI Real-Time Video Matrix / Integrated Video Wall

Manufacturer: Smart-AVI

Item #: SAVI-SM-4KWL-S   •   MFG #: SM-4KWL-S


List Price:$2,999.00
Our Price:$2,249.99

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



Innovative Video Wall Controller and Matrix

To create a four-screen video wall with four HD video inputs, the 4K-Wall video wall controller and matrix provides a truly simple
plug-and-play hardware solution with incredible 4K resolution. With four inputs and four outputs, users can arrange their content
in numerous ways, providing unique functionality by combining the abilities of a video wall hardware controller and a matrix. The
4K-Wall is HDCP compliant.
Users can stretch one large image over four screens, send an input to each screen, send four images to each screen or create
a customizable Picture-in-Picture display. Better still, there's no software required, as all content management options are
effortlessly controlled via the 4K-Wall video wall controller unit itself. There's no need for drivers or updates, just connect the
HD inputs and HD screens to the controller and it's ready to go.
Mass Video Conferencing
Entertainment Venues
Corporate Lobbies

  • Features

    • Complete hardware solution - no need for a PC
    • Plug-and-play ready
    • Four HDMI inputs and four HDMI outputs
    • DVI-D up to 1920x1200 input
    • Learns any EDID
    • Internal EDID database
    • Multiple configurations
    • Easy control and access
    • HDCP and HDMI 1.4 compliant
    • Supports IR and RS-232
    • 4K2K/3840x2160 total (with 1920x1080 monitors)
  • Specifications

    • VIDEO
    • Video Bandwidth Single-link 340MHz [10.2Gbps]
    • Resolution HDTV 480i,480p,720i,720p,1080i,1080p
    • PC Resolution 800 x 600 up to 1920 x 1200
    • Input Video Signal 1.2 volts
    • Input DDC Signal 5 volts
    • Single Link Range 1080p
    • Format HDMI 1.4
    • DVI Compliance Single-link DVI-D 2.0
    • HDCP Compliance 1.0/2.0
    • Video Bandwidth Single-link 340MHz [10.2Gbps]
    • Input Interface (4) HDMI
    • Output Interface 4 x HDMI
    • Connector Type A [19-pin female]
    • Front Panel Tact Switches w/OSD
    • RS-232 DB9 (female)
    • Remote IR RC5
    • Additional Optional Ethernet Control
    • POWER
    • Requirements Internal 100-240 VAC
    • Power Supply
    • Approvals
    • UL, CE, CSA, CEC, RoHS
    • Height 1.70 in. (1U)
    • Width 17 in. (431.8 mm.)
    • Depth 10.2 in. (259 mm.)
    • Weight 4.05 lbs. (1.84 kg.)

Add Accessories for your SM-4KWL-S:
