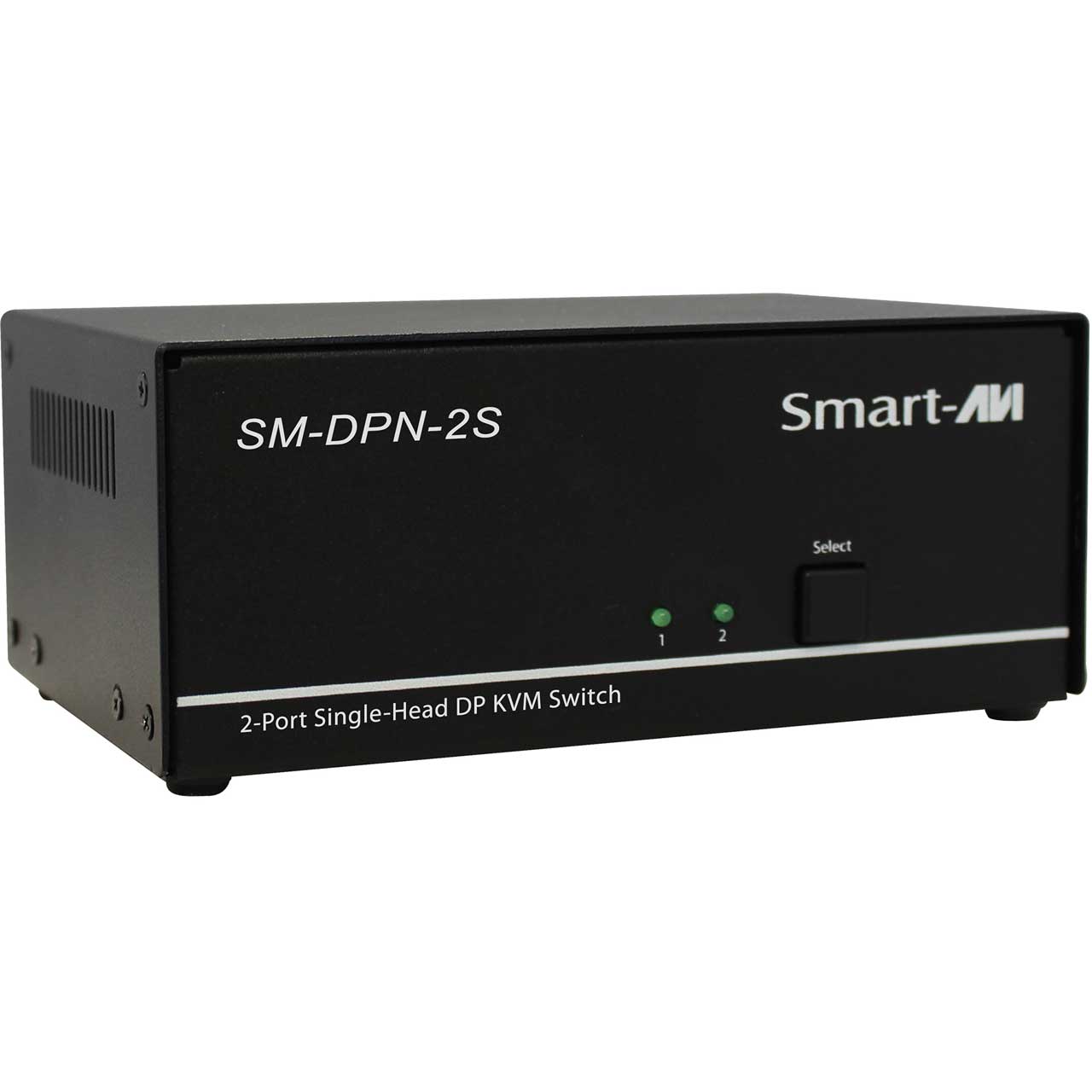

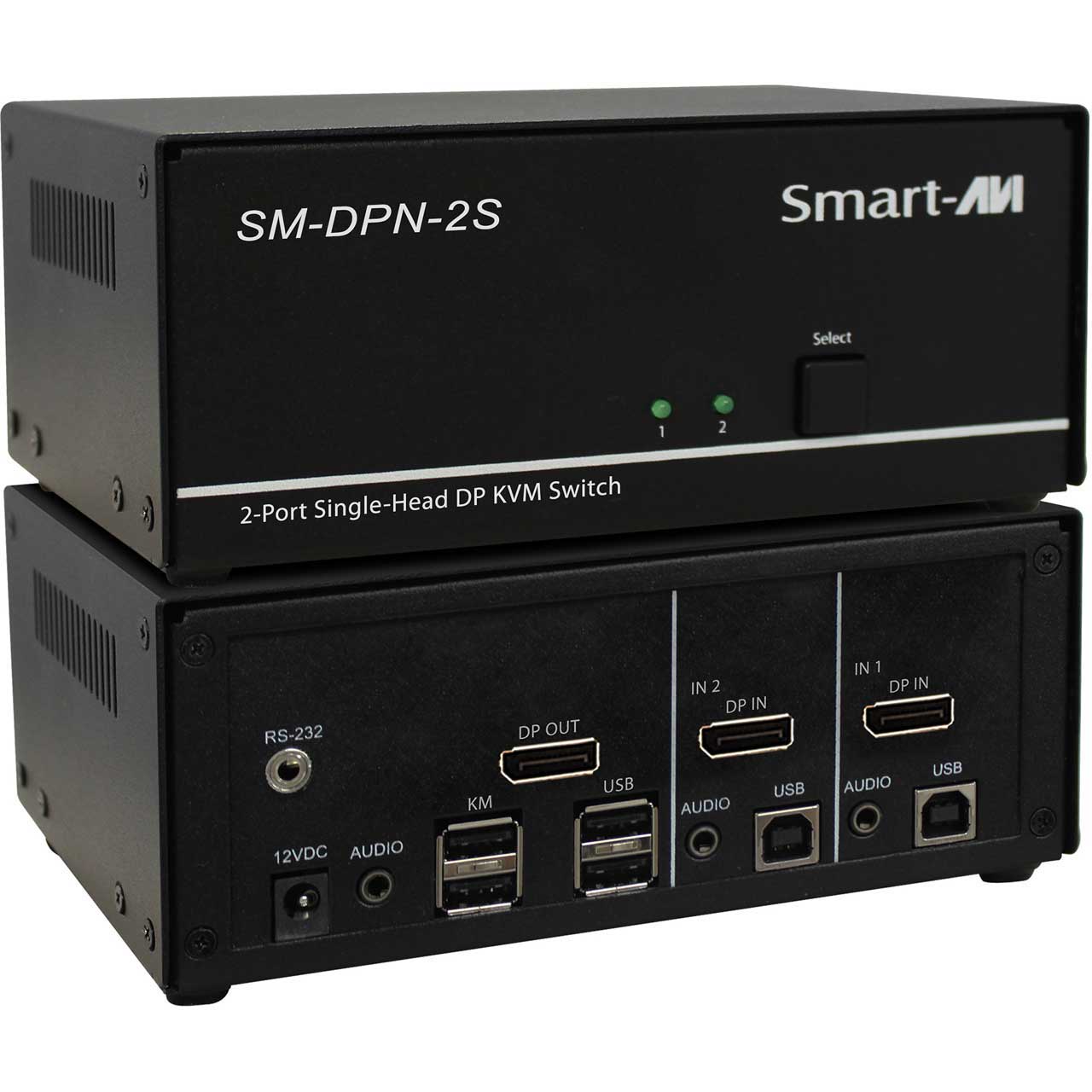

Smart AVI SM-DPN-2S DisplayPort KVM Switch with Audio and USB 2.0 Support - 2 Port

SM-DPN-2S - Overview

• Features:

  • DisplayPort Video Connectors
  • Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
  • Supports resolutions up to 3840 x 2160 @ 60 Hz
  • Supports USB keyboard and mouse
  • Supports additional USB 2.0 devices like printers, scanners, web cameras and more
  • Flash upgradeable firmware
  • Stereo Audio support

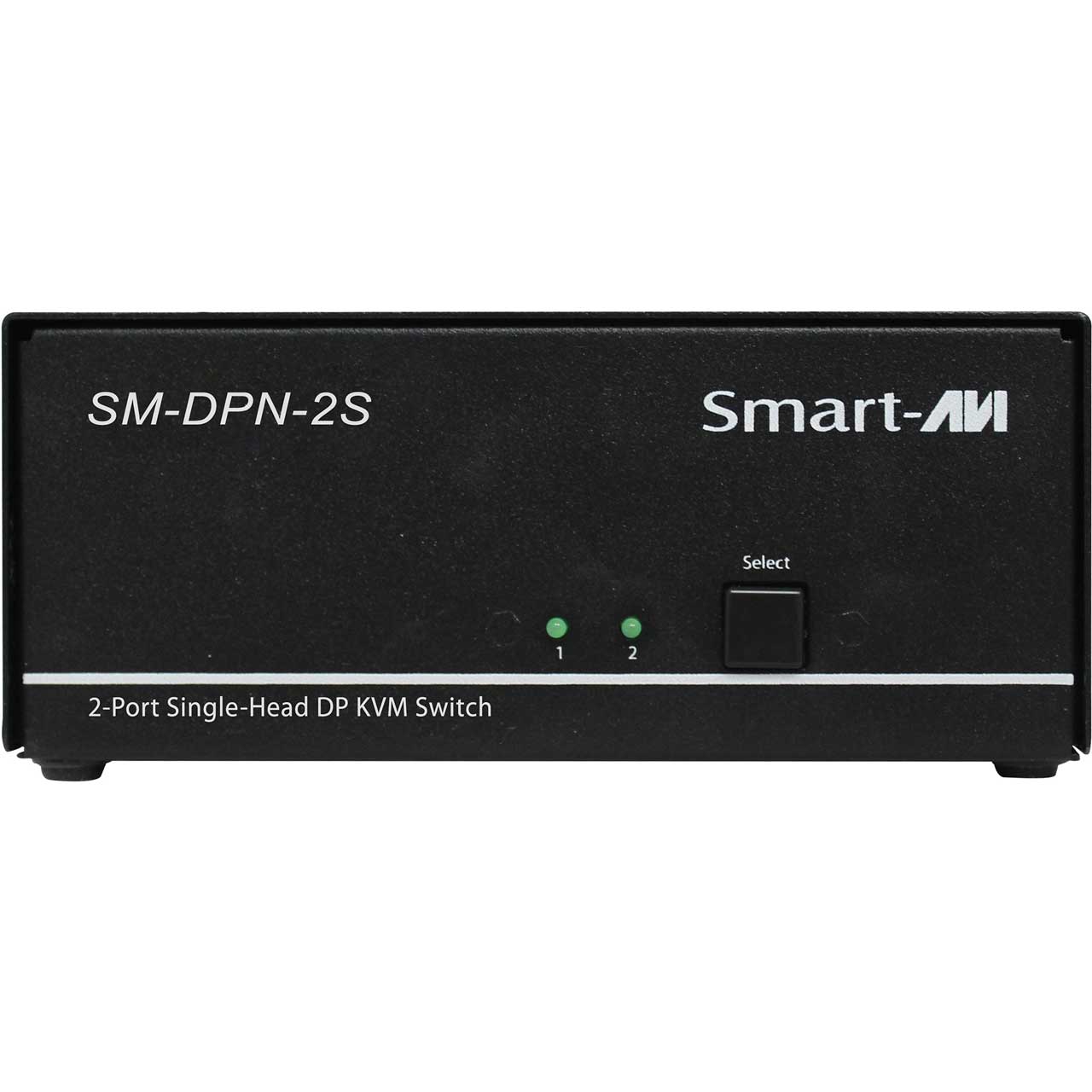

  • Front panel keys for manual port selection
  • Hot-key commands for quick port selection
  • RS-232 for remote control

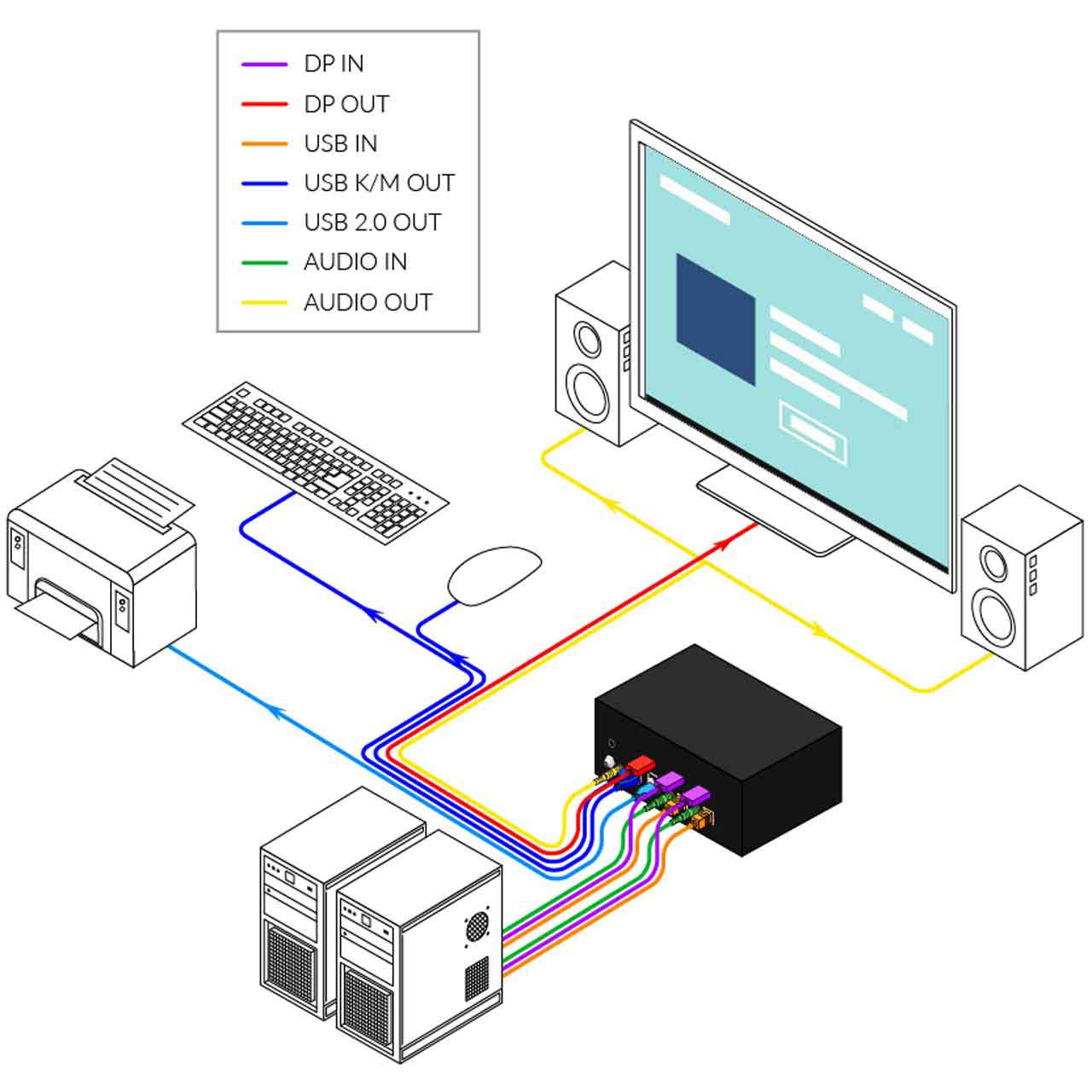

  • Independent (asynchronous) switching of KVM andv peripheral USB/audio ports. Users can listen to audio fromv one computer while working on a different computer, orv scan a document and save it on another computer
  • Complete keyboard emulation for error free booting


• Specifications:

  • Video
  • Format: DisplayPort
  • Maximum Pixel Clock: 165 MHz

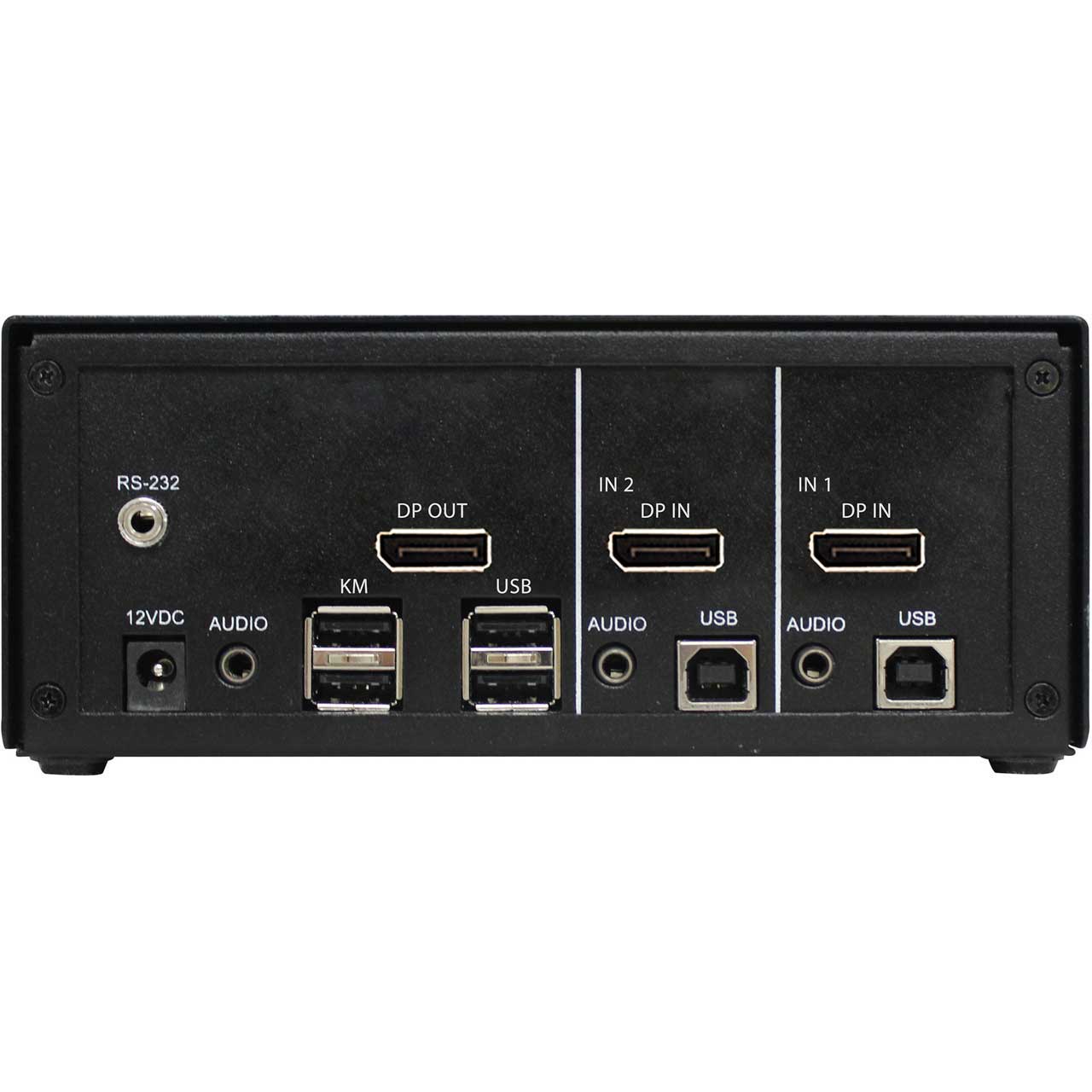

  • Input Interface: (2) DisplayPort
  • Output Interface: (1) DisplayPort
  • Resolution: 3840 x 2160 @ 60 Hz
  • Color Mode: 24-bit
  • DDC: 5 volts p-p (TTL)
  • Input Equalization: Automatic
  • Input Cable Length: Up to 20 ft.
  • Output Cable Length: Up to 20 ft.
  • Data Rate: 1.65 Gbps per color
  • Console Monitors: Supports both digital and analog monitors

    Audio
  • Input Interface: (2) 3.5 mm Stereo Audio
  • Output Interface: (1) 3.5 mm Stereo Audio
  • Impedance: 600 Ohm
  • Frequency Response: 20 Hz to 20 kHz
  • Nominal Level: 0-1.0 V
  • Common Mode: Rejection at 60 dB

    Software Compatibility
  • Operating Systems: Operates with virtually any OS including Windows, DOS, Linux, Unix, Sun, Mac, etc.

    USB
  • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
  • Input Interface: (2) USB Type B
  • Output Interface: (2) USB 1.1 Type A for KVM Devices; (2) USB 2.0 Type A Transparent

    Control
  • Front Panel: Push Buttons with LED Indicators
  • RS-232: Via Control @ 115200 bps
  • Hot Keys: Via Keyboard

    Other
  • Power: External, 100-240 VAC/12VDC2A @ 24W
  • Dimensions: 4" W x 3" H x 6.5" D
  • Weight: 1.95 lbs
  • Approvals: UL, CE, ROHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)
  • Emulation: Keyboard and Mouse
