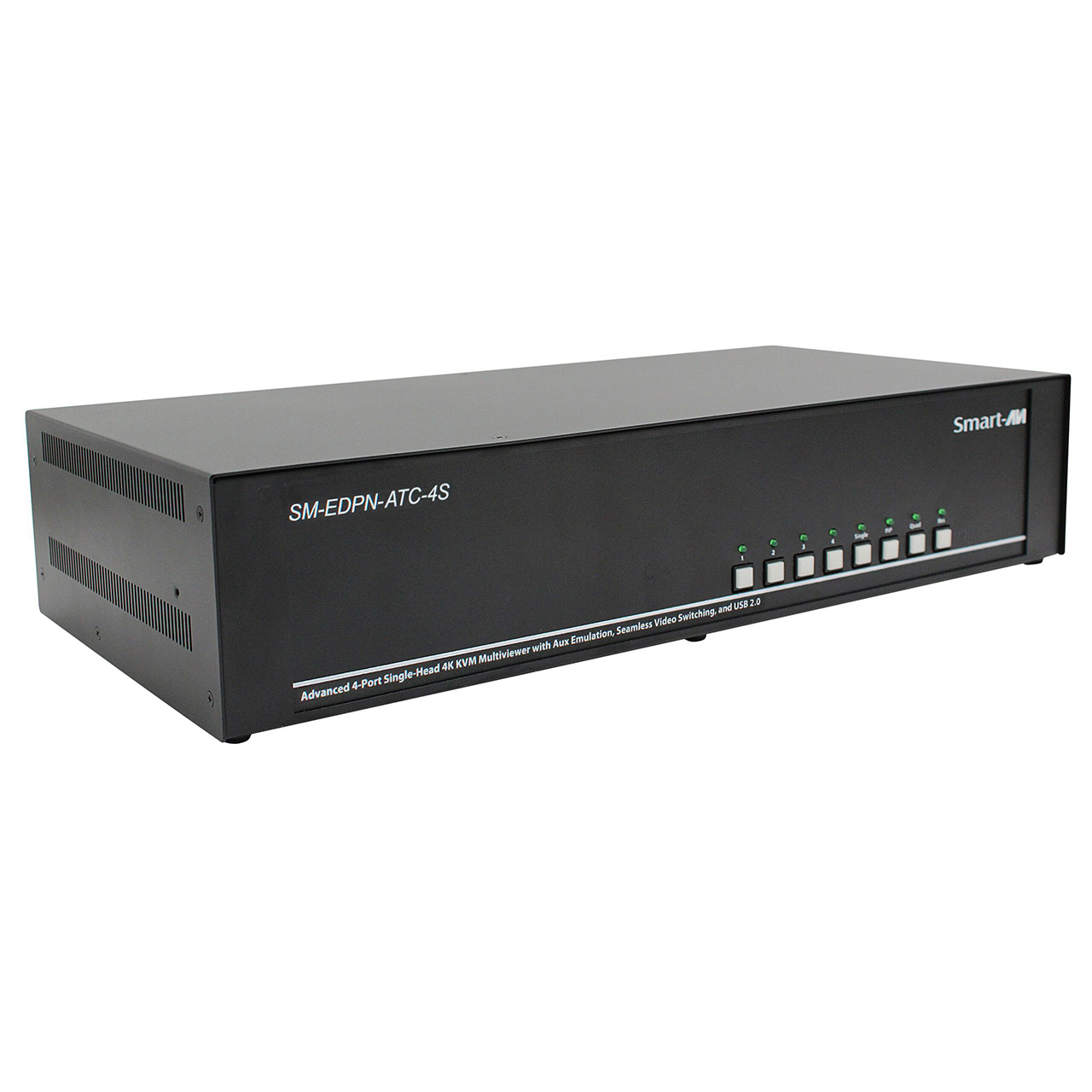

Smart-AVI SM-EDPN-ATC-4S 4-Port Seamless Single-Head DisplayPort KVM Switch for Air Traffic Control - 3840x2160

ITEM #: SAVI-SMEDPATC4S MFG #: SMEDPATC4S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,599.00

Our Price:

$1,395.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMEDPATC4S - Overview

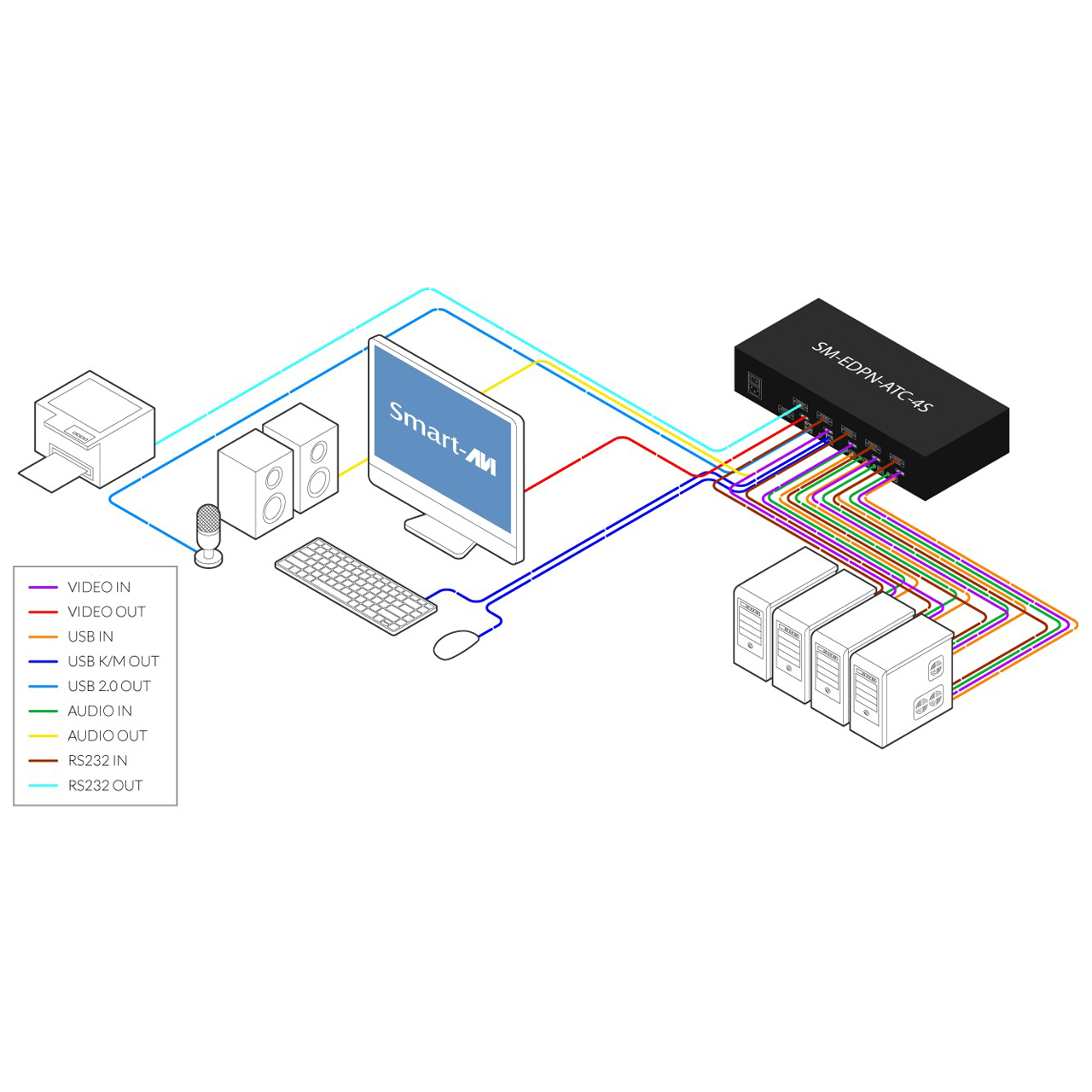

Designed for 24/7 operational reliability, the Smart-AVI SM-EDPN-ATC-4S is a high-performance KVM solution that enables air traffic controllers to securely manage multiple critical systems including radar, flight data, surveillance, and weather platforms from a single, unified workstation with specialized ATC resolutions such 2048x2048 @ 60Hz.

By centralizing IT hardware outside the control room, the system reduces heat, noise, and clutter, while delivering real-time, zero-disruption access to all connected system that require RS-232.

  • Features:

    • Uninterrupted visualization
    • Precise image timing and color accuracy
    • Instant system switching without loss of situational awareness
    • Supports specialized ATC resolutions such as 2048x2048
    • EDID Video Emulation ensures monitor layout stays consistent when switching
    • Secure architecture for safety-critical environments
    • USB keyboard and mouse emulation
    • Additional USB 2.0 device support (printers, cameras, etc.)
    • Stereo audio support
    • Front panel buttons for manual port selection
    • Hot-key support for quick switching
    • RS-232 serial control
    • Asynchronous switching of USB/audio and video
    • Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc.

  • Specifications:

      Video
    • Format: DisplayPort1.2
    • Maximum Pixel Clock: 594MHz
    • Input Interface: SM-EDPN-ATC-4S: 8x DisplayPort 20-pin (female)
    • Output Interface: SM-EDPN-ATC-4S: 2x DisplayPort 20-pin (female)
    • Resolution & Refresh Rate: 3840 x 2160 @ 60Hz
    • Color Capability: 24-bit True Color (8-bits per channel)
    • DDC: 5Vp-p (TTL)
    • Chroma Sampling: 4:4:4 (full color), 4:2:2, or 4:2:0
    • Input Equalization: Automatic
    • Input Cable Length: Up to 20ft
    • Output Cable Length: Up to 20ft
    • Data Rate: 1.65Gbps per color
    • Bandwidth (HBR2): Up to 21.6Gbps total (5.4Gbps per lane)
    • EDID Support: Full emulation & preloaded profiles

      Control

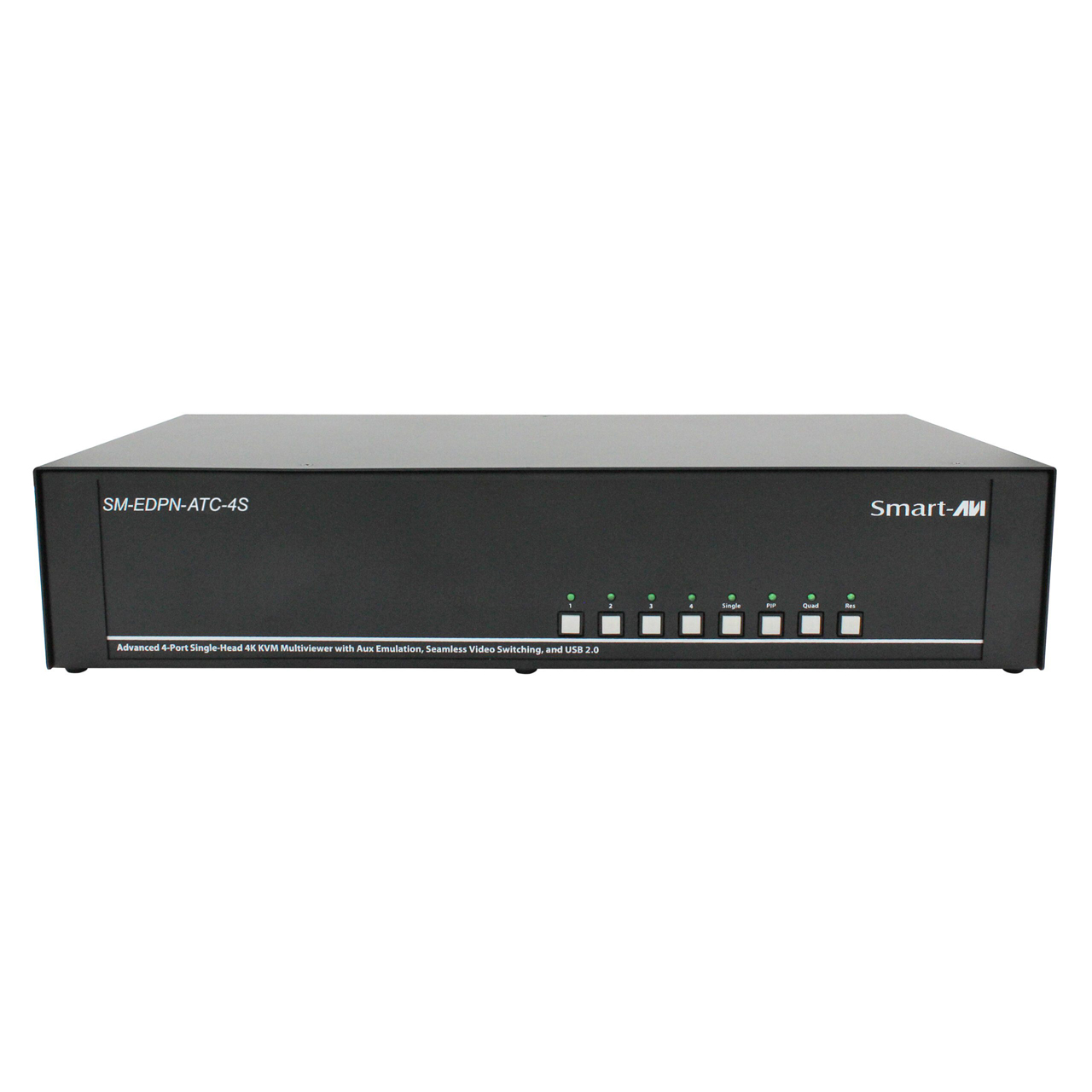

    • Front Panel: Push Buttons with LED Indicators
    • Hot Keys: Via Keyboard

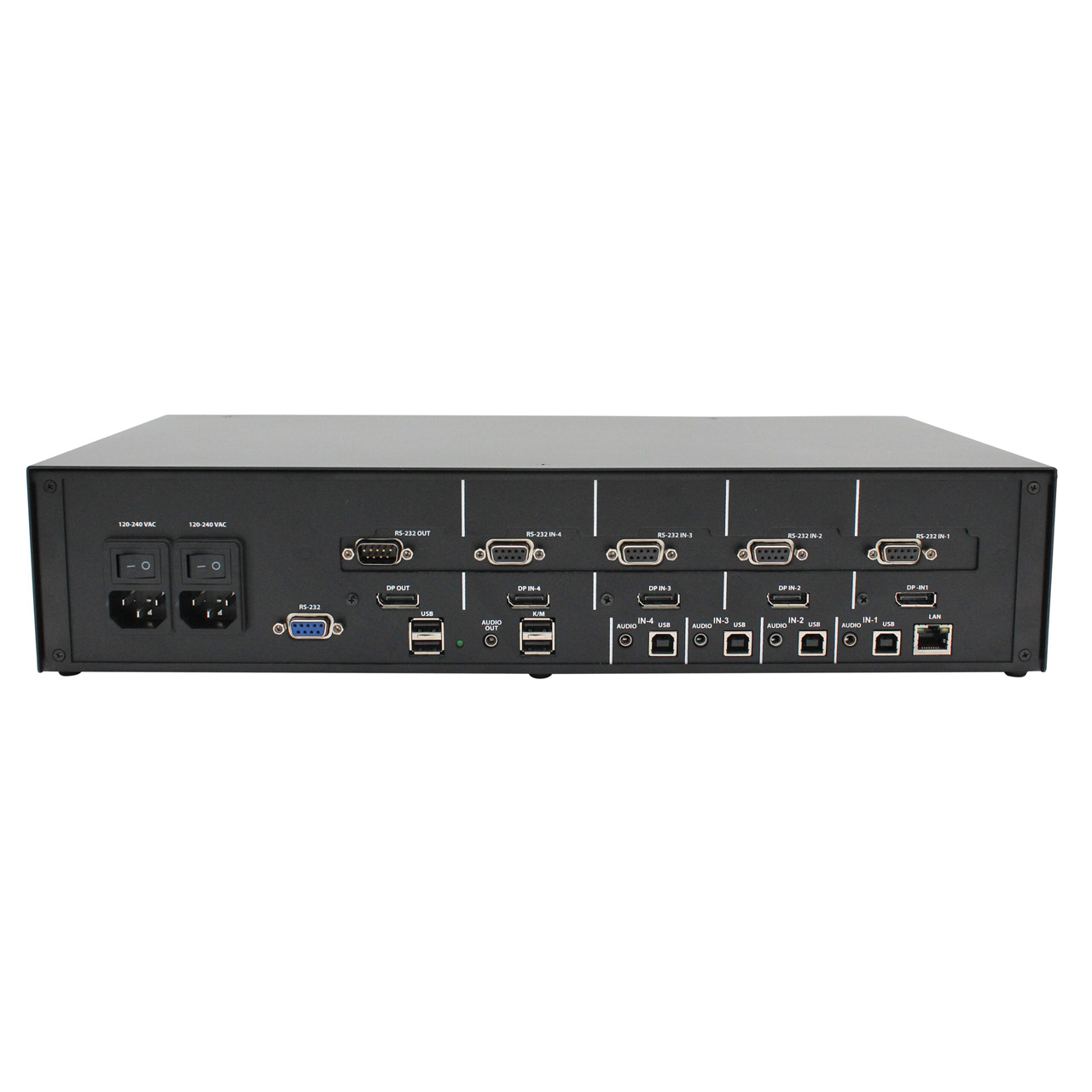

      RS-232
    • Connectors:
      - 4x DB9 female
      - 1x DB9 male
    • Speed: Up to 115,000bps
    • RS-232 Support: Full Duplex

      USB
    • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
    • Input Interface: 4x USB Type B (female)
    • Output Interface:
      - 2x USB Type A (female) for K/M emulation
      - 2x for USB 2.0 Transparent
    • Emulation: Keyboard and Mouse

      Audio
    • Input Interface: 4x 3.5mm Stereo Audio
    • Output Interface: 1x 3.5mm Stereo Audio
    • Impedance: 600Ω
    • Frequency Response: 20Hz - 20kHz
    • Nominal Level: 0V - 1.0V
    • Common Mode: Rejection at 60dB

      Other
    • Power Adapter: External 120V - 240VAC, Internal PSU
    • Dimensions (HxWxD): 2.7" x 17.0" x 8.69"
    • Weight: 4.4lbs
    • Approvals: UL, CE, ROHS Compliant
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity: Up to 80% (No Condensation)

  • Item Includes:

    • 1x 4-Port Single/Dual-Head 4K KVM Multiviewer
    • 1x Power Cord (120V - 240VAC)

  • Warranty:

    • 1 Year Limited Warranty
