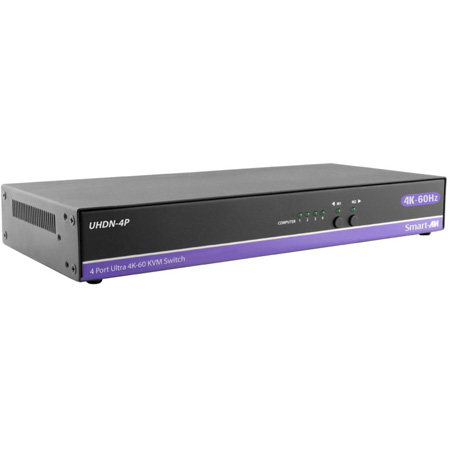

Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support
  • Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support
  • Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support
  • Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support
  • Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support

Questions? Ask a Markertek Expert:
800-522-2025 Email

Smart-AVI UHDN-4P 4-Port HDMI 4K/60Hz KVM Switch with USB 2.0 and Audio Support

Manufacturer: Smart-AVI

Item #: SAVI-UHDN-4P   •   MFG #: UHDN-4P



List Price:$499.00
Our Price:$446.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    What is the UHDN-4P?
    The Smart-AVI UHDN-4P is a 4-port, single-head HDMI KVM switch with Ultra-HD 4K/60Hz resolution video emulation. It can control keyboard-mouse functions on up to four remote computers, and emulates video from HDMI source devices.

    Why Choose UHDN-4P?
    The UHDN-4P is the perfect control solution for supervisors and administrators, allowing them to take command of keyboard and mouse functions on remote systems with the press of a button.

    Better still, the UHDN-4P is the first single-head KVM switch on the market to offer full Ultra-HD 4K emulation at 60Hz directly out of the box. It features EDID-assisted HDMI emulation, which ensures visual workspaces and screen resolutions are remembered every time it connects to a new system: it's a powerful, simple, and invaluable tool!

    Controlling the UHDN-4P:
    The UHDN-4P is easy to control in a variety of methods, including:
    Front Panel Buttons: switch between devices you wish to control and emulate with simple SELECT buttons on the UHDN-4P's front panel.
    USB Keyboard Hot Keys: control switching functions of the UHDN-4P using programmable Hot Keys on a connected USB keyboard.
    RS-232 Commands: control switching functions of the UHDN-4P using RS-232 serial commands.

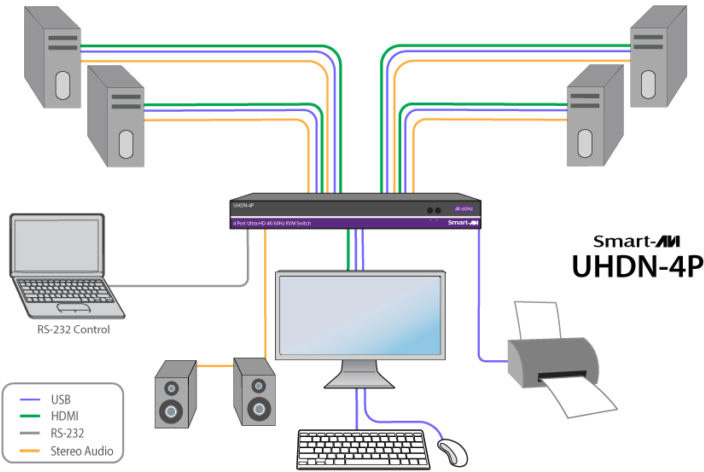

    Applications for UHDN-4P
    The UHDN-4P excels in any professional multi-system environment, especially those where high resolution video plays a crucial role in every day workflow. Ultra-HD 4K KVM switching is a great fit in environments like server hubs, control rooms, production studios and post-production houses, transportation facilities like airports, hospitals and medical centers, and corporate IT service centers.


    • Features

      • Supports up to Ultra-HD 4K (3840×2160) @ 30/50/60Hz
      • Supports 3D
      • Supports LPCM, Dolby-AC3, DTS7.1, and DSD/Dolby TrueHD/DTS-HD master audio
      • Supports HDMI 1.3, 1.4, & 2.0
      • HDMI and HDCP compliant
      • Control up to four computers with a single KVM
      • Full EDID HDMI video emulation
      • Zero pixel loss with TMDS signal correction
      • Supports USB Keyboard-Mouse emulation
      • Supports all USB 2.0 devices
      • Optionally rack mountable
      • Hot key commands for quick channel selection
      • Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save in another computer
      • Complete KVM emulation for error free booting
      • Easy switching via front-panel, RS-232 or hot keys
      • Full HDMI support, backwards compatibility

    • Specifications

      • Video
      • Link Rate: 5.4 Gbps
      • Input Interface: (4) HDMI 2.0 (female)
      • Output Interface: (1) HDMI 2.0 (female)
      • Resolution: 480i to 4Kx2K @ 60Hz (YUV420)
      • Input Equalization: Automatic
      • Bandwidth: 300 MHz, 10.2 Gbps
      • HDCP Compliant: Yes
      • Max Cable Length: 40 ft. (depending on cable quality)

        Audio
      • Input: (4) 3.5mm Stereo Audio Jack
      • Output: (1) 3.5mm Stereo Audio Jack
      • Frequency Response: 20Hz ~ 20KHz
      • Nominal Level: 0.0 - 1.0 V
      • Common Mode: Rejection @ 60 dB

        USB
      • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
      • Input Interface: (4) USB Type B (female)
      • Output Interface: (2) USB 1.1 Type A for keyboard and mouse; (2) USB 2.0 Type A Transparent

        Control

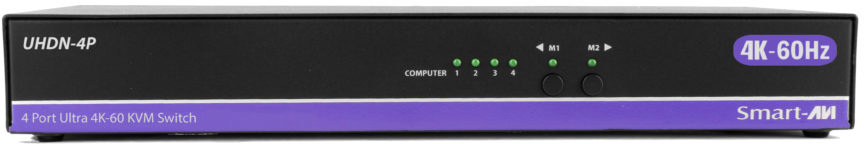

      • Front Panel: Buttons (SELECT audio/video source)
      • RS-232: Via SmartControl @ 9600 bps
      • Hot Keys: Via Keyboard
      • Emulation: Keyboard, Video and Mouse

        Other
      • Power: External 100-240 VAC/ 5VDC4A
      • Dimensions: 2" H x 5.75" D x 12.75" W
      • Weight: 3.55 lbs
      • Approvals: UL, CE, ROHS Compliant
      • Operating Temp.: +23 to +95°F (-5 to +35°C)
      • Humidity: 5 to 90% (No Condensation)

    • Item Includes

      • (1) UHDN-4P - 4-Port Ultra-HD 4K/60Hz KVM Switch
      • (1) Power Supply
      • (1) Quick Installation and User Guide
