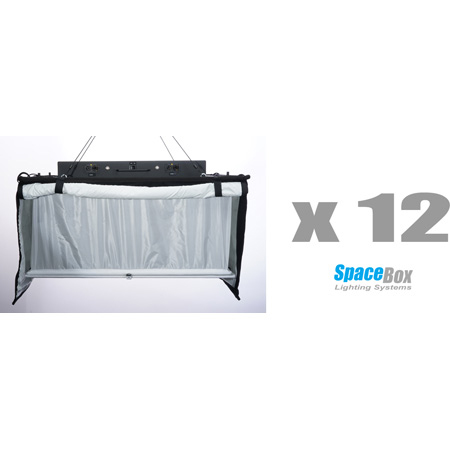

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SBLED-STKT12220D

SBLED-STKT12-220-D - Overview

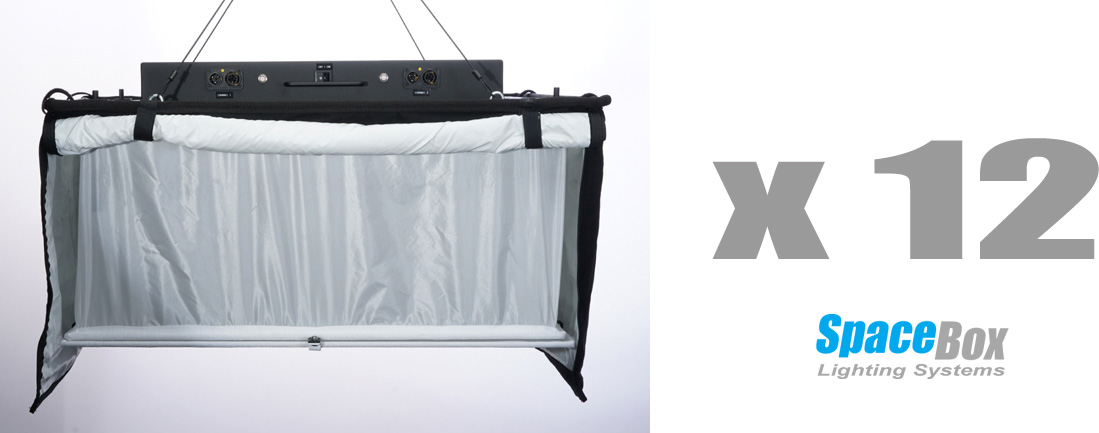

The SpaceBox SBLED-STKT12-220-D LED Studio Twelve Kit makes setting up a complete studio lighting system easy, right out of the box. If you have a grid or even just simple rigging points in your studio space, the Studio Four Kit will provide your lighting base coat for a room size of 35' x 40' or 35' x 35'.

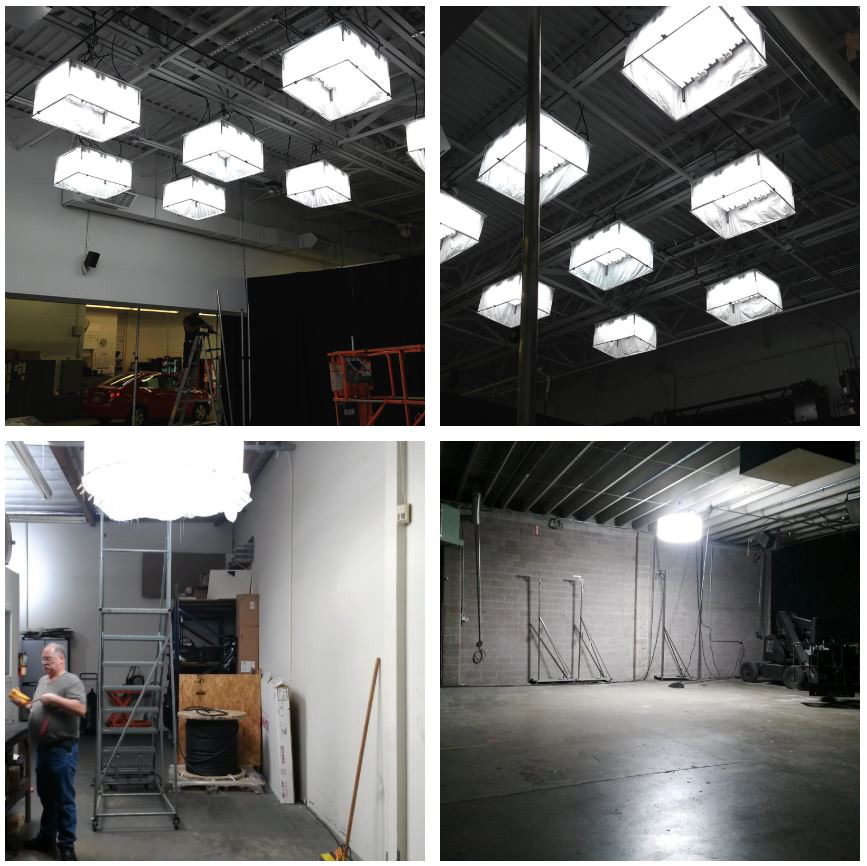

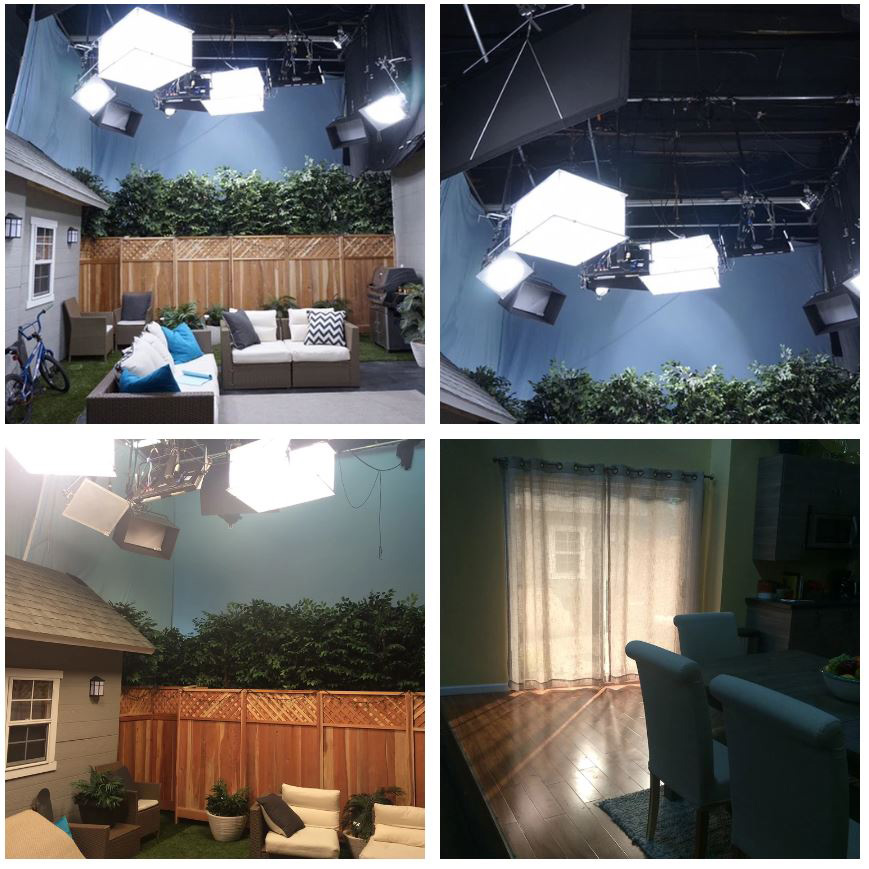

Or, if you're lighting a green screen wall / white cyc, place your SpaceBox LED's at 5' centers along your wall / cove to easily cover a length of 60' or greater. For best performance, the ideal mounting height is between 11' - 14' (from floor to bottom of skirt). Keep in mind that the general rule of thumb for distance from your wall is a number half of your rigging height. So in other words, if your rigging height is 12' then you should estimate rigging your SpaceBox LED's approximately 6' away from your wall for best coverage results.

A Bi-Color LED Spacelight that's easy to use, doesn't use a lot of juice, changes when technology does with interchangeable LED tubes and won't break the bank. Designed around the nonstop needs of today's production dynamics, It's a simple, economical and efficient idea that brings a fresh perspective to a classic studio lighting solution. The SpaceBox is a dimmable, two-channel, LED tube based, overhead space light fixture that can be operated in bi-color or single color modes.

Surprisingly bright with low power consumption along with the unique rectangular skirt format makes the SpaceBox an astoundingly efficient overhead fixture for today's small to medium, budget conscious facilities. Proudly driven by Quasar Science LED tube technology this part number uses all daylight 220V tubes), the SpaceBox delivers reliable and consistent CRI ratings of 95+ and flicker free operation. The LED tubes are dimmable via most existing DMX dimming systems available today and can be controlLED via Wireless DMX devices as well.

Gaffers, lighting designers, line producers and unit production managers alike will appreciate the “lumens per dollar" ratio compared to traditional tungsten space lights or older fluorescent systems. Combine that with the reduced labor and cable & electrical requirements of the SpaceBox, and the advantages of this system make it the logical choice for budget and performance.

  • Features:

    • The perfect solution for lighting your broadcast studio space or green screen studio
    • Ideal overhead lighting for virtual reality and digital imaging too
    • The SpaceBox is Easy, Efficient, Upgradeable and Economical
    • It's Simple and Safe to use. No broken glass from tungsten or fluorescent tubes
    • How Efficient? Very. Driven by LED tubes, drawing only two amps total per fixture
    • Economical and a Safe Investment. LED tubes rated for 25,000 hour average lifetime
    • Easily change out tubes to go from single color to bi-color, and even be ready for upgradeable color tubes in the future!
    • Compact, rectangular design with zippered corners on the balckout skirt allowing for creative control of light output
    • Numerous rigging options for temporary or permanent installation
    • Control your SpaceBox overhead units with off/on switches, simple dial dimmers or DMX consoles combined with virtually any brand dimmer pack
    • Create effects with flicker boxes and various DMX devices
    • Complete-Silence Operation
    • Passive Cooling, no fans, no heat
    • Compatible with most existing dimming systems

  • Specifications:

    • General Fixture Weights & Dims
    • Head(L x D x H): 30 inch x 23 1/2 inch x 10 inch - 27 lbs. (loaded w/ 14 Quasar LED Tubes)
    • Translucent Skirt(W x D x H): 31 3/4 inch x 25 1/4 inch x 15 inch - 4 lbs
    • Translucent Target(W x H): 32 1/2 inch x 26 inch - 2 lbs
    • 4-Way Zippered Blackout Skirt(W x H): 35 inch x 28 1/4 inch x 20 inch - 5 lbs
    • Total weight with all accessories: 38 lbs.* *Weight will vary depending on mounted accessories

      Fixture Electrical Operating Info
    • Two-Channel, dimmable LED studio spacelight fixture
    • Channel 1: Seven (7) LED 2' T8 tubes (3200°K or 5600°K) ~ 0.5 Amp @ 220VAC
    • Channel 2: Seven (7) LED 2' T8 tubes (3200°K or 5600°K) ~ 0.5 Amp @ 220VAC
    • Total Amperage per two channels: ~ 1 Amp @ 220VAC
    • *Daisy chain is available via flow-thru Power-Con cable assemblies
    • *Safely operate up to eight (8) fixtures on single, true 20A line
    • General operating temperature: ~ 100° - 120°F (38° - 49°C)

      Photometric Data (with translucent skirt)
    • Light output readings listed are measured at 800 ISO
    • 6' = 134 fc / 1,429 Lux (F4.0 5/10 @ 1/60th sec.)
    • 8' = 85 fc / 923 Lux (F2.8 8/10 @ 1/60th sec.)
    • 10' = 59 fc / 639 Lux (F2.8 3/10 @ 1/60th sec.)
    • 12' = 42 fc / 460 Lux (F2.0 8/10 @ 1/60th sec.)
    • 14' = 30 fc / 320 Lux (F2.0 3/10 @ 1/60th sec.)

  • Item Includes:

    • 12 x SpaceBox LED Fixture with four 20" safety chains
    • 168 x LED Tube, 5600°K - 220V
    • 24 x Power cord - 2'
    • 12 x Translucent Skirt - 15" Drop
    • 12 x Translucent Target
    • 12 x 4-Way Zippered Blackout Skirt - 20" Drop
    • 1 x Manual DMX Controller
    • 6 x 4-Channel DMX dimmer Pack
    • 1 x Set of DMX control cables
    • 1 x Set of extension cords
    • 12 x Junior Pin mounting plate
    • 12 x Grid Clamps
    • 1 x Set of laminated number tags
    • 1 x Bag of zip ties
    • 1 x Set of misc. electrical and hardware parts
    • 1 x Diagram and instruction manual

  • Warranty:

    • 1 Year
