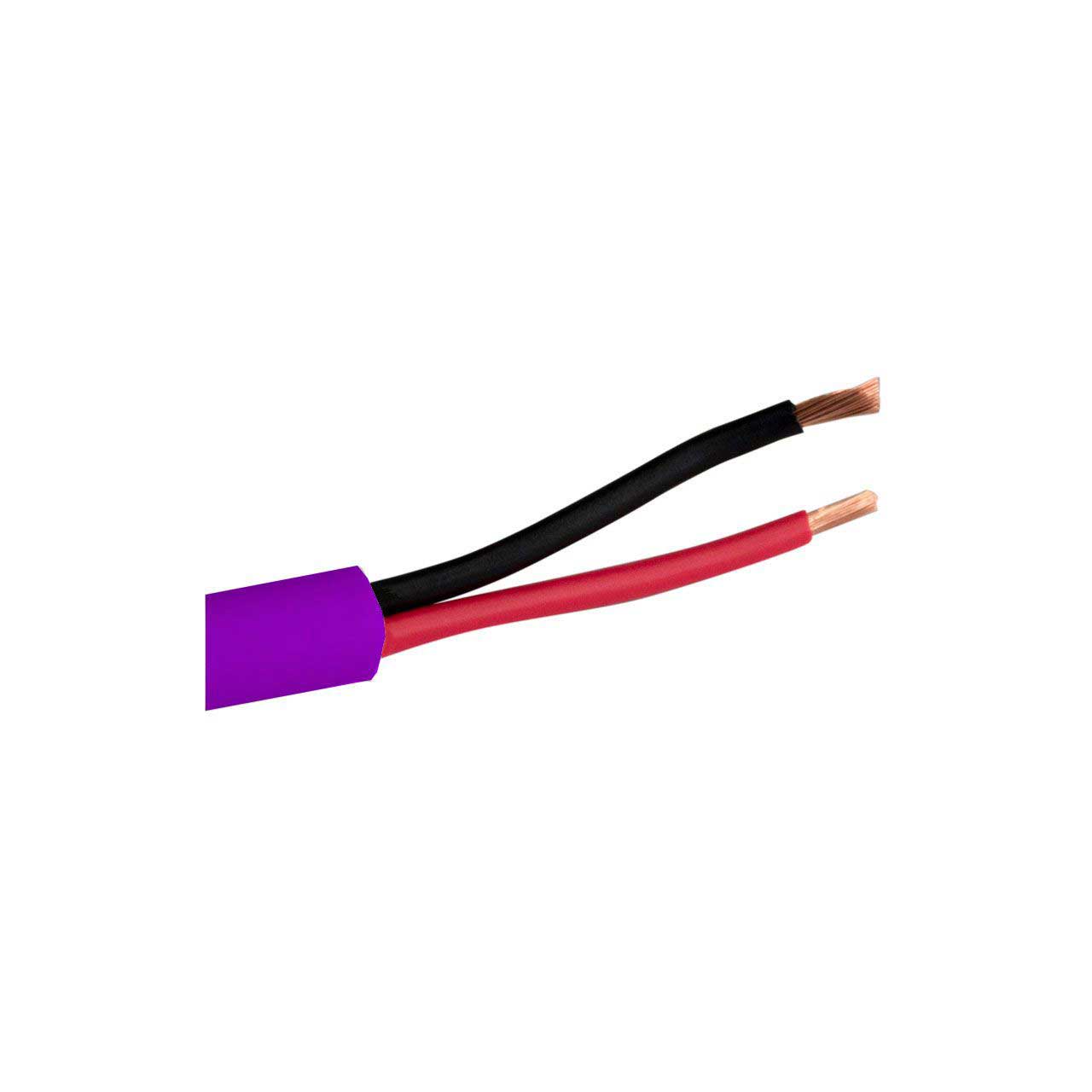

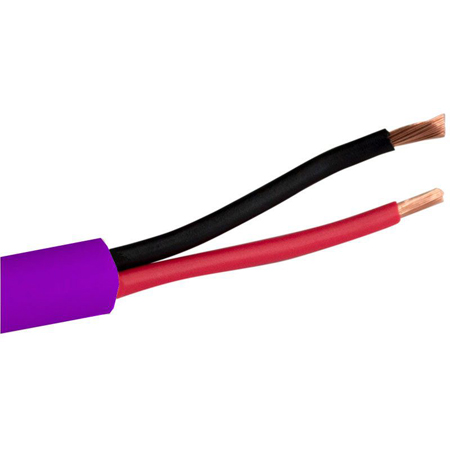

Structured Cable 14/2OFC-LSZH Low Smoke Zero Halogen 2C/14AWG Copper Commercial/Residential Speaker Cable - 500FT Purple

14/2OFC-LSZH-PUR - Overview

• Features:

  • High Strand Count Oxygen Free Copper
  • Unshielded
  • Insulated twisted pair
  • Easy Strip Low Smoke Zero Halogen Jacket
  • SCP Tangle Free Reelex II Box
  • Descending Feet and SCP Zone/Outlet Jacket Markings


• Specifications:

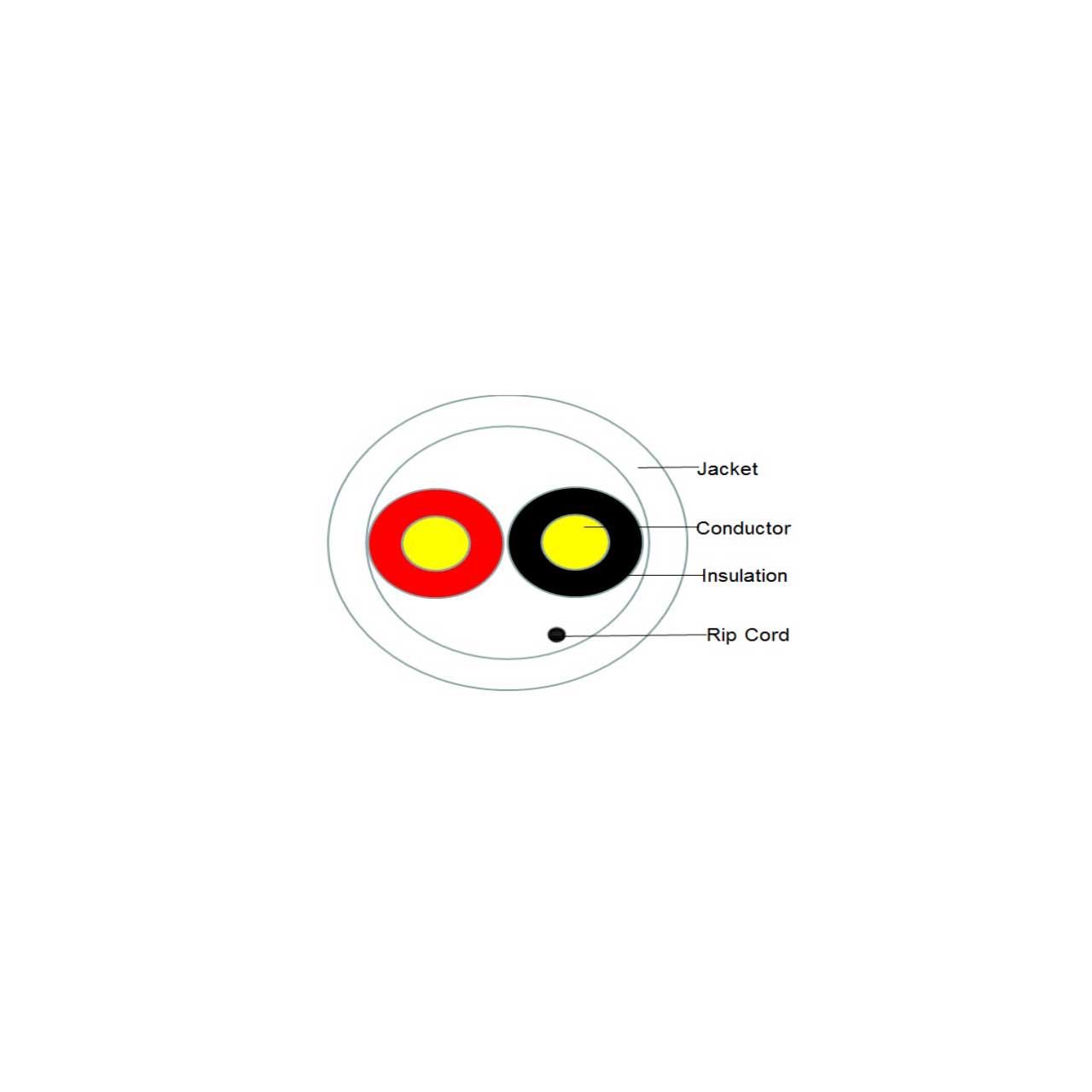

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 14AWG X 2C
  • Construction: 105/0.16mm±0.004mm
  • Resistance: Max 9.2Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.33mm
  • Avg. Thickness: 0.36mm
  • Diameter: 2.70mm±0.10mm
  • Colors: Black and Red
  • Resistance: Min 50MΩ*km at 20°C

    Jacket:
  • Material: LSZH
  • Min. Thickness: 0.54mm
  • Avg. Thickness: 0.60mm
  • Diameter: 6.3mm±0.20mm
  • Rip Cord: Nylon


  • Bend Radius: Min 15D/95mm
  • Operating Temperature Range: -20°C - +75°C
  • Operating Temperature Range: 0°C - 40°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage (Insulated/Operating): Max 300V/80V
  • Test Voltage: 800V/min
  • Impedance (nearby): 62±6Ω
  • Capacitance (nearby): 28.9±3pf/ft


• GTIN:

  0810070016258
