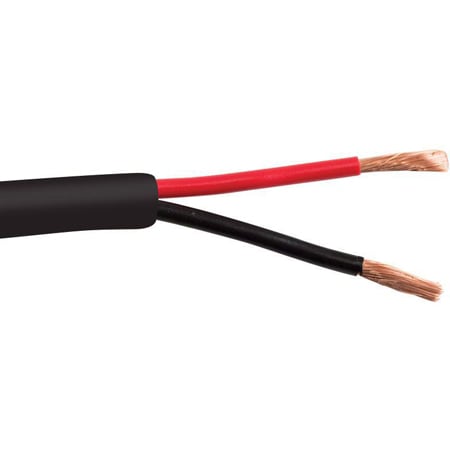

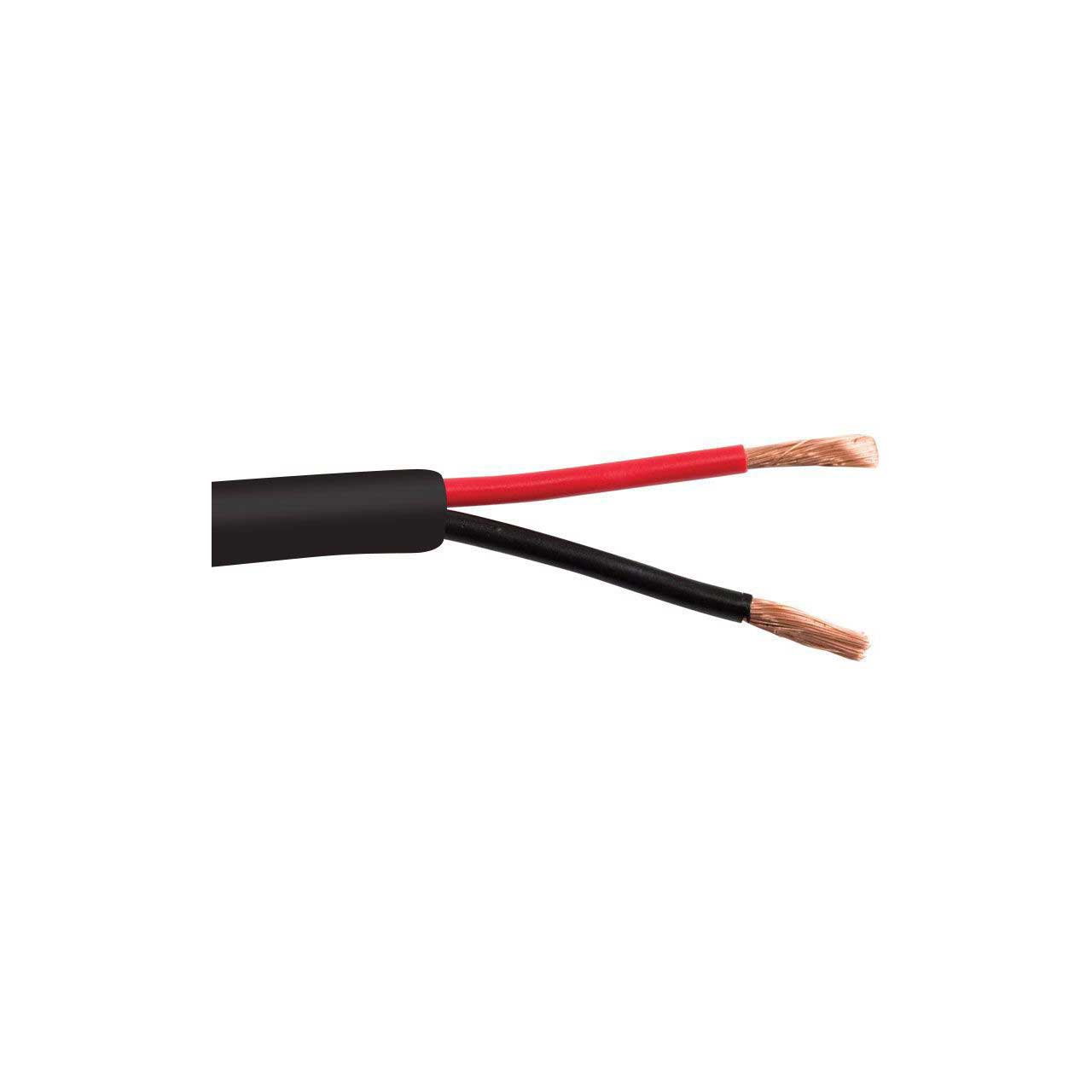

Structured Cable 14/2SP ProSeries 2-Conductor 14 AWG Gel-Filled Landscape/Direct Burial Speaker Cable - 500 Feet Black

ITEM #: SCP-142SPDB500 MFG #: 14/2SP-DB-500

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Structured Cable Products
Free Shipping with $49 Minimum Order

List Price:

$276.00

Our Price:

$172.50

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    14/2SP-DB-500 - Overview

    Professionals Choice for All High Performance Landscape and Outdoor Speaker Systems. Retains Flexibility in All Outdoor Environments. ProSeries Landscape/Direct Burial cables feature LLDPE (Linear Low-Density Polyethelene) jackets that provide superior performance and durability over PVC or standard PE jacket cables. These cables also are UV Sun Resistant and retains flexible performance in both hot and cold environments.

    • Features:

      • High Strand Count Oxygen Free Copper
      • Unshielded
      • Insulated twisted pair
      • Linear Low-Density Polyethelene Jacket
      • Waterproof
      • Gel Filled
      • Superior Durability and Longevity
      • Rodent Resistant
      • UV Sun Resistant
      • Descending Feet Markings


    • Specifications:

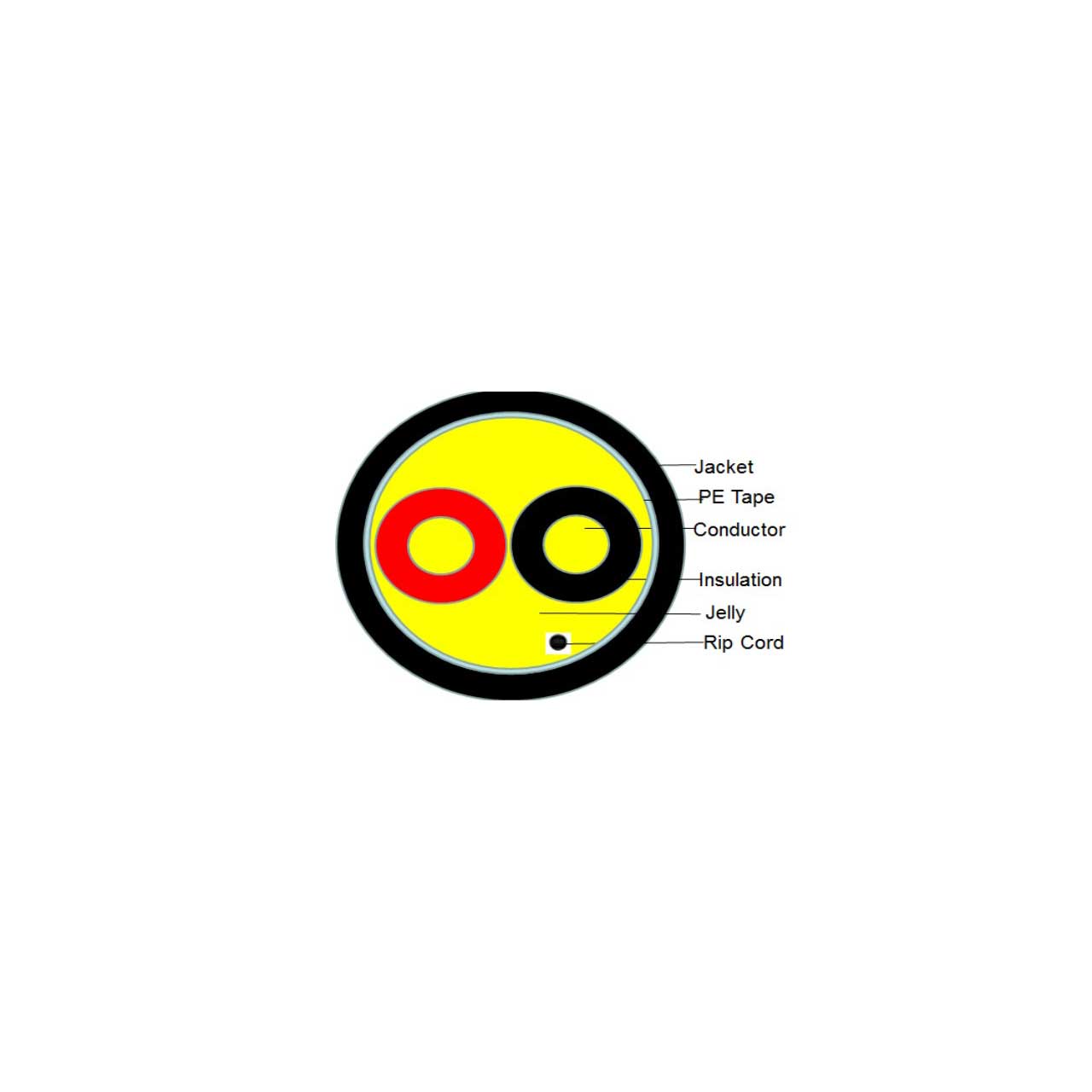

      • Conductor:
      • Material: Stranded Bare Copper
      • Size: 14AWG X 2C (2.11mm2)
      • Construction: 105/0.16mm±0.004mm
      • Resistance: Max 9.2Ω/km at 20°C

        Insulation:
      • Material: PVC
      • Min. Thickness: 0.33mm
      • Avg. Thickness: 0.36mm
      • Diameter: 2.60mm±0.10mm
      • Colors: Black and Red
      • Resistance: Min 50MΩ*km at 20°C
      • Unaged Tensile Strength: 13.8Mpa
      • Unaged Elongation: 100%
      • Aged Elongation: 50%(100°C 168h)
      • Aged Tensile Strength: 11.7Mpa(100°C 168h)

        Jacket:
      • Material: LLDPE
      • Min. Thickness: 0.50mm
      • Avg. Thickness: 0.60mm
      • Diameter: 6.4mm±0.20mm
      • Rip Cord: Nylon
      • Unaged Tensile Strength: 10.8Mpa
      • Unaged Elongation: 100%
      • Aged Elongation: 50%(100°C 168h)
      • Aged Tensile Strength: 8.5Mpa(100°C 168h)

      • Filler: Gel Filled
      • Screen: PE Tape
      • Bend Radius: Min 15D/96mm
      • Operating Temperature Range: -20°C - +75°C
      • Dielectric Strength: Min AC1.5KV
      • Rated Voltage: Max 80V


    • GTIN:

      0817777011753
