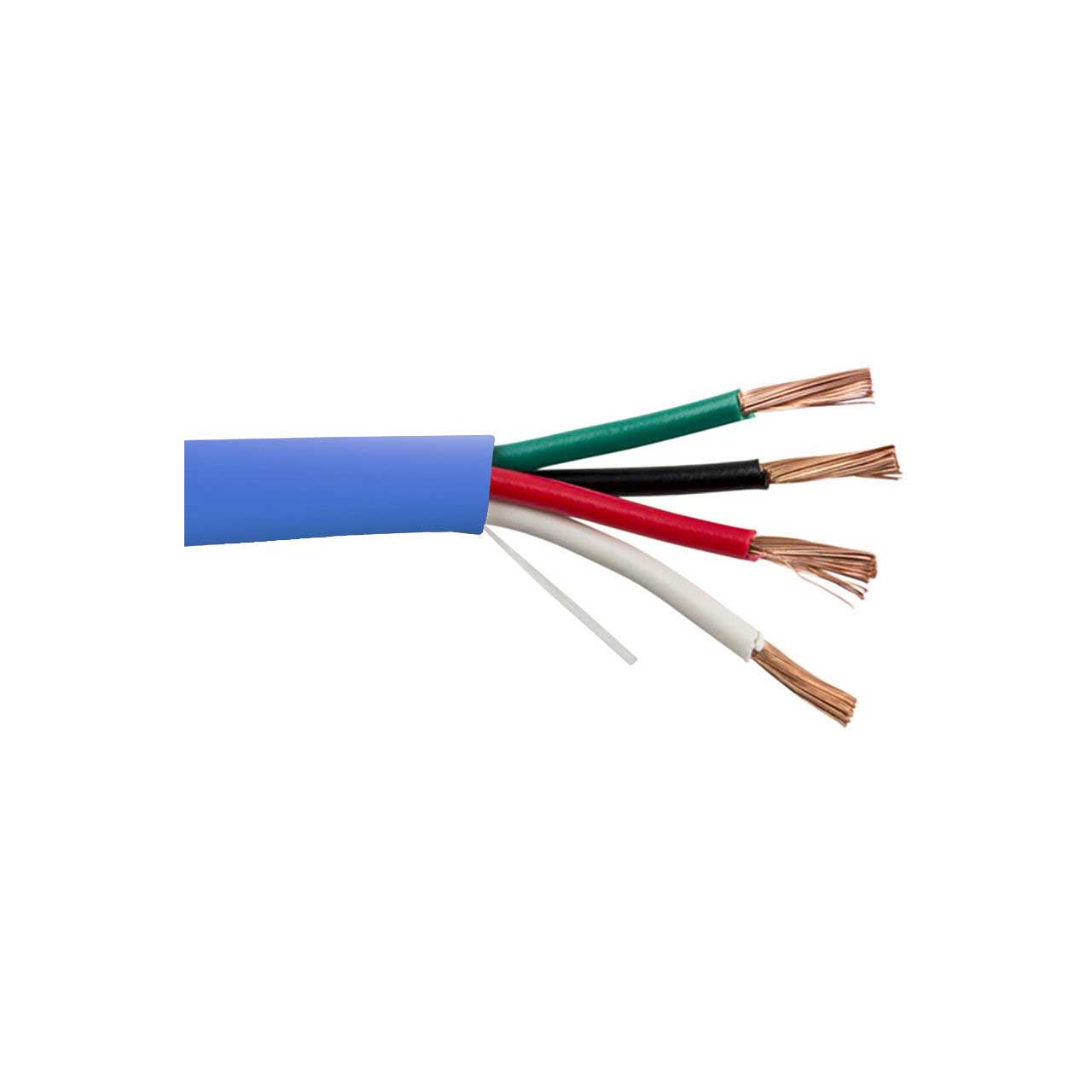

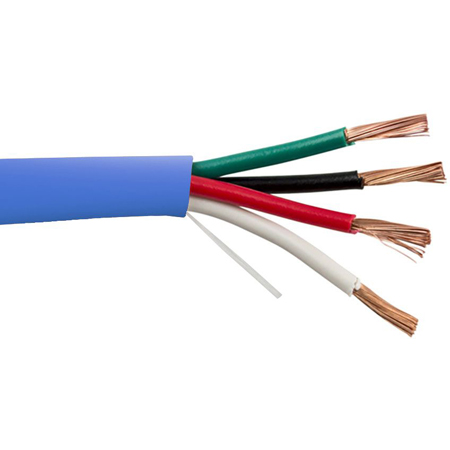

Structured Cable 16/4SP 4-Conductor 16 AWG 26-Strand Copper Contractor Speaker Cable - 500 Feet Blue

ITEM #: SCP-164SP26BL MFG #: 16/4SP-26-BL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Structured Cable Products
Free Shipping with $49 Minimum Order

List Price:

$282.00

Our Price:

$176.25

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    16/4SP-26-BL - Overview

    SCP's Contractor Grade Speaker Cables are manufactured for budget-minded installations that require only standard grade speaker cables.

    SCP Contractor Grade Speaker Cables feature twisted-pair construction with medium strand count oxygen-free copper (OFC). Twisted-pair construction reduces sonic degradation and interference while also providing a smaller and rounder diameter that is very flexible and friction-resistant.

    SCP Contractor Grade Speaker Cables are available in our industry-leading Pull Box; allowing for the easiest and fastest installations... with no tangles and no wastage. In addition, all Contractor Grade Speaker Cables come with sequential foot/meter markings printed on the jacket.

    All Contractor Grade Speaker Cables are UL and In-Wall rated. NEC: CMR; CEC: FT4.

    • Features:

      • Stranded Bare Copper
      • Unshielded
      • Insulated twisted wires
      • Easy Strip PVC Jacket
      • SCP Tangle Free Reelex II Box
      • Descending Meter and SCP Zone/Outlet Jacket Markings

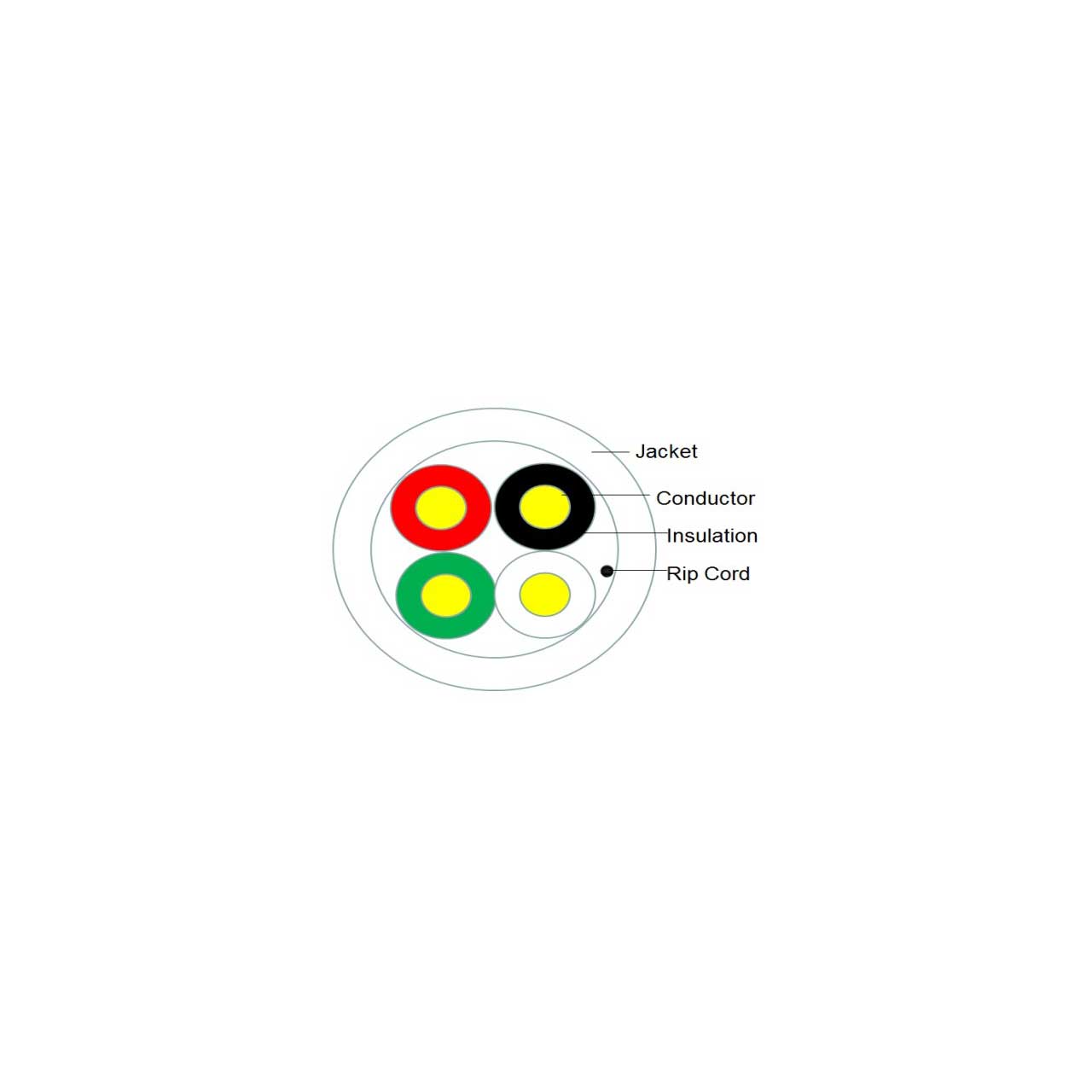

    • Specifications:

      • Conductor:
      • Material: Stranded Bare Copper
      • Size: 16AWG X 4C (1.31mm2)
      • Construction: 26/0.254mm±0.004mm
      • Resistance: Max 15.5Ω/km at 20°C

        Insulation:
      • Material: PVC
      • Min. Thickness: 0.30mm
      • Avg. Thickness: 0.33mm
      • Diameter: 2.0mm±0.10mm
      • Colors: Black, Red, Green, White
      • Resistance: Min 50MΩ*km at 20°C

        Jacket:
      • Material: PVC
      • Min. Thickness: 0.54mm
      • Avg. Thickness: 0.60mm
      • Diameter: 6.1mm±0.20mm
      • Rip Cord: Nylon

      • Operating Temperature Range: -20°C - +75°C
      • Minimum Installation Temperature: 0°C - 40°C
      • Dielectric Strength: Min AC1.5KV
      • Rated Voltage: 300V
      • Test Voltage: 800V/min


    • GTIN:

      0810070010560
