Structured Cable 18/4-WT 4C/18 AWG BC 16-Strand Non-Plenum Security/Commercial Audio Cable - UL - 1000 Foot - White

18/4-WT - Overview

Riser-rated sunlight resistant PVC jacket!

• Features:

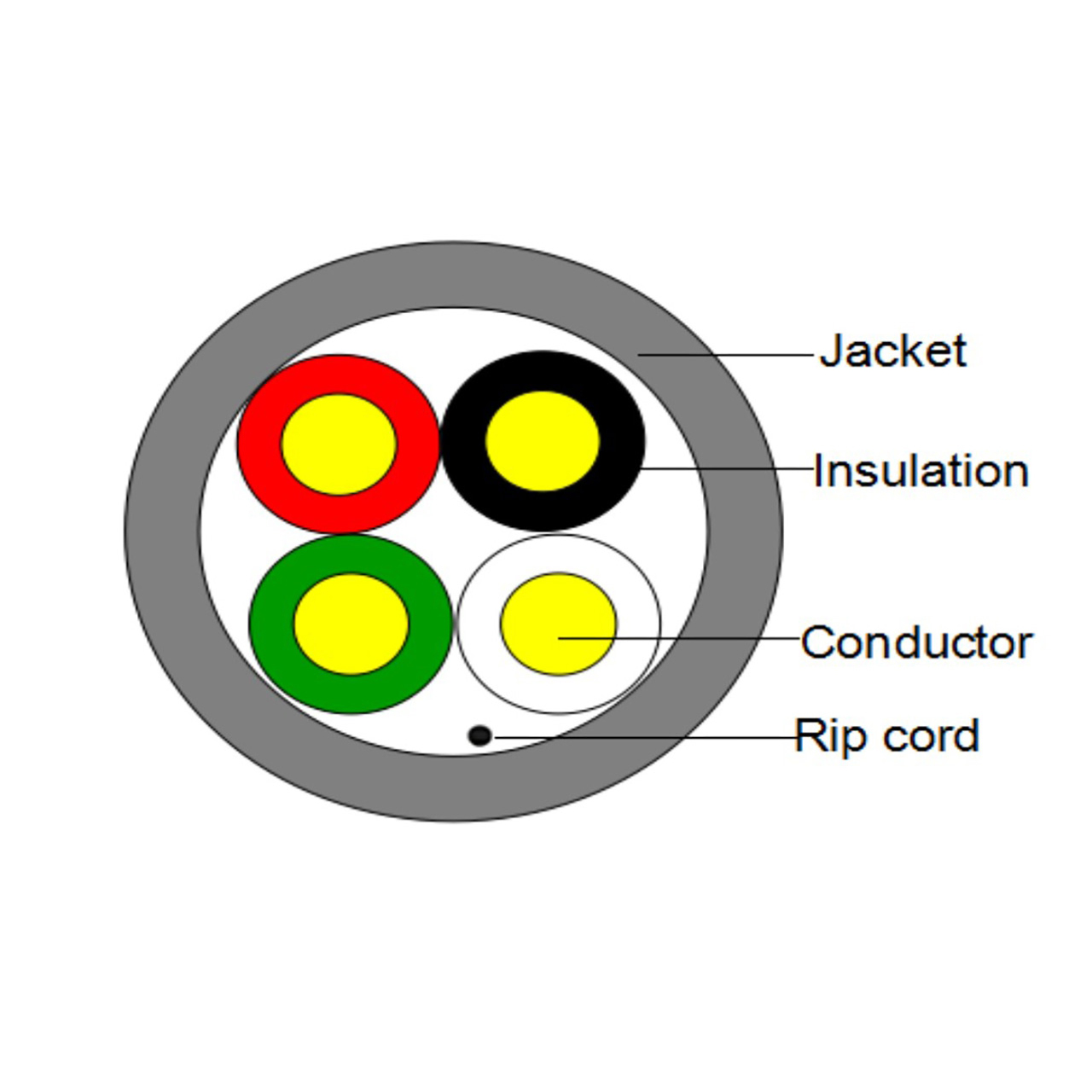

  • Multi-Conductor unshielded insulated stranded bare copper conductors, twisted with a sunlight resistant PVC jacket. Ripcord and sequential foot markings printed on jacket.


• Specifications:

  • Material: Stranded Bare Copper
  • Size: 18AWG X 4C
  • Construction: 16/0.25+/-0.004mm
  • Material: PVC
  • Min.Thickness: 0.24mm
  • AVG.Thickness: 0.26mm
  • Diameter: 1.70mm/-0.05mm
  • Colors: Black & Red & White & Green
  • Operating Temperature Range: -4°F - 167°F (-20°C - 75°C)
  • Conductor Resistance (18AWG): Max 22.8Ω/km at 68°F (20°C)
  • Capacitance: 80+30 pf/m
  • Dielectric Strength: Min AC 1.5kV
  • Rated Voltage: Max 80V


• Item Includes:

  • 1x 18/4-WT 4C/18 AWG BC 16-Strand Non-Plenum Security/Commercial Audio Cable - UL - 1000 Foot - White


• GTIN:

  0810070018894
