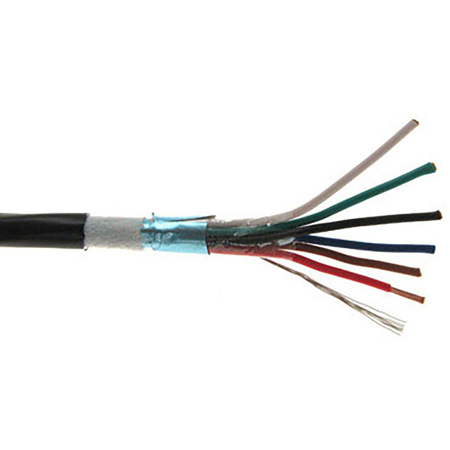

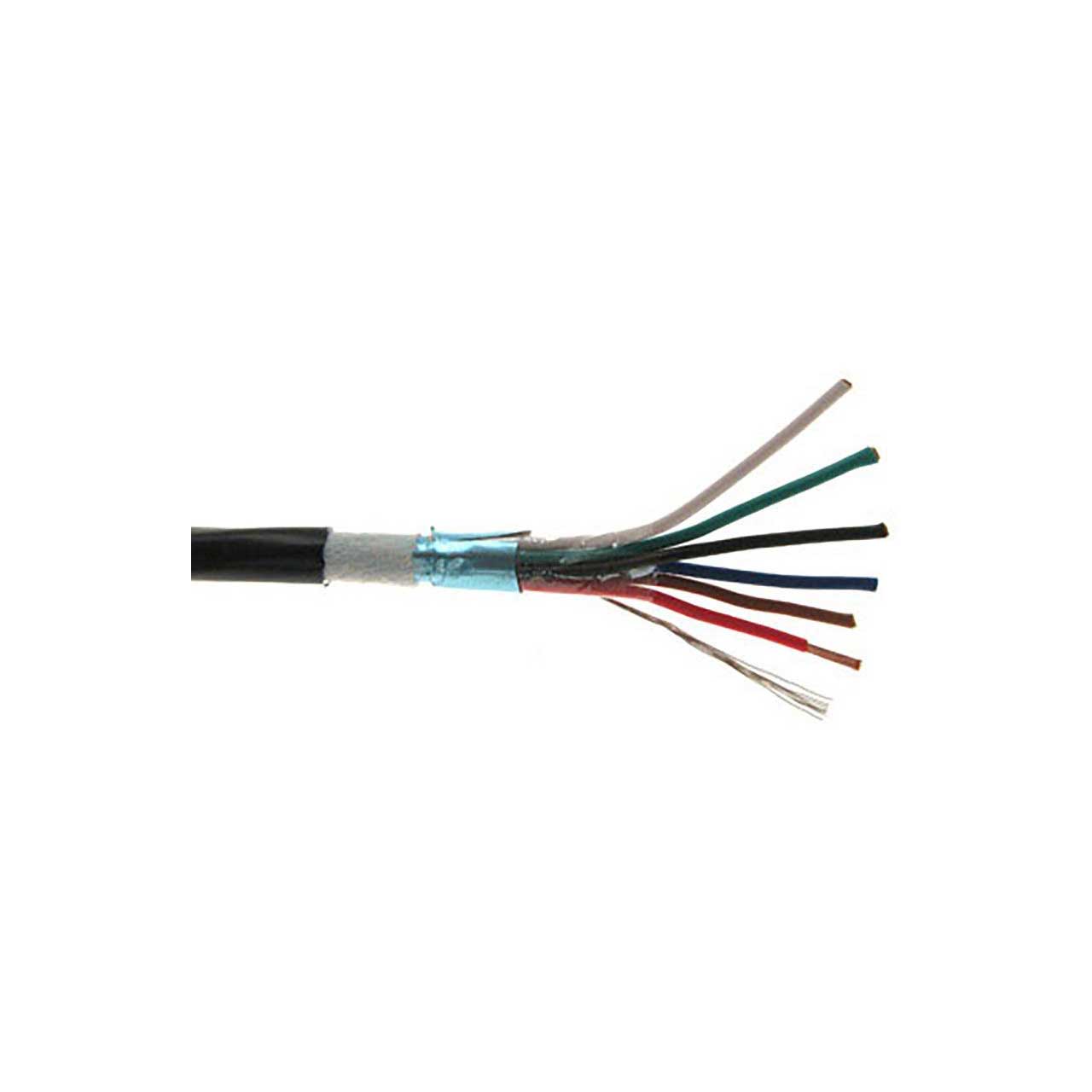

Structured Cable 18/6SHDB 6-Conductor 18 AWG Shielded Direct Burial Speaker Cable - 1000 Feet Black

18/6SH-DB - Overview

• Features:

  • Linear Low-Density Polyethelene jacket with UV Sun Resistance
  • Insulated twisted pair
  • Water Block Tape (WBT) for moisture protection
  • Descending Feet and Zone/Outlet Jacket Markings
  • Spool Packaging


• Specifications:

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 18AWG X 6C
  • Construction: 16/0.254mm±0.004mm
  • Resistance: Max 22.8Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.24mm
  • Avg. Thickness: 0.27mm
  • Diameter: 1.7mm±0.05mm
  • Colors: Black, Red, White, Green, Blue, Brown
  • Resistance: Min 50MΩ*km at 20°C
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 150%
  • Aged Tensile Strength: 11.7Mpa (100°C 168h)
  • Aged Elongation: 80% (100°C 168h)

    Shield:
  • Core Wrap: PE Tape
  • Drain Wire (TC): 7/0.20±0.004mm
  • Shield: AL Foil
  • Filler: Water proof

    Jacket:
  • Material: LLDPE
  • Min. Thickness: 0.54mm
  • Avg. Thickness: 0.60mm
  • Diameter: 7.2mm±0.10mm
  • Rip Cord: Nylon
  • Unaged Tensile Strength: 10.8Mpa
  • Unaged Elongation: 300%
  • Aged Tensile Strength: 9.2Mpa (100°C 168h)
  • Aged Elongation: 150% (100°C 168h)


  • Operating Temperature Range: -20°C - +75°C
  • Dielectric Strength: Min AC1.5KV
  • Rating: 75°C 300V
  • AC Leakage Current Through overall Jacket: AC 1500 ≦ 10mA
  • Cold Bend Test: -20°C, 4 hours, no cracking


• GTIN:

  0810070017903
