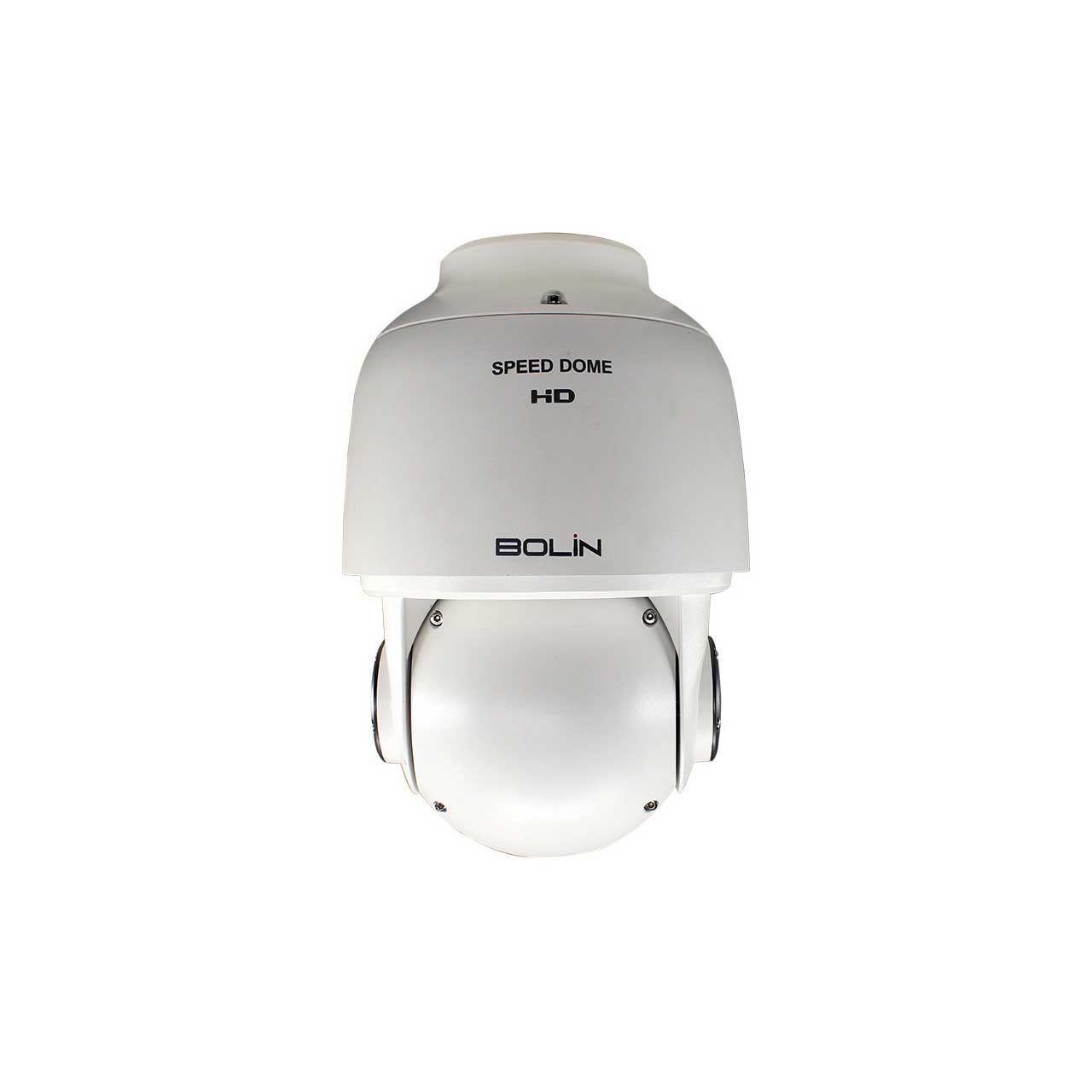

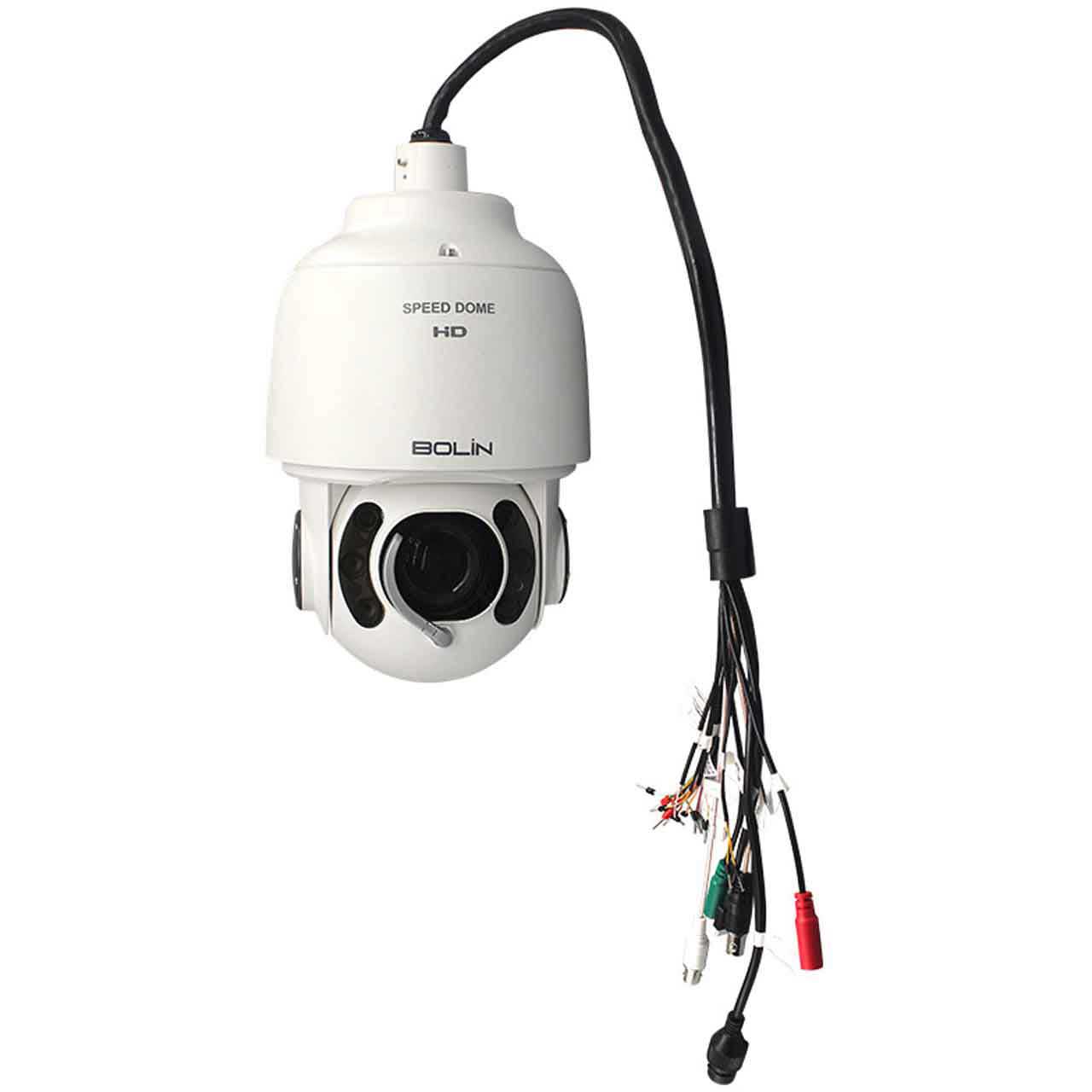

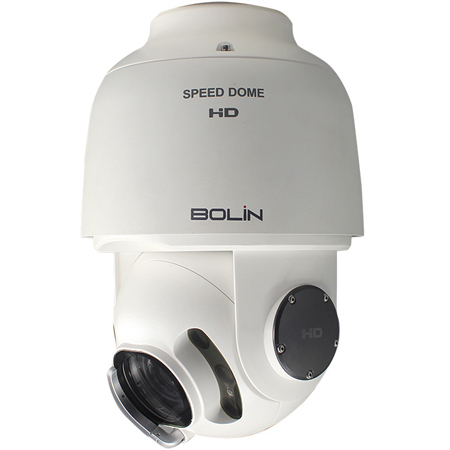

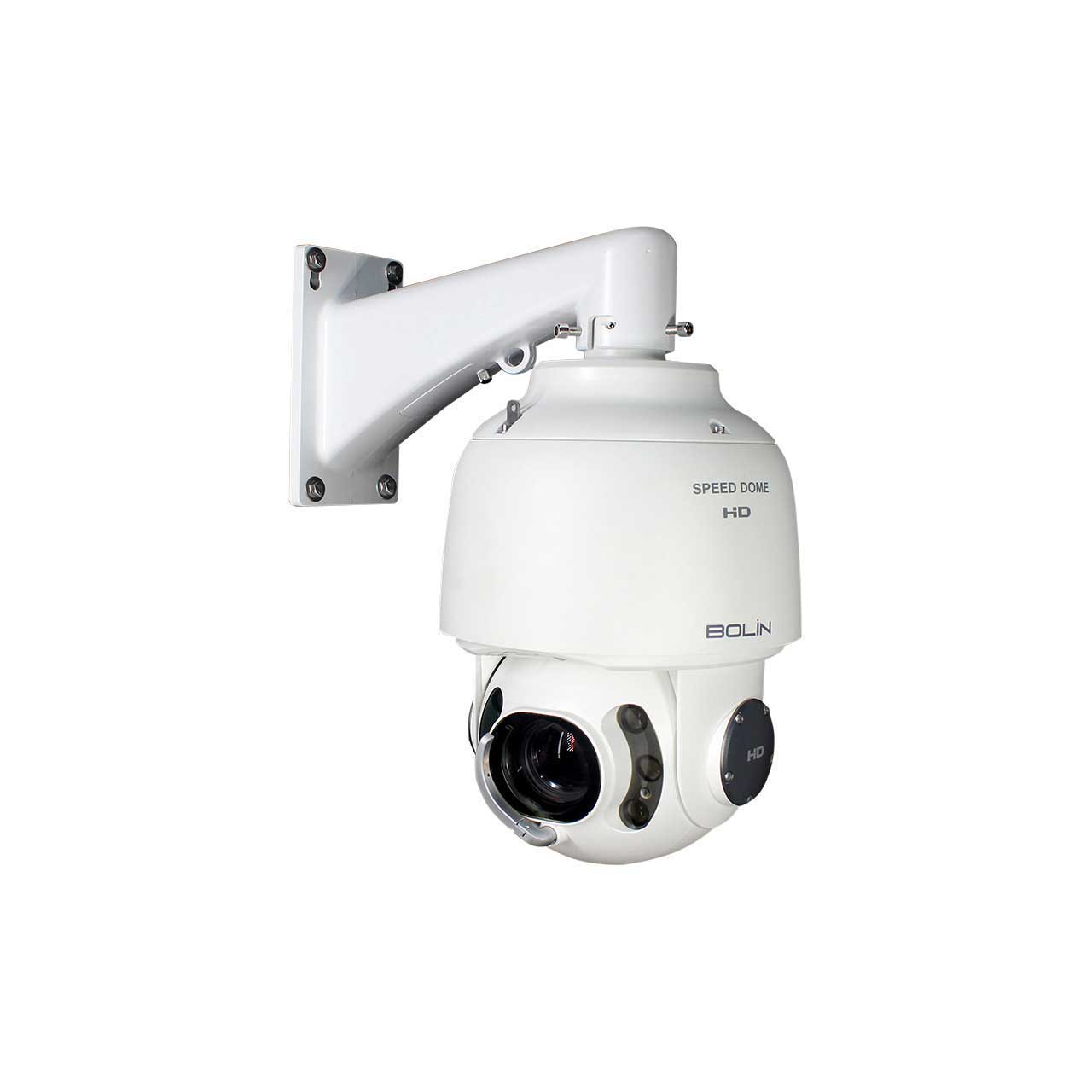

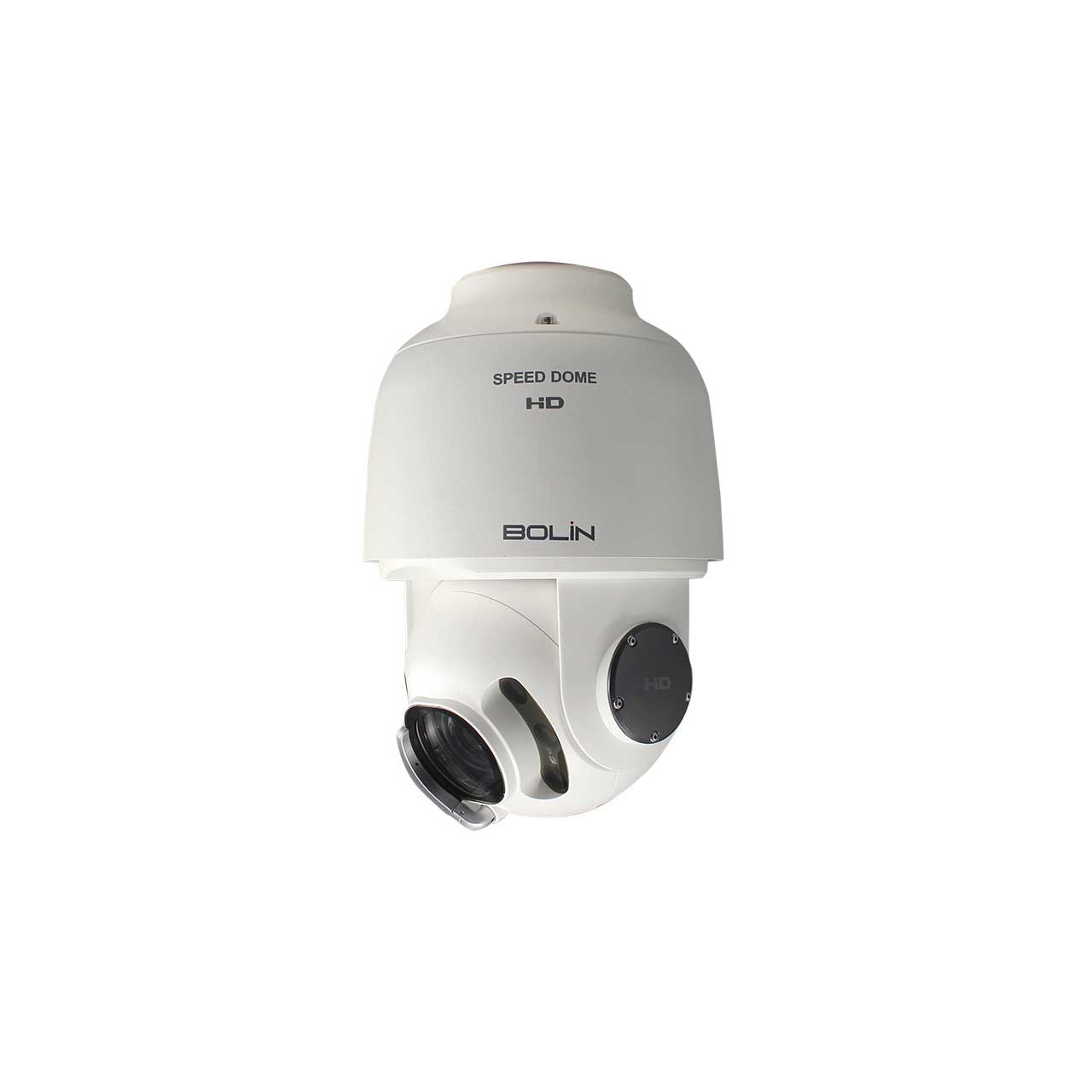

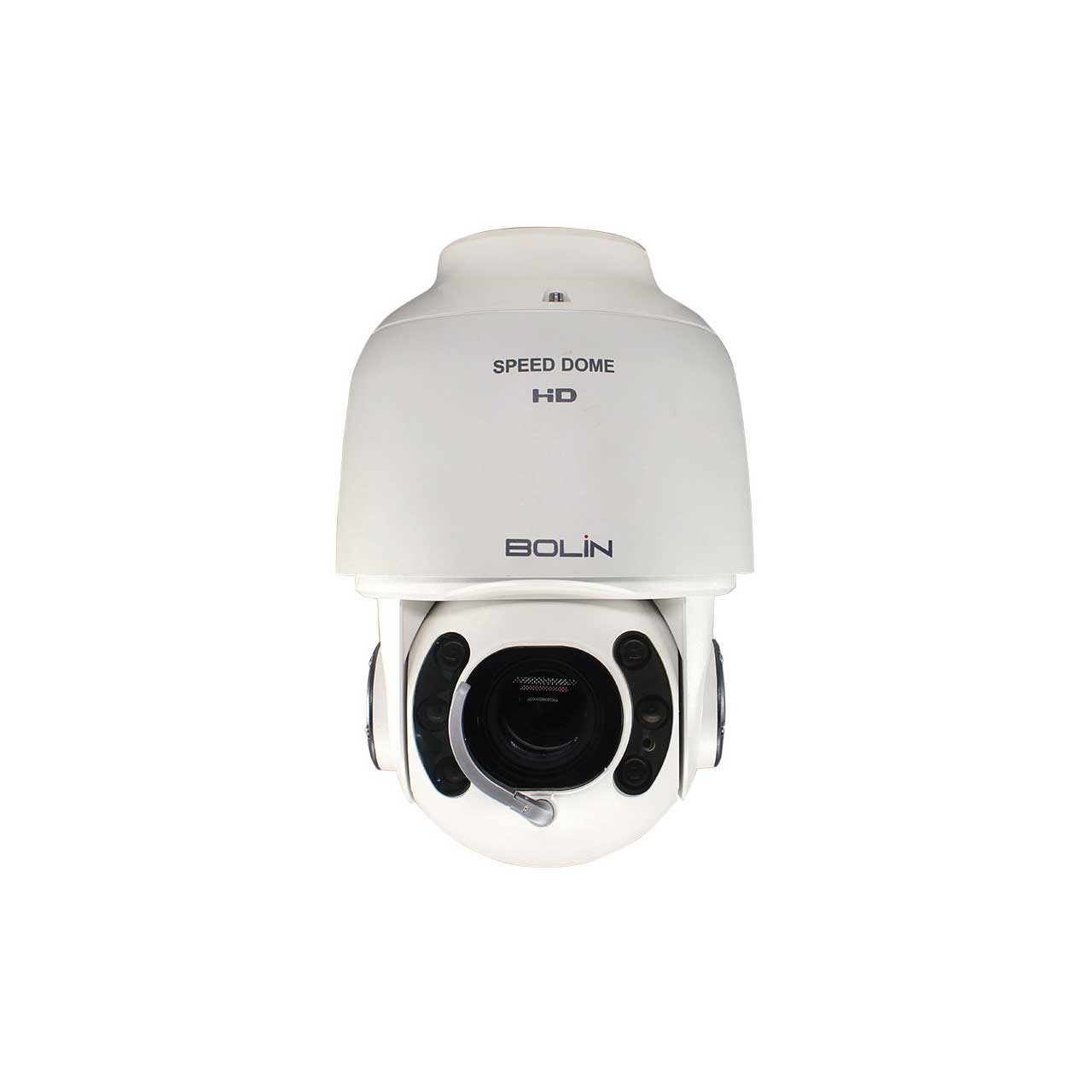

Bolin Technology SD520BHDG-RNAPW Starlight FHD 20X Indoor/Outdoor Speed Dome IP PTZ Camera

SD520BHDG-RNAPW - Overview

Rugged IP67 Waterproof PTZ with Starlight Low Light Performance

• Features:

  • Starlight IR LED Low Light Illuminator for up 250ft at night
  • Rugged Design to Survive Extreme Weather
  • IP67 waterproof rating for protection against moisture and dust
  • IP 1080p60 Streaming Camera with H.265 and H.264 compression
  • Variable speed with Quiet and Precise Movement
  • ZDP - Zero Deviation Positioning
  • Horizontal 360° continuous rotation
  • Built in Heater-Blower
  • Rain wiper with special coated rain stain free glass


• Specifications:

  • Camera 20x Starlight
  • Image Sensor: 1/2.8 inch CMOS 2MP
  • Lens: 20X, 6.7~134mm, 16X Digital Zoom
  • Horizontal Angle of View: 58.7°(W)~3.9°(T)
  • Aperture: F1.5(W)~F3.4(T)
  • Min. Illumination: 0.002 lux(F1.6, AGC ON, Color), 0.0002 lux(F1.6, AGC ON, B/W)
  • Shutter Speed: 1/6~1/8000s
  • Focus: Auto, Push
  • White Balance: Auto, Manual
  • Exposure: Auto,Manual,Shutter/Iris Priority
  • Day/Night: YES
  • Backlight Compensation: YES
  • WDR: Yes(120dB)
  • Privacy Zone Masking: YES
  • Defog: YES
  • Motion Detection: YES
  • Noise Reduction: 2D/3D
  • S/N Ratio: ≥50db

    Mechanical
  • Pan Movement: Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.1°~ 80°/s )
  • Tilt Movement: Vertical:+90° to -15° (Zoom Adaptive Speed Range: 0.1° ~ 90°/s)
  • Preset Position: 255( Preset Speed: 150°/S)
  • Home Position: YES
  • Cruise: Support up to 4 different path movements
  • Accuracy: ZDP - Zero Deviation Positioning technology for high accuracy.
  • Environmental: Outdoor, IP67, Corrosion Resistant Treated Housing,
  • Illumination: IR. The adaptive IR can be synchronized with different zoom angle. Illumination distance is up to 80 Meters.

    Network
  • Video Compression: MJPEG,H.264/H.265
  • IP Resolution/Frame Rate: 1080p: 60/50/30/25fps; 720p:30/25fps
  • Protocols: L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,QoS,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP, IP Auto Adaptations, Effective monitoring even under data loss environment
  • Multi-stream: 3 data stream function will satisfy various bandwidth, frame rates and storage requirements in real time
  • Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
  • OSD: Customized OSD
  • Compatible Integration: ONVIF2.4 (Profile S)

    Interface
  • Network: 10M/100M Base-TX Ethernet, RJ45
  • Control Interface: IP
  • Control Protocol: IP Onvif
  • Audio I/O: Input: Impedance 35k?, Amplitude 2V [p-p]; Output: Impedance 600k?, Amplitude 2V [p-p]
  • Alarm I/O: Alarm Input X1, Alarm Output 1X1
  • FW Upgrade: Via IP

    General
  • Operating Temperature: -40° to 140°F (-40° to 60°C)
  • Power Input: AC 24V, DC±24V, PoE(IEEE802.3bt), (Bolin PoE 97W High Power POE Injector recommended, Optional)
  • Operating Humidity: 100% Suitable for Use
  • Power Consumption: Min: 20W(Static state with no movement); Max: 45W(Fully loaded operation with heater and IR LED on)
  • Dimension: Φ8.26 x 13.11" (Φ210 x 333mm)
  • Weight: 12.78Lbs (5.8kg)
  • Rain Wiper: Included


• GTIN:

  6973775120096
