Senko MPO-12 Smart Checker

ITEM #: SENK-MPO-12 MFG #: AFT-G-FC-MPO

Primary Image
Senko Advanced Components

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AFT-G-FC-MPO - Overview

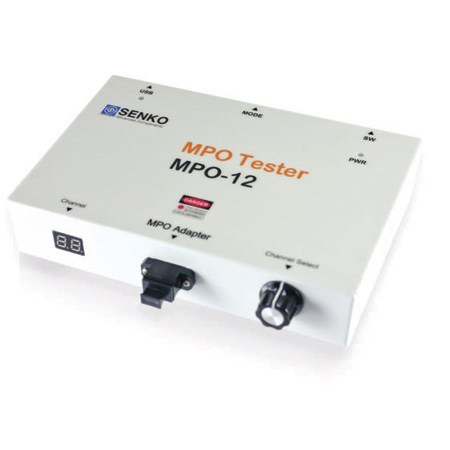

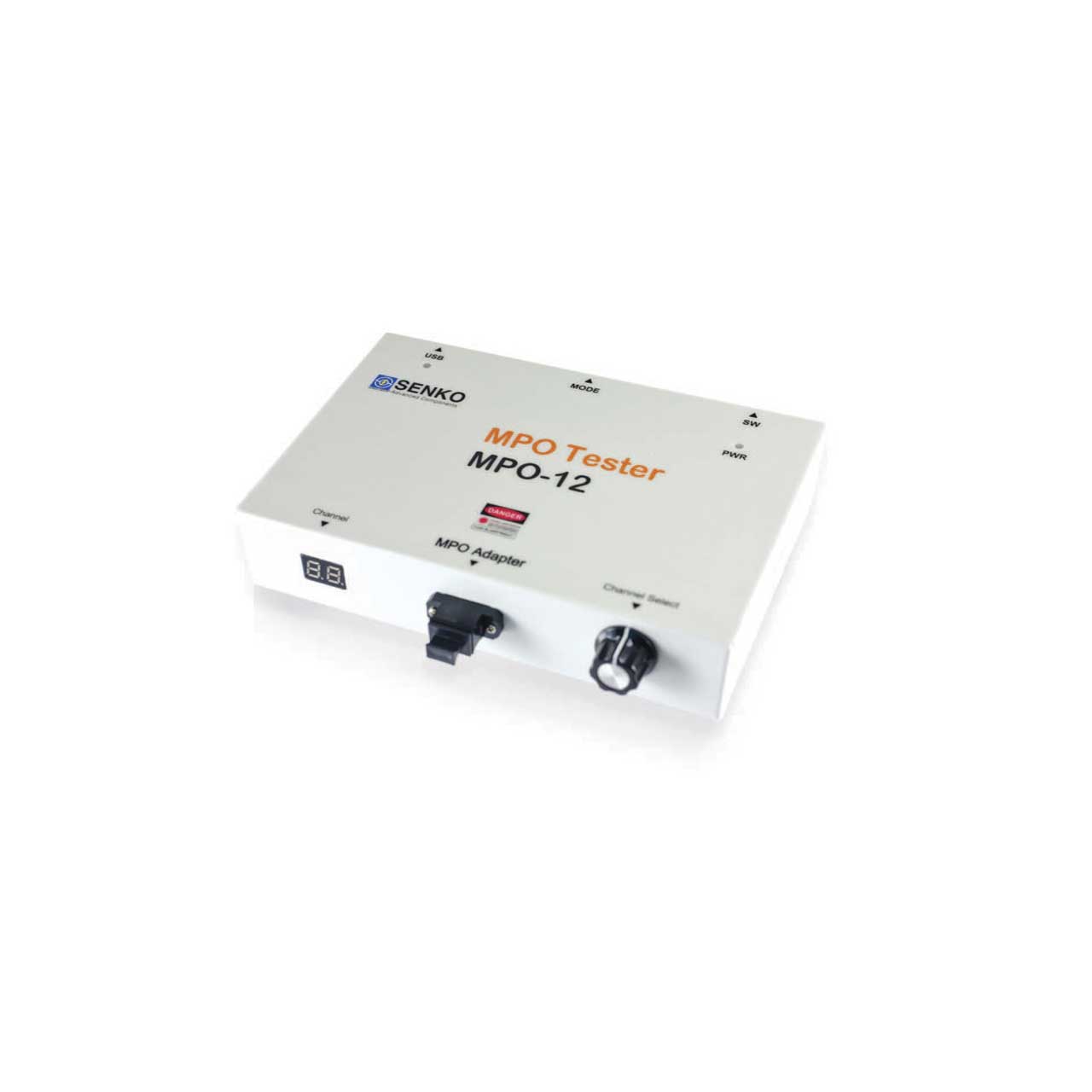

The MPO Visible light source is a useful tool designed for checking the fiber ports, or checking the defects of a MPO arrayed fiber cable. It emits a visible 650nm wavelength red laser light through the fiber optic cables and f there are breaks or defects in the fiber it will refract the light, creating a bright glow around the faulty area. The LD output signal can be switched to CW Mode to obtain different visual effects.

  • Features:

    • Visible light source for MPO assembly
    • Wavelength: 650nm
    • Use with SM or MM Fiber
    • Highly effective power circuits designed for stable laser power
    • Shoot light in all 12 fiber or selected fiber only


  • Specifications:

    • Laser Class: Class 2M
    • Wavelength: 650nm
    • Spectral Width: <10nm
    • Output Power: <0.4mW
    • Emitting Range: Visibility up to 1km
    • Operating Temperature: 0 - 50 C
    • Storage Temperature: 0 - 70 C
