Sennheiser CHG 70N + PSU KIT Network Enabled Mic Charging Set Includes CHG 70N 2-Bay Charger & EW-D Power Supply


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    509456 - Overview

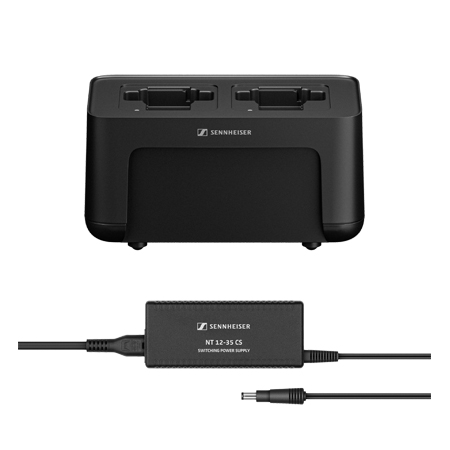

    Sennheiser CHG 70N + PSU KIT is a network enabled charging set that includes the CHG 70N 2-Bay Charger & EW-D power supply.

    The CHG 70N is a network enabled charger featuring two individual charging bays. The charger is network-enabled and is capable of simultaneously charging up to two handheld and/or bodypack transmitters of the Sennheiser EW-DX series. A colored LED at each charging bay indicates its charge status. The CHG 70N has an RJ-45 network socket and supports the Media Control Protocol to provide for remote control and status monitoring via the Sennheiser Control Cockpit software or a media control system. The CHG 70N has a 12 V DC input voltage supplied from an external power supply unit. The power supply unit has a power cascade of up to 5 chargers with an input current max of 3.5 A for a cascade of up & Charging voltage of 4.35 V, charging max. 860 mA per charging bay. The charger is able to operate on Power over Ethernet (PoE IEEE 802.3af Class 0).

    • Features:

      • Control and Monitoring via the Sennheiser Control
      • Cockpit and 3rd party applications
      • 2 bays: charge EW-DX SKM, SK or BA70
      • Power via PoE or power supply unit
      • Cascade up to 5 CHG 70N (only one network connection and power supply needed)
      • 2h charging time (0 ~ 80%), 3h till 100%
    • Specifications:

      • Power Supply:
        12 V ⎓ (single device or cascade of up to 5 devices) or
        PoE IEEE 802.3af Class 0 (CAT5e or higher) (single device only)
        Current consumption max. 3.5 A for cascade of up to 5 devices
      • Network socket:
        RJ-45, IEEE 802.3
        10base-T (half and full)
        100base-TX (half and full)
      • Dimensions: 7.9 x 4.1 x 4.6" (200 x 104 x 116mm)
      • Weight: approx. 640 g
      • Charging Bays: 2
      • Charging Capacity per Bay:
      • BA 70 rechargeable battery
        EW-DX SK with BA 70
        EW-DX SKM with BA 70
      • Charging Voltage: 4.35 V
      • Charging Current: min. 344 mA max. 860 mA
      • Charging Status Indicator: 1 LED per bay (red, yellow, green)
      • Charging Time for Full Charge: max. 3.5h
      • Charging Temperature Range: -10°C - 50°C (14°F - 122°F)
      • Storage Temperature Range: -20°C - 70°C (-4°F - 158°F)
      • Relative Humidity: max. 95 % non-condensing
    • Item Includes:

      • 1x CHG 70N
      • 1x Power supply unit
      • 1x Quick guide
      • 1x Safety guide
