ESFERA - Overview

Three exciting sound dimensions from two standard audio cables
How much more impressive and emotional are sports broadcasts that also manage to convey the spirit and atmosphere of the venue they take place at? An atmosphere, however, is something that surrounds you, while most of the time broadcasters have to resort to conventional stereo equipment. Mainly because of tight timing or owing to the fact that setting up surround sound gear is not supported by the infrastructure. These problems are now solved.

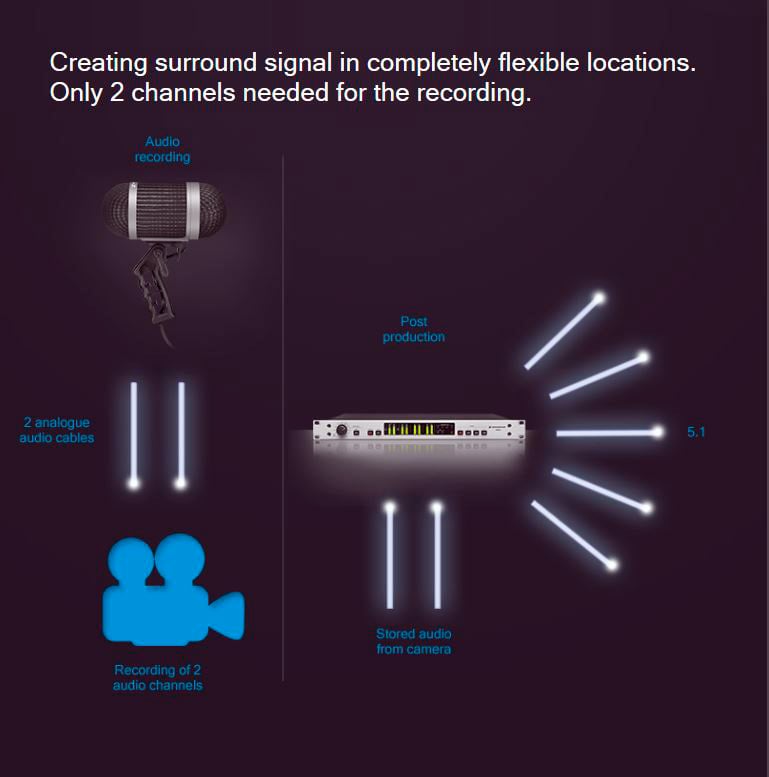

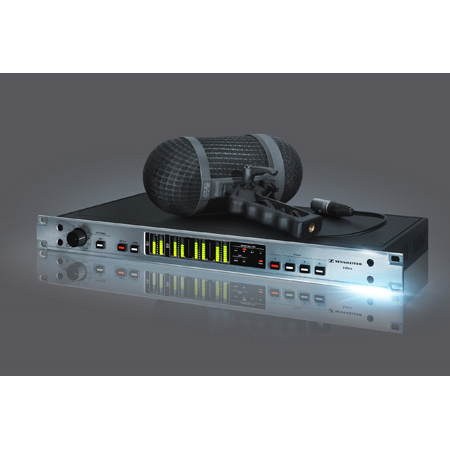

The solution is called ESFERA the surround microphone system developed by Sennheiser. It enables you for the first time to generate and broadcast 5.1 surround sound using two ordinary standard audio cables. All you need is the SPM 8000 microphone on location and the SBP 8000 basic unit at any given point within the production or post-production process before the audio signal is aired. The compact built of the microphone unit, which can be mounted on a camera, allows even sideline interviews or the application in tight spaces.

The ESFERA surround microphone system developed by Sennheiser enables you for the first time to generate and broadcast 5.1 surround sound using two ordinary standard audio cables. All you need is the SPM 8000 microphone on location and the SBP 8000 basic unit at any given point within the production or post-production process before the audio signal is aired. The compact build of the microphone unit, which can be mounted on a camera, allows even sideline interviews or the application in tight spaces.

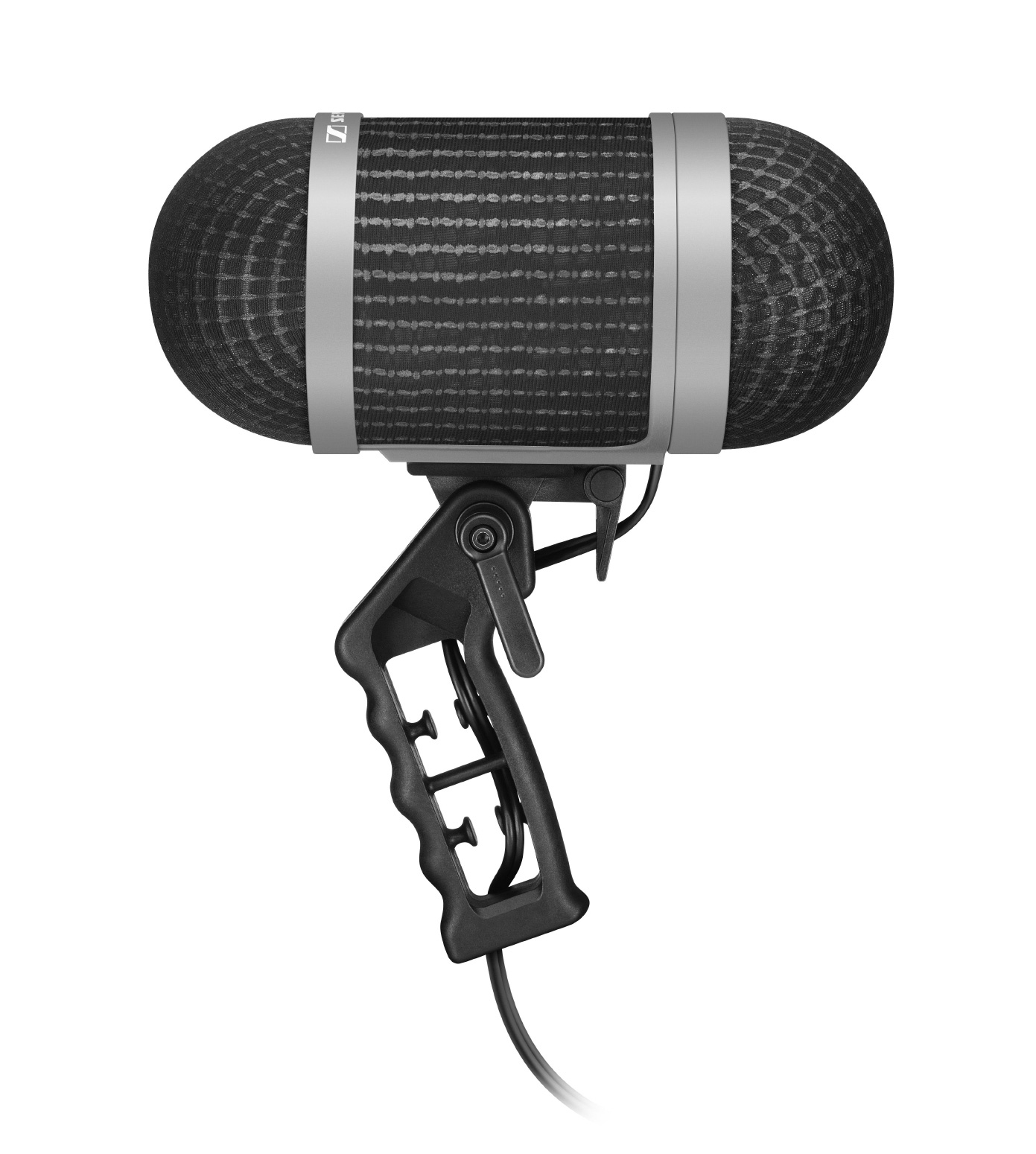

SPM 8000
Surprisingly compact and easy to set up the SPM 8000 actually consists of two RF condenser mics in XY-array. Fitted with technology of the legendary MKH series, it features a natural and detailed sound, and is also weatherproof and rugged, making it the perfect choice for outdoor use. Sports broadcasters will appreciate its extremely low inherent noise, which lets even the softest sound details be heard. The SPM 8000 comes with an all-in package including a basket windshield and a swing mount. Just as complete as the atmosphere you will be getting across to the audience.

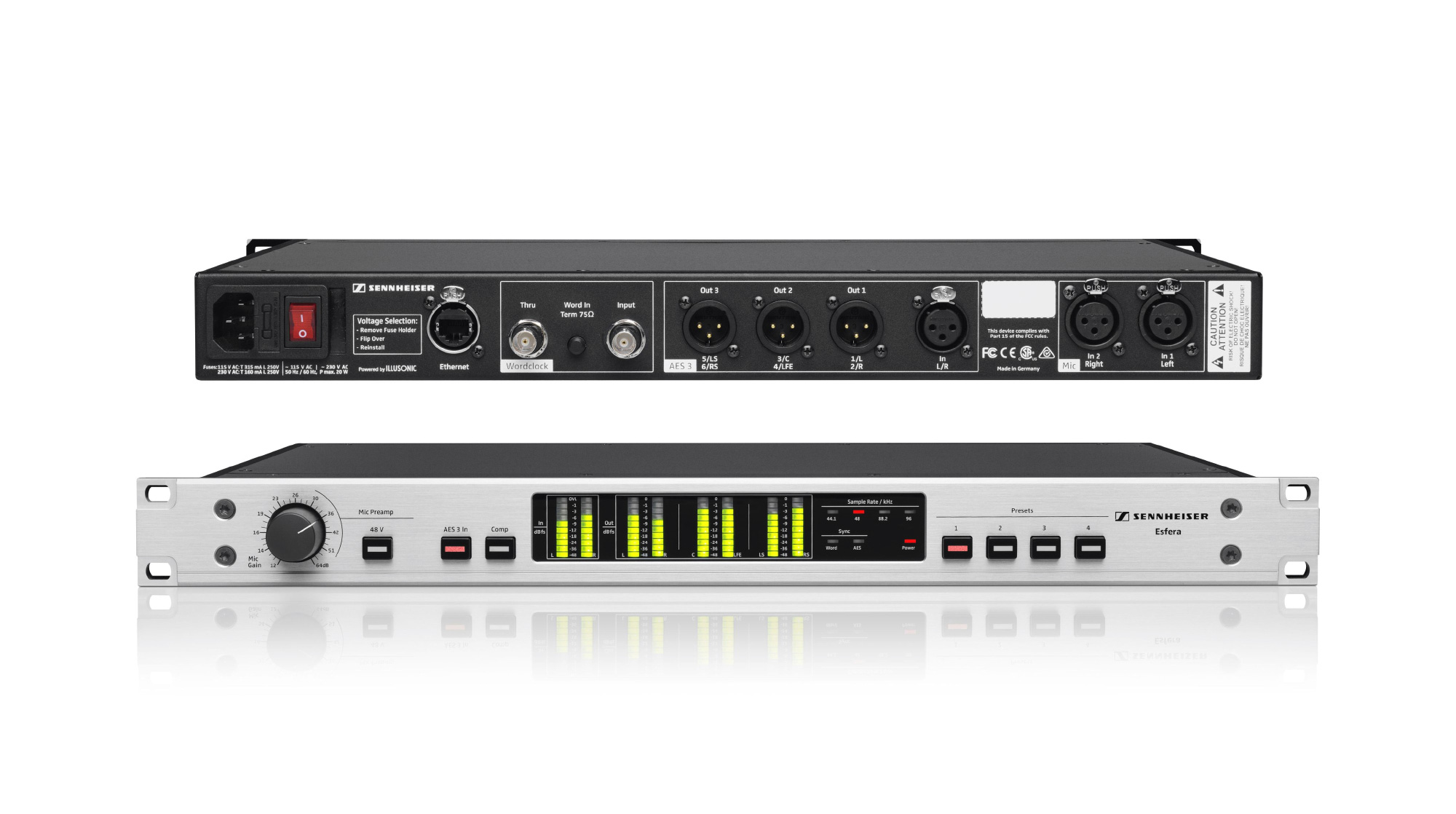

SPB 8000
The 19" processing unit is fitted with the unique chip brains to convert a perfectly normal stereo audio signal supplied by two standard cables into a full-fledged 5.1 surround experience at a sampling rate of 96 kHz. For a broadcast- friendly signal the built-in compressor can be engaged. The SPB 8000 excels with a clear design and four directly selectable presets that can be modified via the Ethernet interface. The processor software allows you to individually define your surround soundscapes via the PC interface.

  • Specifications:

    • SPM8000 Microphone
    • Pick-Up Pattern: Cardioid (XY-stereo, 90° offset)
    • Frequency Response: 35 Hz to 20 kHz
    • Sensitivity: -34 dBV/Pa (20 mV/Pa)
    • Max. SPL: 142 dB SPL
    • Equivalent Noise Level: 13 dB (A) (DIN-IEC 651); 22 dB (CCIR 268-3)
    • Power Supply: Phantom power 48 V ± 4 V (P48, IEC 61938)
    • Current Consumption: 3.3 mA
    • Diameter: Approx. 106 mm
    • Length: Approx. 237 mm
    • Weight: Approx. 595 g (670 g with "hairy" cover)
    • Operating Temperature: -10°C to +60°C

      SPB8000 PROCESSOR
      Microphone Input
    • Connections: 2 XLR-3F sockets, transfomerless balanced
    • Impedance: Approx. 4 kΩ, balanced
    • Phantom Power: 48 V, switchable

      Digital Input
    • AES3 Standard: Channels L/R
    • Connection: 1 XLR-3F socket

      Digital Output
    • AES3 Standard: Channels L/R, C/LFE, SL, SR
    • Connections: 3 XLR-3M sockets
    • Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
    • Bit Rate: 24 bits
    • Format: Professional

      Synchronization
    • Word Clock: BNC socket
    • AES3 Input Clock: XLR-3F socket

      Audio Characteristics
    • Frequency Response Measured @ AES3: 10 Hz-21 kHz at 44.1 kHz sampling rate; 10 Hz-22.5 kHz at 48 kHz sampling rate; 10 Hz-42 kHz at 88.2 kHz sampling rate; 10 Hz-45 kHz at 96 kHz sampling rate
    • Signal-To-Noise Ratio @ 48kHz Sampling Rate: CCIR 468: -82.6 dB, 64 dB gain; CCIR 468: -106,1 dB, 30 dB gain; A-weighted: -85.5 dB, 64 dB gain; A-weighted: -109.3 dB, 30 dB gain; Unweighted: -84 dB, 64 dB gain; Unweighted: -104,3 dB, 30 dB gain
    • THD + Noise: THD at 1 kHz: 0.03% at 64 dBu, gain: -12 dBFS;0.004% at 30 dBu, gain: -12 dBFS
    • Dynamic Range: 130.3 dB 30 dB gain (A-weighted)
    • Max. gain: +64 dB
    • Crosstalk: -70 dB at 10 kHz (-30 dBu input, 30 dB

      Ethernet
    • Connection: RJ 45 socket
    • Firmware Update: Via HTTP

      Power Supply
    • Voltage Ranges: 115 V~ / 230 V~, 50/60 Hz
    • Power Consumption: Max. 15 W
    • Fuse Values: 115 V AC: T 160 mA L 250 V; 230 V AC: T 315 mA L 250 V
    • Mains Connector: 3-pin, protection class I as per IEC/EN 60320-1

      Other
    • Dimensions: Approx. 44 x 482 x 275 mm (H x W x D), depth with controls and sockets
    • Weight: Approx. 3.9 kg

  • Item Includes:

    • SPM-8000 high-quality stereo microphone
    • SPB-8000 processing unit

  • GTIN:

    0615104239456
