Sennheiser MEB 114-S B SpeechLine Boundary Layer Cardioid Mic w/ 9.8ft Mini XLR to 3-Pin XLR Cable - Black

ITEM #: SENN-MEB-114-S-B MFG #: 505615

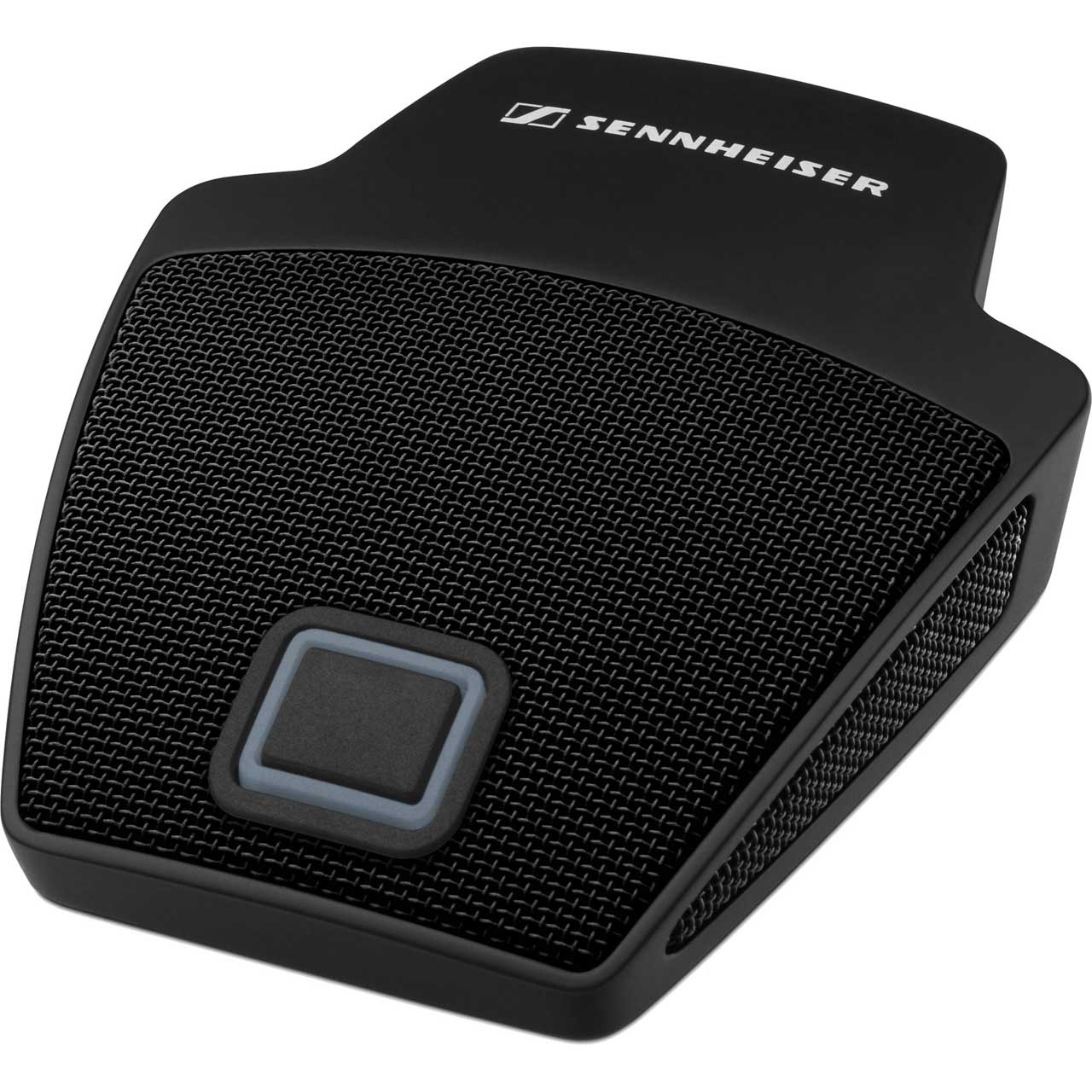

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$359.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    505615 - Overview

    The Sennheiser MEB 114-S B is a wired table boundary microphone with half-cardioid pickup pattern. Thanks to its sturdy housing and high-quality microphone capsule, the MEB-S 114 guarantees optimum speech intelligibility. The MEB 114-S has a programmable microphone button (PTT, PTM, Toggle on/off, Permanent on) and a two-color LED ring as a status indicator. The TTL logic output on the underside can be used to activate a camera or media control system. This model is available in black and white color.

    • Features:

      • Toggle on/off
      • Push to mute
      • Push to talk
      • permanent on (external LED control)

    • Specifications:

      • Frequency Response: 40Hz - 20kHz
      • Max. Sound Pressure Level: 140dB
      • Transducer Principle: Pre-polarized condenser microphone
      • Weight: 10.26oz
      • Pick-Up Pattern: Cardioid
      • Nominal Impedance: 200Ω
      • Phantom Powering: P 24 - P 48
      • Operating Temperature: 14°F to 122°F
      • Equivalent Noise Level: 29dB (A)
      • Equivalent Noise Level Weighted (as per CCIR 468-3): 39dB (CCIR)
      • Current Consumption: 5.3mA

        Output Voltage:
      • Logic Out: High level output voltage: > 2.4 V, Low level output voltage: < 0.4 V
      • Logic In: High level input voltage: > 2.0 V, Low level input voltage: < 0.8 V

      • Acoustics: Boundary layer microphone
      • Dynamic Range: 111dB (A)
      • Sensitivity: 10mV/Pa

    • GTIN:

      0615104230392
