Sennheiser XSW 1-ME2 Wireless Lavalier System - A Range: 548-572 MHz

506980 - Overview

• Features:

  • Compact bodypack transmitter, unobstrusive clip-on microphone
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


• Specifications:

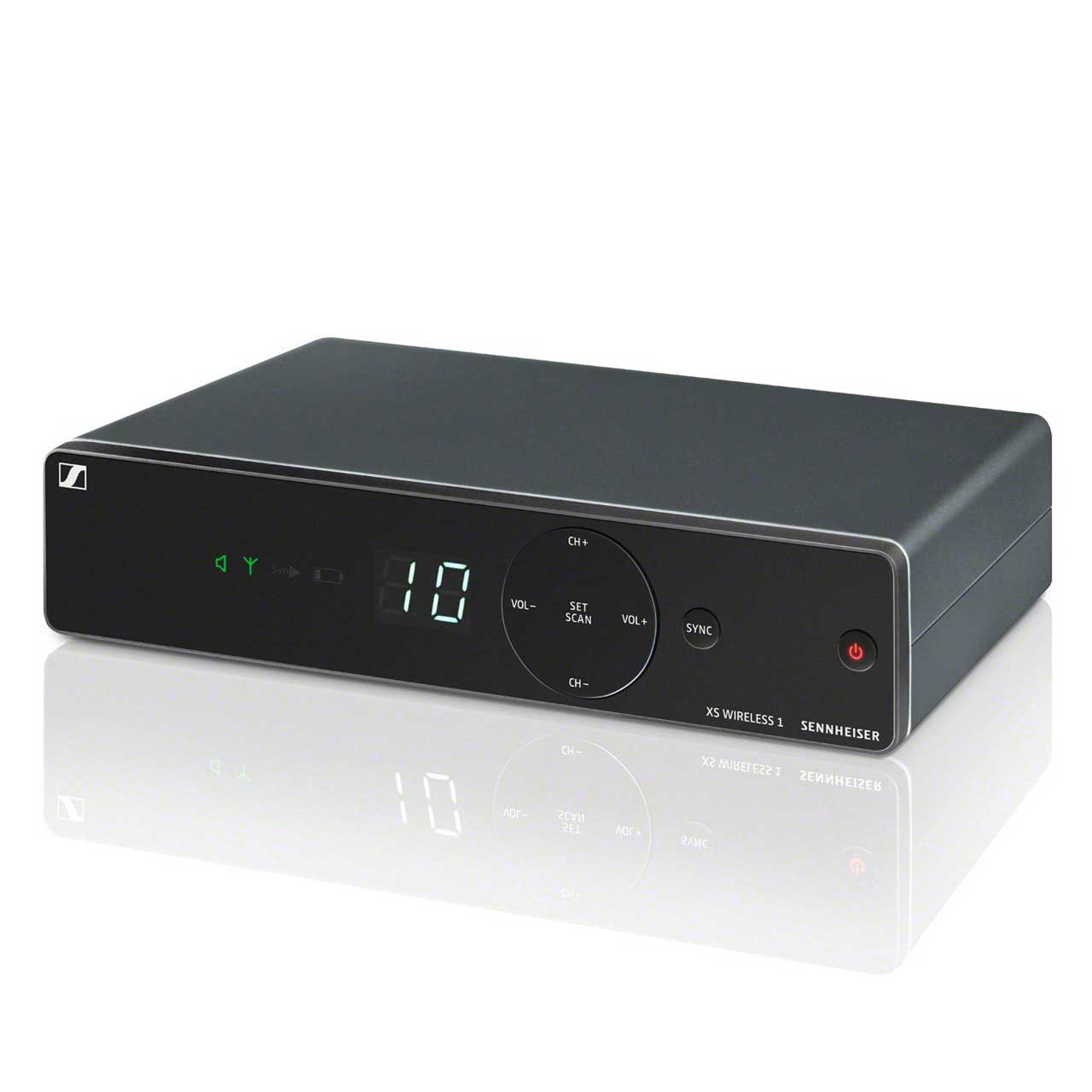

  • Receivers
  • Dimensions: approx. 200 x 42 x 127 mm
  • Weight: approx. 340g
  • Power supply: 12 V DC nom. / 300 mA
  • AF frequency response: 50 to 16,000 Hz (-3 dB)

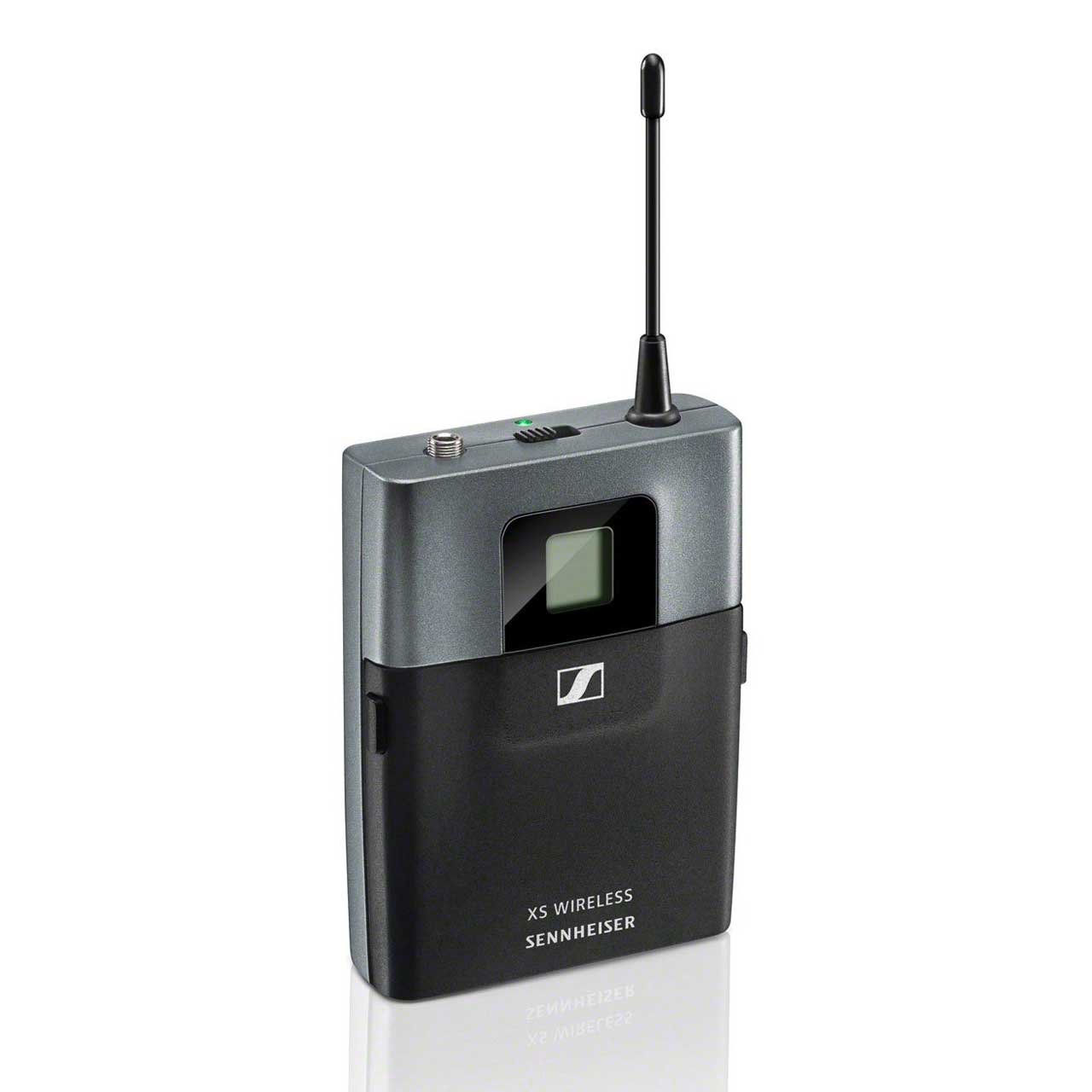

    Transmitter
  • Dimensions: approx. 71 x 96 x 28 mm
  • Weight: approx. 95g
  • Power supply: 2 AA size batteries, 1.5 V
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

    General
  • Microphone: Condenser
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: cardioid
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: wideband FM

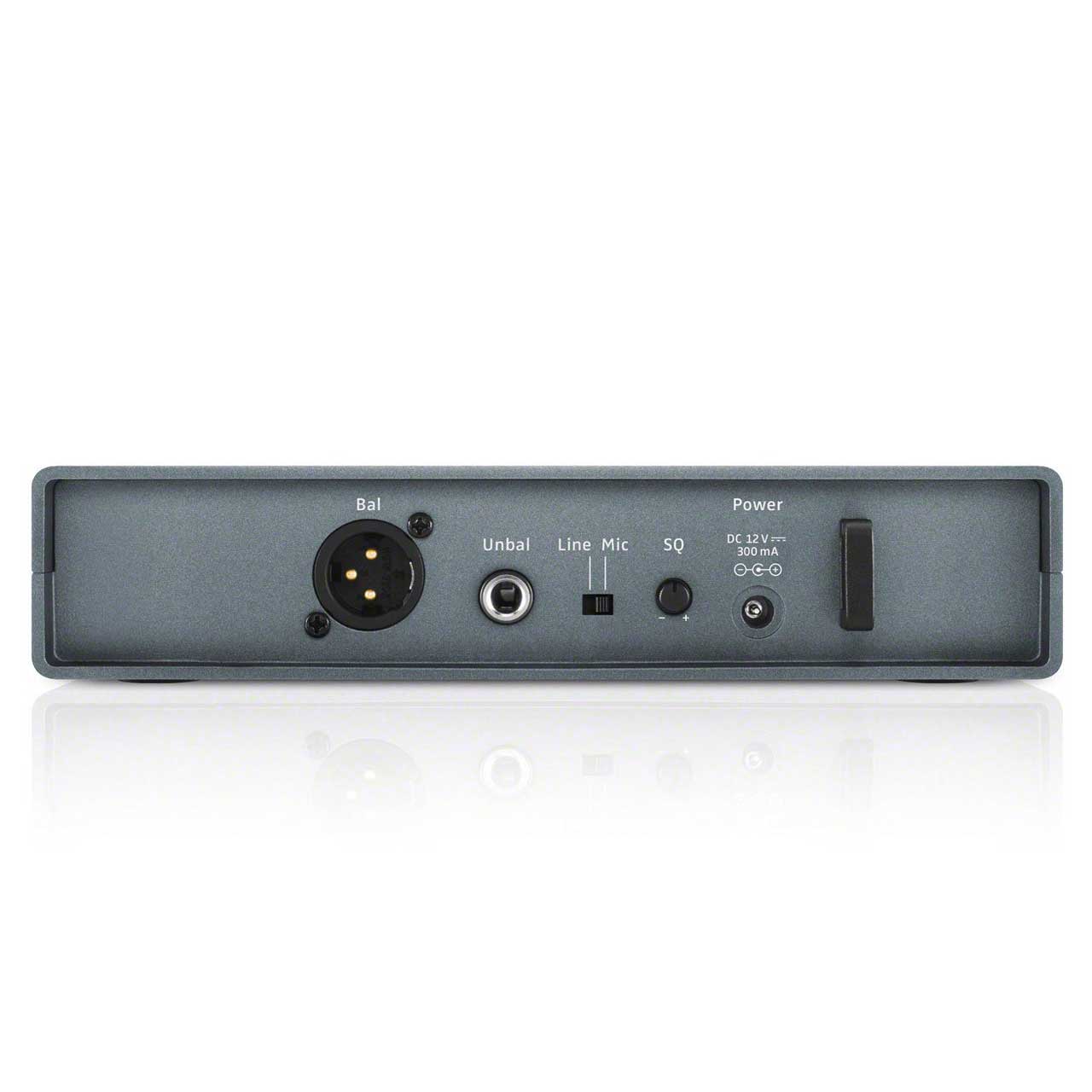

  • Output voltage: '1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing: rugged ABS housing
  • Diversity reception: antenna switching diversity via internal antennas
  • Frequency: 8 frequency banks, each with up to 10 factory-preset channels
  • Frequency range-
  • A: 548-572 MHz, GB: 606-630 MHz
  • B: 614-638 MHz,
  • C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
  • Sensitivity: < 3 µV at 52 dB(A)rms S/N
  • SPL for peak deviation: 130 dB
  • Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity: 1.5 mV / Pa
  • Audio adjustment range: 45 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range: 0°C to +40°C, storage: -20°C to +70°C
  • Receiver Principle: double superheterodyne

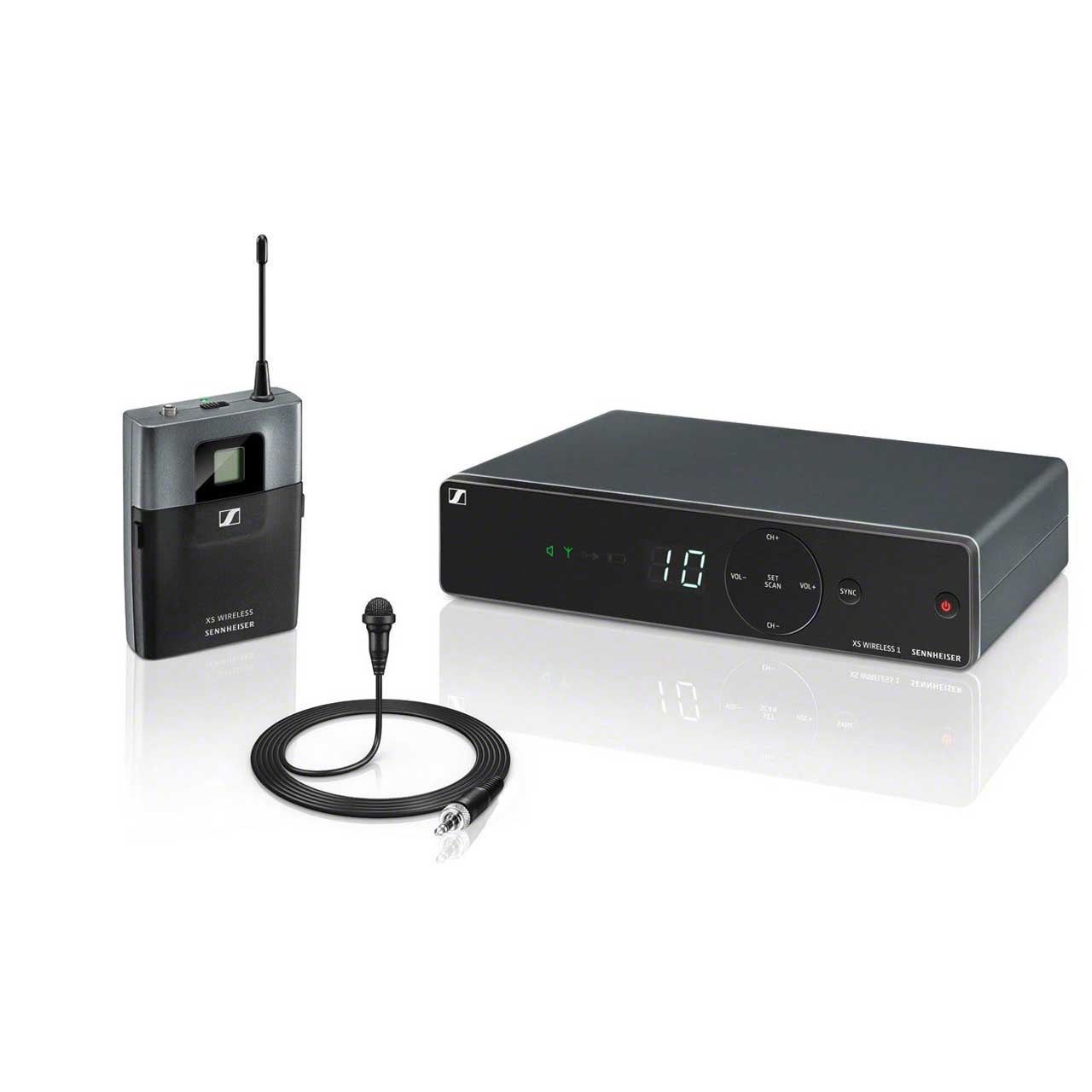

• Item Includes:

  • 1x receiver EM-XSW 1
  • 1x lavalier microphone ME 2-2
  • 1x bodypack transmitter SK-XSW
  • 1x power supply NT 12-5 CW
  • 2x AA batteries


• GTIN:

  0615104278431
