Riedel EB22HDRT-LM-0516 emSFP HD-BNC Dual Channel Receiver with emOPT-2D-2022-6 Installed - MSA 10G IP Host

ITEM #: SFPMS-2BR-2022-6 MFG #: SFPMS-2BR-2022-6

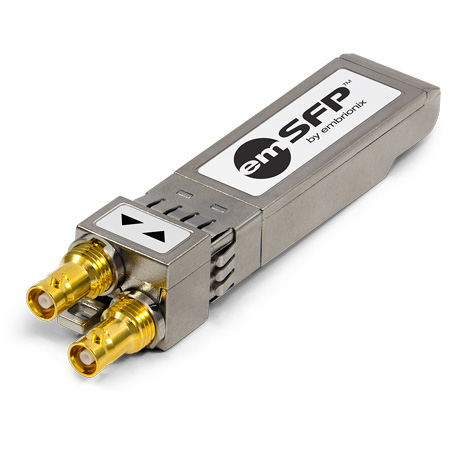

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SFPMS-2BR-2022-6 - Overview

    An Riedel EB22HDRT-LM-0516 with emOPT-2D-2022-6 De-Encapsulator software installed to convert a two channel SMPTE 2022-6 IP signal back to SDI. The ST2022-6 De-Encapsulator Gateway converts IP signals into the HD-SDI outputs. The miniature plugin device (SFP+) is installed inside the IP switch receiving flows on its host and converting the output to the connector. The software-defined EB22HDRT-LM-0516 SFP (emSFP) is an agile platform that can be used as a gateway converter or many other processing function. The SFP is installed inside an IP switch and can join different IP streams and provide 2 SDI outputs on the connector end. The platform can run other software as well to define the functionality of the solution. Other software programs are available as a separate option via a license defined to run ST2022-7, ST2110, and many other functions.

    • Features:

      • Single platform, many functions, in-line with virtualization trend
      • Future-proof investment (Software Defined emSFP)
      • Low cost conversion for an easy transition to IP
      • Space, power and weight economies
      • In field, updatable

    • Specifications:

      • Software defined platform capable of running different programs including ST2110, ST2022-6/7, ST2202-1/2 encapsulation
      • Zero additional footprint
      • Modularity of Gateway process by one channel
      • Future-proof format flexible agility
      • Low power consumption
      • Simplified setup and control
      • Simple Restful API for third party control system
