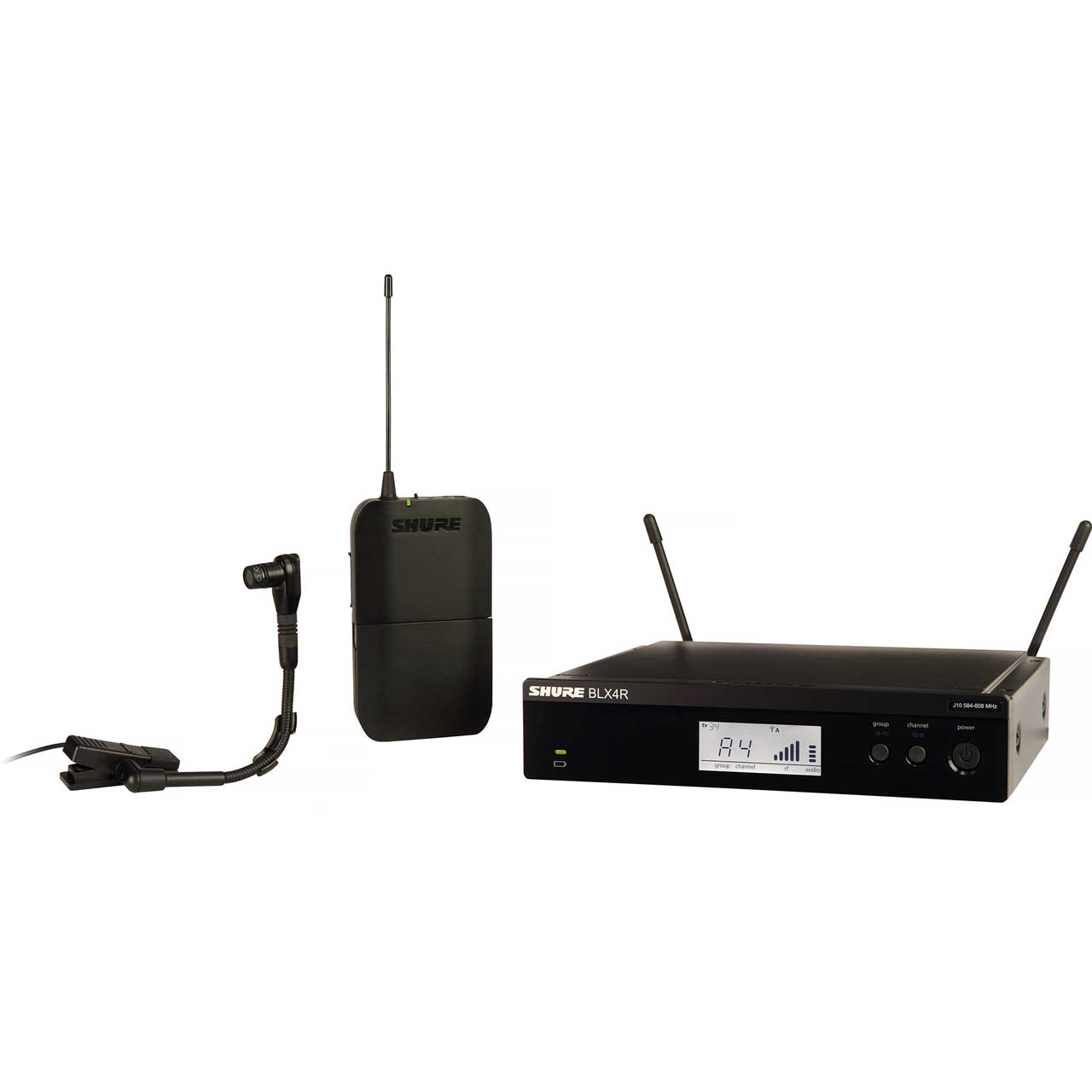

Shure BLX14R/B98-H9 Instrument System with BLX4R Wireless Receiver BLX1 Bodypack Transmitter WB98H/C Condenser Mic

BLX14R/B98-H9 - Overview

• Features:

  • Main Features
  • Available Transmitter Form Factors: Bodypack
  • Operating Range (up to): 300ft (Under typical conditions)

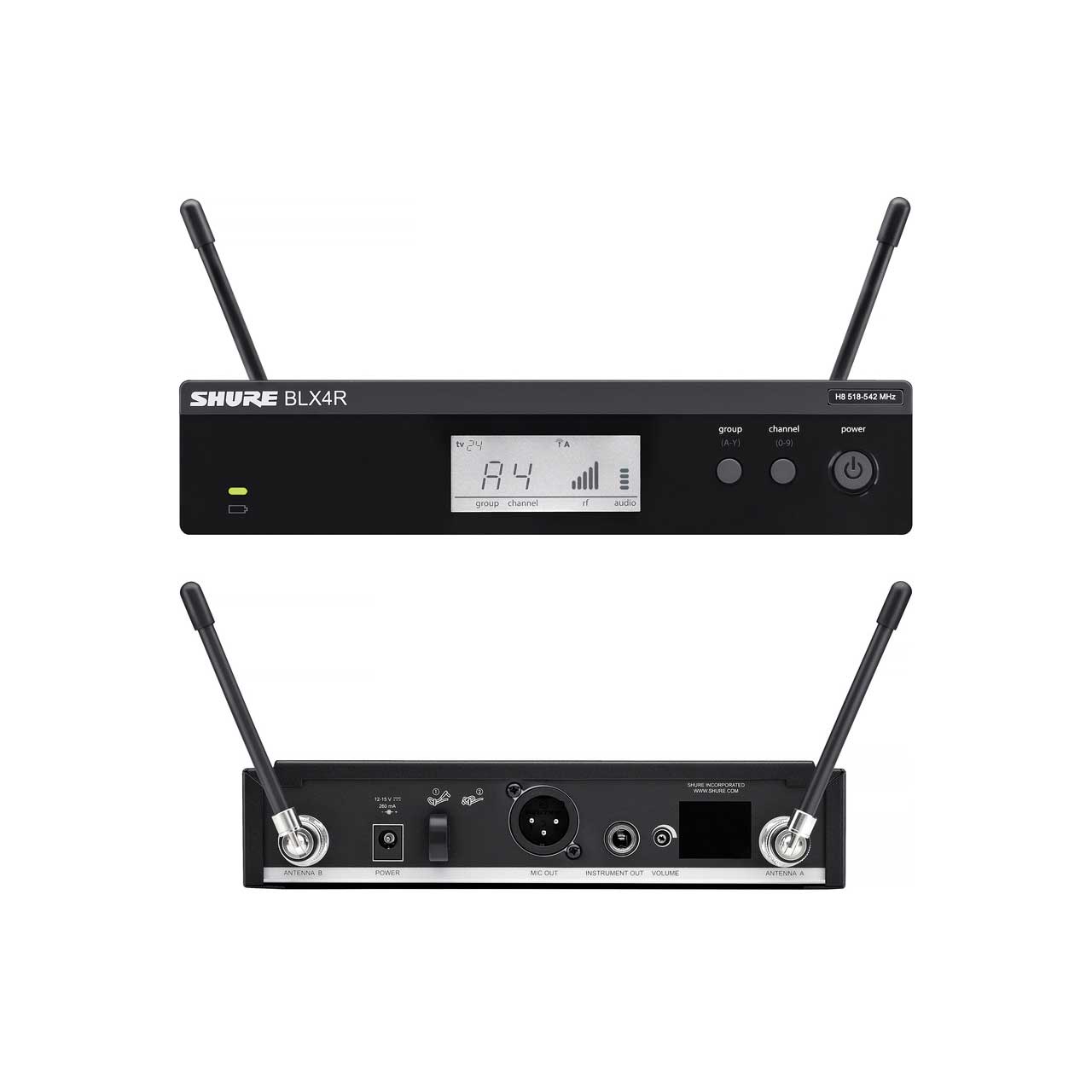

    BLX4R Wireless Receiver
  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and 1/4" output connectors
  • Two-color audio status indicator LED: GREEN: Normal audio levels; RED: Excessive audio levels (overload/clipping)
  • Adjustable output level
  • Removable antennas for quick antenna distribution
  • LC Display with detailed RF and audio metering
  • Rack mount kit included

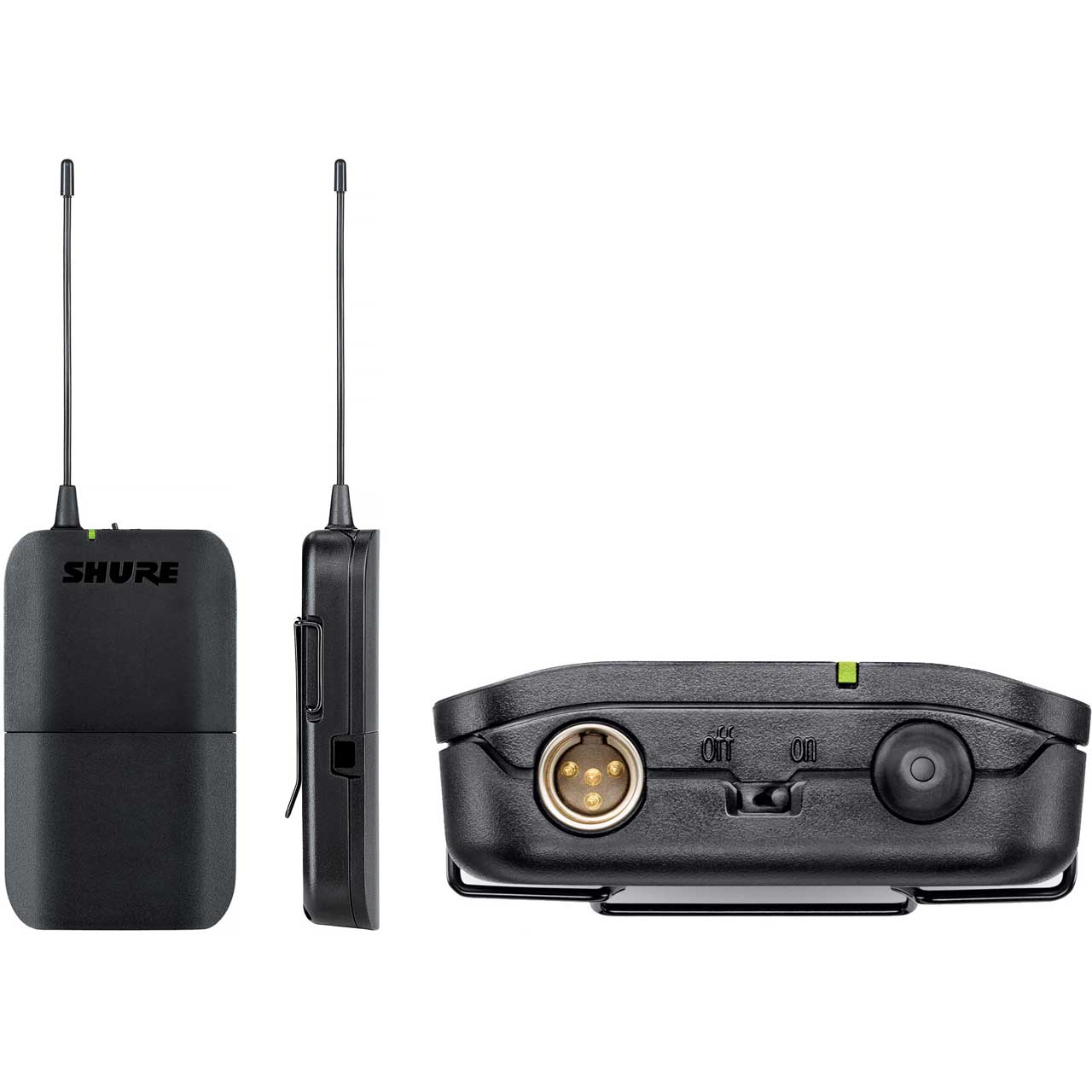

    BLX1 Wireless Bodypack Transmitter
  • Power and battery status LED
  • Adjustable gain control
  • Quick and easy frequency matching
  • AA batteries (included) provide up to 14 hours of continuous use
  • 300ft operating range (line of sight)

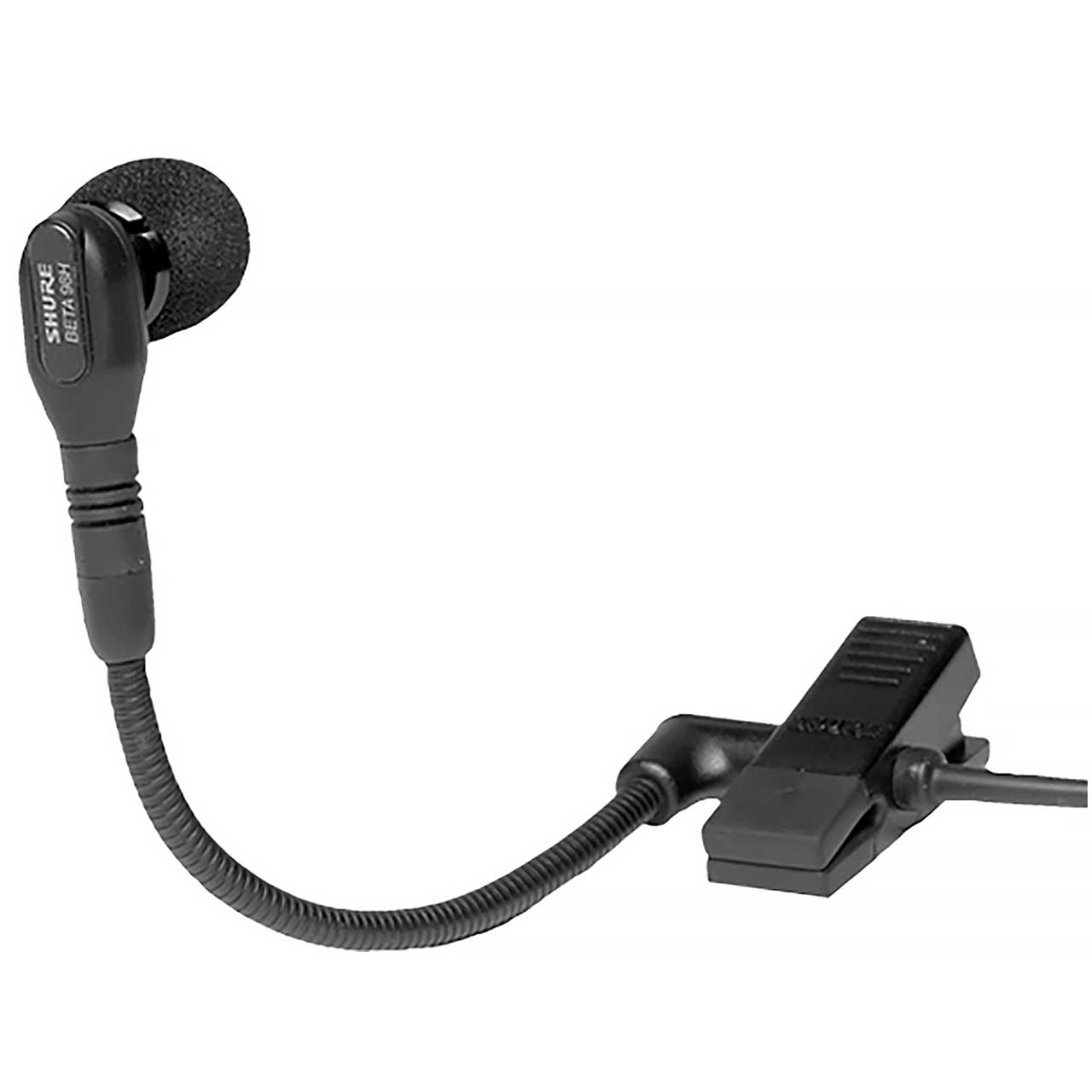

    WB98H/C Instrument Microphone
  • The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range.
  • The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
  • Tailored frequency response for studio quality performance
  • Wide dynamic range for use in high SPL environments
  • Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
  • Optional A98D drum mount is unobtrusive and versatile--allows precise positioning of the microphone while holding it firmly in place
  • Compact design reduces stage clutter
  • Detachable cable for easy storage
  • Interchangeable microphone cartridges with different polar patterns are available
  • Legendary Shure quality, ruggedness, and reliability


• Specifications:

  • BLX4R Specifications
  • Weight: 2.2lbs
  • Dimensions (HxWxD): 1.77" x 7.80" x 6.42"
  • Transmission: Analog
  • Type of Power Supply: External
  • Receiver Housings: Molded ABS, Metal
  • Active Antenna Possible: Optional with UABiasT
  • Bias via BNC: No
  • Encryption: No
  • High Density Mode: No
  • Interference Detection: No
  • Remote Control: No
  • Number Of Compatible Systems Info: 12
  • DANTE-Enabled Products: No
  • Scan Features: Quick Scan
  • Sync Features: None
  • Detachable Antennas: Yes
  • Network Ability: No
  • Software Control : No
  • Logic: No
  • Cascade: No
  • Rack Hardware: Included rack mounts brackets
  • Receiver Displays: Multi-function LCD
  • Receiver Type: Single
  • Included Antenna: External 1/4-wave
  • Battery Status: Multi-Color LED
  • Line Mic Switch: No
  • Image Rejection: 50dB, typical
  • RF Sensitivity: -105dBm, for 12dB SINAD, typical
  • Phantom Power Protection: No
  • Antenna Input Impedance: 50Ω

    BLX1 Specifications
  • Weight: 2.65oz
  • Dimensions (HxWxD): 4.33" x 2.52" x 0.83"
  • Battery Life Alkaline: 14h
  • Form Factor: Bodypack
  • Transmitter housings: Molded ABS
  • Audio Mute: No
  • Detachable Antennas: No
  • Switchable RF power: No
  • Batteries: AA
  • Battery Status: Multi-Color LED
  • Connectors: TQG
  • Frequency Diversity: No
  • Functionality: Transmitter
  • Gain Adjustment Range: 26dB
  • High Density Mode: No
  • Included Antenna: 1/4 wave
  • Input Impedance: 1000kΩ
  • Transmission: Analog

    WB98H/C Specifications
  • Weight: 2.29oz
  • Frequency Response: 20Hz - 20kHz
  • Frequency Response: Tailored
  • Sensitivity: -56.00dBV/Pa - 1.60mV/Pa
  • Equivalent Selfnoise: 31dB(A)
  • Sound Pressure: 155dB (@ 1kΩ), 163dB (@ 2.5kΩ)
  • Transducer Type: Condenser
  • Polar Pattern: Cardioid
  • Switchable Low Cut: No
  • Connectors: TQG (T4AF, 4-Pin Mini)
  • Attenuator: No
  • Interchangeable Capsule: Yes
  • Main Functionality: Performance
  • Headphone Output: No
  • Requires Phantom Power: 5V DC
  • Cartridge: Interchangeable


• Item Includes:

  • BLX4R rack mount receiver
  • BLX1 bodypack transmitter
  • BETA®98H/C instrument microphone
  • Power supply
  • Single and dual rackmount kit
  • Two 1/4 wave antennas
  • Zipper bag
  • 2 AA batteries
  • User guide


• GTIN:

  0042406470520
