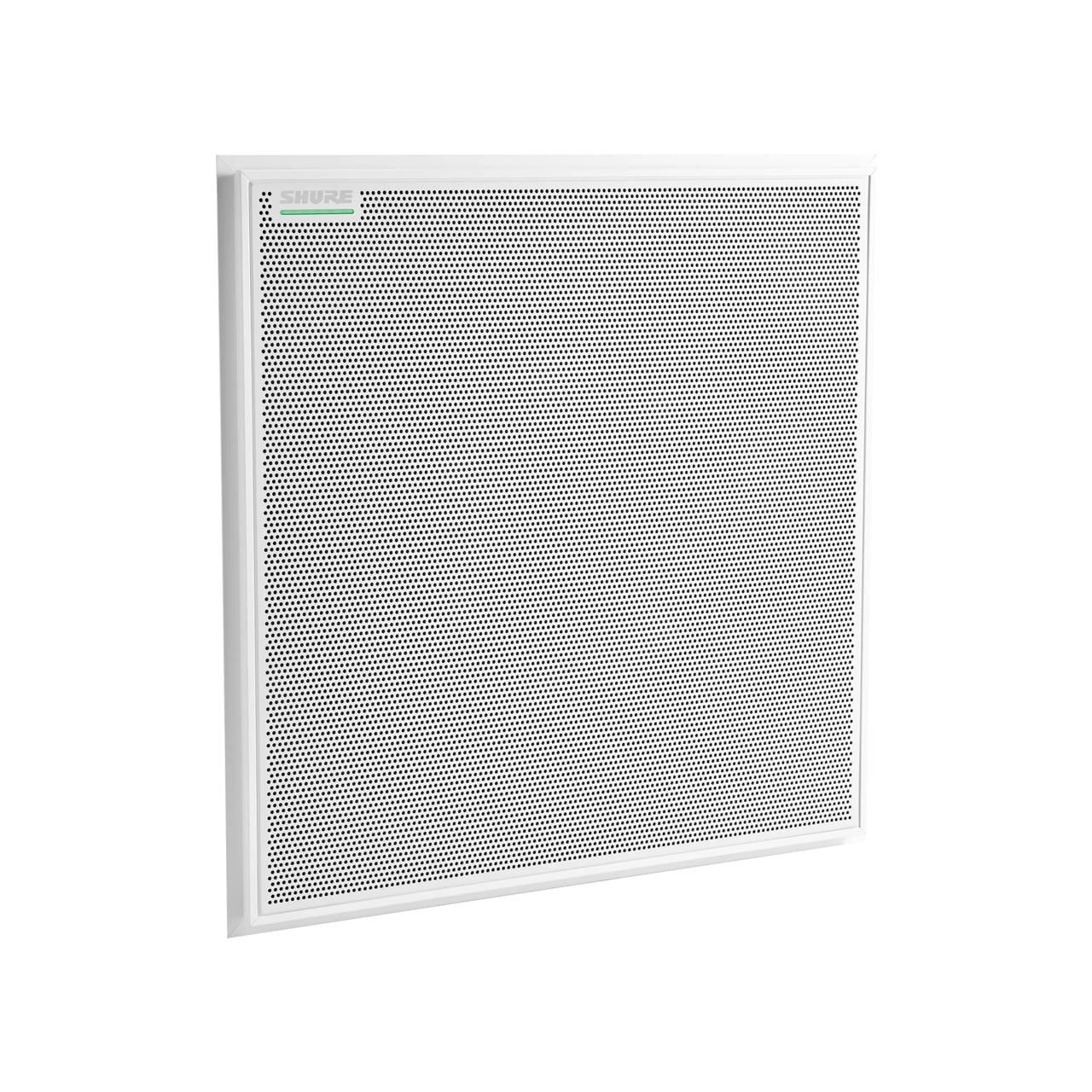

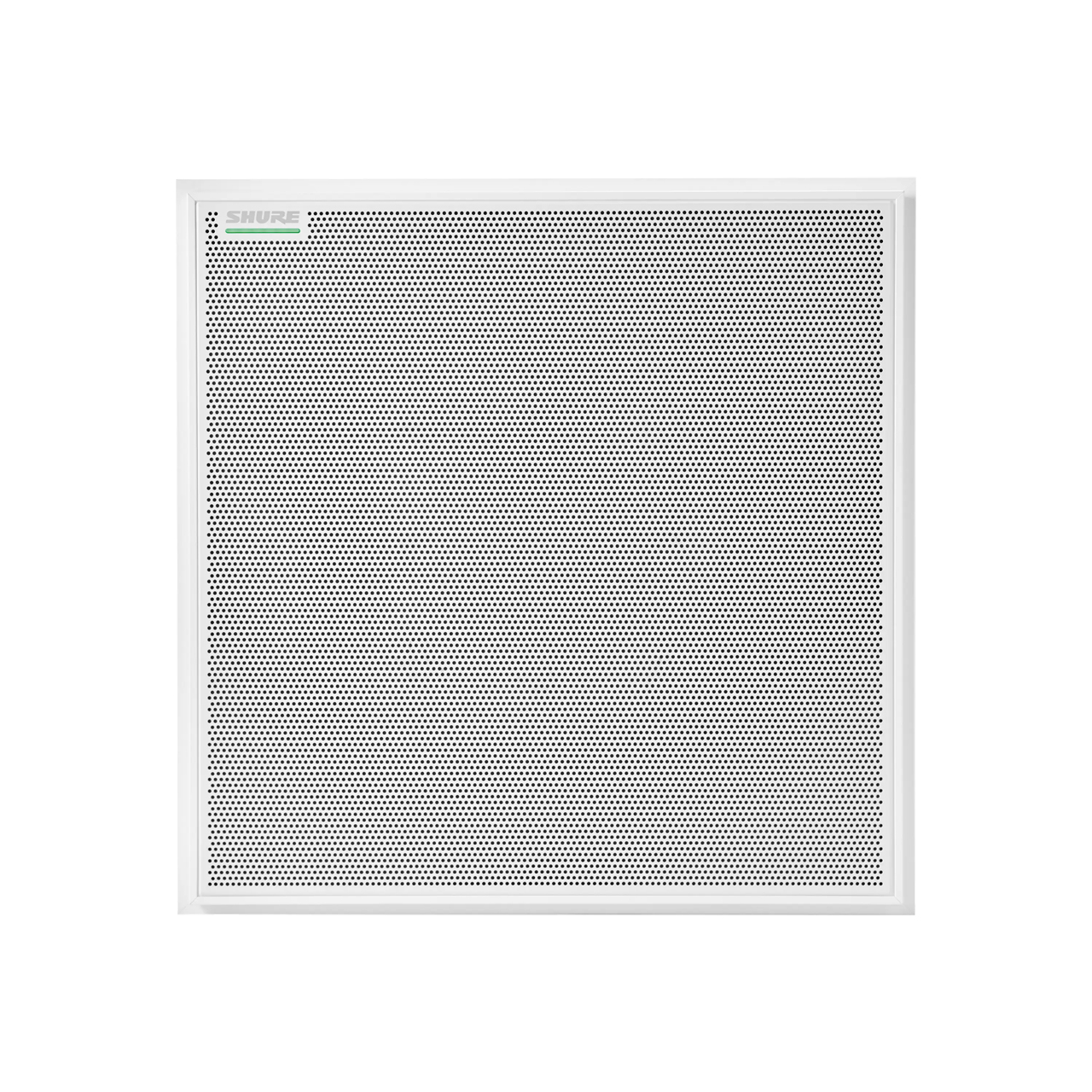

Shure MXA902W-S-TA Ceiling Array Microphone and Loudspeaker System - White - TAA Compliant

MXA902W-S-TA - Overview

• Features:

  • Array microphone and loudspeaker in one unit for premium sound with minimal installation time
  • Single-Zone Automatic Coverage technology to capture audio from a 20ft x 20ft (6m x 6m) area out of the box
  • Integrated 2.5" wide-dispersion loudspeaker for clear, intelligible speech reproduction
  • Onboard IntelliMix DSP with acoustic echo cancellation, noise reduction, automatic mixing, AGC, and EQ for echo- and noise-free audio
  • Square form factor available in 24" or 60cm sizes with paintable white finish

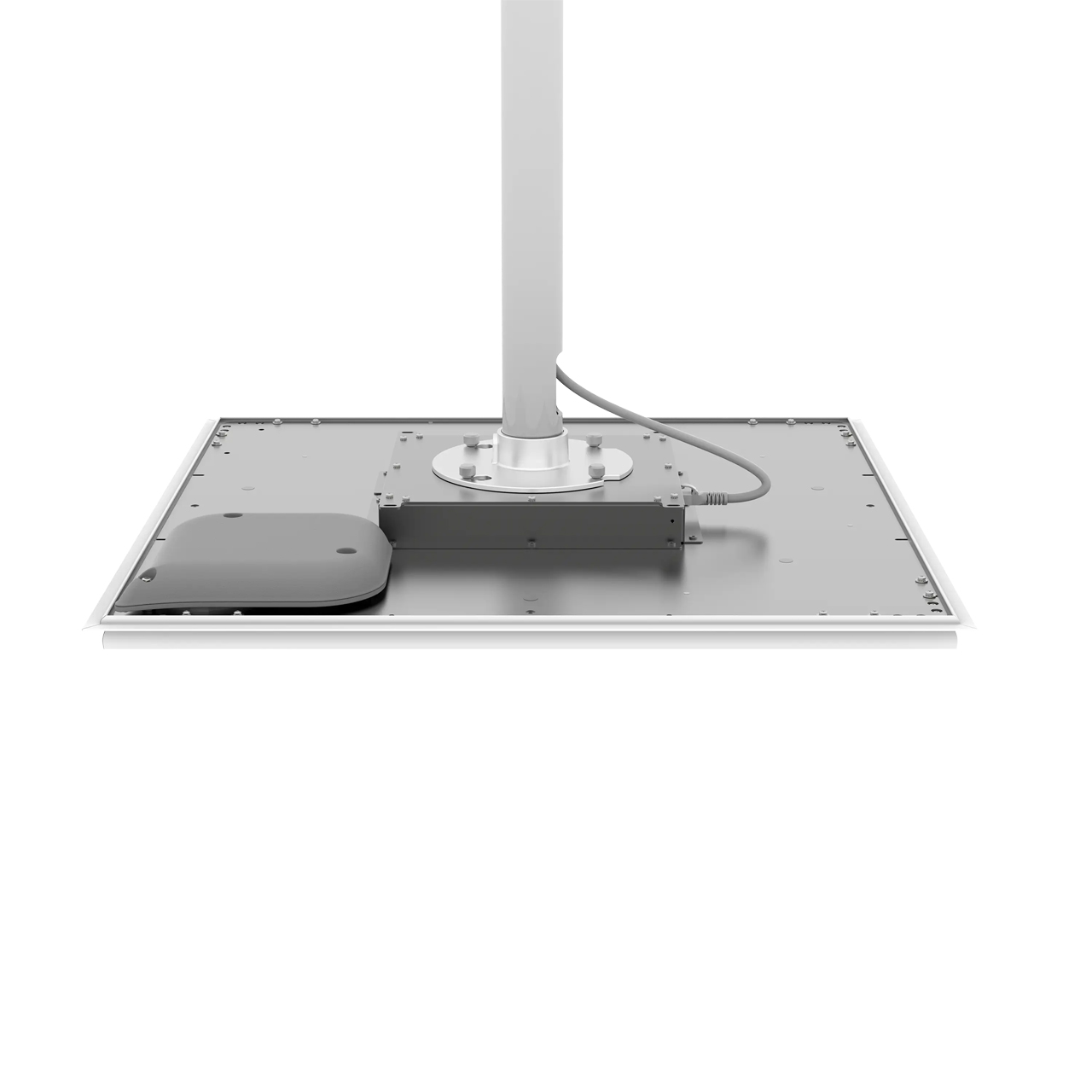

  • Versatile options for ceiling, pole, or wire rope suspension mounting
  • Shure Designer System Configuration software for easy setup and configuration
  • PoE+ powered
  • LED status bar with configurable colors and brightness
  • Dante & AES67 audio networking protocols


• Specifications:

  General
  • Coverage Area Size: 20ft x 20ft (6m x 6m)
  • Coverage Type: Single-zone automatic
  • Power Requirements: Power over Ethernet Plus (PoE+), Class 4
  • Power Consumption: 24W maximum
  • Control Software: Designer
  • Cable Requirements: Cat5e or higher (shielded cable recommended)
  • Connector Type: RJ45
  • Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
  • Dust Protection: IEC 60529 IP5X Dust Protected
  • Operating Temperature Range: 20°F - 104°F (-6.7°C - 40°C)
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)

    Loudspeaker
  • AES67 or Dante Digital Input
  • Channel Count: 2 input channels
  • Frequency Range (-10dB): 120Hz - 20kHz
  • Maximum Output Level: At 1m
  • Pink Noise: 86dB SPL
  • 1kHz Sine Tone: 88dB SPL
  • Coverage Angle:
    - Average of 1 octave band centered on 4kHz
    - 80°
  • Digital Signal Processing: Delay, compressor, signal generator, equalizer (4-band parametric
  • Latency (Not including Dante latency): 6.3ms


• Item Includes:

  • 1x MXA902W-S array microphone with loudspeaker
  • 1x Hardware kit includes:
     - 8x Cable ties
     - 3x Strain relief tabs
     - 1x Rubber pad set


• Warranty:

  • 1 Year Limited Warranty
