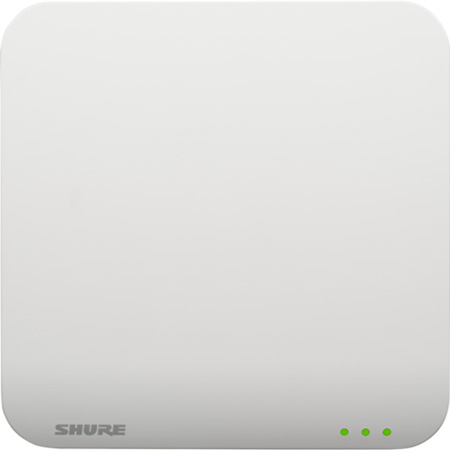

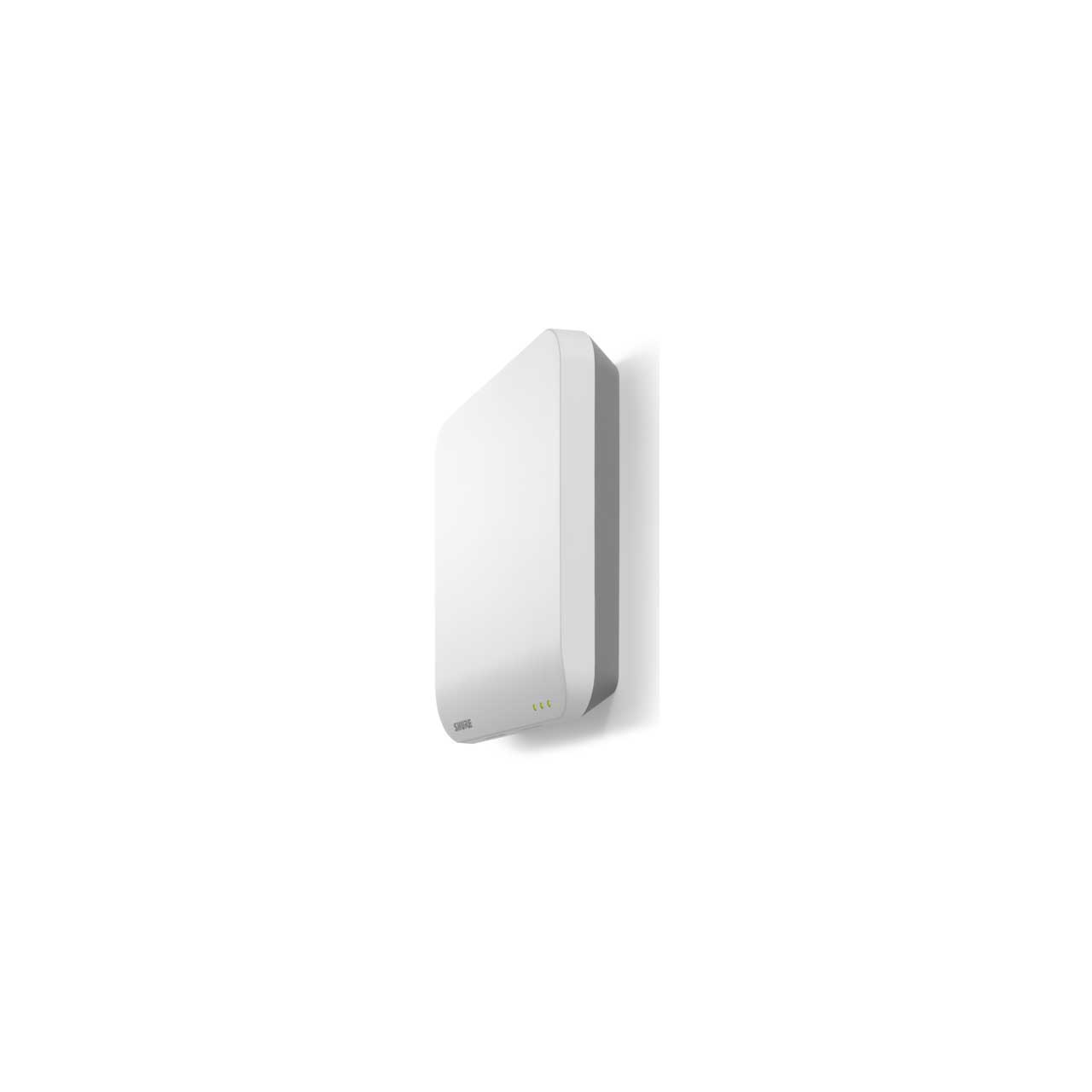

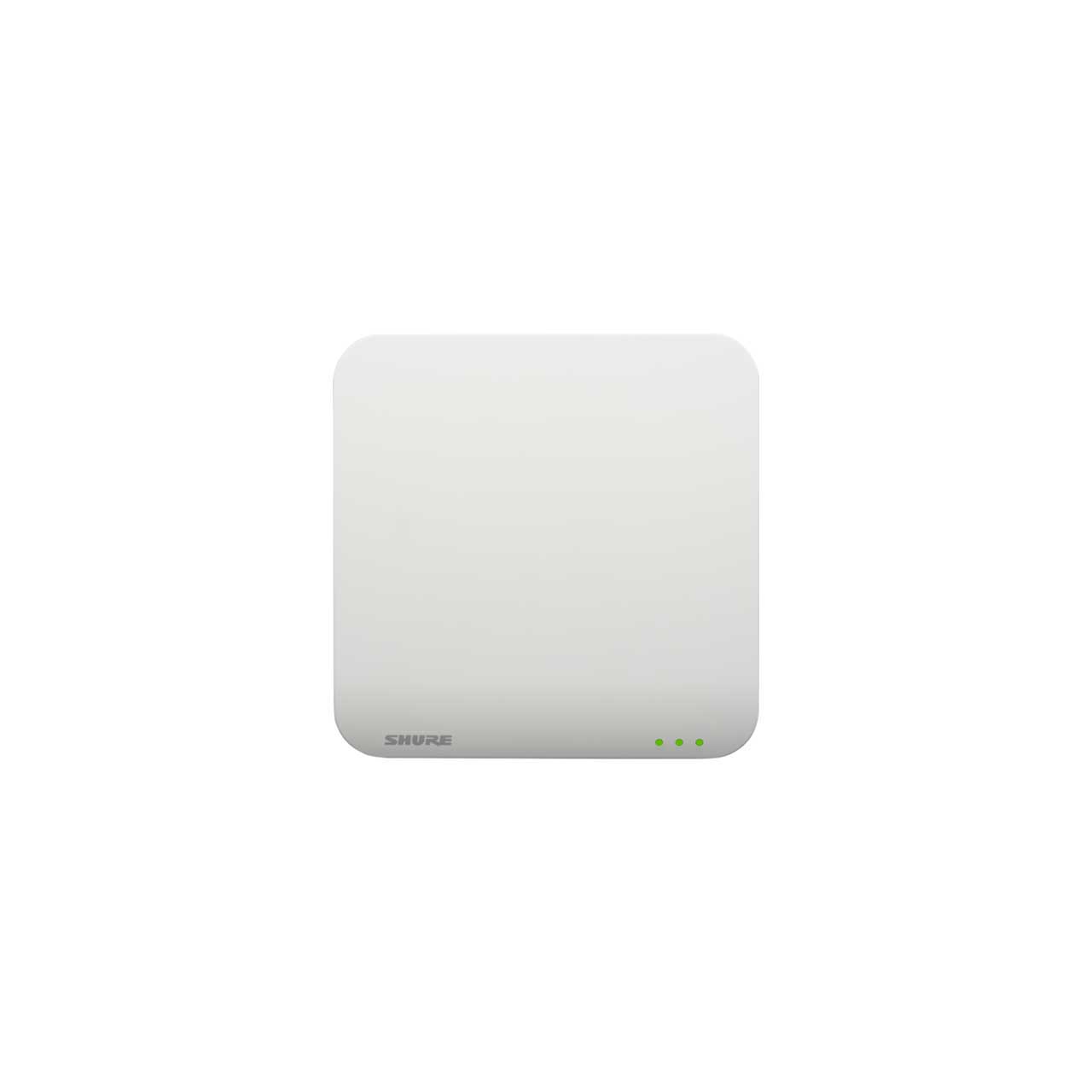

Shure MXWAPT2=-Z10 2 Channel Access Point Transceiver - Z10 1920 - 1930 MHz

ITEM #: SH-MXWAPT2-Z10 MFG #: MXWAPT2=-Z10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,248.00

Our Price:

$1,606.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MXWAPT2=-Z10 - Overview

The Shure MXWAPT is a 2-channel wireless access point compatible with Microflex Wireless microphone systems.

It uses automated frequency coordination to assign clean frequencies to wireless microphones and manages two-way wireless transmission of encrypted audio and control signals. Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation, and the supplied mounting plate and paintable cover allow discreet placement in boardrooms and conference rooms where low visibility is preferred.

  • Features:

    • Easy installation: Includes wall / ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
      Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
      Scalable configurations: Multiple units can be combined to support configurations of up to 40 compatible channels (80 in Europe and select countries).
      Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real-time remote control of all wireless microphone settings
      Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
      Dante digital networked audio: Transports low-latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
      Encrypted wireless: AES 256-bit encryption for secure transmission
      Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
      Diagnostic LEDs: LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status

  • Specifications:

    • Network Interface RJ45: Gigabit Ethernet, Dante digital audio
    • Plenum Rating: UL 2043
    • Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
    • Antenna Type: Internal, Spacial Diversity, Circular Polarization
    • Housing: Molded Plastic, Cast Zinc
    • Dimensions: 24 mm x 170 mm x 170 mm (1.35 in. x 6.7 in. x 6.7 in.), H x W x D Without mounting
      plate or cover
    • Weight: 845 g (1.9 lbs)
    • Paintable Cover: 85 g (0.2 lbs)
    • Mounting Bracket: 68 g (0.15 lbs)

  • Item Includes:

    • 1x MXWAPT2=-Z10 Transceiver
    • 1x Paintable Cover
    • 1x Mounting Bracket

  • GTIN:

    0042406475501
