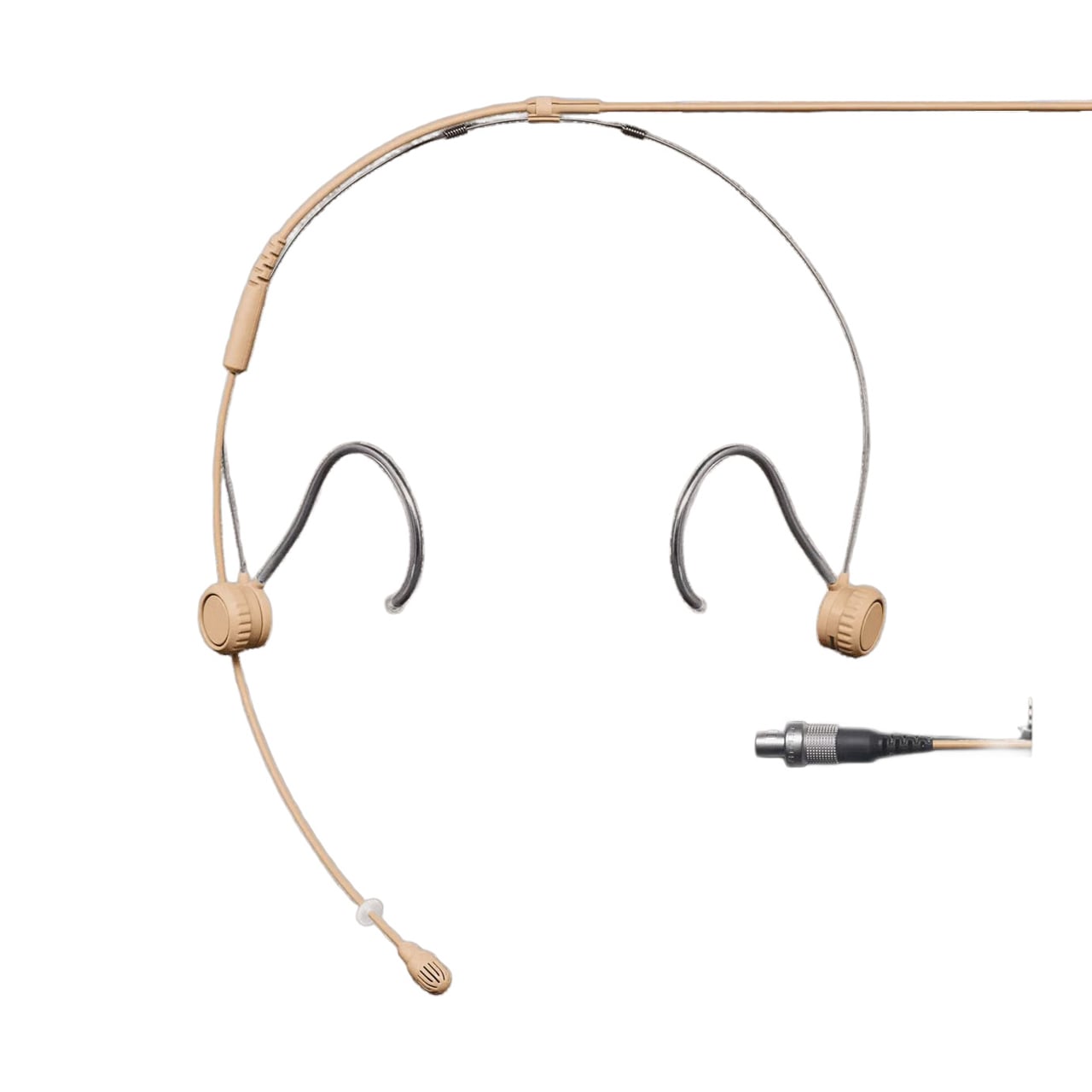

Shure TH53T/O-LEMO TwinPlex Omnidirectional Headset Microphone with LEMO Connector - Tan

TH53T/O-LEMO - Overview

• Features:

  • Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
  • Innovative clutch system allows for fast boom arm length and pitch adjustment
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevents sweat-outs due to an invisible syperhydrophobic nanoscopic coating
  • Paintable 1.6mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Natural sound signature
  • Low sensitivity


• Specifications:

  • Color: Tan
  • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20Hz - 20kHz
  • Sensitivity: -45.0dBV (5.62mV) at 1kHz
  • Self-Noise, A-Weighted, Equivalent Acoustical: 24.5dB SPL-A
  • Signal-To-Noise Ratio: 69.5dB
  • Output Clipping Level: 3.0dBV,1kHz (at 1% THD, typical)
  • Maximum SPL: 142.0dB SPL (1kHz at 1% THD, typical)
  • Dynamic Range: 117.5dB, typical
  • Microphone Current Draw: 120µA - 240µA, typical
  • Bias Voltage Recommended Operating Voltage: 5 VDC
  • Housing: Molded ABS
  • Polarity:
    - LEMO: Positive pressure at diaphragm leads to negative voltage with respect to ground
    - MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
  • Cable Diameter: 0.06" (1.6mm)
  • Cable Length:
    - LEMO: 66" (1.67m)
    - NC, XLR connector: 96" (2.43m)
  • Microphone Length: 0.7" (19mm)
  • Microphone Diameter: 0.2" (5.6mm)
  • Net Weight with Cable Boom arm, with Cable: 0.42oz (12g)
  • Headset frame: 0.21oz (6.0g)
  • Shipping Dimensions (LxWxH): 8.6" x 7.5" x 2.3" (218.4mm x 190.5mm x 58.4mm)
  • Shipping Weight: 2lbs (0.9kg)


• Item Includes:

  • 1x TH53T/O-LEMO Microphone


• Warranty:

  • 1 Year Limited Warranty
