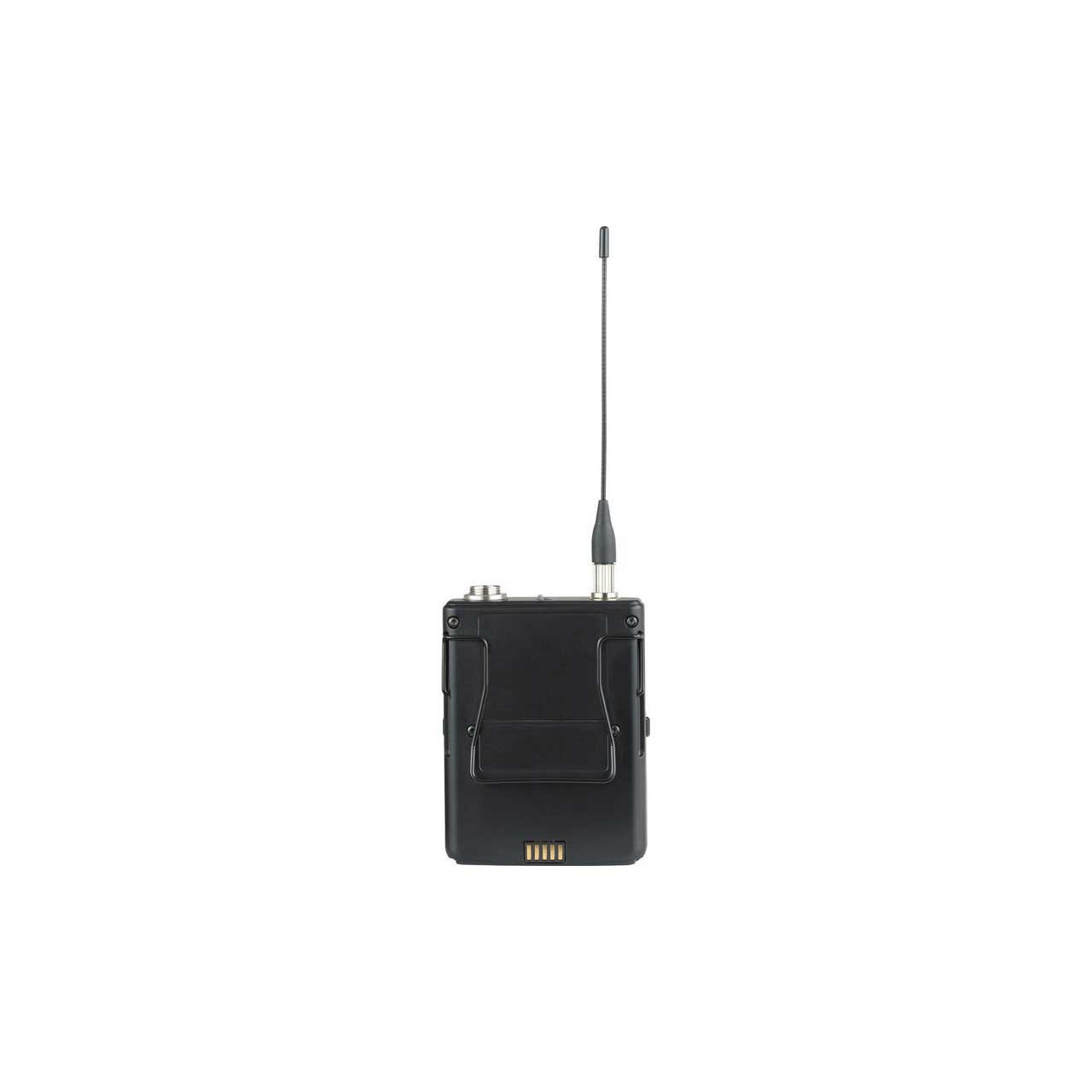

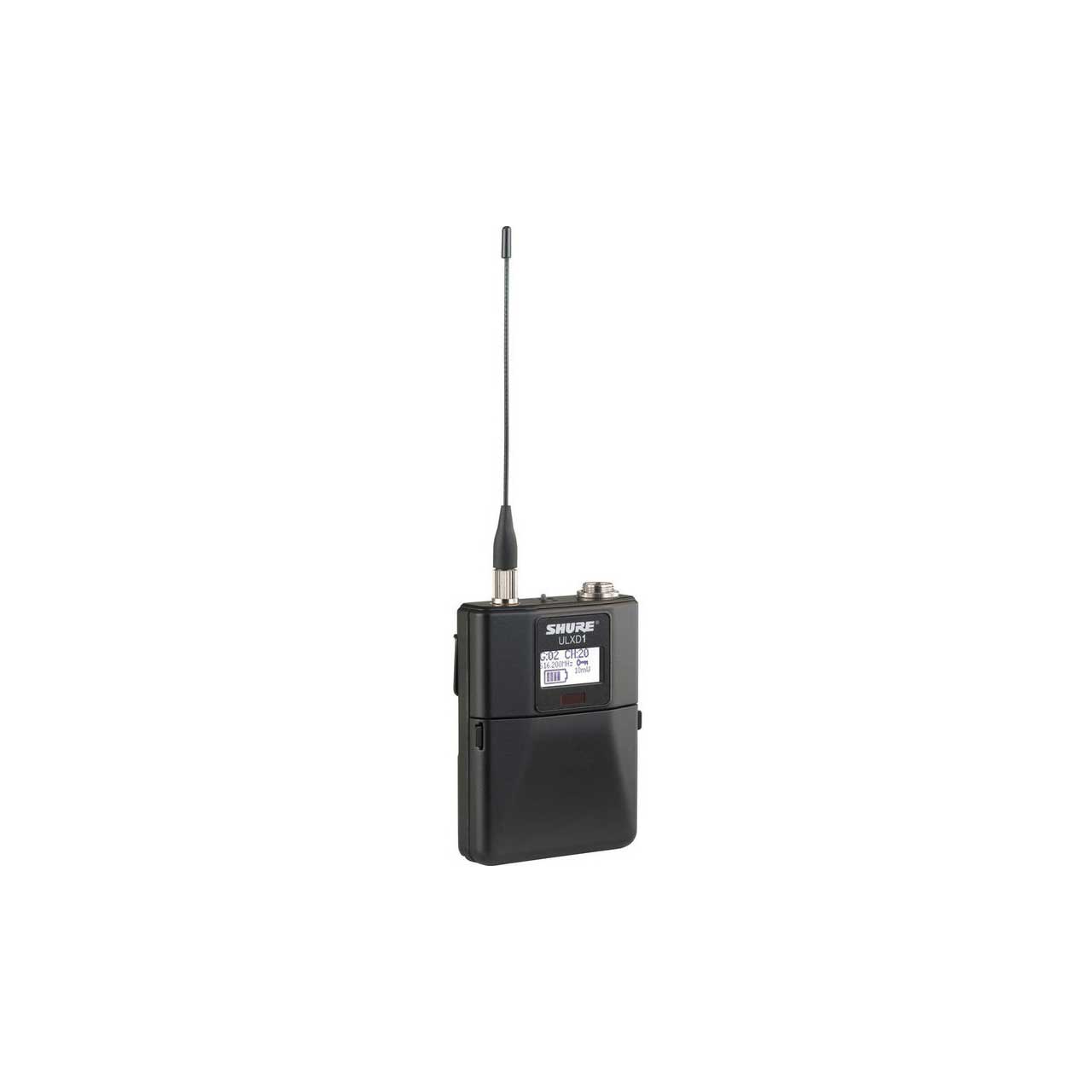

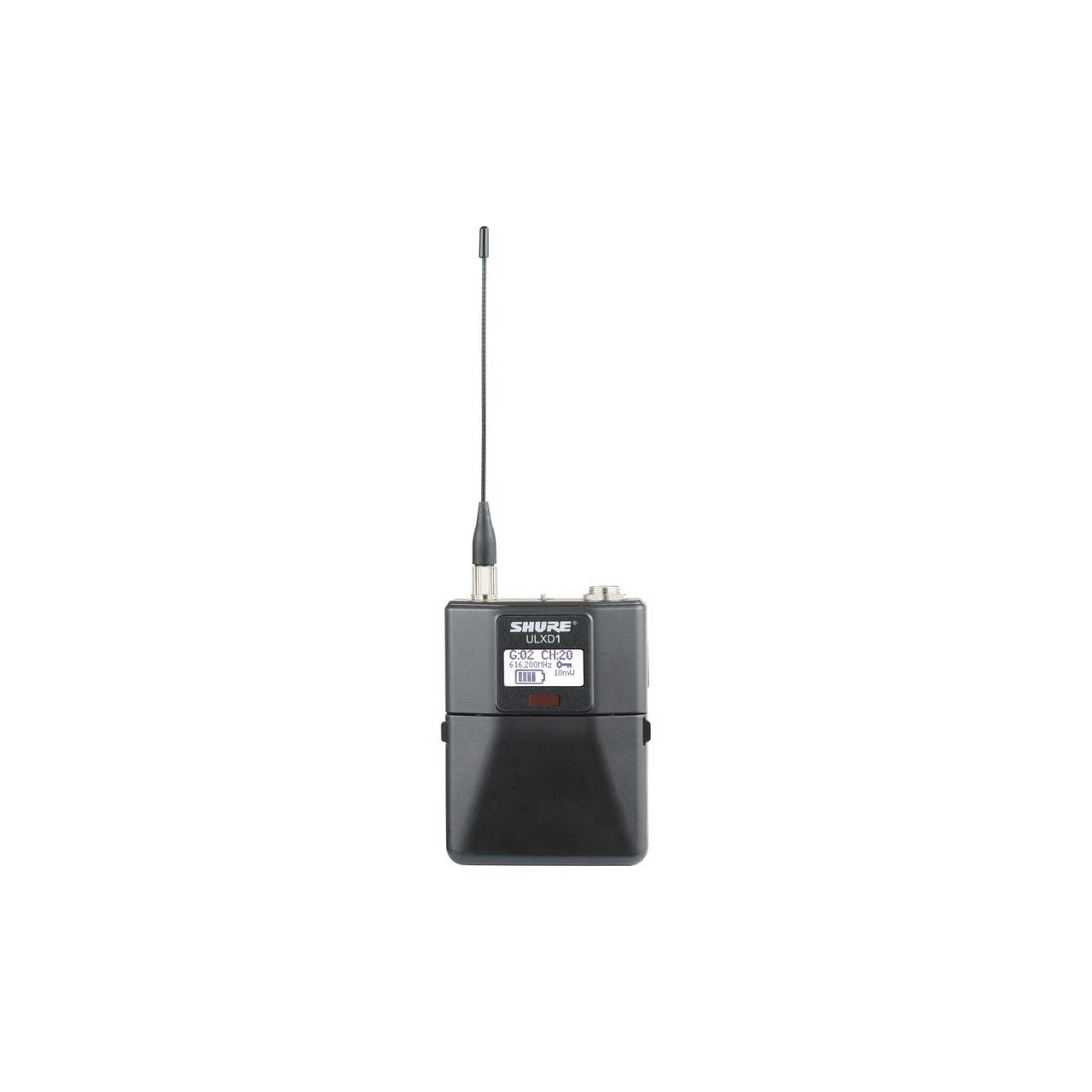

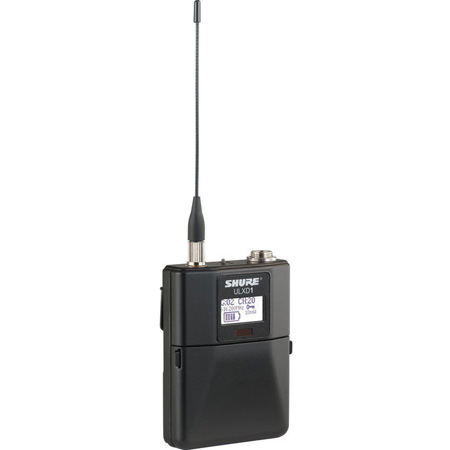

Shure ULXD1 Digital Wireless Bodypack TX with Miniature 4-Pin Connector - H50 530-602 MHz


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    ULXD1-H50 - Overview

    The ULXD1 Wireless Bodypack Transmitter by Shure is for capturing audio. It can be used in various environments, when paired with a ULXD4 receiver for applications such as, theater, stage, broadcast TV, DJ setups, and more. The ULXD1 compact bodypack transmitter is enclosed in a rugged metal housing with a TA4-M (4-pin male) audio input connector and features a comprehensive LCD display.

    The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.

    Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

    • Features:

      • H50 / 534 to 598 MHz
      • For Use with ULXD4 Receiver
      • TA4-M (4-Pin) Input Connection
      • Uncompromising Digital Audio Quality
      • AES 256-bit encryption for applications requiring secure data transmission.
      • Proprietary Shure gain ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments.
      • Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5-segment battery fuel gauge, and zero memory effect.
      • External charging contacts for docked charging (with the SBC200 dual docking charger).
      • Backlit LCD with easy to navigate menu and controls.
      • Rugged metal construction
      • Detachable 1/4 wave antenna
      • Frequency and power lockout
    • Specifications:

      • Frequency Band: H50: 537 to 598 MHz
      • Gain Offset Range: 0 to 21 dB (in 3 dB steps)
      • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries, Battery Runtime @ 10 mW: , Shure SB900: > 12 hours, Alkaline: 11 hours
      • Housing: Cast aluminum

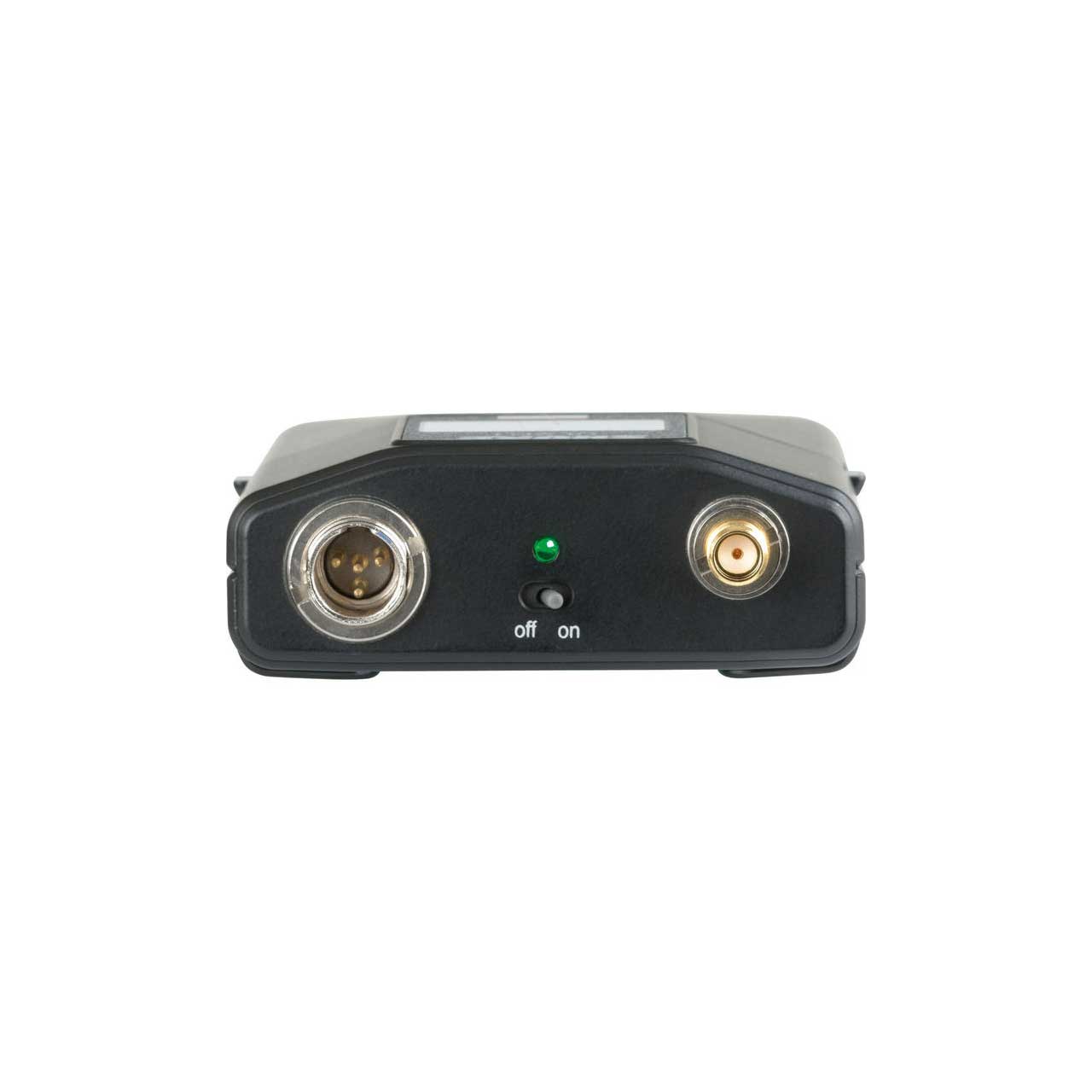

      • Audio Input Connectors: 4-Pin male mini connector (TA4M), Configuration: Unbalanced
      • Impedance: 1 Mega ohm
      • Maximum Input Level: Pad Off: 8.5 dBV (7.5 Vpp), Pad On: 20.5 dBV (30 Vpp)
      • EIN: Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical.
      • RF Output: SMA.
      • Antenna: 1/4 wave
      • Impedance: 50 ohms
      • Bandwidth: Occupied Bandwidth: < 200 kHz
      • Modulation: Shure Proprietary Digital
      • Power: 1 mW, 10 mW, 20 mW
      • Operating Range: 300' (100m)
      • Frequency Response: 20 Hz to 20 kHz (±1 dB), flat, Note: Dependent on microphone type
      • Dimensions (HxWxD): 3.4 x 2.6 x 0.9" (86 x 66 x 23 mm)
      • Weight: 142 g (5.0 oz), without batteries.
    • GTIN:
