Shure ULXD2 Digital Wireless Handheld Transmitter with KSM9HS Mic Cartridge - 24bit/48kHz Converter - G57 470 - 608MHz

ITEM #: SH-ULXD2-K9HSG57 MFG #: ULXD2/K9HS=-G57

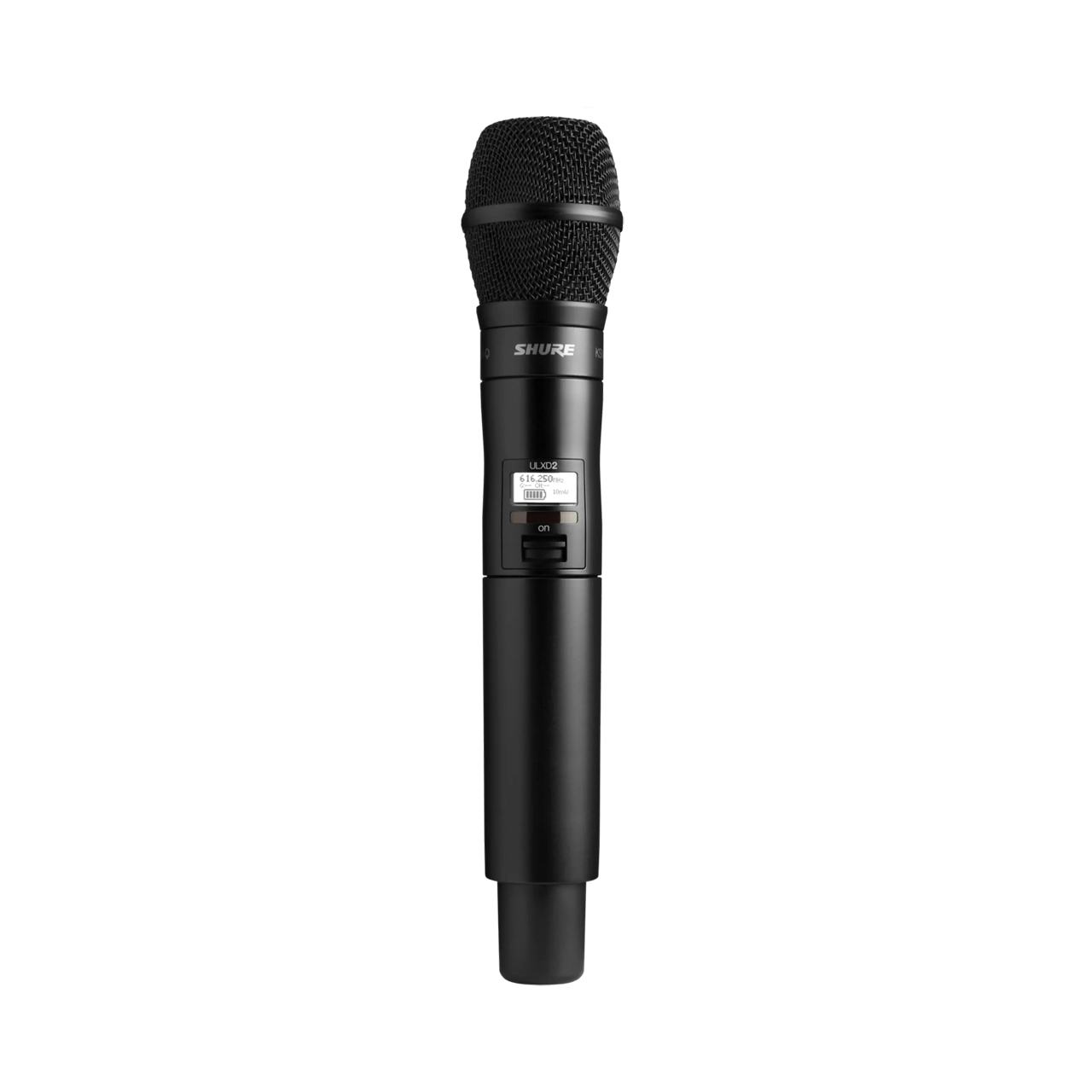

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,989.00

Our Price:

$1,421.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ULXD2/K9HS=-G57 - Overview

The Shure ULXD2 is a 470MHz - 608MHz handheld wireless microphone transmitter works with ULX-D Wireless Systems. With an interchangeable KSM9HS microphone cartridge, the ULXD2 delivers uncompromising audio quality and RF performance, and AES 256-bit encryption for secure transmission. It offers over 12 hours of continuous battery life with the Shure SB900A rechargeable battery or 11 hours with AA alkaline batteries. This handheld transmitter provides complete mobility for presenters with a line-of-sight operating range of up to 300ft.

The KSM9HS microphone offers exceptional consistency across all frequencies, providing more gain before feedback, while decreasing proximity effect. KSM9HS microphones are built to exacting Shure endurance standards, renowned worldwide and proven night after night, center stage.

Please Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

  • Features:

    • ULX-D® Digital Handheld Transmitter with KSM9HS Microphone Cartridge (condenser, switchable polar patterns between hypercardioid and subcardioid)
    • AES 256-bit encryption for applications for which secure transmission is needed
    • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
    • 24bit/48kHz converter
    • Shure gain ranging, charging contacts
    • Includes microphone clip, storage bag and 2 AA batteries
    • Frequency band G57 (470MHz - 608MHz)
    • Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
    • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
    • Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
    • Backlit LCD with easy to navigate menu and controls
    • Rugged metal construction
    • Frequency and power lockout

  • Specifications:

      General
    • Gain Offset Range: 0dB - 21dB (in 3dB steps)
    • Battery Type: Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5V
    • Battery Runtime (@ 10mW): Shure SB900A: > 11 hours; Alkaline: 11 hours
    • Dimensions: 10.9" x 2.0" (L x Dia.)
    • Weight: 12.3oz (348g), without batteries
    • Housing: Machined aluminum
    • Frequency Range: G57, 470MHz - 608MHz

      Audio Input
    • Configuration: Unbalanced
    • Maximum Input Level (1kHz at 1% THD): 145dB SPL (SM58), typical (Dependent on microphone type)
    • Preamplifier Equivalent Input Noise (EIN)(System Gain Setting): ≥ +20 120dBV, A-weighted, typical

      RF Output
    • Antenna Type: Integrated Single Band Helical
    • Occupied Bandwidth: < 200kHz
    • Modulation Type: Shure Proprietary Digital
    • Power: 1mW, 10mW, 20mW

  • Item Includes:

    • 1x Microphone clip, storage bag and 2 AA batteries


ULXD2/K9HS=-G57 - Required Accessories
