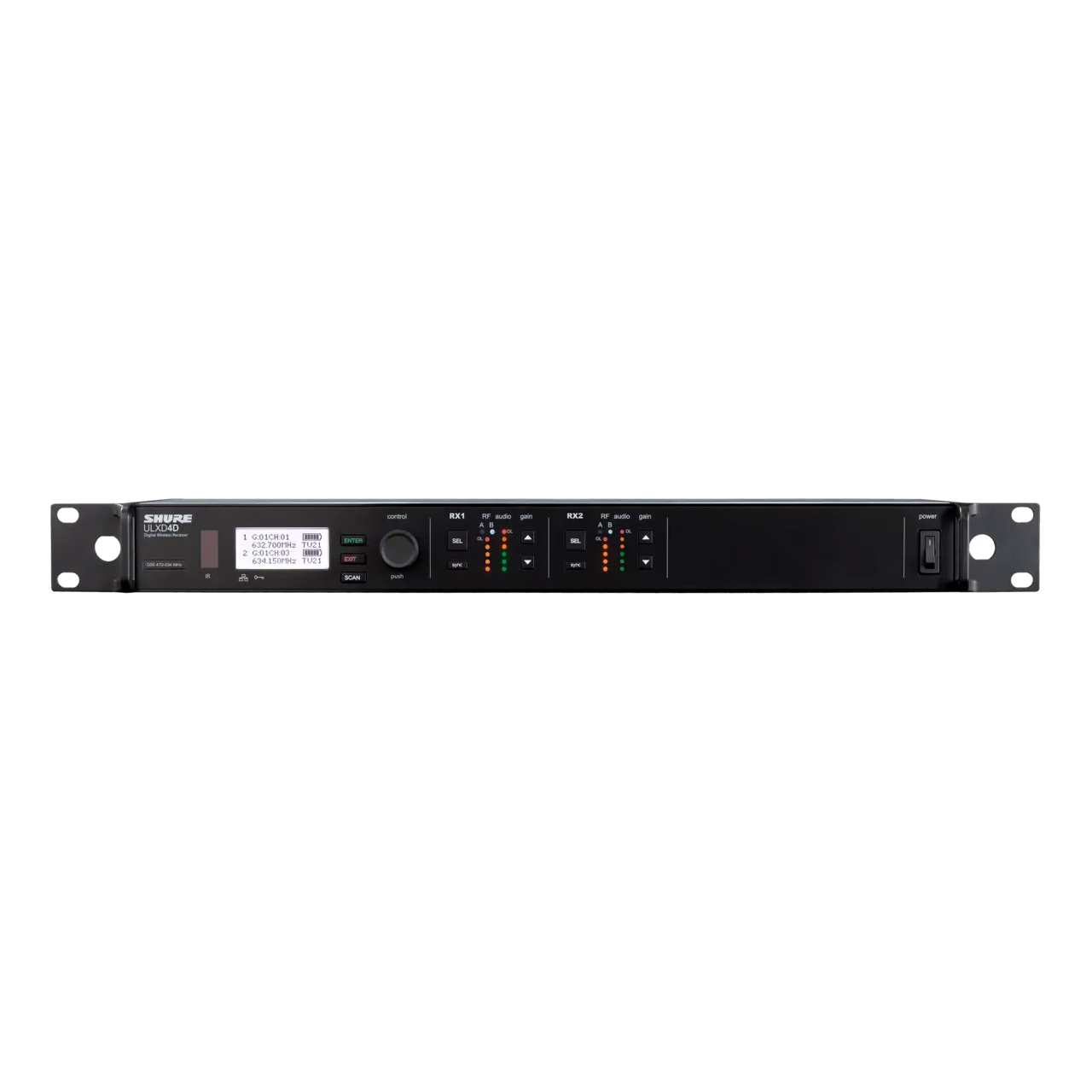

Shure ULXD4DGV Digital 2-Ch Wireless Receiver with 256-bit AES Encryption for Corporate/Education/Gov - G57 470-608MHz

ULXD4DGV=-G57 - Overview

• Features:

  • Two receivers in a rugged 1RU metal chassis with internal power supply
  • Dante™ digital networked audio over Ethernet
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Up to 138 MHz tuning bandwidth
  • Digital predictive switching diversity
  • High Density mode allows higher channel counts at distances up to 100 ft (30m)
  • Optimized scanning finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Always-on AES-256 encryption for enhanced privacy in confidential settings
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® integration, and AMX/Crestron control
  • Yamaha® device ID allows simplified channel patching on CL consoles ("YAMAHA" is a registered trademark of Yamaha Corporation)
  • Remote-mountable 1/2 wave antennas included


• Specifications:

  ULX-D System
  • Receiver Type: Dual
  • Working Range: 330ft (100m)
    *Note: Actual range depends on RF signal absorption, reflection and interference.
  • RF Tuning Step Size: 25kHz, varies by region
  • Image Rejection: > 70dB, typical
  • RF Sensitivity: -98dBm at 10-5 BER
  • Latency: < 2.9ms
  • Audio Dynamic Range:
    - A-weighted, typical, System Gain @ +10
    - XLR Analog Output: > 120dB
  • Dante Digital Output: 130dB
  • Total Harmonic Distortion:
    - -12dBFS input, System Gain @ +10
    - < 0.1%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 1/4" output.
  • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
    *Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
    *Note: Battery characteristics may limit this range.
  • Weight: 7.4lbs (3.36kg), without antennas
  • Power Requirement: 100V - 240V AC, 50-60Hz, 0.26A max
  • Dimensions: 1.73" x 18.98" x 10.79" (44mm x 482mm x 274mm)

    Audio Output
  • Gain Adjustment Range: -18dB - +42dB in 1dB steps (plus Mute setting)
  • Configuration: XLR: balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance: 100Ω
  • Full Scale Output:
    - LINE Setting: +18dBV
    - MIC Setting: -12dBV
  • Mic/Line Switch: 30dB pad
  • Phantom Power Protection: Yes

    Networking
  • Network Interface: Dual Port Ethernet 10/100 Mbps, 1Gbps, Dante Digital Audio
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 328ft (100m)

    RF Input
  • Spurious Rejection: > 80dB, typical
  • Connector Type: BNC
  • Impedance: 50Ω
  • Bias Voltage: 12V - 13V DC, 150mA maximum, per antenna switchable on-off


• Item Includes:

  • 1x Rack mount kit, 2 1/2-wave Antennas, BNC bulkhead adapter, 2 BNC cables (60 cm), Ethernet cable (1.5 m)
