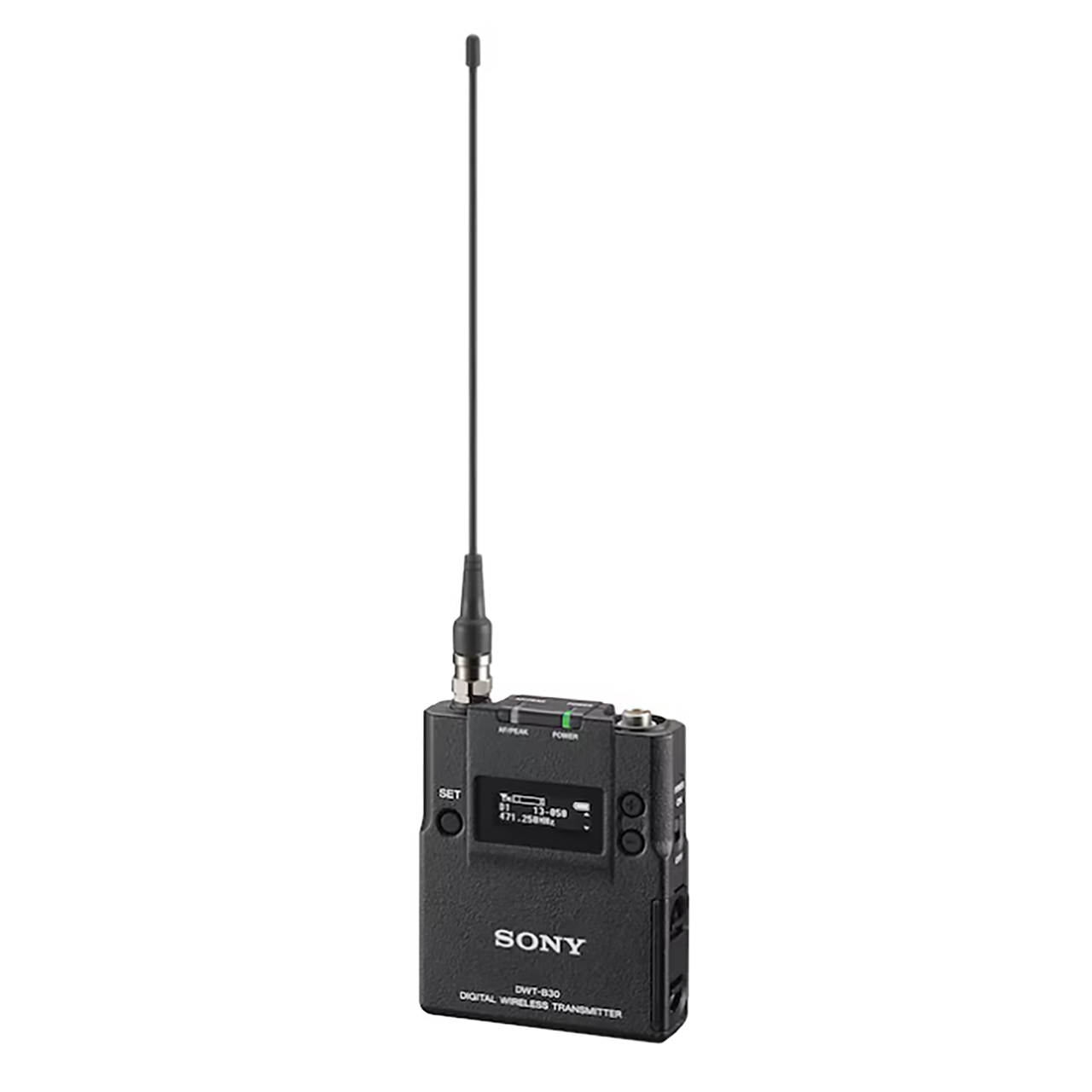

Sony DWTB30 Digital Bodypack Transmitter for DWX Series Gen3 Digital Wireless Microphone System

Name: Sony DWTB30 Digital Bodypack Transmitter for DWX Series Gen3 Digital Wireless Microphone System
Brand: Sony Pro Audio
SKU: SNY-DWTB30
Price: 1965.21 USD
Availability: PreSale

ITEM #: SNY-DWTB30 MFG #: DWTB30

Sony Pro Audio

List Price:

$2,510.00

Our Price:

$1,965.21

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DWTB30 - Overview

The Sony DWT-B30 is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.
Sony's advanced digital audio processing, encryption and RF transmission technologies assure secure, stable transmission and reception of very high-quality audio with low latency.
The transmitter operates with a wide bandwidth up to 148MHz (depending on region), and the high density 375kHz interval channel plan enables simultaneous multi-channel operation, increasing the probability of finding unoccupied frequencies in congested metropolitan areas.
The DWT-B03R is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), allowing flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (available separately).

The compact DWT-B30 bodypack transmitter is an ideal choice for live sound applications including theater and concerts, as well as studio-based TV production and ENG/EFP.

Features:
- Superb audio quality wireless transmission and reception
- Low noise head amplifier
- Flexible audio input control
- Cross Remote™ monitor/control functions
- Stable, securely encrypted transmission and reception
- Wide bandwidth
- Selectable RF output power
- High density multi-channel operation
- User settings memory
- USB for power supply
- Four codec modes for wide range of applications
- Easy-to-read dot-matrix OLED display
- Low audio latency and high quality sound
- Flexible battery options and long battery life
Specifications:
- Oscillator Type: Crystal-controlled PLL synthesizer
- Antenna Type: 1/4nm wavelength wire antenna
- Carrier Frequencies:
  - UC7 : 470.125MHz to 607.875MHz, 614.125MHz to 615.875MHz (UHF-TV channels 14 to 36, 38)
  - L/CE7 : 470.025MHz to 614.000MHz (UHF-TV channels 21 to 38)
  - H/CE7 : 566.025MHz to 714.000MHz (UHF-TV channels 33 to 51)
  - L/J : 470.150MHz to 614.000MHz (UHF-TV channels 13 to 36)
  - MH/J : 566.025Mhz to 713.850MHz (UHF-TV channels 29 to 52)
  - G/J: 1240.150MHz to 1251.825MHz, 1253.175MHz to 1259.850MHz, 25kHz steps
- RF Output Power: UC7, CE7, L/J, MH/J, G/J: 2 mW/10 mW/25 mW (e.r.p) selectable
- Input Connector:
  - UC7, J: Sony 4-pin (SMC9-4S) (female)
  - CE7: Small three-pin connector with lock
- Reference Audio Input Level:
  - MIC: -60dBV (-58 dBu), 1kHz (at 0-dB attenuator level)
  - LINE: +4dBu, 1kHz
- Maximum Audio Input Level: MIC: -22dBu (with 0dB attenuator), LINE: +24dBu
- Audio Attenuator Adjustment Range: 0~48dB (3 dB steps, MIC input mode only)
- Frequency Response: 20Hz~22kHz (typical)
- Dynamic Range: 106dB typical (A-weighted, T.H.D=1%)
- Distortion (T.H.D): MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less
- Audio Delay:
  - MODE1: 0.8 msec
  - MODE2: 0.7 msec
  - MODE3: 1.8 msec
  - MODE4: 0.7 msec
- Wireless Remote Control: Cross Remote (2.4-GHz IEEE802.15.4 compliant)
- Display: OLED
- Power Requirements:
  - DC 3.0 V (two LR6/AA size alkaline batteries)
  - DC 5.0 V (supplied from USB connector)
- Battery Life: Approx. 6.5 hours with Sony's AA-size alkaline (LR6) batteries at 77°F(25°C) at 10-mW output (with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
- Operating Temperature: 32°F~122°F (0°C~50°C)
- Storage Temperature: -4°F~140°F (-20°C~60°C)
- Dimensions, excluding the anntena (WxHxD): Approx. 2.5" x 0.69" x 2.89" (63mm x 17mm x 73mm)
- Mass, including batteries: Approx. 0.28lb (125g)
Item Includes:
- 1x Sony DWT-B30 transmitter
