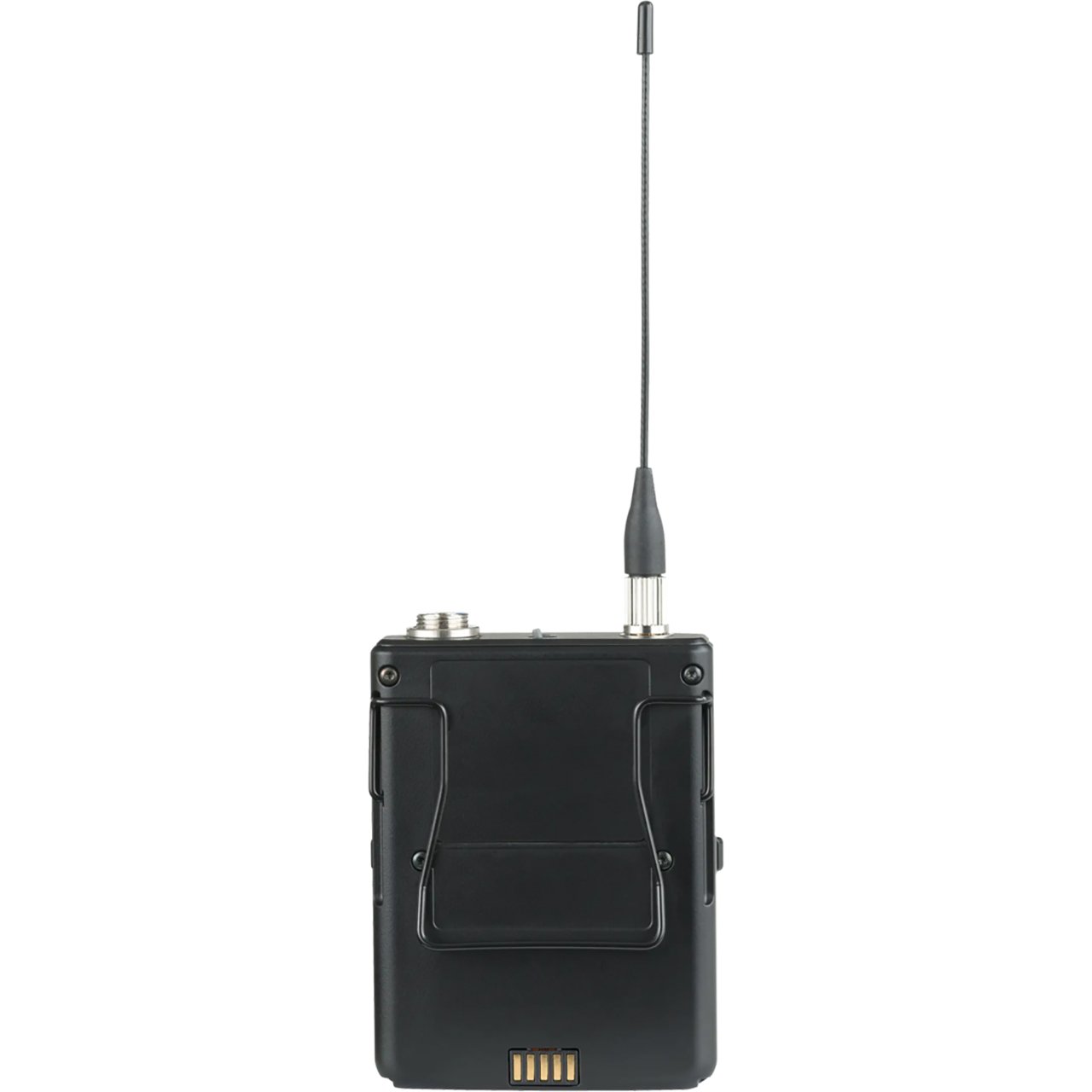

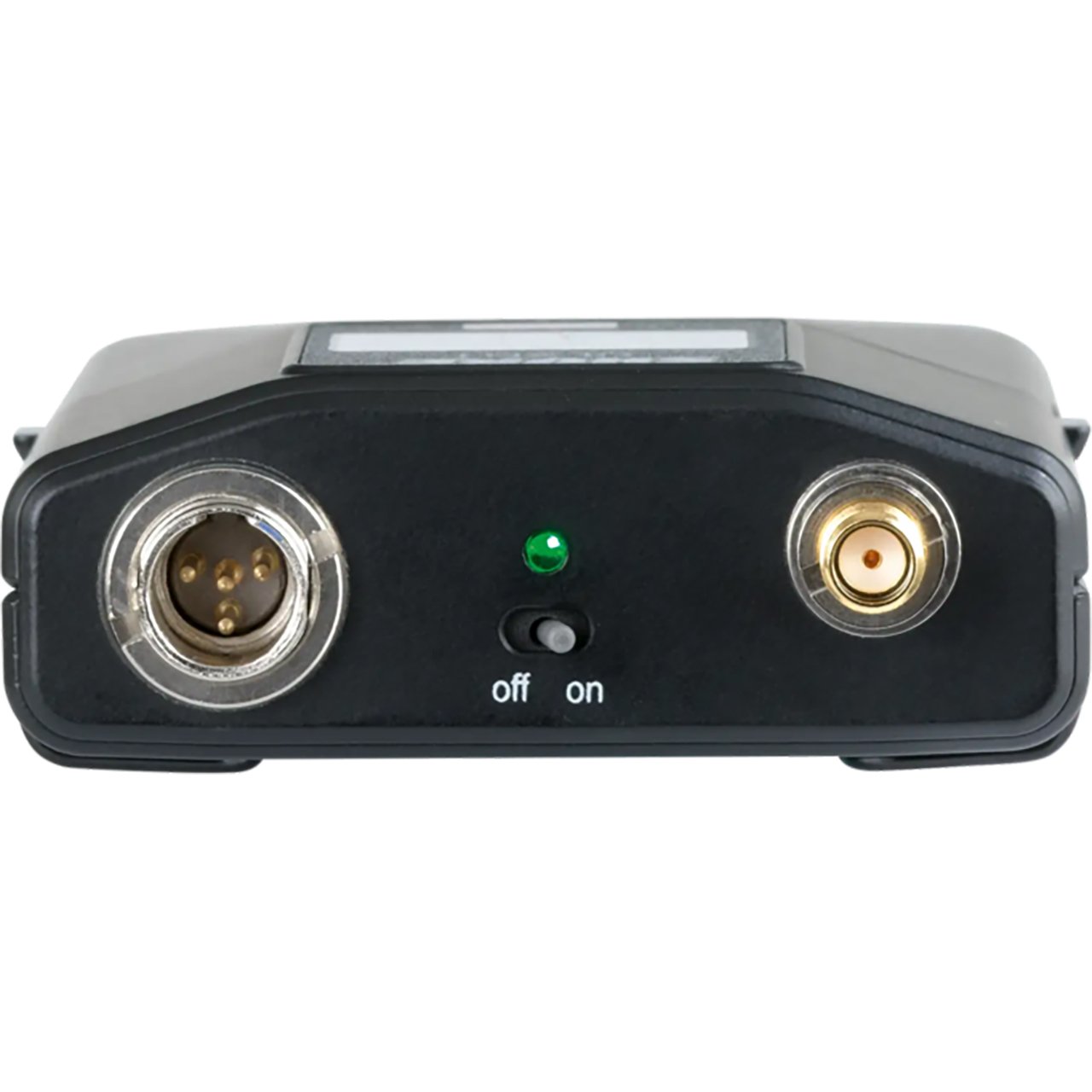

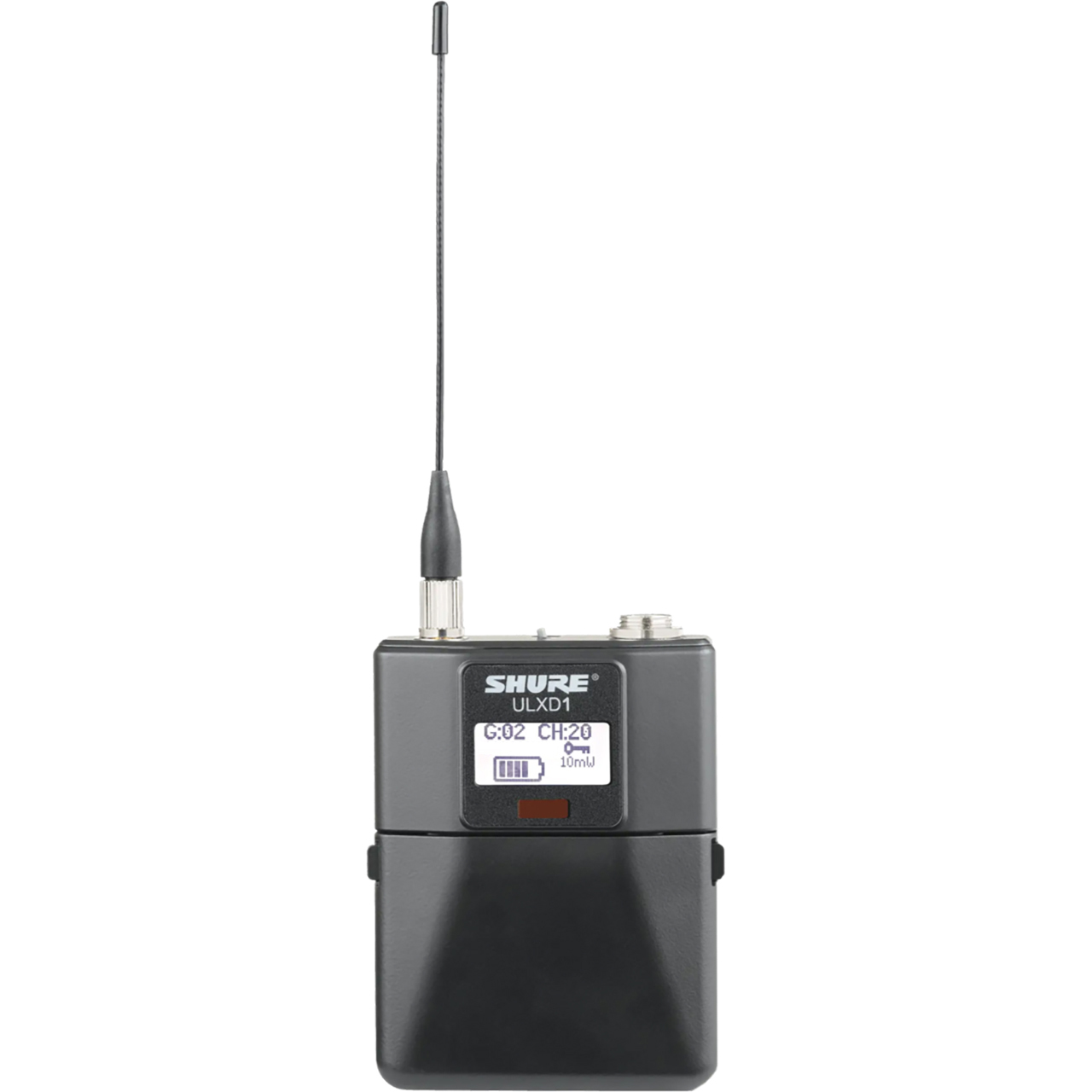

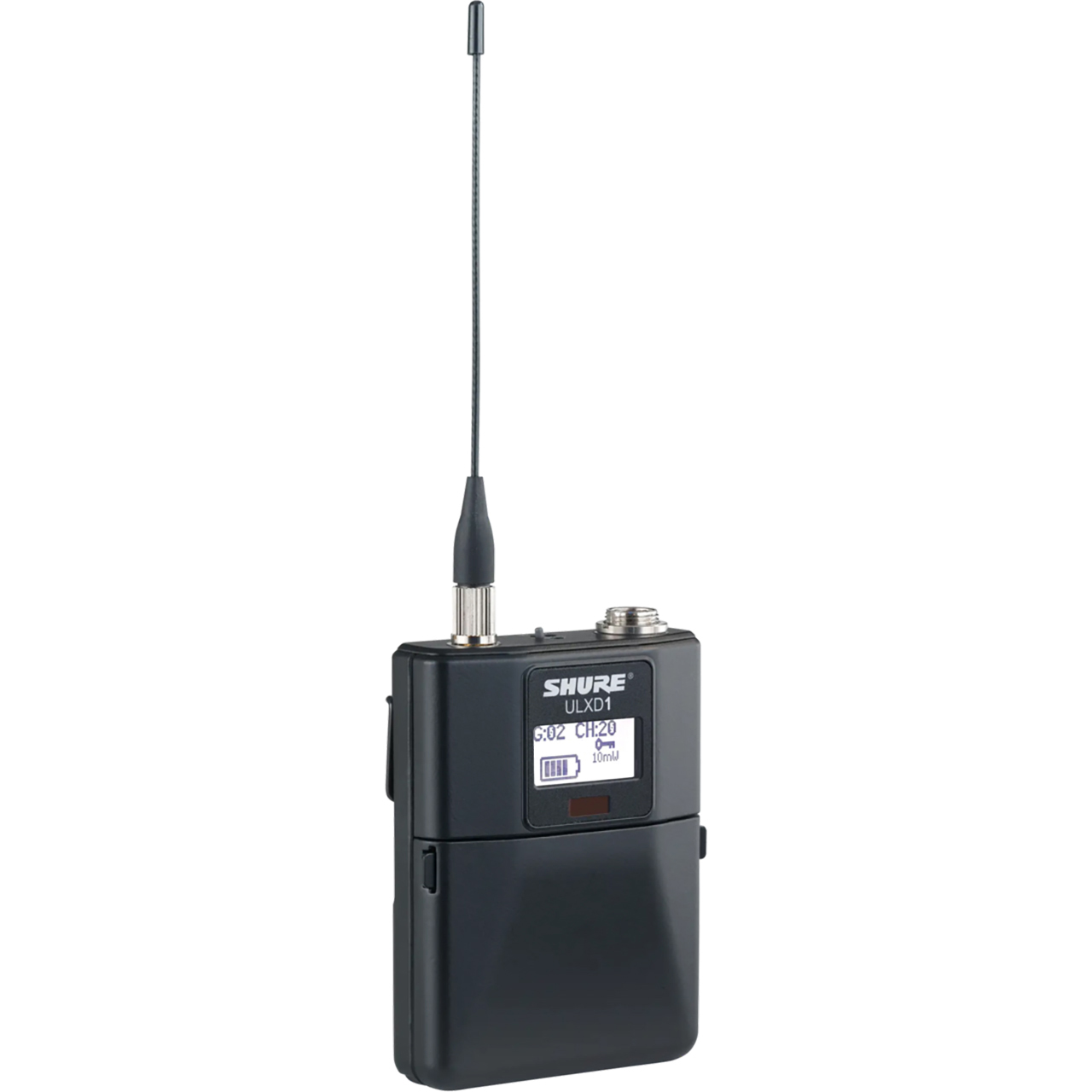

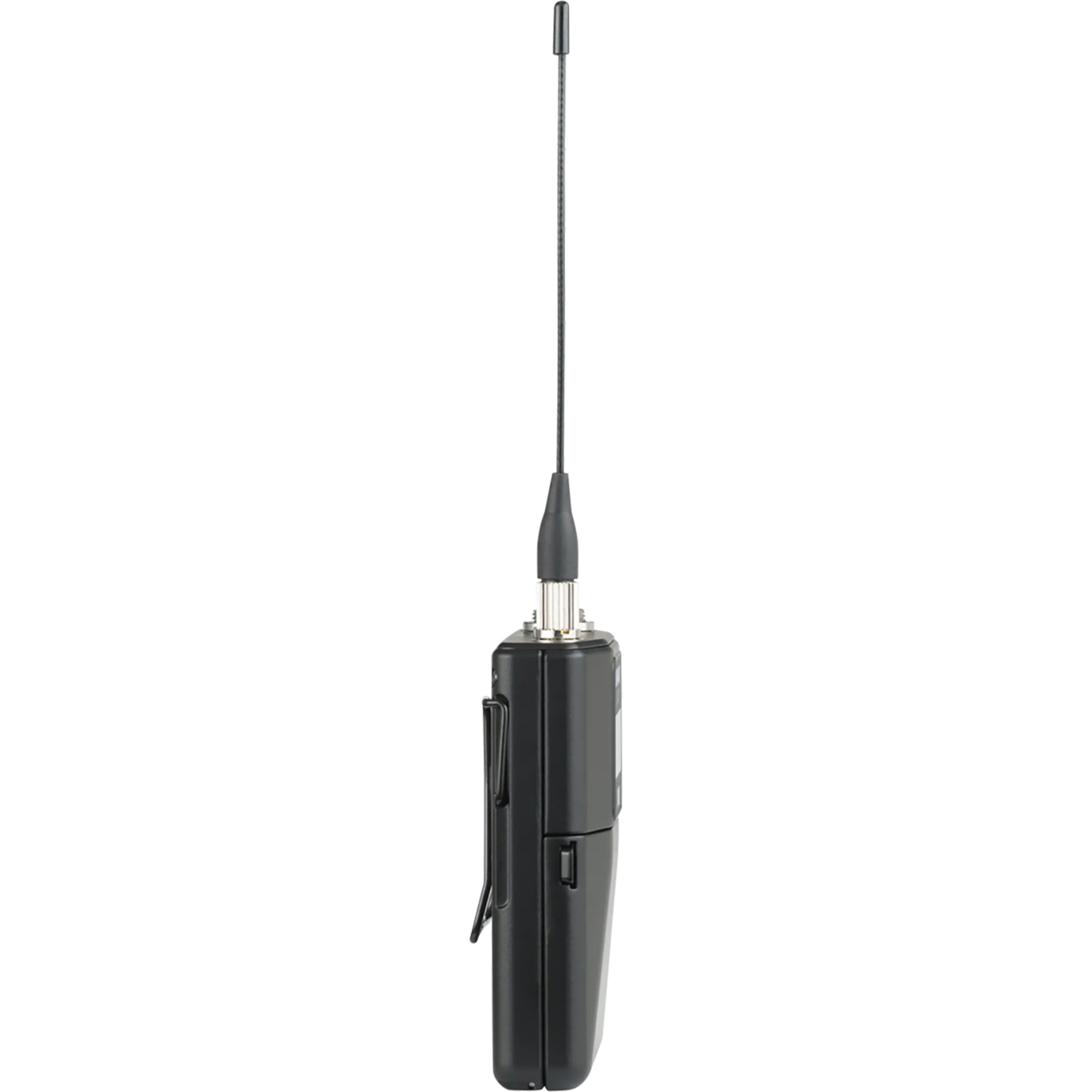

Shure ULXD1 Digital Wireless Bodypack Transmitter with 24bit/48kHz Converter & LEMO3 Audio Input - G57 470 - 608MHz

ULXD1LEMO3=-G57 - Overview

• Features:

  • AES 256-bit encryption for applications requiring secure data transmission
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Optional Shure SB900B lithium-ion rechargeable battery provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
  • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
  • Backlit LCD with easy to navigate menu and controls
  • Rugged metal construction
  • Detachable 1/4 wave antenna
  • Frequency and power lockout


• Specifications:

  • Frequency Band: G57, 470MHz - 608MHz
  • Gain Offset Range: 0dB - 21dB (in 3dB steps)
  • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries, Battery Runtime @ 10mW, Shure SB900: > 12 hours, Alkaline: 11 hours
  • Housing: Cast aluminum
  • Audio Input Connectors: LEMO3 Audio Input
  • Impedance: 1MΩ
  • Maximum Input Level: Pad Off: 8.5dBV (7.5Vpp), Pad On: 20.5dBV (30Vpp)
  • EIN: Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120dBV, A-weighted, typical.
  • RF Output: SMA
  • Antenna: 1/4 wave
  • Impedance: 50Ω
  • Bandwidth: Occupied Bandwidth: < 200kHz
  • Modulation: Shure Proprietary Digital
  • Power: 1mW, 10mW, 20mW
  • Operating Range: 300ft (100m)
  • Frequency Response: 20Hz - 20kHz (±1dB), flat,
    *Note: Dependent on microphone type
  • Dimensions (HxWxD): 3.4" x 2.6" x 0.9" (86mm x 66mm x 23mm)
  • Weight: 5.0oz (142g), without batteries.


• Item Includes:

  • 1x Antenna, storage bag and 2AA batteries
