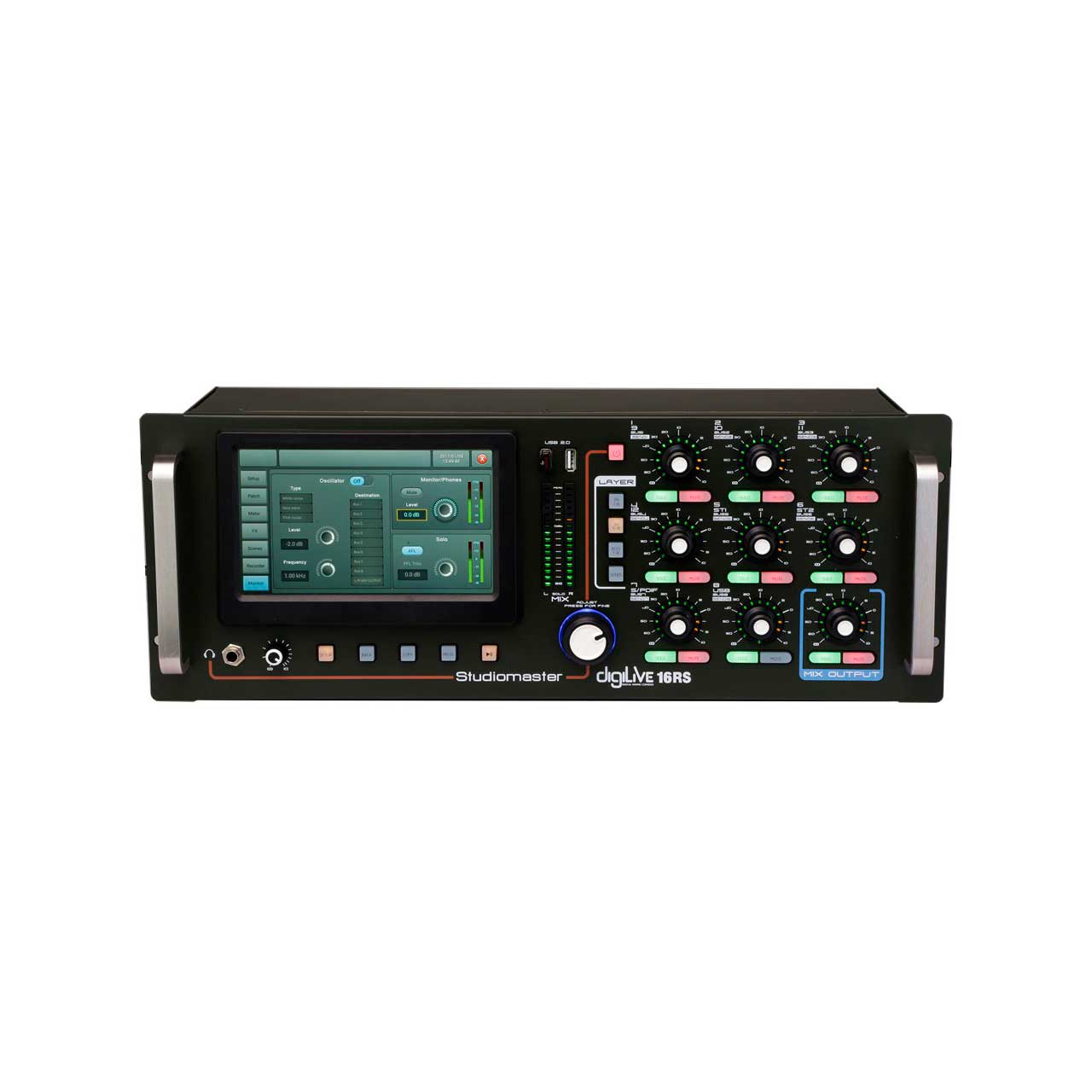

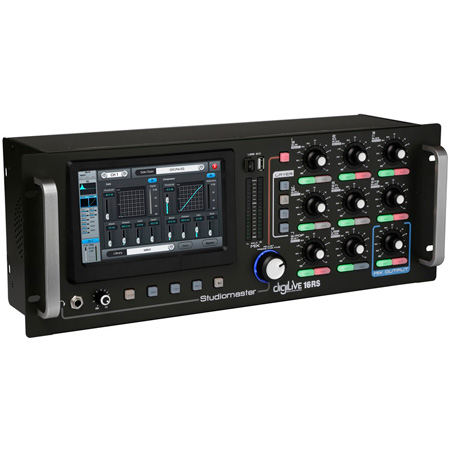

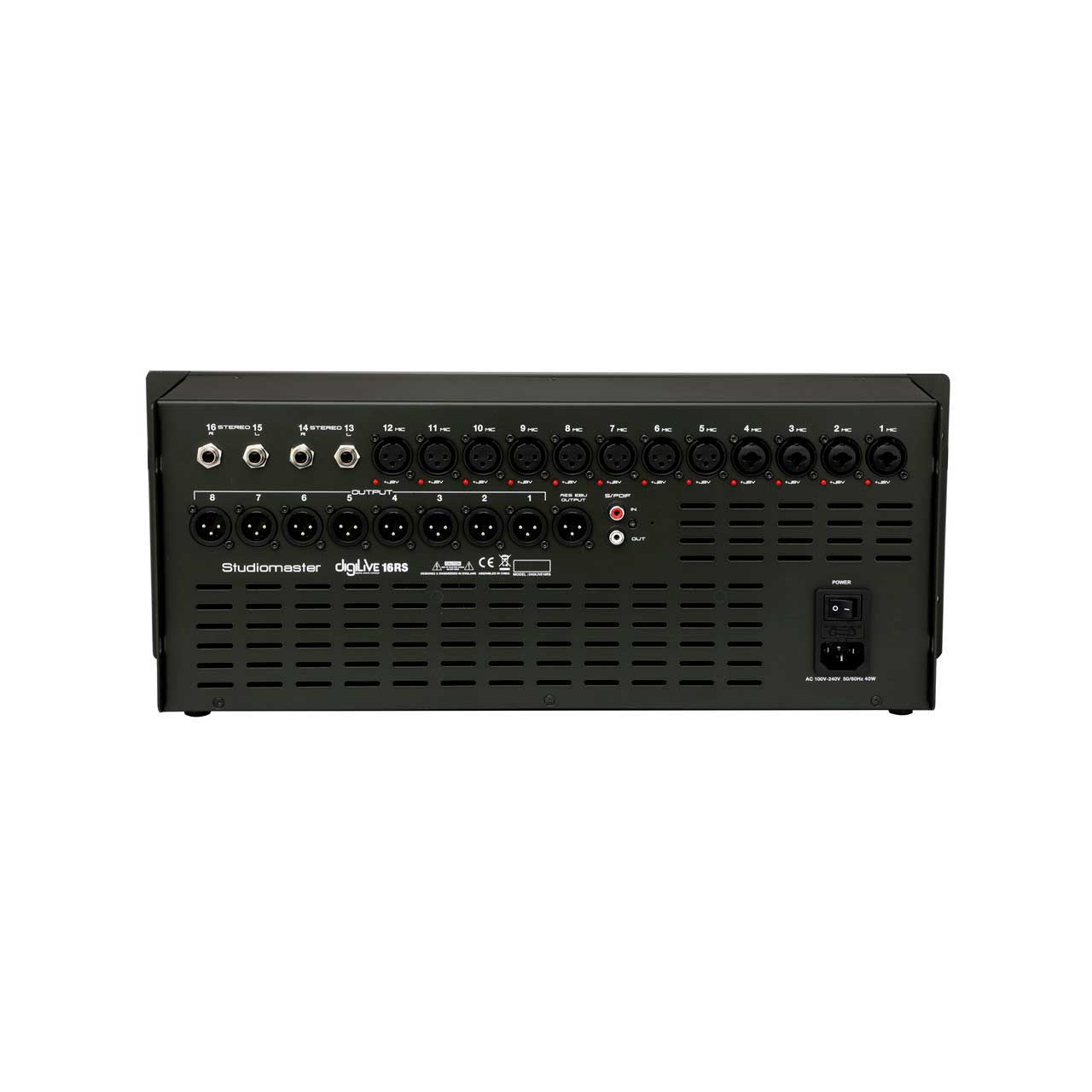

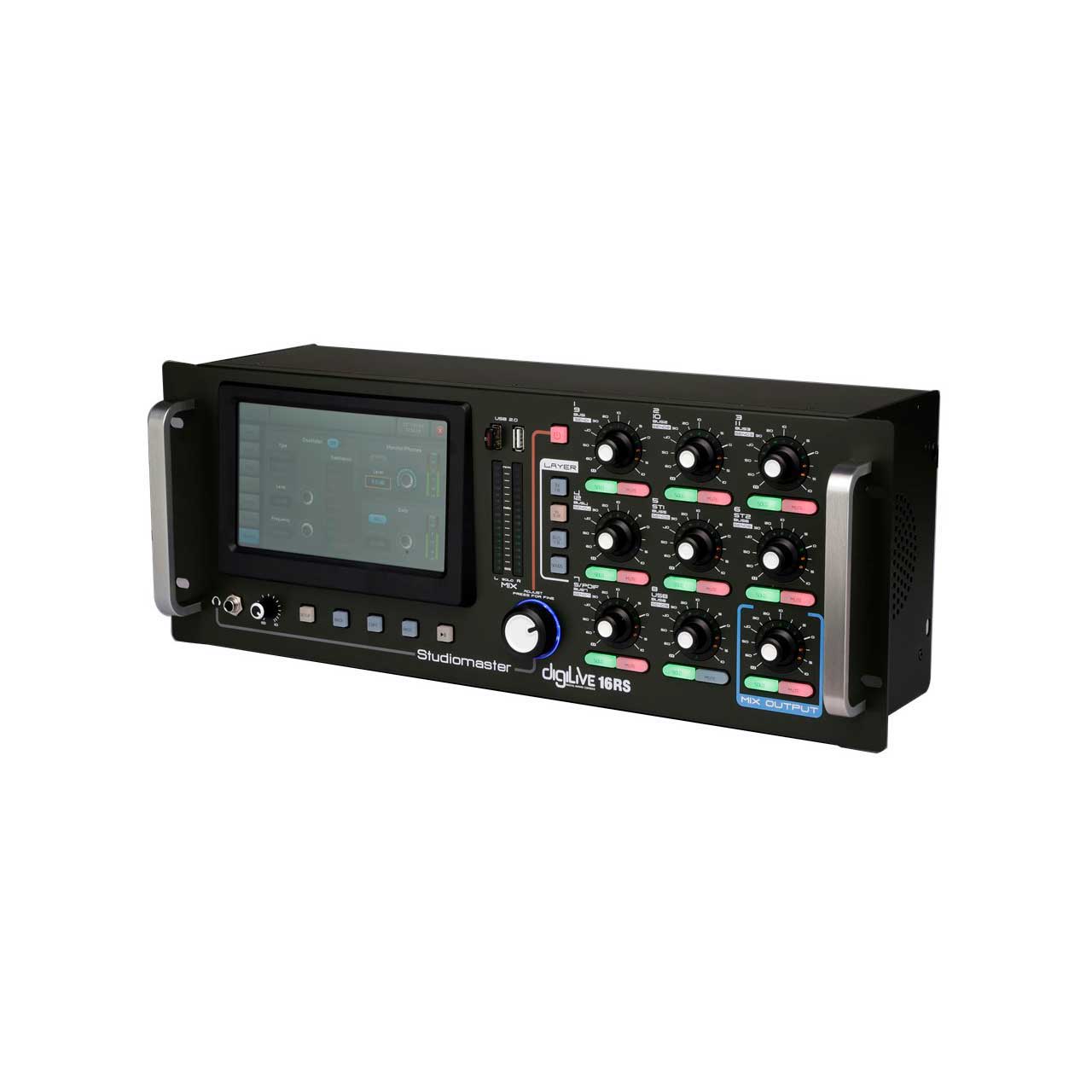

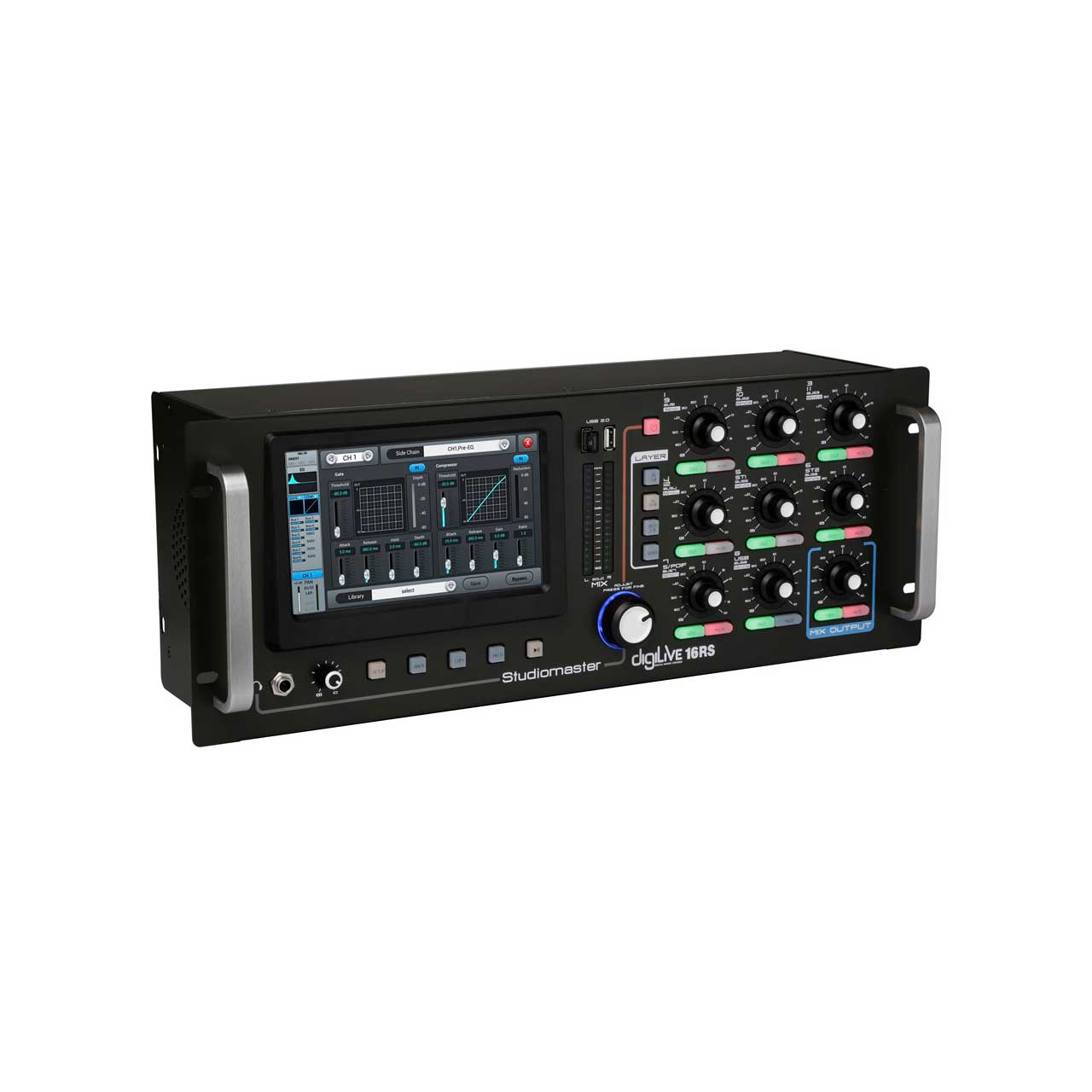

Studiomaster DigiLive 16 RS Rack Mount Digital Console

Manufacturer: Studiomaster



List Price:$1,599.00
Our Price:$1,239.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    The Studiomaster Digilive 16RS Digital Rack Mixer combines StudiomasterG€™s experience in live signal processing with the latest technology, creating an intuitive and versatile mixing console that is perfect for any installation application. The Studiomaster Digilive 16RS features 16 inputs with 16 internal busses, including 12 microphone inputs with digital gain control, 8 assignable smart outputs and multiple digital outputs. Controllable via either the onboard touchscreen display or via Wi-Fi using an iOS tablet, the Digilive 16RS mixer provides an intuitive and hands-on mixing experience with complete control over every aspect of your sound.

    • Features

      • 16 input with 16 internal busses
      • 12 digital gain mic input channels
      • 2 stereo inputs
      • 8 configurable smart outputs
      • high resolution touch screen
      • Ultra compact unit size
      • Advanced hybrid user interface
      • Full iOS Tablet control
    • Specifications

      • Mic Inputs: 12 (8x XLR / 4x Combo XLR)
      • Stereo Inputs: 2
      • Master Output: 2 (Left/Right balanced XLR)
      • Smart Outputs: 6 (assignable balanced XLR)
      • Internal busses: 16
      • Stage monitor: 1 TRS Jack output
      • Headphone: 1 TRS Jack output
      • Screen: high definition touch screen
      • Operation system: Android system
      • Remote system: IOS app for Ipad
      • Network: Yes, via WiFi module
      • Sample Frequency: 48 KHz
      • AD/DA: 192 KHz, 24-bit
      • DSP: 40 bit float point, SHARC processor
      • Effects: up to 8 assignable effect modules
      • AES/EBU: Output XLR
      • S/PDIF: Input / Output (RCA Phono)
      • USB Interface: 2 for playback/recording, scene/setting storage and system updates
      • Power Supply: 90-240V ~ 50/60Hz IEC power supply
