SpoolMaster SMP-WMC-16-NC 16 Inch Wire Measuring and Coiling System - No Integrated Wire Cutter - 15 Inch ID Coiler


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

SMP-WMC-16-NC - Overview

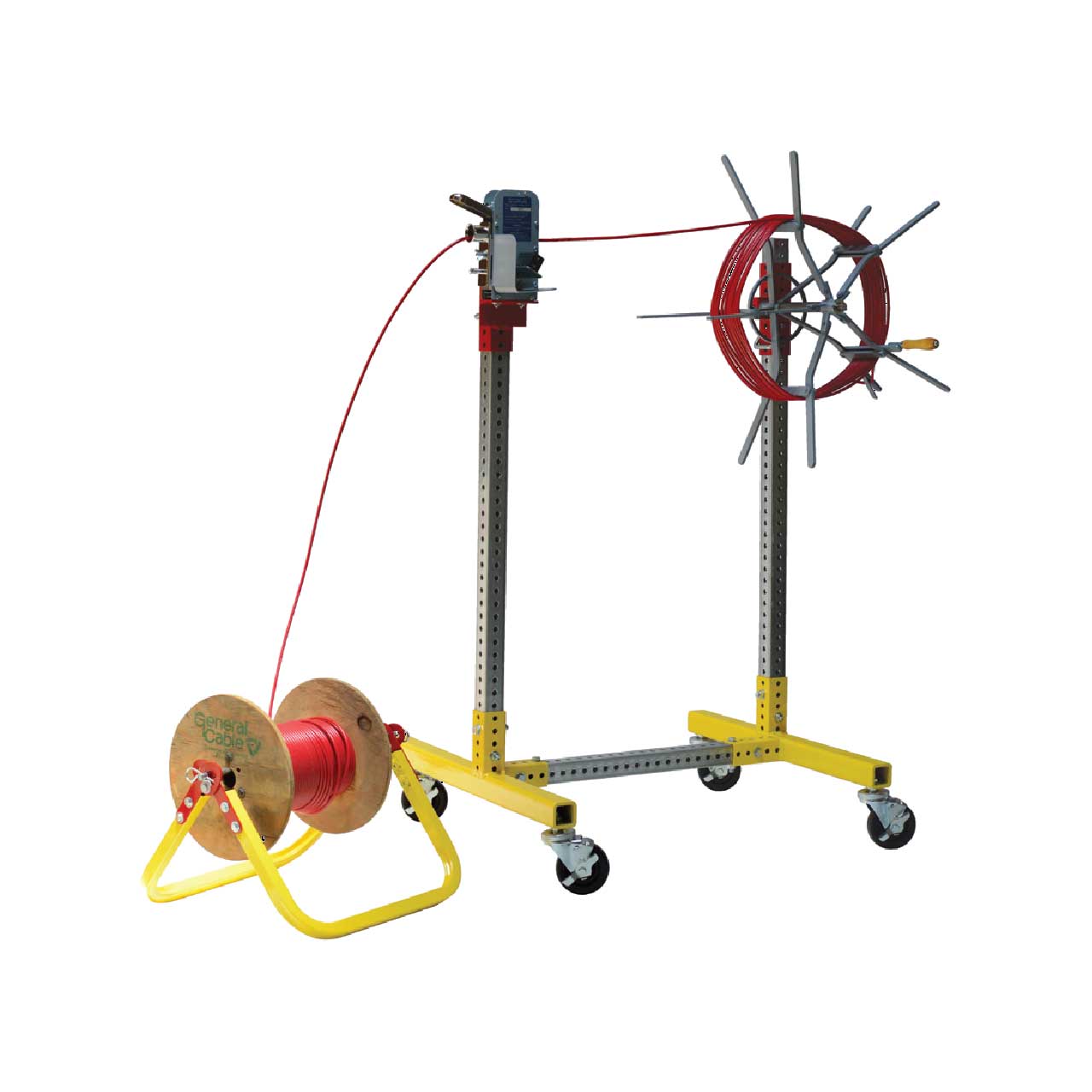

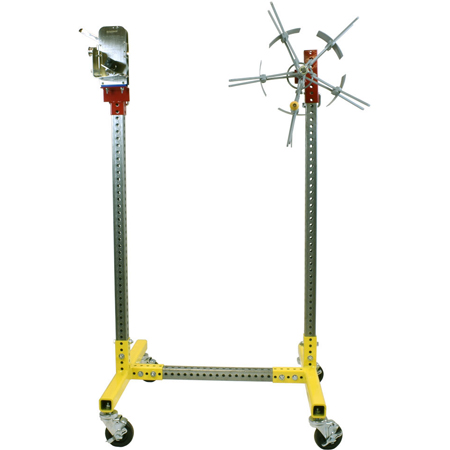

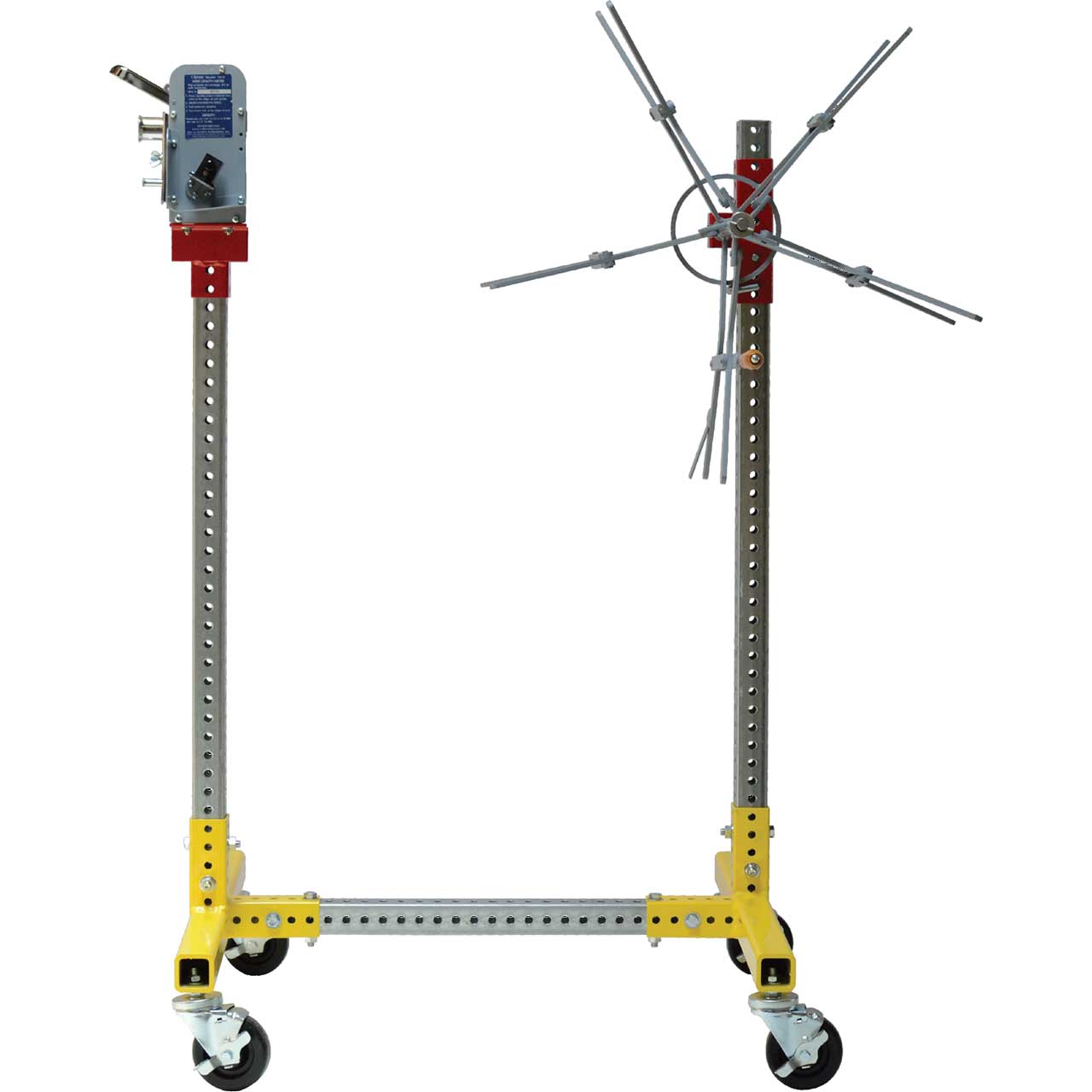

The SpoolMaster SMP-WMC-16-NC is a measuring and coiling system for wire, rope and other flexible materials ranging from 1/64" to 7/8" in diameter. The heavy-duty steel base and uprights sit on 4" diameter locking swivel casters for easy movement. Telescoping brackets allow the height of both the coiler and the measurer to be easily adjusted using the supplied gravity pins to lock them in place. This item includes an Imperial counter (feet/inches) but no cutter (blade) at the end of the counter.

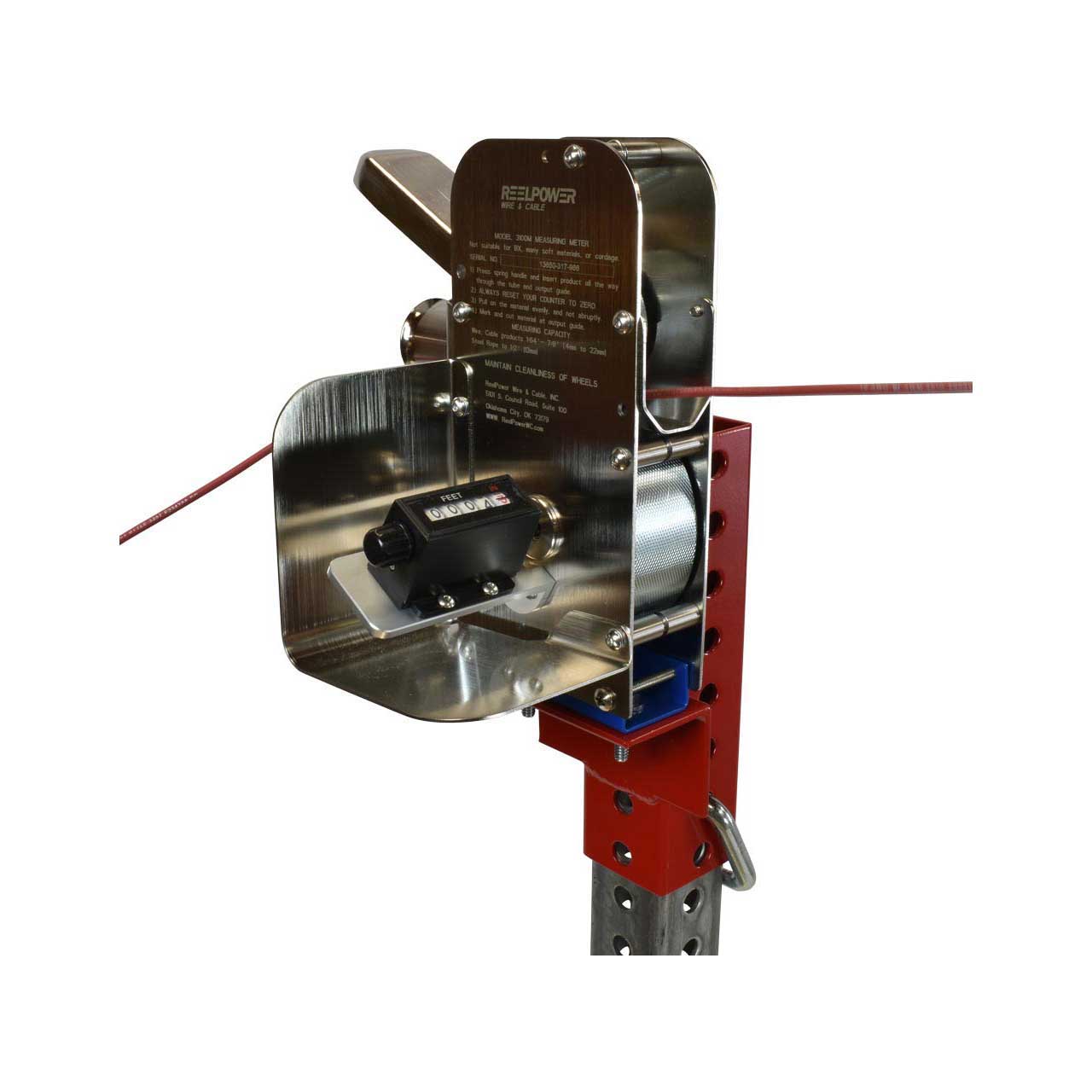

This units' measurer stand features an imperial mechanical counter that adds or subtracts in inches and feet, and resets to zero with one turn of the reset knob. There is space for adding your own optional cutter allowing for the measured material to be easily cut at an accurate length.

The Zinc plated coiler creates a coil with a 15" inside diameter which can be easily off loaded by collapsing the front of the unit. Coiler comes equipped with a turning handle and tab for locking material in place on the coiler.

  • Features:

    • Sold as one (1) SMP-WMC-16-NC system (spool & caddy sold separately)
    • Available with Imperial (inches/feet) counter
    • Accommodates flexible materials from 1/64" to 7/8" diameter
    • Counter is not compatible with MC materials
    • Heavy-Duty welded steel base
    • Galvanized steel uprights
    • Zinc Plated Coiler
    • Locking swivel casters allows system to be moved as needed
    • Powder coated finish on base & coiler/measurer mounting brackets
    • Outside dimensions: 44" H x 28" W x 32" L (completed system)
    • Product weight: 94 lbs. (completed system)
    • Maximum weight capacity: 100 lbs. of coiled material
    • Coil inside diameter: 15"
    • Made in the USA
  • Specifications:

    • Coil inside diameter: 15"
    • Measures flexible materials from: 1/64" - 7/8" diameter
    • Product weight: 94 lbs. (completed system)
    • Dimensions: 32"L x 28"W x 48"H
