The NDI HD Mini is Science Image's first HD, full NDI bidirectional codec, that supports up to 3G-SDI and HDMI 4K30 with SMPTE input, accurately restores the color and the clarity of the original image. It integrates 3G SDI and HDMI 4K30 encoding technology, converts video streams into network streams, and supports 1080P60 video decoding output to large screens. Widely used in programming, multi-person remote video, and medical surgery teaching, providing users with an excellent AV experience.

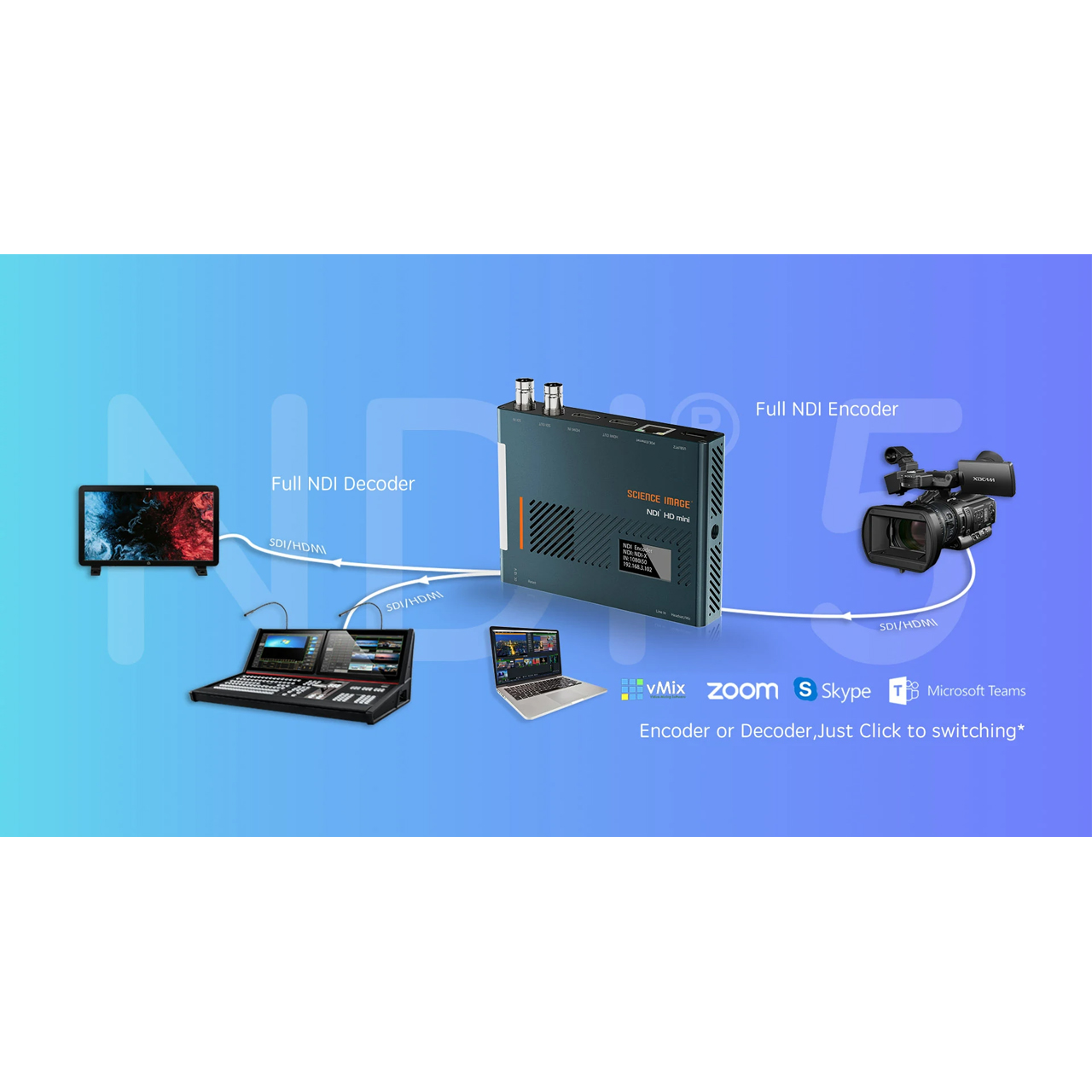

Encoding/Decoding In One Key Switch
Switch Full NDI encoding and decoding with one key; Support 3G-SDI and HDMI 4K30 or below any SMPTE standard format input; Full NDI encodes and decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost. The box can be used as a Full NDI Encoder or Decoder, flexibly deployed in the front end or display/control terminal according to different scenarios in the field; While NDI works, it is also an SDI/HDMI Bi-Directional converter; One machine multi-purpose, reduce the system cost, to be able to respond quickly, flexible, convenient.
OLED Display & Large Tally Light
The 1.3 inch OLED display will show the working status, such as encoding or decoding, signal, format, network, input/output, optical transmit or receive, and other info in your live. The Tally light is large, and can be viewed from 3 sides.
NDI 5.5
Support NDI 5.5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.
Broadcast Quality
Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats(444,422,420), accurate and fast signal recognition. Adopt Xilinx FPGA SOC hardware, internal design, and embedded Linux system, ensure the program runs stably, not influenced by the external complex environment.
Compatibility and Stability
Support SMPTE video source, compatible with the video from most equipment. Open to most software and browsers, truly plug and play. HD mini meets industrial standards, which ensure it works durably and reliably.

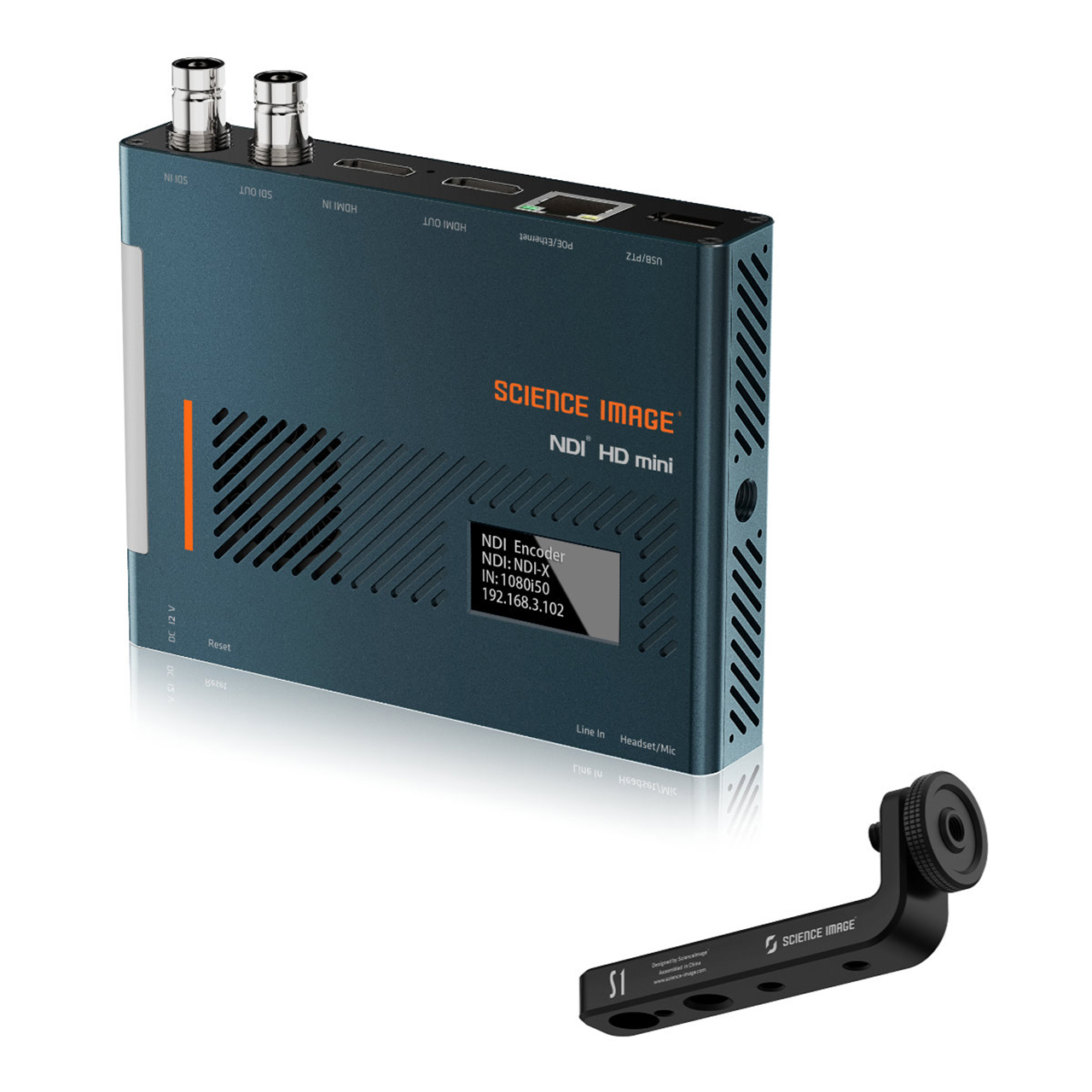

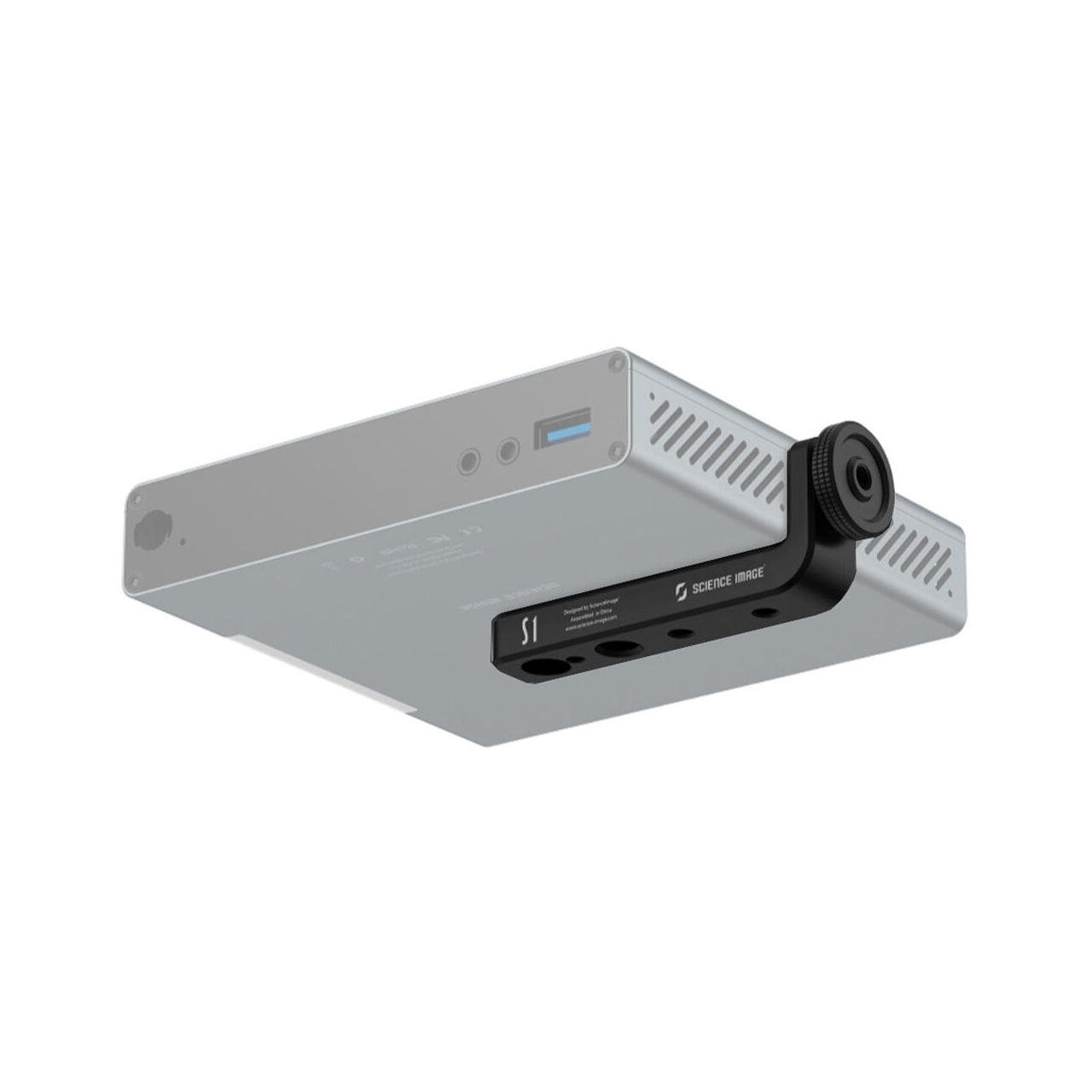

Includes Threaded Mounting Bracket
The included S1 1/4"-20 Threaded Mounting Bracket from SCIENCE IMAGE allows you to horizontally mount the converter securely
