    SRGX400 - Overview

    Capture every point of view with excellent 4K picture quality and efficient IP production workflow
    The Sony versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.

    The camera's 1/2.5-type Exmor R CMOS sensor captures up to 4K resolution images (requires optional license) with excellent sensitivity, very low noise and rich, natural color reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.

    High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync** function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

    Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI®-enabled devices.

    Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

    Installation and set-up is easy, with a new Picture Setting File** allowing the same settings to be applied to multiple cameras.

    • Features:

      • Excellent images, even in low light
      • Up to 40x zoom
      • High speed movement and Picture Freeze Preset
      • Simpler installation, lower costs
      • Remote viewing
      • Fast, fuss-free set-up
      • 4K upgrade option
      • Wide viewing angle
      • Ideal for lecture caputure
      • Smooth pan-tilt-zoom
      • Support for NDI®*|HX
    • Specifications:

      • Camera
      • Image Sensor: 1/2.5 Exmor R CMOS
      • Image Sensor (Number of Effective Pixels): Approx. 8.5M pixels
      • Signal System: 2160 (*1)/29.97p, 25p, 23.98p (HDMI and IP only) 1080/59.94p, 50p, 29.97p, 25p, 23.98p; 1080/59.94i, 50i; 720/59.94p, 50p
      • Minimum Illumination (50IRE): 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
      • 4K capability: Yes (requires 4K Option license)
      • Horizontal Resolution: 1700 TV line (Center) (4K(*1)) 1000 TV line (Center) (FHD)
      • Gain: Auto/Manual (0 to +48 dB)
      • High Sensitivity: On
      • Shutter Speed: 1/1 to 1/10000 sec (59.94 Hz system) 1/1 to 1/10000 sec (23.98 Hz system) 1/1 to 1/10000 sec (50 Hz system)
      • Exposure Control: Auto/Manual/Priority AE (Shutter, Iris)
      • White Balance: Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
      • Zoom capability: 30x (4K* with CIZ**)/40x (HD with CIZ) **CIZ = Clear Image Zoom
      • Focusing System: Auto/Manual
      • Horizontal Viewing Angle: Approx. 70.0° (Wide)
      • Focal Length: f=4.4 mm (Wide) to 88.0 mm (Tele) F2.0 to F3.8
      • Minimum Object Distance: 80 mm (Wide)~ 800mm (Tele)
      • Pan/Tilt Angle: Pan: ±170° Tilt: +90°/-20°
      • Pan/Tilt Speed (Max.)Pan: 300°/s Tilt: 126°/s
      • Pan/Tilt Speed: Pan: 1.1° to 101°/s Tilt: 1.1° to 91°/s
      • Pan/Tilt Speed (Slow) Pan: 0.5° to 60°/s Tilt: 0.5° to 60°/s
      • Pan/Tilt Slow Mode: Yes
      • Preset Position: 256 (CGI) 100 (VISCA)
      • Picture Freeze Preset: Yes

      • IP Video resolution: 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
      • Compression Format: H.264 High/Main/Baseline Profile/H.265: Main Profile
      • Maximum Frame Rate: H.264: 60 fps/H.265: 60 fps
      • Bitrate Compression Mode: CBR/VBR (selectable)
      • Range of Bitrate Setting: 512 Kbps ~50 Mbps
      • Multi Streaming Capability: 3
      • Maximum Number of Clients: 5
      • NDI®|HX Capability: Yes Optional (requires a license)

        Camera Features
      • Auto ICR: Yes (available through future upgrade planned in early 2020)
      • Day/Night: Yes
      • Visibility Enhancer: Yes
      • Image Stabilization: Yes
      • Image Flip: Yes
      • Flicker Cancel: On/Off
      • Web UI: Ver Up: Yes

      • Channel: 2ch
      • Audio Codec: AAC LC 128 kbps/ST (IP) AAC LC 256 kbps/ST (IP)
      • Setting Option: Auto Gain Control (AGC): On/Off
      • Equalizer: Off/Low Cut/Voice enhancement
      • Input selection: Microphone/Line
      • Mic volume: -10~+10 (21 steps)
      • Audio codec: Baseband Video: Yes (3G-SDI, HDMI) IP Streaming: Yes

      • 4K Video Output: HDMI x1 and IP (streaming) x1
      • HD Video Output: 3G-SDI x1, HDMI x1, IP (streaming) x1
      • HDMI Color Space: YCbCr, 4:2:2 8 bit RGB, 4:4:4 8 bit

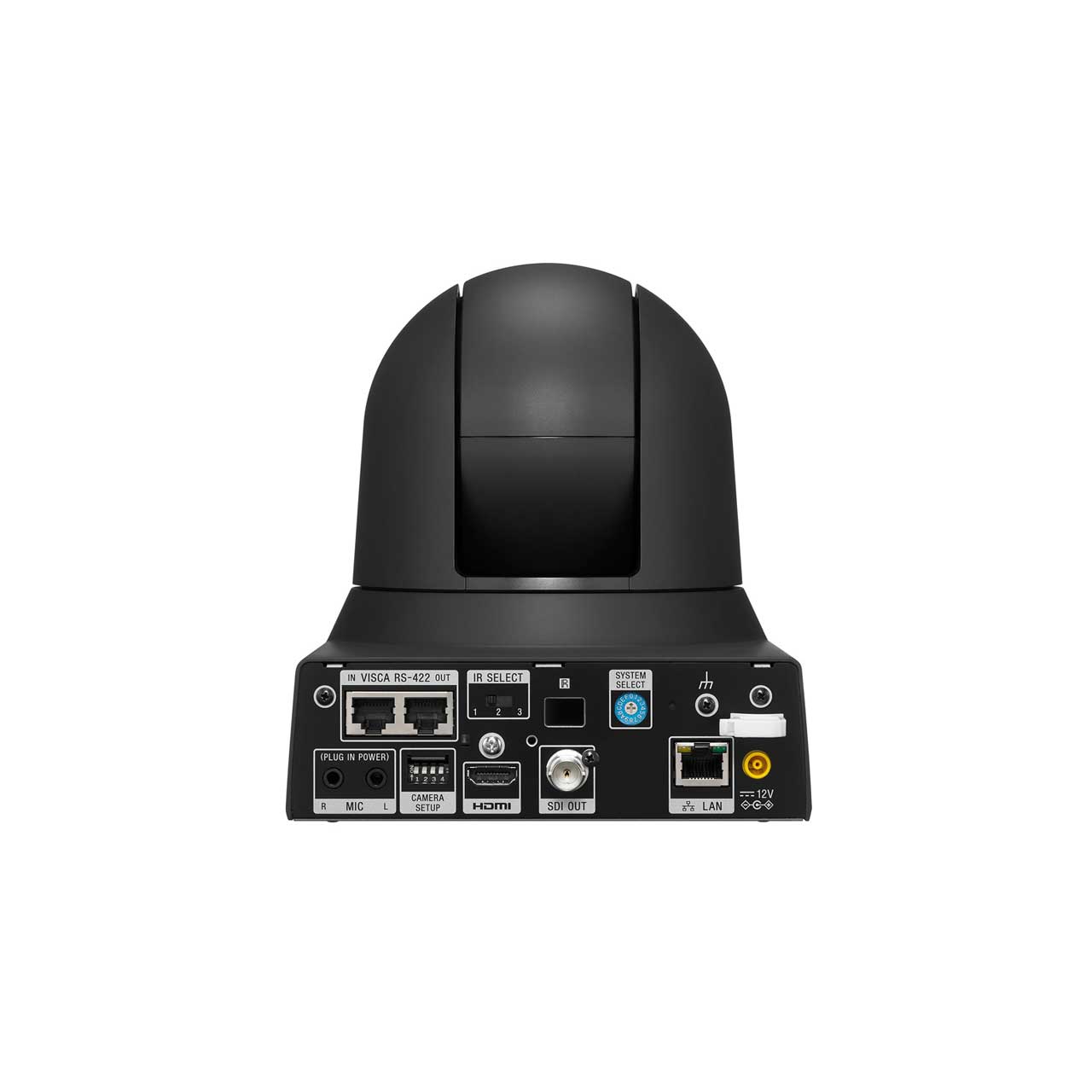

      • Camera Control Interface: VISCA RS-422 RJ45 (In/Out) VISCA over IP RJ-45
      • IR Remote Control: Yes
      • Microphone Input: Mini-phone (f3.5mm) x2 (Mic/Line Selectabe)
      • Sync. System: INT
      • Power Connector Type: IEC60130-10 (JEITA standard RC-5320A) TYPE4

      • Power Requirements: DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
      • Power Consumption: 25.5 W (Max)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Dimensions (WxHxD): 8.46 x 6.99 x 7.88" (215.84 x 177.5 x 200.2mm)
      • Mass Approx.: 3.96Lbs (1.8kg)
      • Body Color: White/Black
      • Size of Screw Hole for Tripod: 1/4-20UNC x1
      • Mountable Angle: < ±15°
      • Ceiling Mount: Yes
    • Item Includes:

      • 1x Supplied AccessoriesAC power adapter
      • 1x IR Remote Commander Unit
      • 2x Ceiling bracket
      • 1x Wire rope
      • 9x Screw M3 x 8
      • 1x Screw M2.6 x6 BLACK
      • 1x HDMI cable fixing plate
      • 1x Safety regulation
      • 1x Download site information
