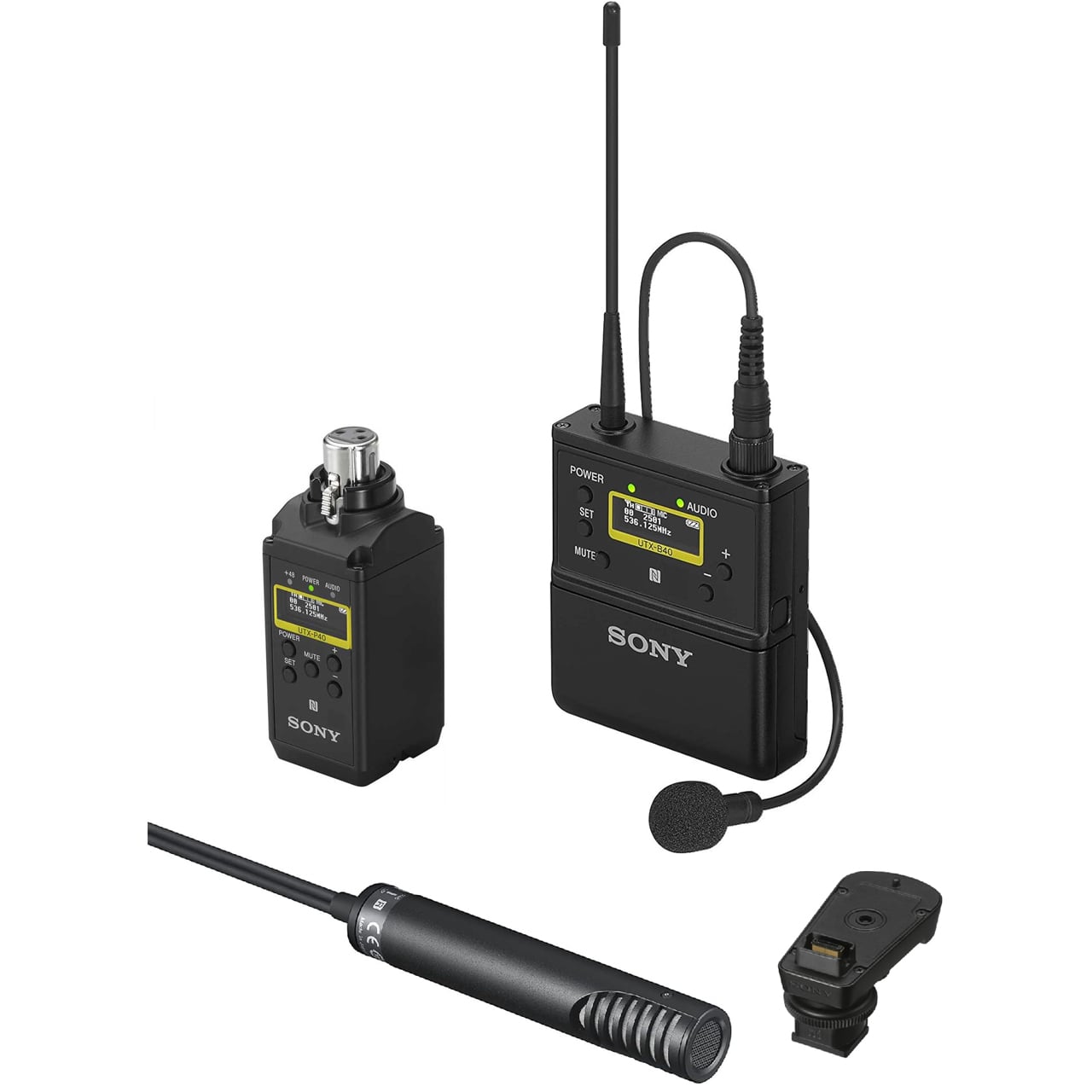

Sony UWP-D26 Bodypack & XLR Plug-On Wireless Mic TX Package with Electret Condenser Mic & Shoe Adapter - 470-542MHz

ITEM #: SNY-UWPD2614PAC MFG #: UWPD2614PAC

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,390.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


UWPD2614PAC - Overview

Save big when you purchase this package! The list price of purchasing the components separately would be $1736.00 vs $1390.00 bundle price - That's a 20% savings!

Reliable. Affordable. Professional.
As high-resolution content, including 4K, becomes more prevalent in the video production industry, demand increases for high-quality audio solutions to match this content and deliver a fully immersive viewing experience. Today's content professionals are faced with the challenge of capturing high-quality audio quickly and cost-effciently. This Sony UWPD26 package enables you to deliver uncompromising performance in today's fast-paced world of content delivery!

With 24-bit digital signal processing (DSP) and true double tuner diversity reception, these receivers and transmitters offer high-quality sound you can rely on, as well as professional features, including tools that help reduce setup time and simplify operation. Whether you're recording news, field production, sports, documentaries, faith, weddings or corporate video, the UWP-D Series helps you do it faster, easier and more reliably.

Superb Sound
Audio transients like percussion hits or tee shots are notoriously diffcult for wireless mic companders to reproduce. Sony's 24-bit digital compander retains superb sound quality. In addition, Sony's included Multi Interface Shoe™ (MI shoe) with digital audio interface enables you to skip the degradation of D/A (digital-to-analog) and A/D (analog-to-digital) conversion from the receiver to the camera, resulting in higher sound quality with low noise.

Easier Operating
Match transmitter and receiver frequencies at the touch of a button with NFC SYNC, which takes advantage of nearfield communication.

Lightweight and Compact
Reduced size and weight are ideal for use with small camcorders and interchangeable-lens digital cameras.

Compact Electret Condenser Microphone
The included ECM-MS2 compact Electret condenser microphone is designed to work with handheld camcorders. The compact 5.39-inch length prevents the microphone inadvertently appearing in view and makes it easier to transport.

The ECM-MS2 offers both stereo and mono operation, increasing the versatility of the microphone. It is particularly useful for capturing accurate ambient stereo sound when dialog might be alternately captured with wireless microphones.

  • Features:

    • High quality sound with Sony digital audio processing
    • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
    • Auto gain mode volume control
    • +15dB gain volume boost mode for off-mic audio
    • Line Input
    • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
    • Variable muting function
    • Compatibility with Sony WL-800/UWP/UWP-D series
    • High visibility OLED display, ideal for indoor/outdoor use
    • USB connector for power supply
    • Includes ECM-V1BMP lavalier microphone

  • Specifications:

      UWP-D Bodypack TX
    • Oscillator Type: Crystal-controlled PLL synthesizer
    • Antenna Type: 1/4 λ wavelength wire antenna
    • Carrier Frequencies: 470MHz - 542MHz
    • RF Output Power: 30mW/5mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models)
    • Capsule Type: Electret condenser
    • Directivity: Omni-directional
    • Input Connector: 3.5mm 3-pole locking mini jack
    • Reference Audio Input Level: -60dBV (MIC input, GAIN MODE set to NORMAL, 0dB attenuation) +4dBu (LINE input)
    • Audio Attenuator Range: 0dB - 27dB
    • Frequency Response:
      - 23Hz - 18kHz (Typical)(UC, U, CE, LA, CN, E, KR models)
      - 40Hz - 15kHz (Typical)(J model)
    • Signal-to-Noise Ratio:
      - 60dB (-60dBV, 1kHz input)
      - 102dB (GAIN MODE set to AUTO GAIN, max.)
      - 96dB (GAIN MODE set to NORMAL, max.)
    • Distortion: 0.9% or less (-60dBV, 1kHz input)
    • Audio Delay: 0.35ms
    • Tone Signal Frequency:
      - In UWP-D Compander Mode: 32.382kHz
      - In UWP Compander Mode: 32kHz
      - In WL800 Compander Mode: 32.768kHz
    • Display: OLED
    • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
    • Battery Life*:
      - Approx. 8hrs with output power of 30mW
      - Approx. 10hrs with output power of 10mW
    • Operating Temp: 32°F - 122°F
    • Storage/Transport Temp: -4°F - 140°F
    • Dimensions: 2.48" x 2.87" x 0.75"
    • Mass: 0.18lbs (w/o batteries)

      UTX-P40 Plug-on TX
    • Oscillator Type: Crystal-controlled PLL synthesizer
    • Carrier Frequencies: 470MHz - 542MHz
    • RF Output Power:
      - 40mW/5mW selectable (UC, U, LA models)
      - 30mW/5mW selectable (CE, CN models)
      - 10mW/2mW selectable (J, E, KR models)
    • Input Connector: XLR-3-11C type
    • Reference Audio Input Level: -60dBV
    • Audio Attenuator Adjustment Range: 0dB - 48dB
    • Frequency Response:
      - 23Hz - 18kHz (UC, U, CE, LA, CN, E, KR models)
      - 40Hz - 15kHz (J model)
    • Signal-to-Noise Ratio:
      - 60dB
      - 102dB
      - 96dB
    • Distortion: 0.9% or less
    • Audio Delay: Approx. 0.35ms
    • Tone Signal Frequency:
      - In UWP-D Compander Mode: 32.382kHz
      - In UWP Compander Mode: 32kHz
      - In WL800 Compander Mode: 32.768kHz
    • Display: OLED
    • Power Requirements: DC 3.0V (two LR6/AA size alkaline batteries), DC 5.0V (supplied from USB Type-C connector)
    • Operating Temp: 32°F - 122°F
    • Storage/Transport Temp: -4°F - 140°F
    • Dimensions: 1.50" x 3.86" x 1.50"
    • Mass: Approx. 0.31lbs

      ECM-MS2 Electret Condenser Mic
    • Type: Back electret condenser mic
    • Stereo Type: Mid-Side stereo mic
    • Power Supply:
      - External power supply 40V to 52V
      - DC (IEC 61938 P48)
    • Power Consumption:
      - Stereo: 3mA or less x2Ch
      - Monaural: 3mA or less
    • Output Connector: 2x Cannon XLR-3-12C type
    • Dimensions: 31/32" dia. x 5-1/2"
    • Mass: Approx. 5.6oz
    • Frequency Response:
      - Stereo: 80Hz - 20kHz
      - Monaural: 70Hz - 20kHz
    • Directivity: Uni-directional
    • Output Impedance: 30Ω ±20%, balanced
    • Sensitivity:
      - Stereo: -32dB
      - Monaural: -36dB
    • Signal-to-Noise Ratio: 69dB or more
    • Inherent Noise: 25dB SPL or less
    • Wind Noise:
      - 45dB SPL or less (w/ windscreen)
      - 65dB SPL or less (w/o windscreen)

  • Item Includes:

    • 1x UWP-D Bodypack TX
    • 1x SMAD-P5 Multi-interface Shoe adapter
    • 1x ECM-MS2 Electret condenser mic
    • 1x UTX-P40 Plug-on TX
