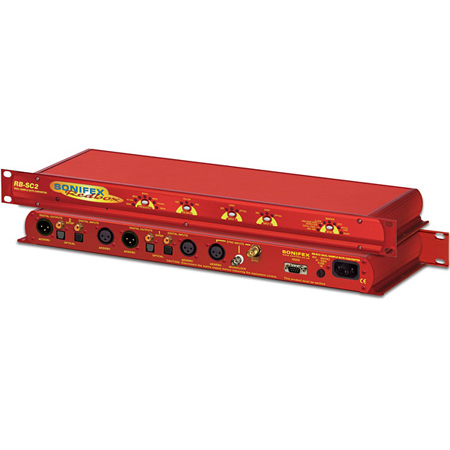

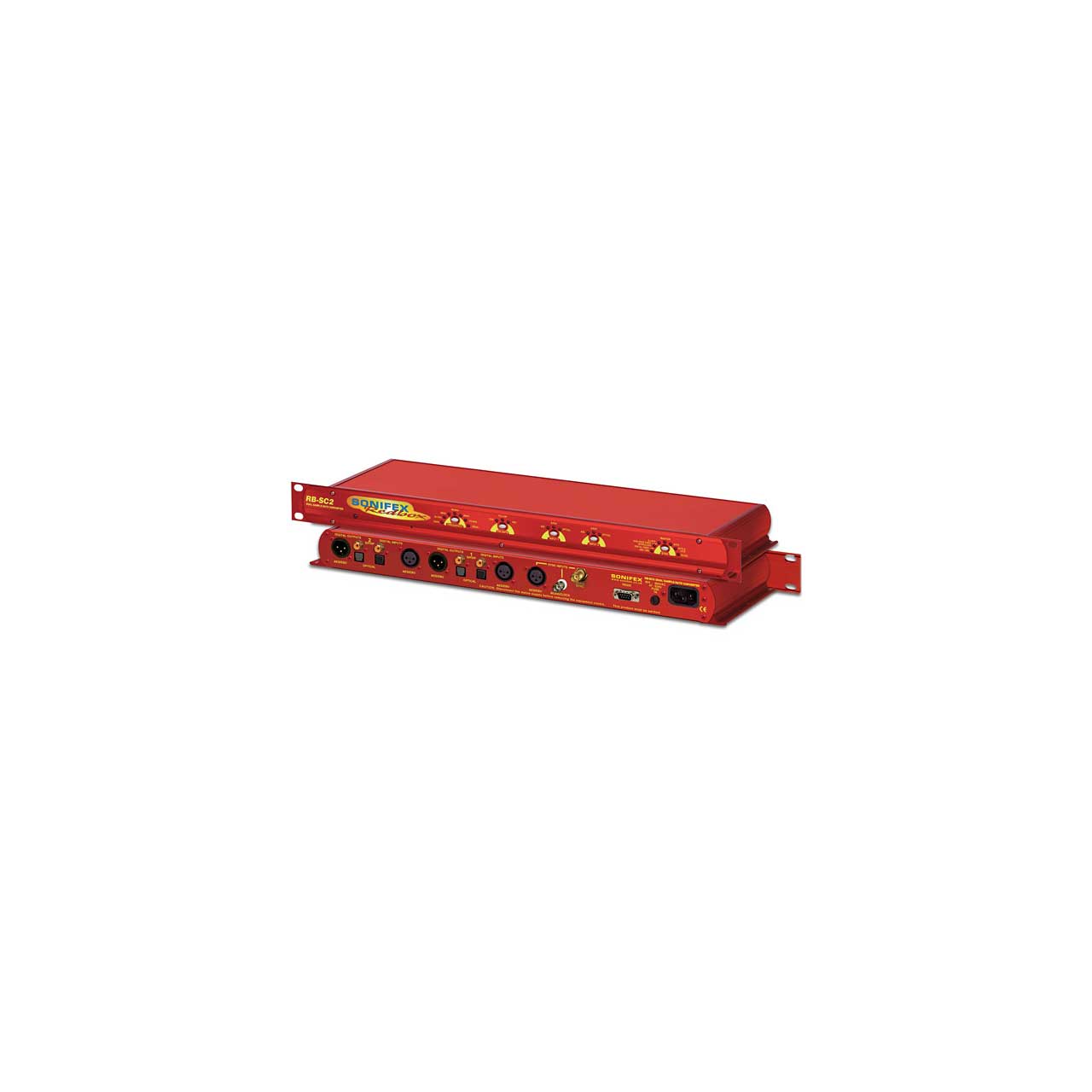

Sonifex RB-SC2 Dual Sample Rate Converter

RB-SC2 - Overview

• Features:

  • It supports higher sample frequency rates up to and including 176.4kHz and 192kHz.
  • It has 2 independent sample rate converter circuits that use a common clock source to set the output sample rate.
  • It has 2 optional video synchronising boards. These set the output sample rate to 48kHz that is synchronised to either an analogue video signal or SDI digital video signal (HD or SD).
  • A special X-Lock mode allows the unit to function as a full bi-directional sample rate converter.
  • It has TOSlink optical digital audio inputs and outputs.
  • It has front panel push-button switches for all the main settings. The buttons are arranged in sets, where pressing the button advances the current selection and LED indicator.
  • A serial RS232 port is included so that the RB-SC2 settings can be controlled remotely. The front panel LED indicators alter automatically when using RS232 commands.
