StarTech ST128HDMI2 8 Port High Speed HDMI Video Splitter with Audio

ITEM #: ST-128HDMI2 MFG #: ST128HDMI2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-128HDMI2

ST128HDMI2 - Overview

The StarTech ST128HDMI2 8-Port High Speed HDMI® Splitter (rack mountable) lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.

Supporting True HD 1080p video resolutions, the HDMI splitter acts as a distribution amplifier that enables you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter, and features 3.5mm audio connections, giving you the option of sending your accompanying audio signal through the HDMI cable, or through a separate channel.

A perfect addition to virtually any application requiring high-quality video, the ST128HDMI2 HDMI splitter is easy to install as a standalone or rack-mounted device using the included brackets and provides flawless, distortion-free digital video.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Applications
Connect HDMI enabled projectors, monitors, plasma screens, commercial billboards, and wall display systems
Display information in waiting rooms or to patients in healthcare facilities
Ideal for business conference rooms and trade show displays
Perfect for classrooms and business multimedia presentations
Great for digital signage applications displaying video advertisements with audio in retail environments
Financial applications include stock tickers or promotion of new products/services

  • Features:

    • Splits a single HDMI audio-video source to up to 8 HDMI devices, without signal loss
    • Supports a wide range of PC and Supports HDTV resolutions from VGA to WUXGA and 480p to 1080p
    • Audio signal can be output through HDMI, or using separate 3.5mm audio outputs
    • Includes rack mounting brackets
    • Supports HDCP and EDID
    • Can be cascaded up to 3 layers
    • High Speed HDMI Compliant
    • Passes DVI video signals (DVI to HDMI adapters/cables required - not included)
    • LED Power/Active indicator for monitoring each port
    • Quick, easy installation

  • Specifications:

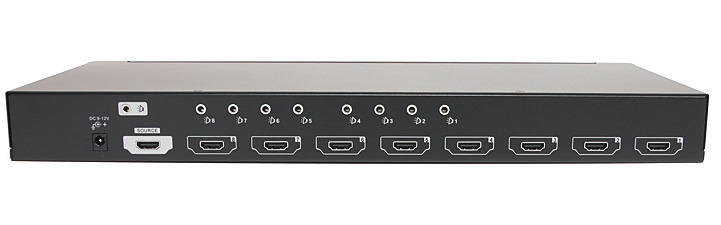

    • Connector(s)
    • 1 - Connector A: 3.5 mm Mini-Jack (3 Position)
    • HDMI (19 pin): 8 - Connector B
    • HDMI (19 pin): 3.5 mm Mini-Jack (3 Position)

      Environmental
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -10°C to 60°C (14°F to 140°F)
    • Humidity: 0%~80%

      Hardware
    • Ports: 8
    • AV Input: HDMI
    • AV Output: HDMI
    • Cabling: HDMI
    • Audio: Yes
    • Rack-Mountable: Yes
    • Industry Standards: High Speed HDMI, HDCP, EDID
    • Daisy-Chain: Yes

      Indicators
    • 1 - LED Indicators: Power (Green) / Input Signal (Blue)
    • 4 - LED Indicators: Green Port signal indicator

      Packaging Information
    • Package Height: 3.5 in [89.0 mm]
    • Package Length: 23.4 in [59.5 cm]
    • Shipping (Package) Weight: 7.3 lb [3.3 kg]
    • Package Width: 10.7 in [27.1 cm]

      Performance
    • Maximum Cable Length: 196.9 in [5000 mm]
    • Maximum Digital Resolutions: HDTV 1080p / PC 1920x1200
    • Supported Resolutions: 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
    • Wide Screen Supported: Yes

      Physical Characteristics
    • Weight of Product: 4.9 lb [2.2 kg]
    • Color: Black
    • Material: Steel
    • Product Length: 18.9 in [48.0 cm]
    • Product Width: 7.1 in [18.0 cm]
    • Product Height: 1.7 in [4.2 cm]

      Power
    • Power Source: AC Adapter Included
    • Input Voltage: 100 - 240 AC
    • Input Current: 800mA
    • Output Voltage: 12V DC
    • Output Current: 1.5A
    • Center Tip Polarity: Positive
    • Plug Type: M
    • Power Consumption (In Watts): 10.2

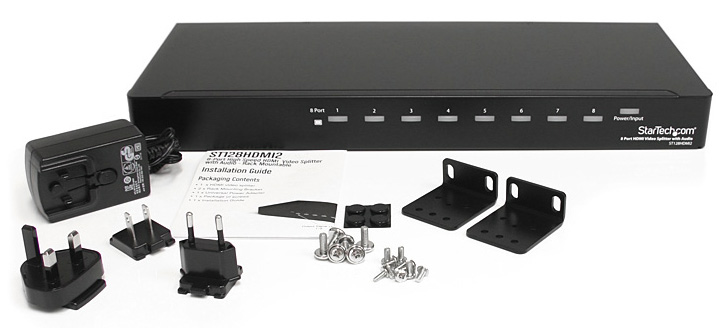

  • Item Includes:

    • 1x HDMI distribution amplifier
    • 1x Mounting hardware and screw kit
    • 1x Universal power adapter (NA / EU / UK / AU)
    • 1x Instruction manual

  • GTIN:

    0065030843423
