StarTech ET90110SC2 10/100 Mbps Multimode Fiber Media Converter - SC - Up to 2 km

ITEM #: ST-ET90110SC2 MFG #: ET90110SC2

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$104.99

Our Price:

$104.36

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ET90110SC2 - Overview

    The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

    A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

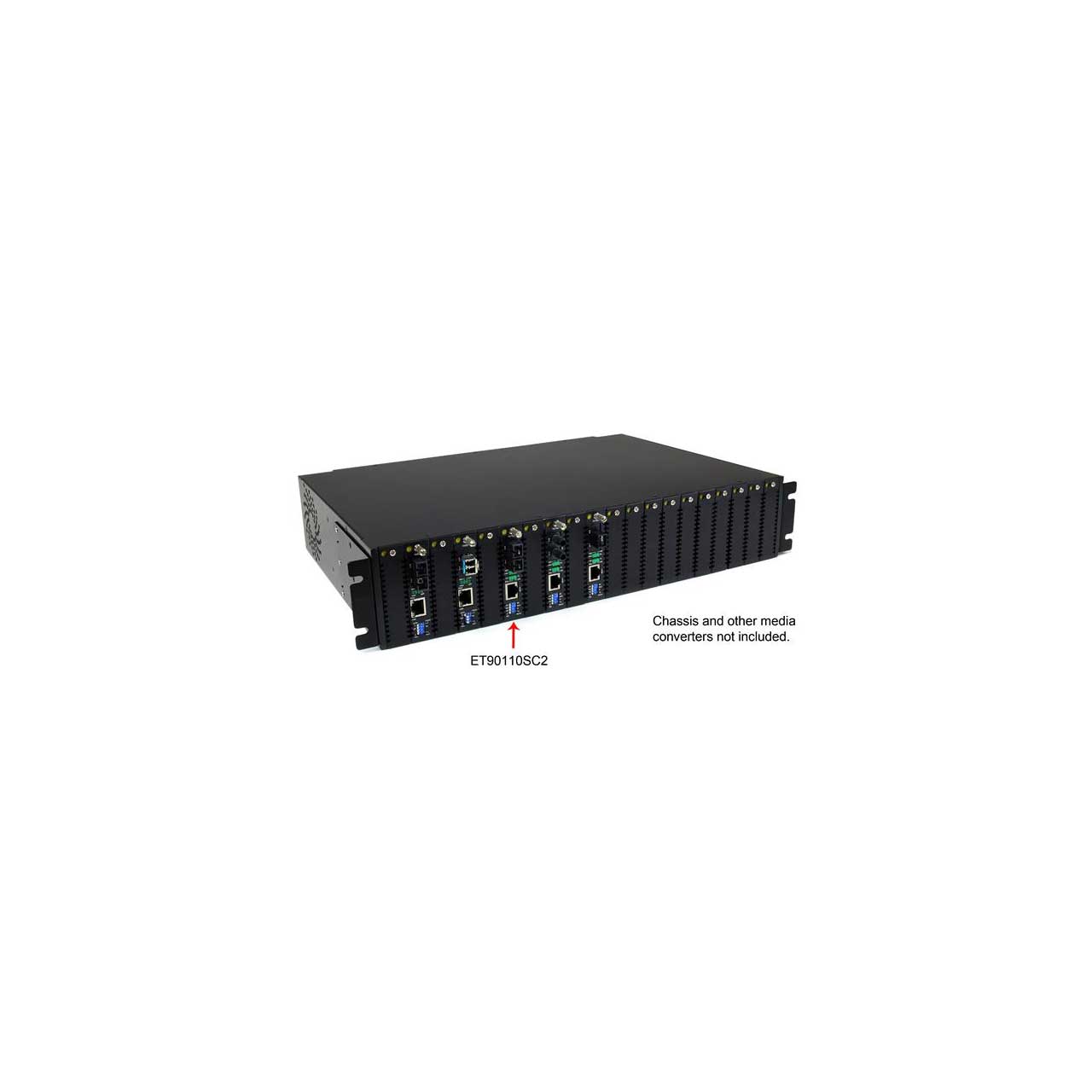

    For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

    Backed by a StarTech.com 2-year warranty and free lifetime technical support.

    • Features:

      • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
      • Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
      • Supports a maximum fiber cable length of 2 km
      • Supports full or half-duplex operation
      • Easy to use and install

    • Specifications:

      • Physical Characteristics
      • Color Black
      • Enclosure Type Steel
      • Product Height 0.9 in [24 mm]
      • Product Length 6 in [153 mm]
      • Product Weight 21.2 oz [600 g]
      • Product Width 3.4 in [87 mm]

      • Hardware
      • PoE No
      • WDM No

      • Performance
      • Auto MDIX Yes
      • Fiber Operating Mode Half/Full-Duplex
      • Fiber Type Multi Mode
      • Max Transfer Distance 2 km (1.2 mi)
      • Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode)
      • Wavelength 1310nm

      • Connector(s)
      • Local Unit Connectors
      • 1 - Fiber Optic SC Duplex Female
      • 1 - RJ-45 Female

      • Power
      • Center Tip Polarity Positive
      • Input Current 0.36A
      • Input Voltage 115 ~ 230 AC
      • Output Current 1A
      • Output Voltage 12 DC
      • Plug Type M
      • Power Source AC Adapter Included

      • Environmental
      • Humidity 10~90% RH
      • Operating Temperature 0°C to 60°C (32°F to 140°F)
      • Storage Temperature -10°C to 70°C (14°F to 158°F)

      • Packaging Information
      • Shipping (Package) Weight 1.9 lb [0.9 kg]

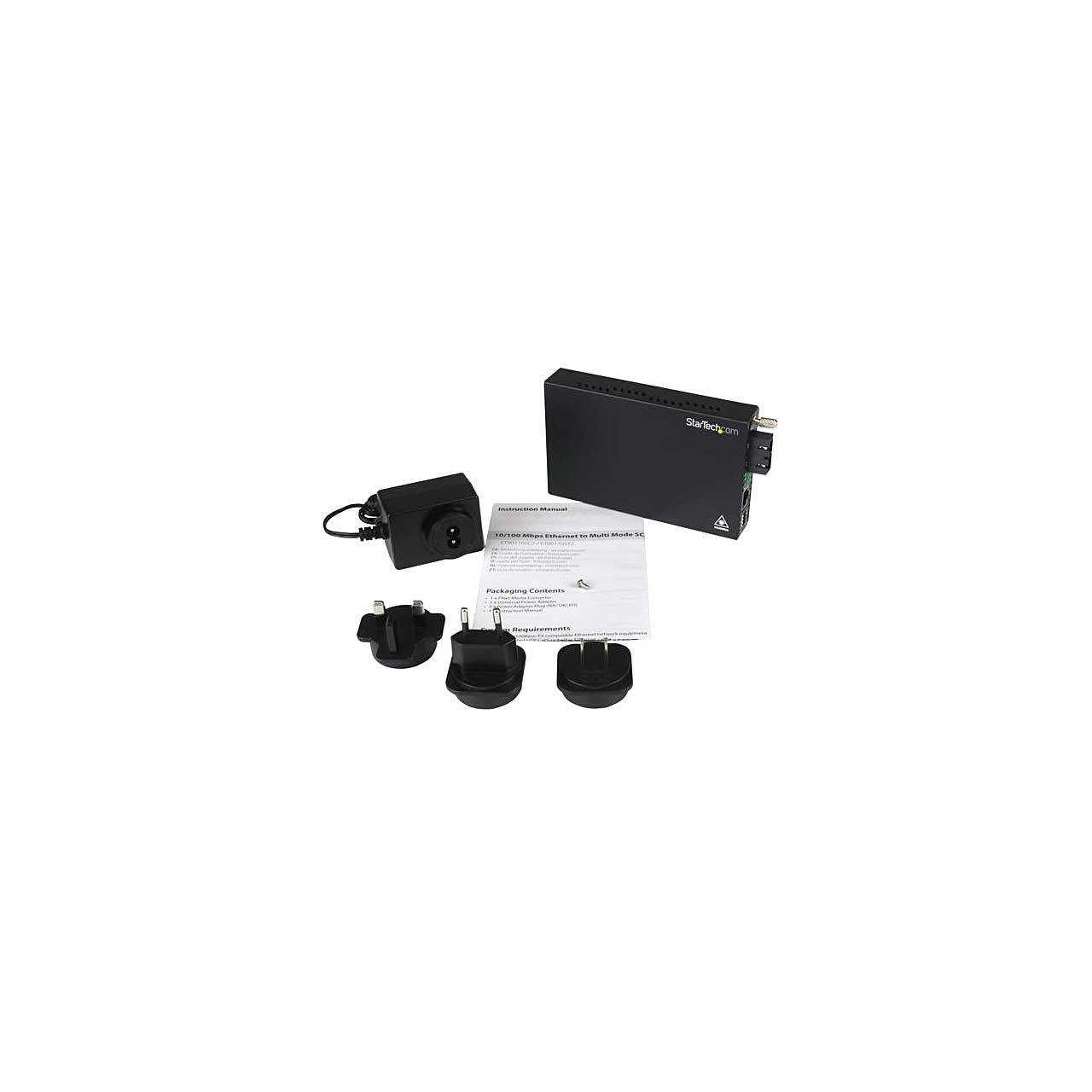

    • Item Includes:

      • 1 - Fiber Media Converter
      • 1 - Universal Power Adapter (NA/EU/UK) or AU in Australia
      • 1 - Instruction Manual

    • Warranty:

      • 2 Years

    • GTIN:

      0065030846240
