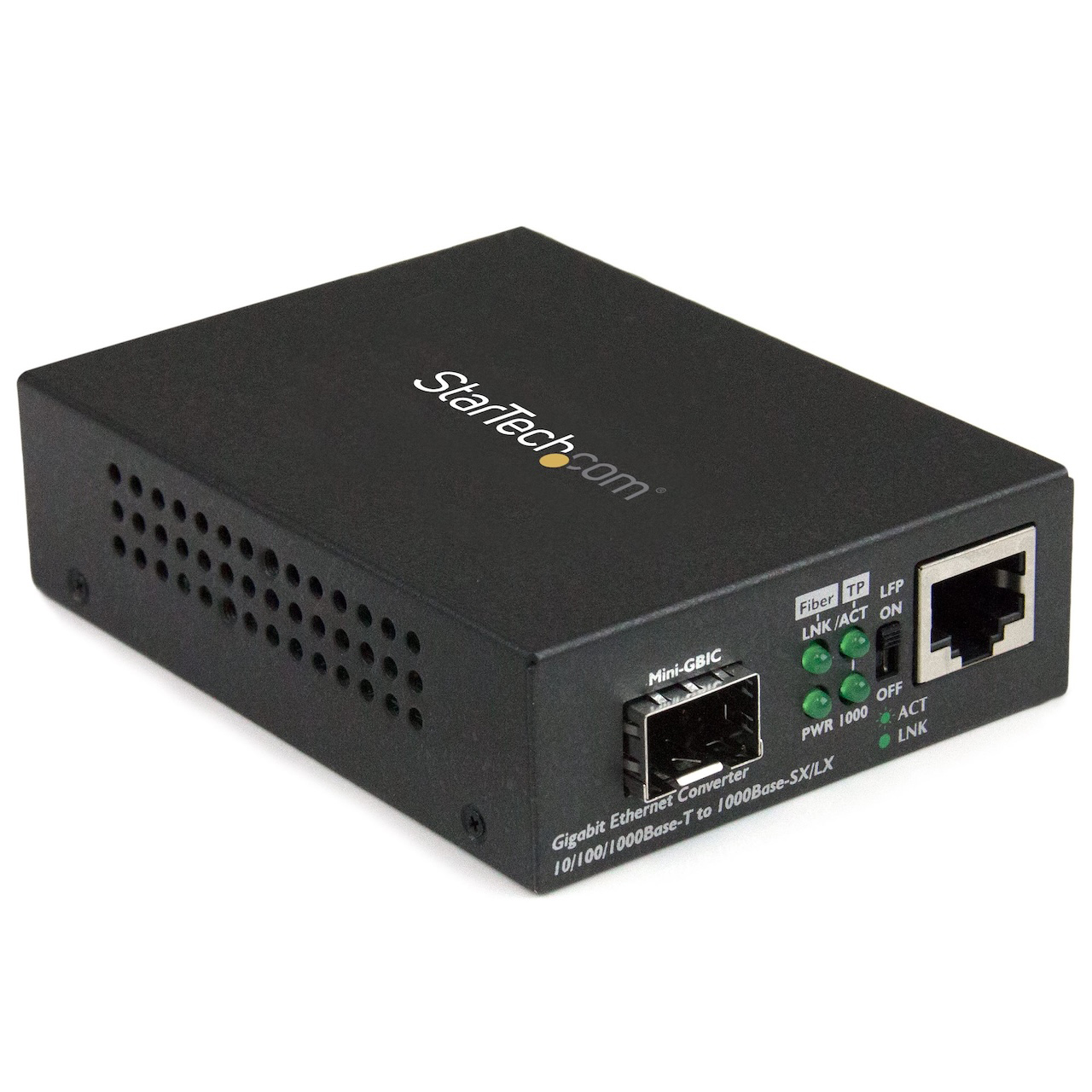

StarTech MCM1110SFP Gigabit Ethernet Over Fiber Extension Media Converter with Open SFP Slot - TAA

ITEM #: ST-MCM1110SFP MFG #: MCM1110SFP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$69.69

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MCM1110SFP - Overview

The IT Pro's Choice!

The StarTech MCM1110SFP fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Applications:
• Ideal for secure connections required by government or corporations where EMI is not acceptable
• Extend or bridge networks cost-effectively using fiber cabling
• Provide connectivity to users in an isolated area of a large complex or in a separate building
• Open SFP slot lets you customize your connection mode or distance using most MSA-Compliant transceivers

Please Note: Fiber data transfer speeds and distances are dependent on the SFP transceiver used (sold separately)

  • Features:

    • Ethernet Over Fiber Extension: Use this full duplex RJ45 copper to fiber media converter to cost-effectively convert and extend a Gigabit Ethernet connection; Link Fault Pass (LFP) supported.
    • Flexible Configuration: Fiber media converter with open SFP slot which allows you to customize the network extension distance to your requirements with any MSA-compliant multi or single mode transceiver
    • Auto Negotiation: Media converter features a 10/100/1000 Mbps compatible RJ45 port that supports auto negotiation to bridge different network devices/speeds to a Gigabit fiber network; Supports IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frames.
    • Compact and Durable: Media converter has a compact, lightweight design and can be mounted or placed into any location with little to no configuration; Ideal for mission-critical applications; TAA Compliant.

  • Specifications:

    • Local Unit Connectors:
      - 1x SFP Slot
      - 1x RJ-45

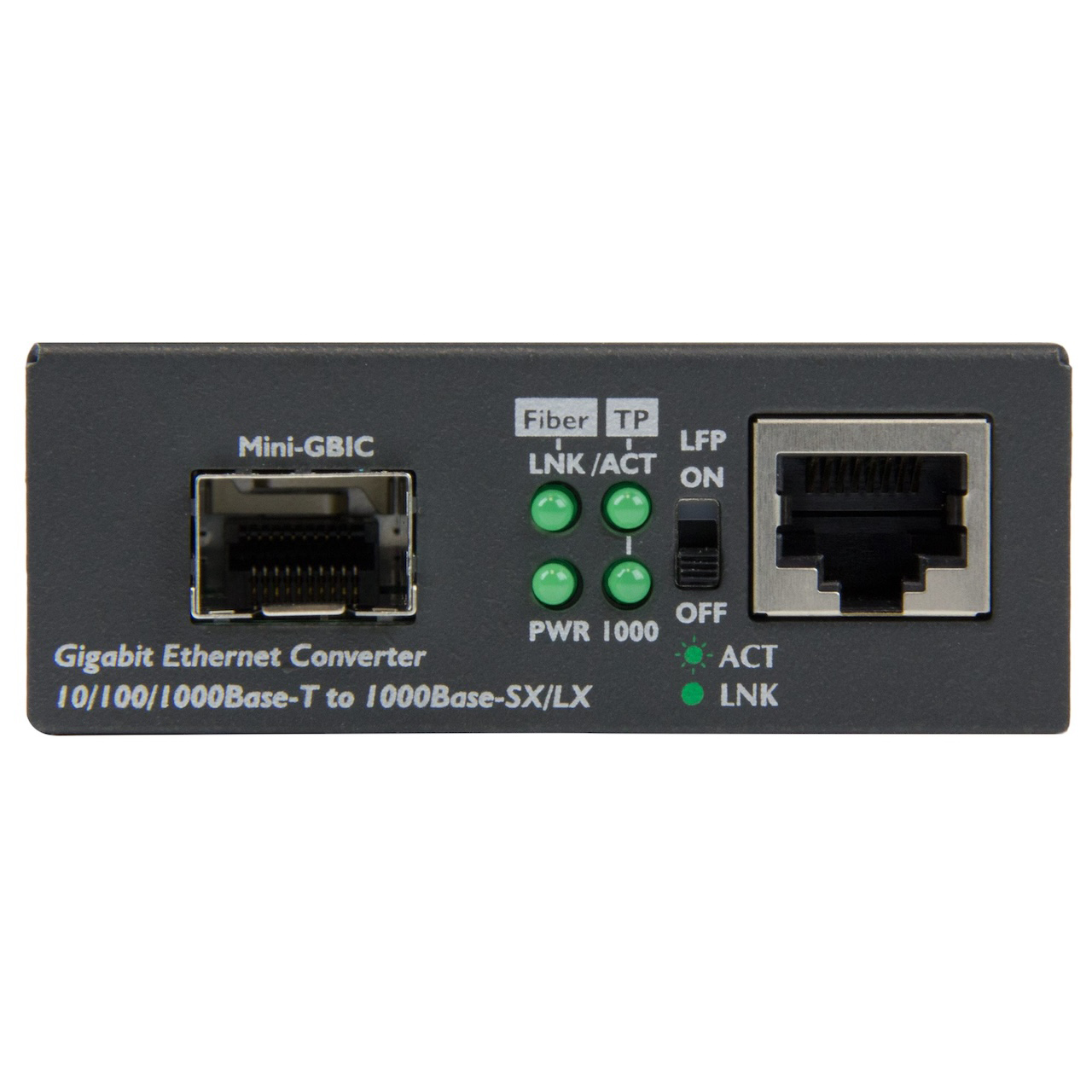

    • LED Indicators:
      - 1x Power
      - 1x Fiber Port Link/Act
      - 1x Copper Port Link/Act
      - 1x 1000 Mbps

      Environmental
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Humidity: 5% - 95% RH (Non-condensing)

      Hardware
    • PoE: No
    • WDM: No

      Performance
    • Maximum Data Transfer Rate: 1Gbps
    • Type: Singlemode/Multimode
    • Fiber Operating Mode: Full-Duplex
    • Compatible Networks: 10/100/1000Mbps
    • Auto MDIX: Yes
    • MTBF: > 50,000 hours at 77°F (25°C)

      Physical Characteristics
    • Weight: 0.39lbs (178g)
    • Color: Brown
    • Material: Steel
    • Dimensions (LxWxH): 3.7" x 2.8" x 1" (9.5cm x 7cm x 2.6cm)
    • Packaged Dimensions (LxWxH): 5.5" x 11.2" x 2.7" (13.9cm x 28.5cm x 6.9cm)

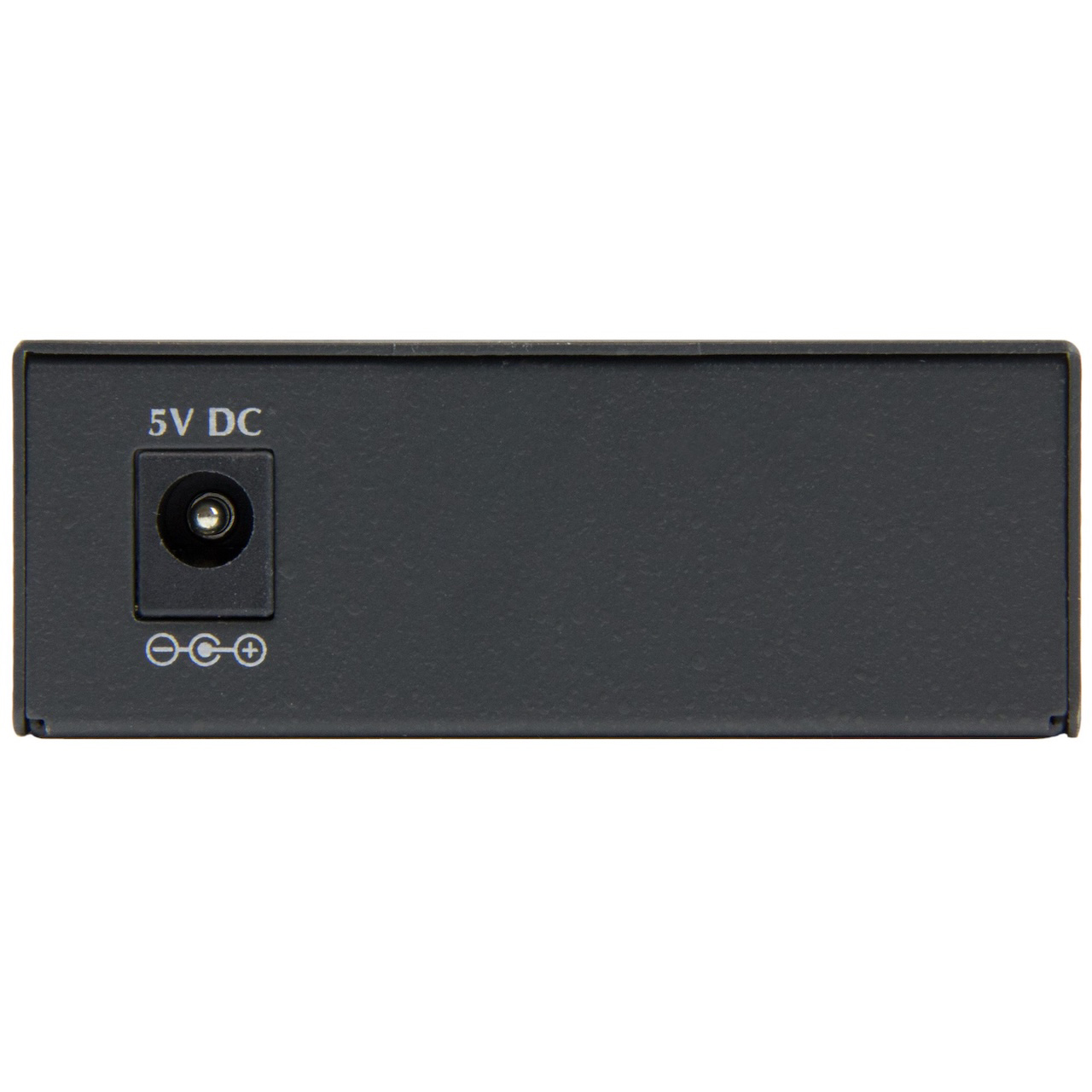

      Power
    • Power Source: AC Adapter Included
    • Input Voltage: 100V - 240V AC
    • Input Current: 0.4A
    • Output Voltage: 5V DC
    • Output Current: 2A
    • Center Tip Polarity: Positive
    • Plug Type: NA
    • Power Consumption: 10W

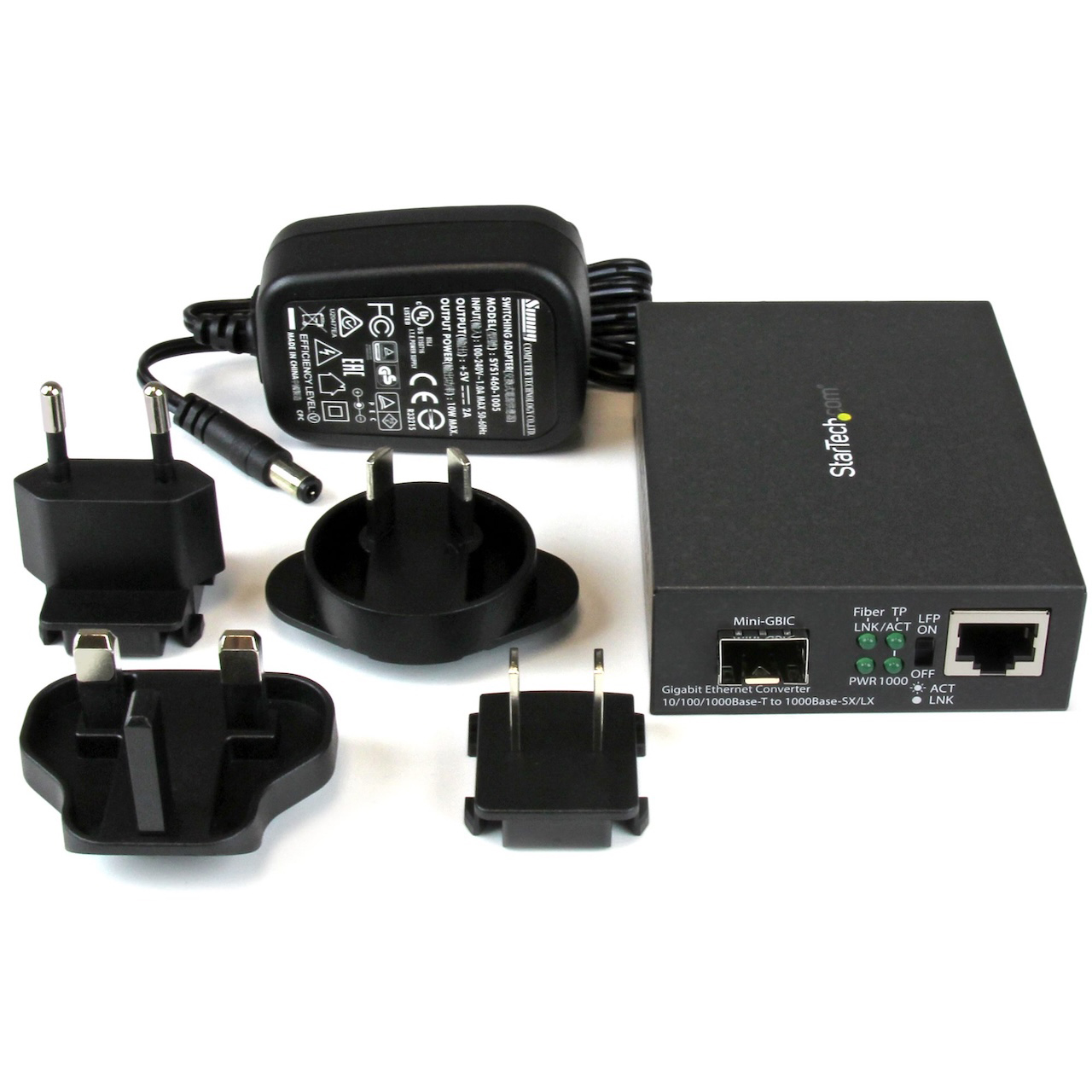

  • Item Includes:

    • 1x Gigabit Ethernet fiber media converter w/ open SFP slot
    • 1x universal power adapter (NA/EU/UK/AU

  • Warranty:

    • 2 Year Limited Warranty
