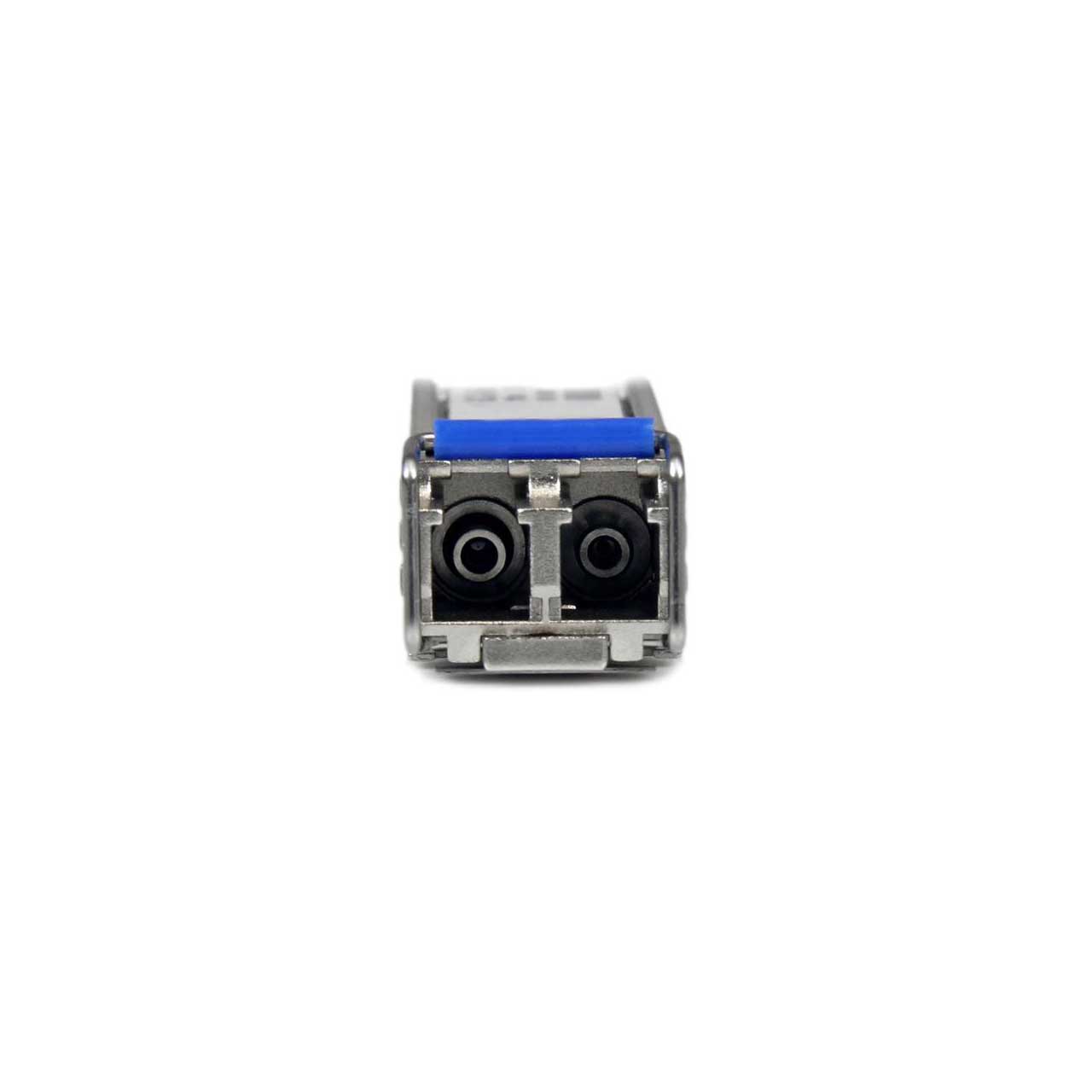

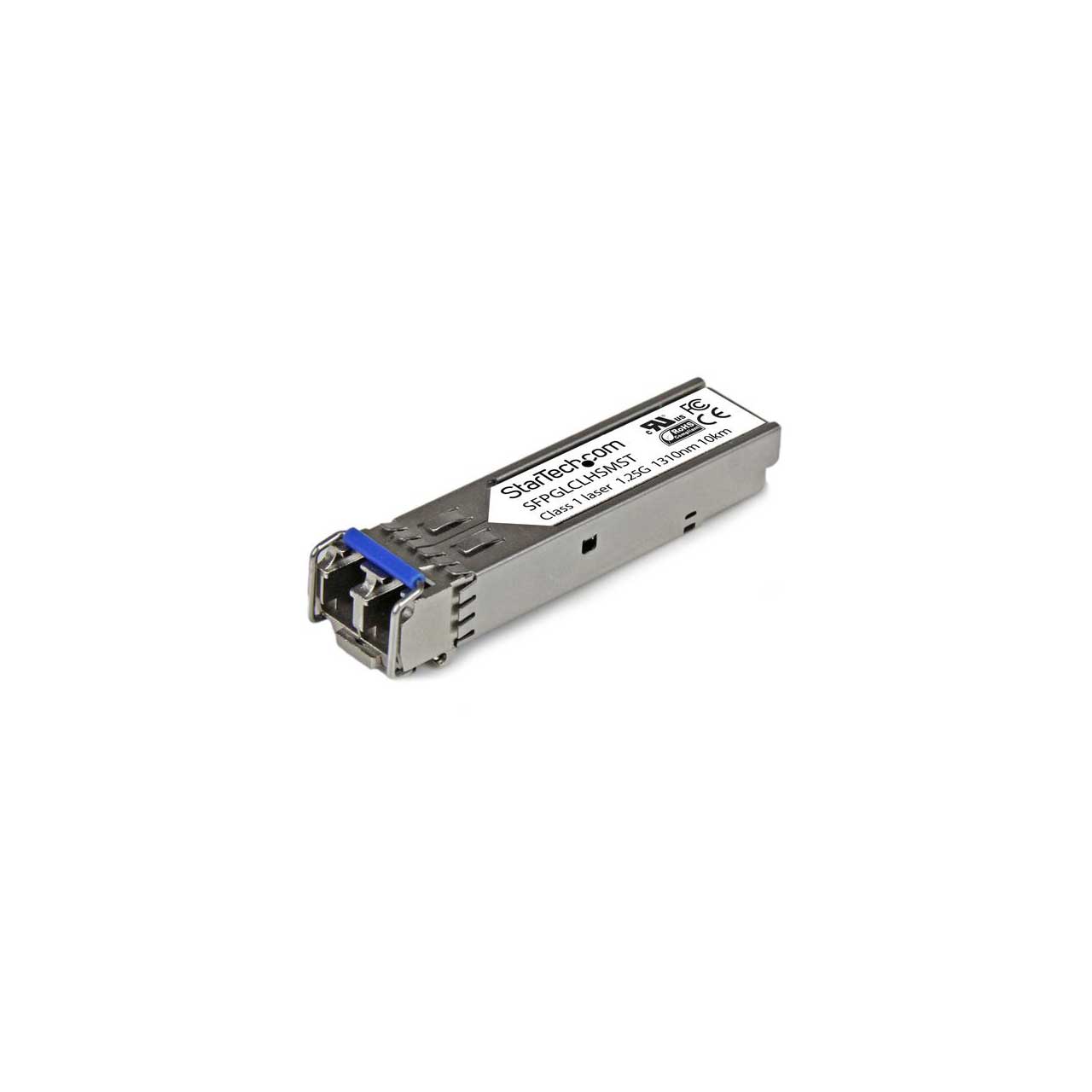

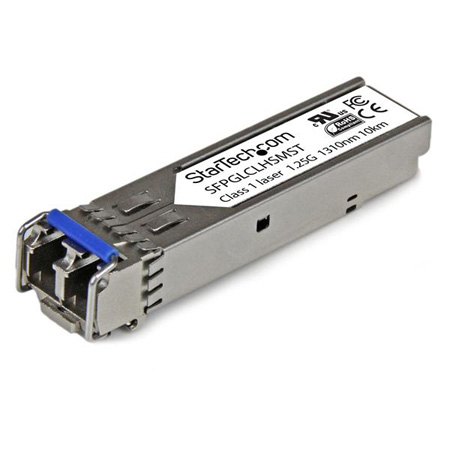

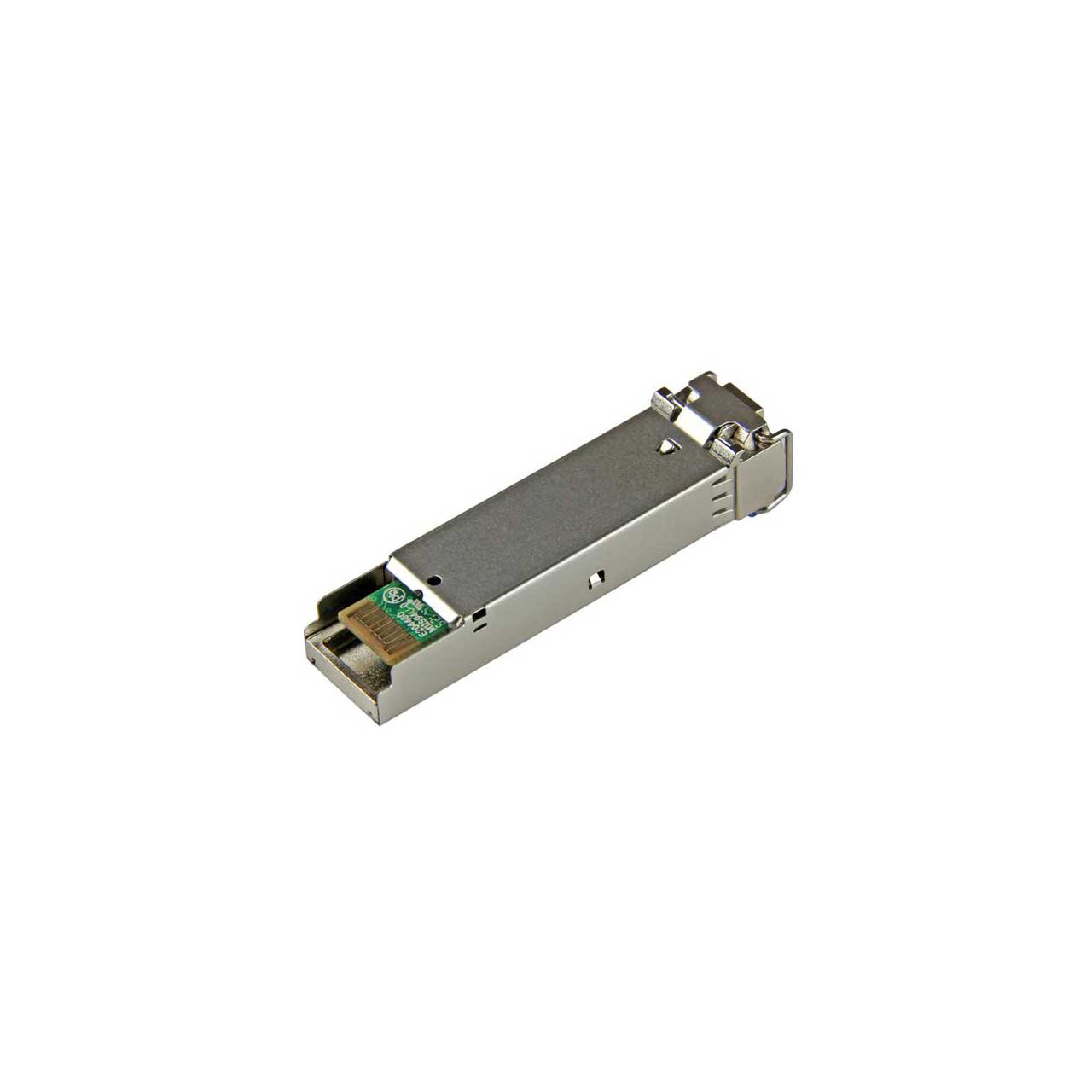

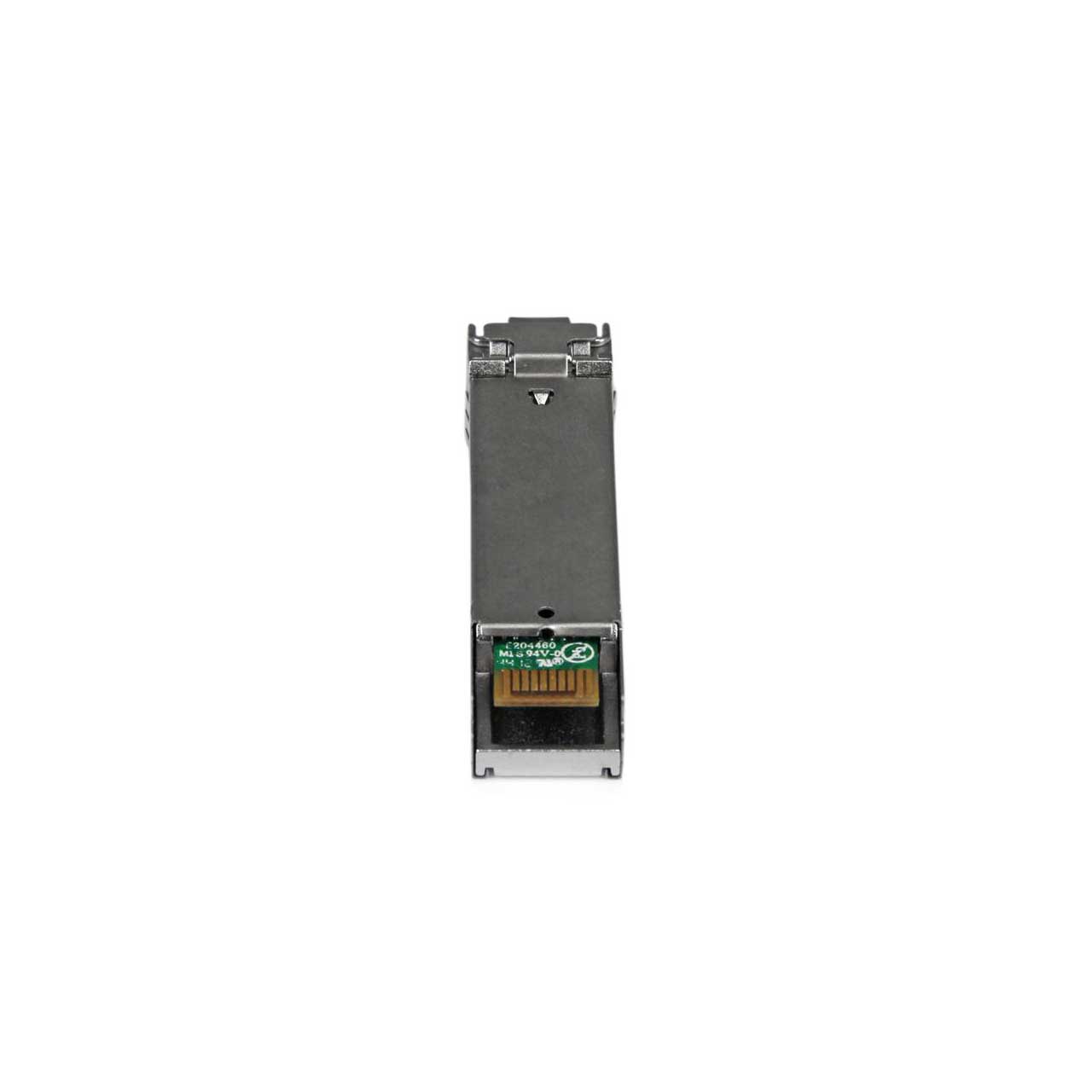

Startech SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC - 10 km (Mini-GBIC)

ITEM #: ST-SFPGLCLHSMST MFG #: SFPGLCLHSMST

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$53.99

Our Price:

$46.66

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SFPGLCLHSMST - Overview

    The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter. Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 550 m (1804 ft.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot. This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.

    • Features:

      • Data rates up to 1.25 Gbps
      • Supports single-mode (10km / 6.2 mi.) and multi-mode (550 m / 1804 ft.)
      • Complies with SFP Multi-Source Agreements standards (MSA)
      • Compatible with Cisco equipment
      • LC Fiber connector
      • Fully Hot Pluggable

    • Specifications:

      • Hardware
      • Industry Standards: IEEE 802.3z 1000BASE-LX/LH
      • WDM: No
        Performance
      • Compatible Networks: 1000 Mbps (1 Gbps)
      • DDM: No
      • Fiber Operating Mode: Half/Full-Duplex
      • Fiber Type: Single Mode, Multi Mode
      • Max Transfer Distance: 10 km (6.2 mi)
      • Maximum Data Transfer Rate: 1.25 Gbps
      • Wavelength: 1310nm
        Connector(s)
      • Local Unit Connectors: 1 - Fiber Optic LC Duplex Female
        Special Notes/Requirements
      • Note: For use in Gigabit fiber networking equipment and media converters
      • System and Cable Requirements: MSA or Cisco compliant SFP port
        Environmental
      • Humidity: 30~70% RH
      • Operating Temperature: 0°C to 70°C (32°F to 158°F)
      • Storage Temperature: -40°C to 85°C (-40°F to 85°F)
        Physical Characteristics
      • Product Height: 0.4 in [10 mm]
      • Product Length: 2.4 in [60 mm]
      • Product Weight: 0.6 oz [18 g]
      • Product Width: 0.5 in [12 mm]
        Packaging Information
      • Shipping (Package) Weight: 1.6 oz [45 g]

    • Item Includes:

      • 1 - 1.25 Gbps Single Mode LC SFP

    • Warranty:

      • Lifetime

    • GTIN:

      0065030850643
