StarTech RKCONS1708K Integrated USB + VGA KVM Switch with 17 Inch LCD Monitor with 6 Foot Cables & 1RU LCD Drawer

ITEM #: ST-RKCONS1708K MFG #: RKCONS1708K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,391.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RKCONS1708K - Overview

    Providing centralized control of up to eight servers, this StarTech RKCONS1708K 8-port rackmount KVM consoleÿgives youÿeasy accessÿto yourÿsystems. With a minimal footprint, it mounts in a server rack or cabinet using only 1RU of rack space.

    An All-Inclusive Solution
    The 1RU rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

    Thisÿ8-portÿKVM consoleÿcomes with everythingÿyou need to set up right out of the box:

    -8 VGA KVM Cables
    -Mounting Rails
    -M5 Cage Nuts and Screws

    Simple System Integration
    With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

    StarTech Rack Consoles
    Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1RU of rack space.

    Applications
    Control a single system, or dozens of KVM-connected computers
    Improve the internal space efficiency of your server cabinet
    Manage cabinet-mounted servers and KVM switches

    • Features:

      • Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280x1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
      • Professional & Secure: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
      • Integrated Design: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" (incl. mounting hardware)
      • Heavy Duty: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
      • Tested & Proven: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech 2-year warranty and free lifetime 24/5 multilingual technical support

    • Specifications:

      • Connector(s)
      • Console Interface(s): 1 - VGA (15 pin, High Density D-Sub), 2 - USB Type-A (4 pin) USB 2.0
      • Host Connectors: 8 - VGA (15 pin, High Density D-Sub)
      • Other Interface(s): 1 - 15 Pin High Density D-Sub

        Environmental
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: -4°F to 140°F
      • Humidity: 10 ~ 80% RH

        Hardware
      • RU Height: 1RU
      • Front Door Key Lock: No
      • Audio: No
      • Display Size: 17in
      • Panel Type: Active Matrix TFT LCD
      • KVM Ports: 8
      • PC Interface: USB
      • PC Video Type: VGA
      • Number of Monitors Supported: 1
      • Rack-Mountable: Yes
      • Cables Included: Yes
      • Daisy-Chain: No

        Indicators
      • LED Indicators: 8 - Green/Red - Online/Selected LED

        Packaging Information
      • Package Height: 7.2 in
      • Package Length: 24.3 in
      • Package Width: 3.0 in
      • Shipping (Package) Weight: 43.5lb

        Performance
      • On-Screen Display: Yes
      • IP Control: No
      • Maximum Analog Resolutions: 1280 x 1024
      • Supported Resolutions: Resolutions up to 1280 x 1024 @ 60Hz
      • Aspect Ratio: 5:4
      • Response Time: 5ms
      • Contrast Ratio: 1000:1
      • Brightness: 250 cd/m²
      • Color Depth: 8-bit, 16.7M colors
      • Pixel Pitch Support: 0.264 x 0.264 mm
      • Viewing Angle: 170° (H), 160° (V)
      • Maximum Number of Users: 1
      • Port Selection Support: Push Button, Hotkeys, and OSD (On Screen Display)
      • MTBF: 50, 000 Hrs

        Physical Characteristics
      • Color: Black
      • Material: Steel
      • Cable Length: 6 ft
      • Product Length: 24.5 in
      • Product Width: 1.9 in
      • Product Height: 1.7 in
      • Weight of Product: 37.6 lb
      • Maximum Mounting Depth: 35.4 in
      • Minimum Mounting Depth: 22.0 in

        Power
      • Power Source: International Power Cords
      • Input Voltage: 100 - 240 AC
      • Input Current: 1.5A
      • Power Consumption (In Watts): 17W

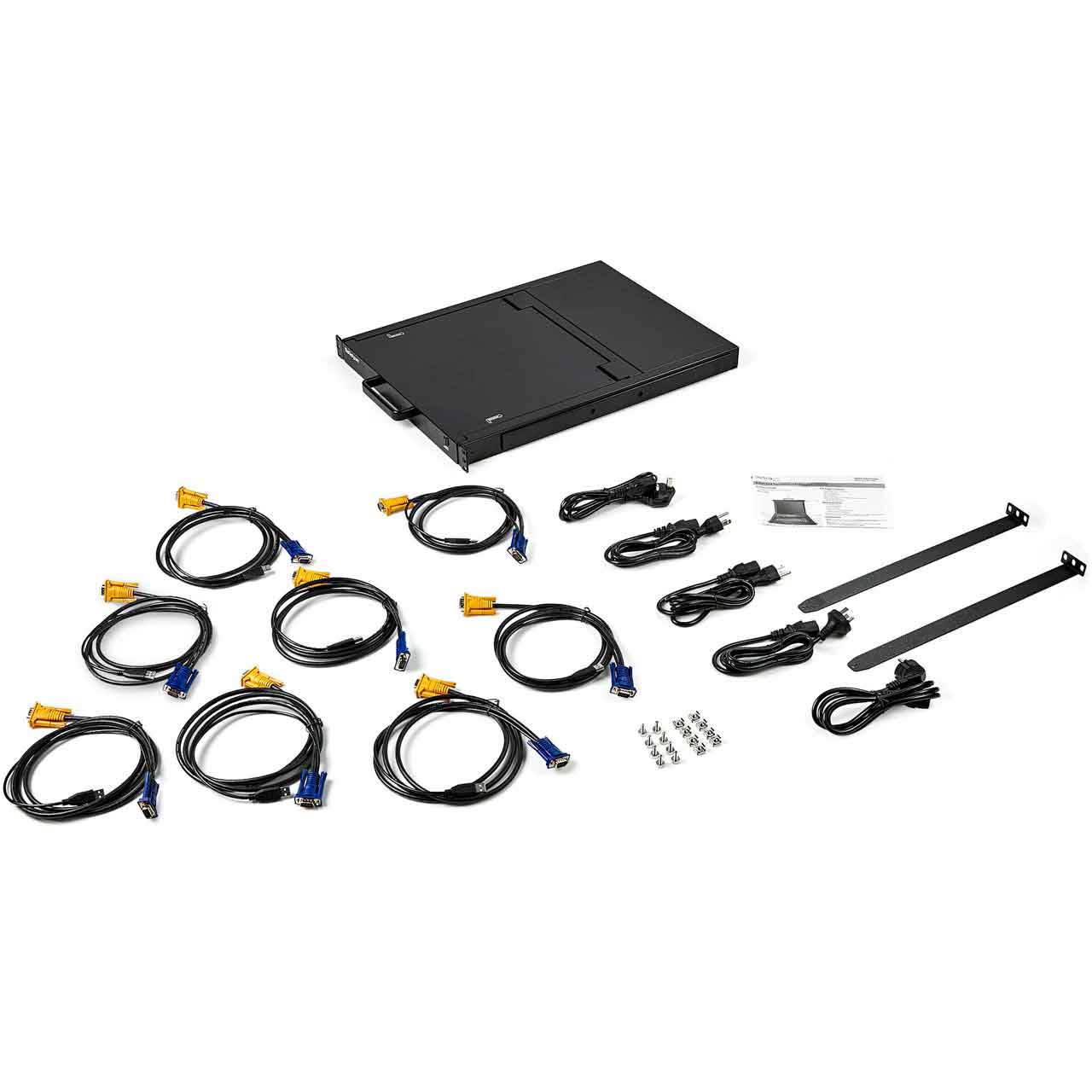

    • Item Includes:

      • 1x KVM console
      • 8x KVM cables
      • 8x M5 cage nuts
      • 8x M5 screws
      • 5x Power Cords (NA, JP, UK, EU, ANZ)
      • 2x Mounting Rails
      • 1x Quick-Start Guide

    • Warranty:

      • 2-year

    • GTIN:

      0065030872485
