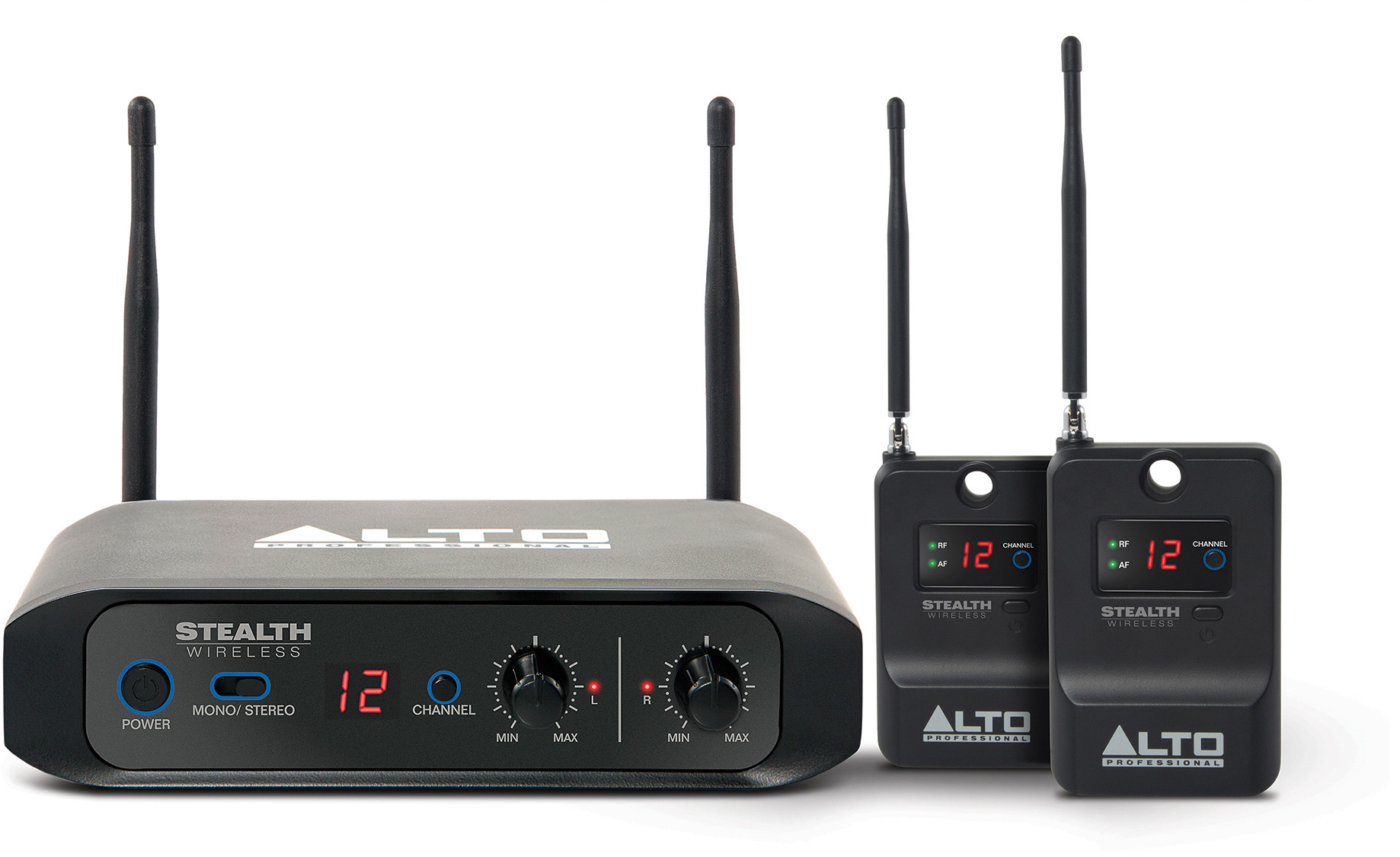

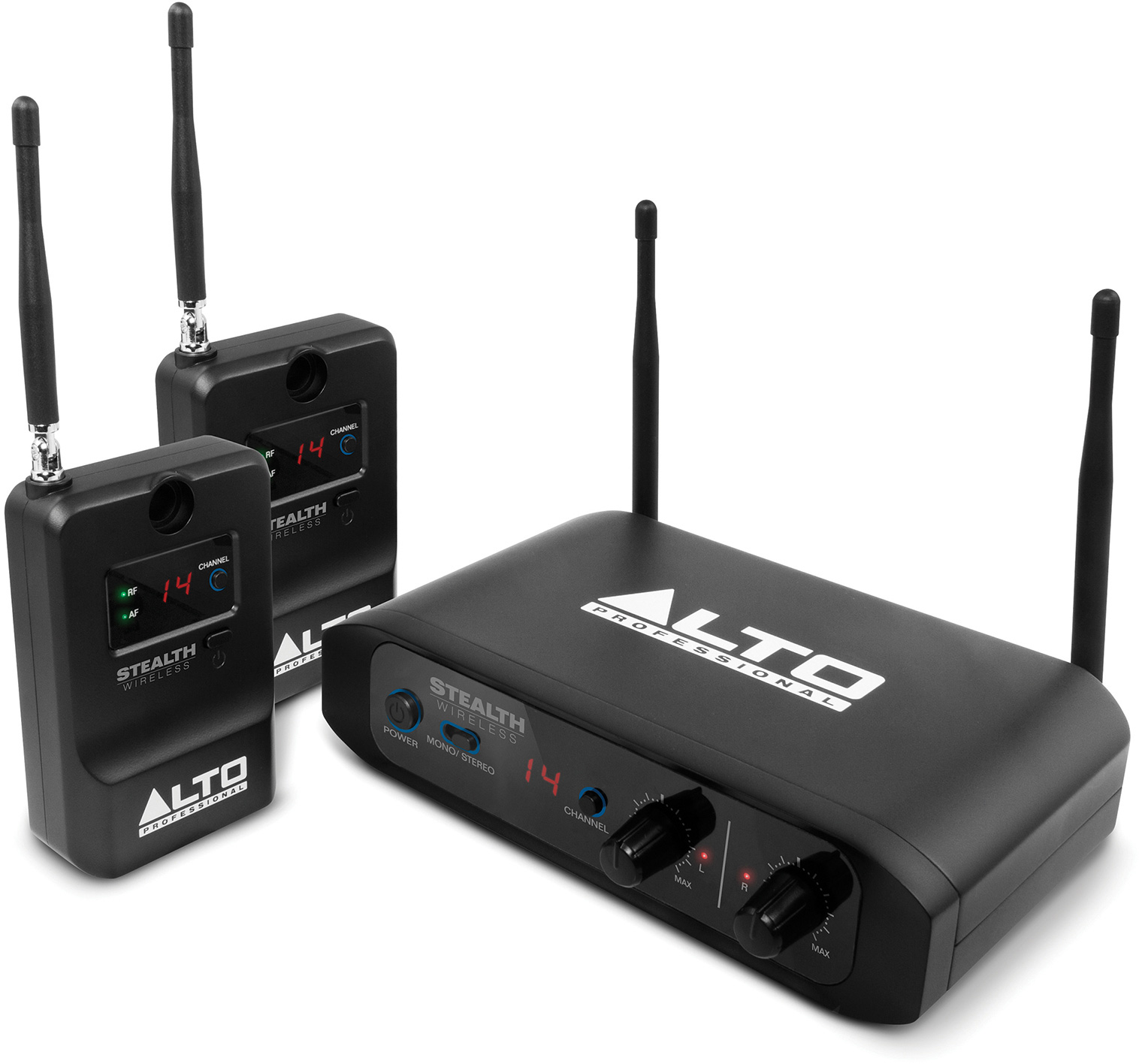

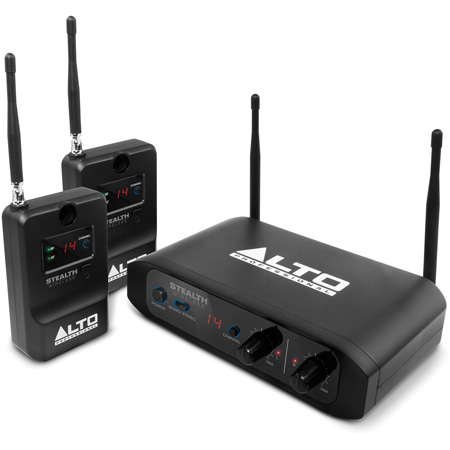

Alto Professional STEALTHWIRELESSXUS Stealth Wireless Stereo System for Active Loudspeakers

ITEM #: STEALTHWIRELESSX MFG #: STEALTHWIRELESSXUS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the STEALTHWIRELESSX

STEALTHWIRELESSXUS - Overview

The easy-to-use STEALTHWIRELESSXUS Stealth Wireless system from Alto Professional replaces hundreds of feet of audio cable with a reliable wireless connection. Compatible with all active loudspeakers, as well as traditional passive speaker/amplifier setups, this expandable two-channel system delivers interference-free sound. Enjoy faster setups, quicker teardowns, and eliminate complicated or unsightly cable runs, regardless of the venue. The Stealth Wireless system quickly creates a robust, invisible connection from the output of your mixer or DJ controller to the inputs of your active loudspeakers. There’s no need to snake, secure, or hide any cabling during set up. After the show, simply disconnect the system and be on your way-no more tedious cable coiling at the end of the night.

  • Features:

    • Add wireless audio connectivity to any active loudspeaker
    • Enjoy faster setups and teardowns
    • Eliminate complex cable runs
    • Dual-channel transmitter (x1) with two XLR+1/4
    • Single-channel receivers (x2) with one XLR output (per unit)
    • Replaces up to 200' of console-to-system cabling
    • No compromise in audio quality
    • Reliable UHF band; 16 selectable channels
    • Adjustable squelch eliminates interference

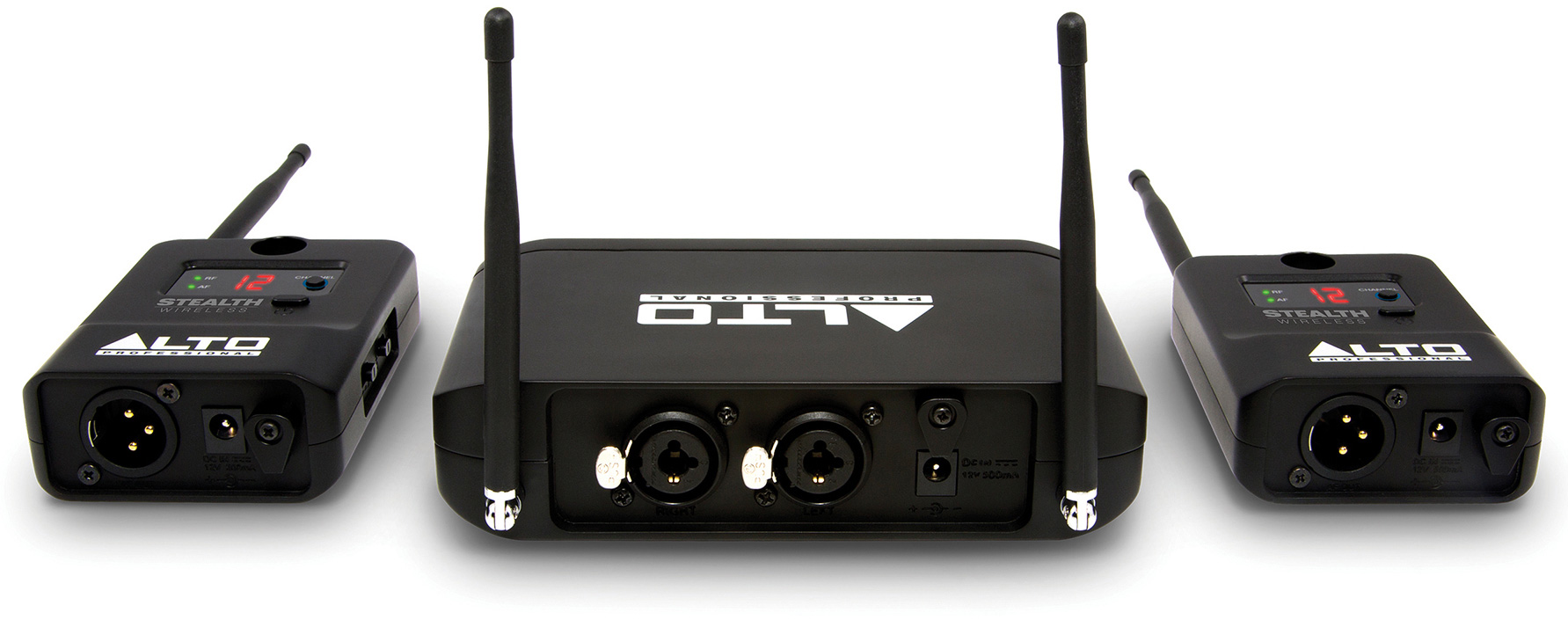

    • Transmitter: (2) XLR+1/4 combo inputs
    • Receiver: (1) XLR output (per receiver)

  • Specifications:

    • Transmitter
    • Type: Dual Channel Transmitter
    • RF Frequency: 540 - 570 MHz
    • Oscillation Type: PLL
    • Preset Channels: 16 Channels (stereo)
    • Frequency Response: 50 Hz ~ 17 kHz / 3dB
    • Bandwidth: 24 MHz or 30MHz
    • Frequency Stability: 0.005%
    • Frequency Deviation: 20 kHz
    • LED Indicators: Power On/Off, Sig/Clip
    • Power External Adaptor, 12 VDC/300 mA
    • Output Power: 10 mW
    • Controls: Power Switch; Channel Select; Mono/Stereo Switch
    • Dimensions: 6.32 x 5 x 4 inches (with antennae)
    • Weight: 10.2 ounces (290 grams)

      Receiver
    • Type: Single Channel Receiver
    • Preset Channels: 16 Channels
    • RF Frequency: 540 - 570 MHz
    • S/N Ratio: 100 dB/A
    • RF Sensitivity: -100 dBm
    • Image Rejection: 70 dB
    • T.H.D.: 0.5 @ 1kHz
    • LED Indicator: Power On, RF/AF LED Indicator
    • AF output Impedance: 660Ω balanced
    • Squelch: 3-step & Pilot Tone
    • Operation Voltage: 12 VDC 300 mA
    • Dimensions: 4.58 x 2.74 x 1.24 inches (with antennae
    • Weight (each): 4.15 ounces (117.7 grams)

  • GTIN:

    0816311011068
